Victor 2.3m Mulcher Mower

Del Morino

$16,395.00 NZD inc GST

$14,256.54 NZD exc GST

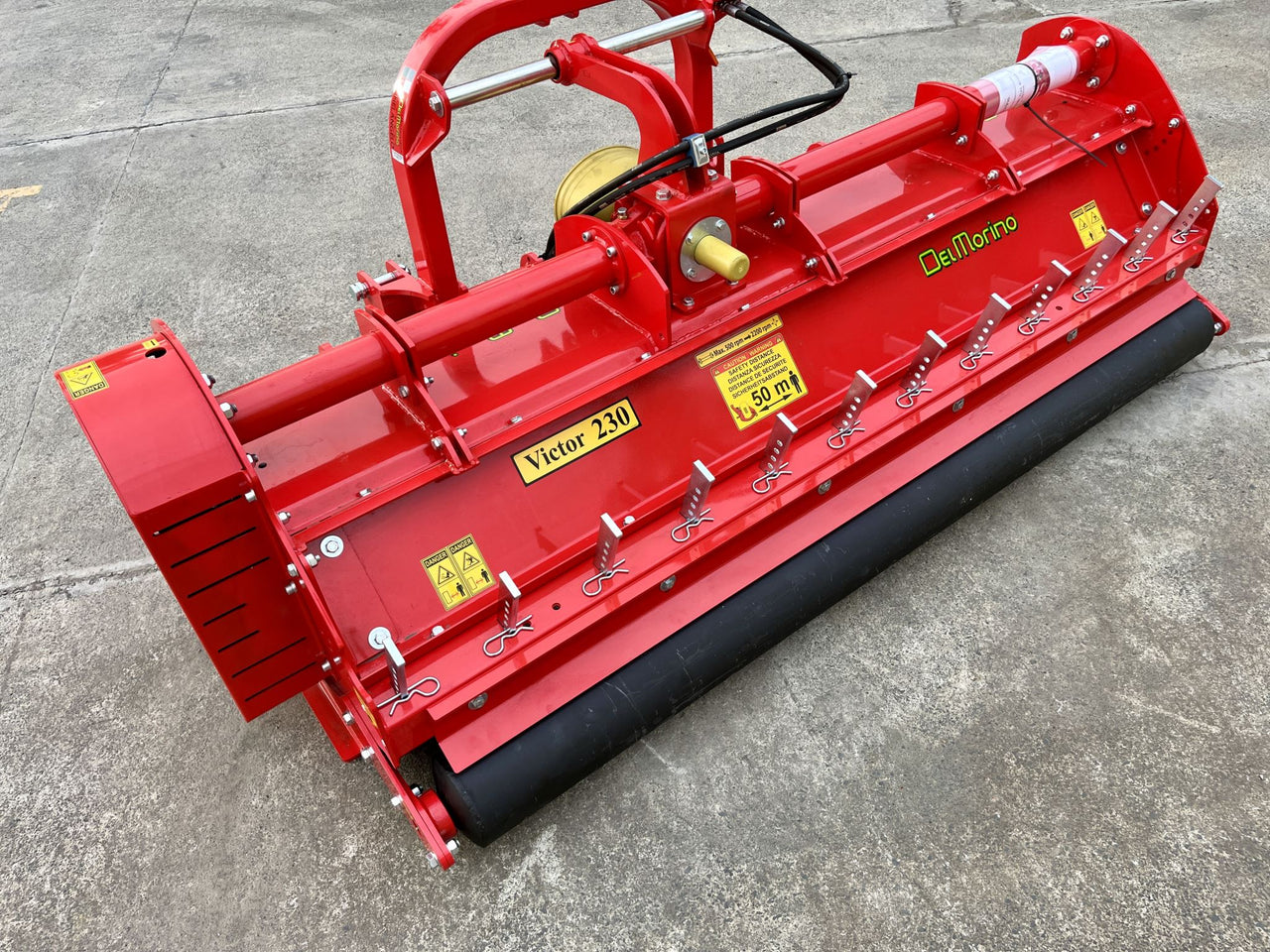

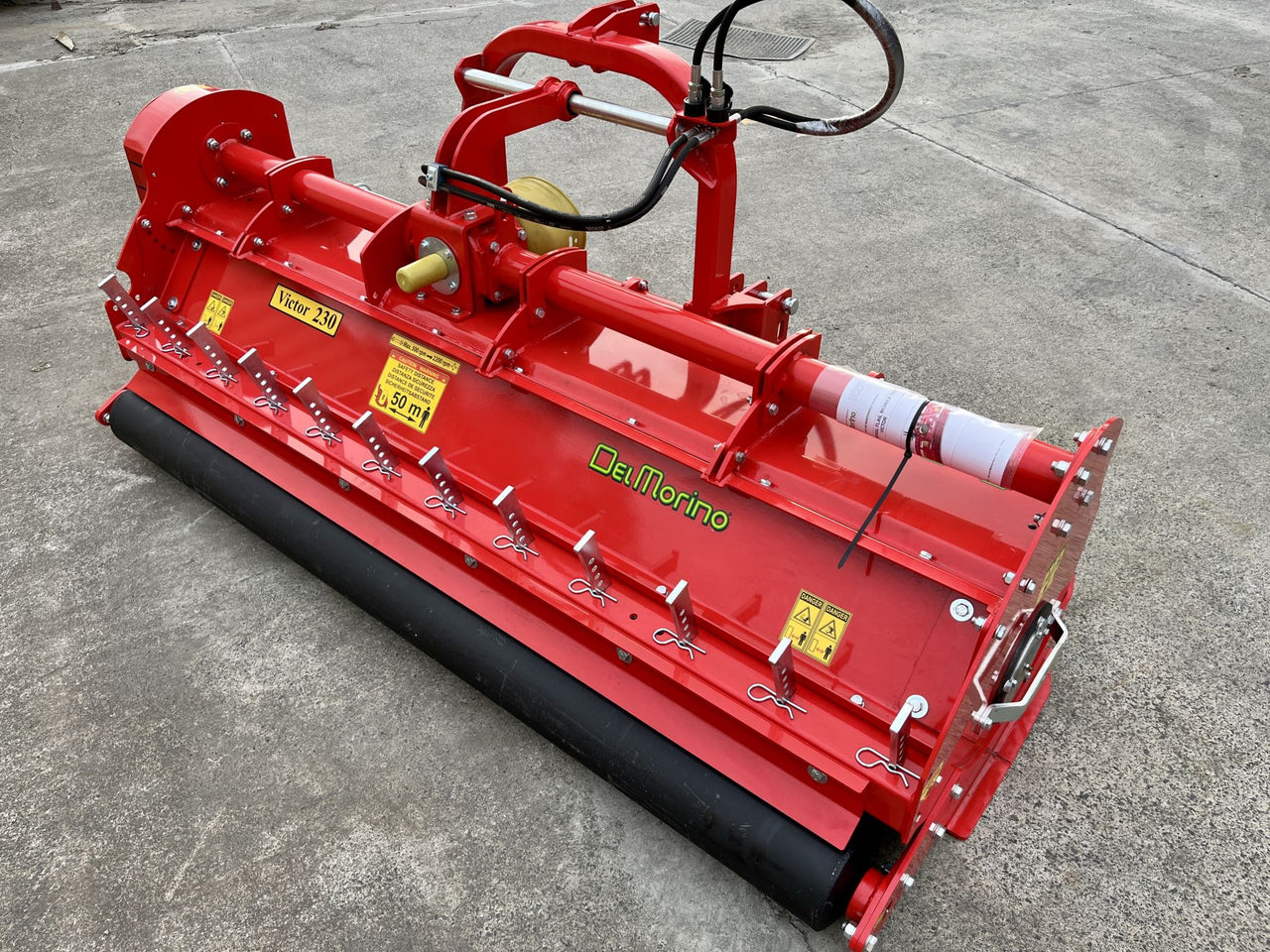

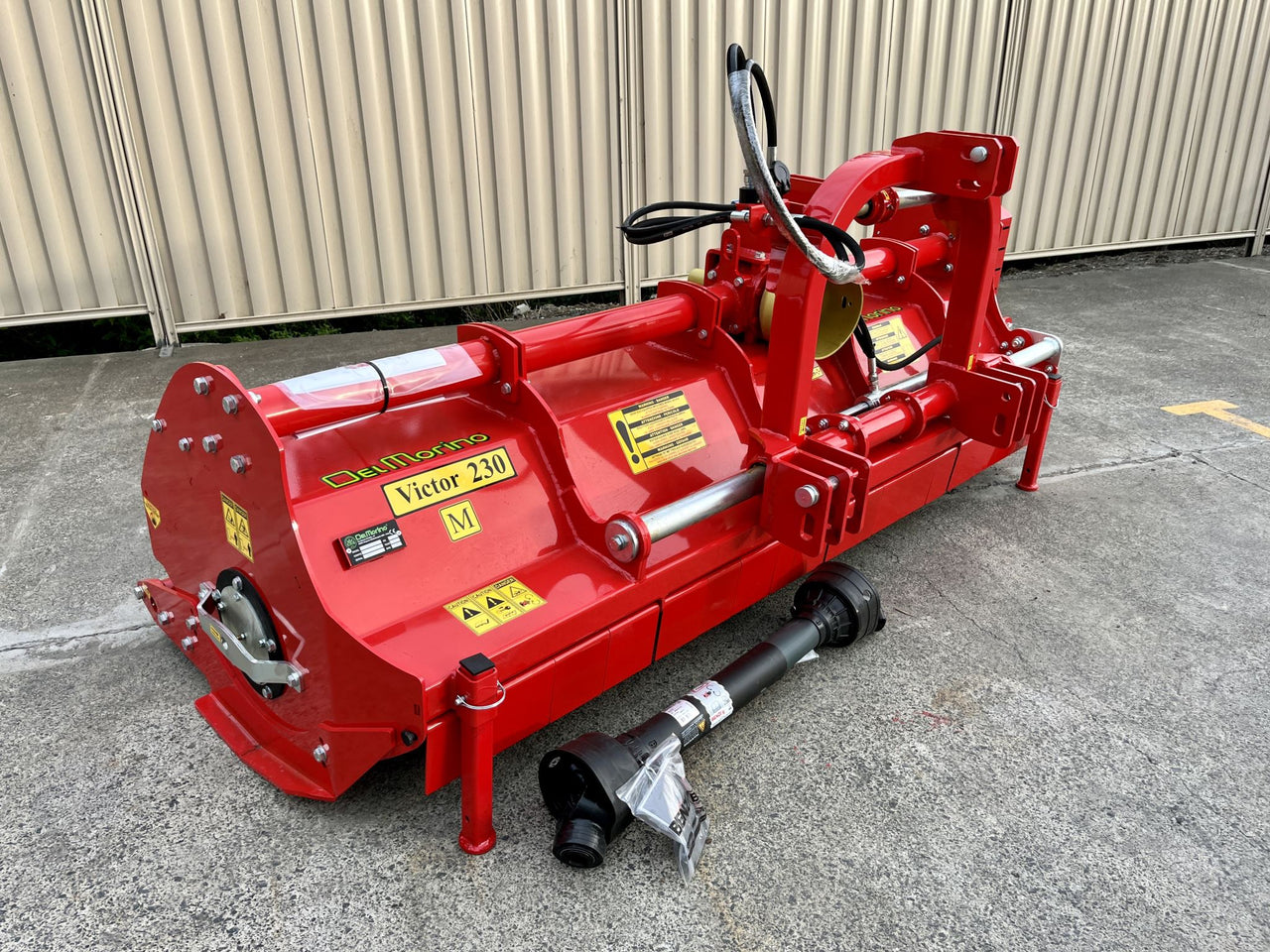

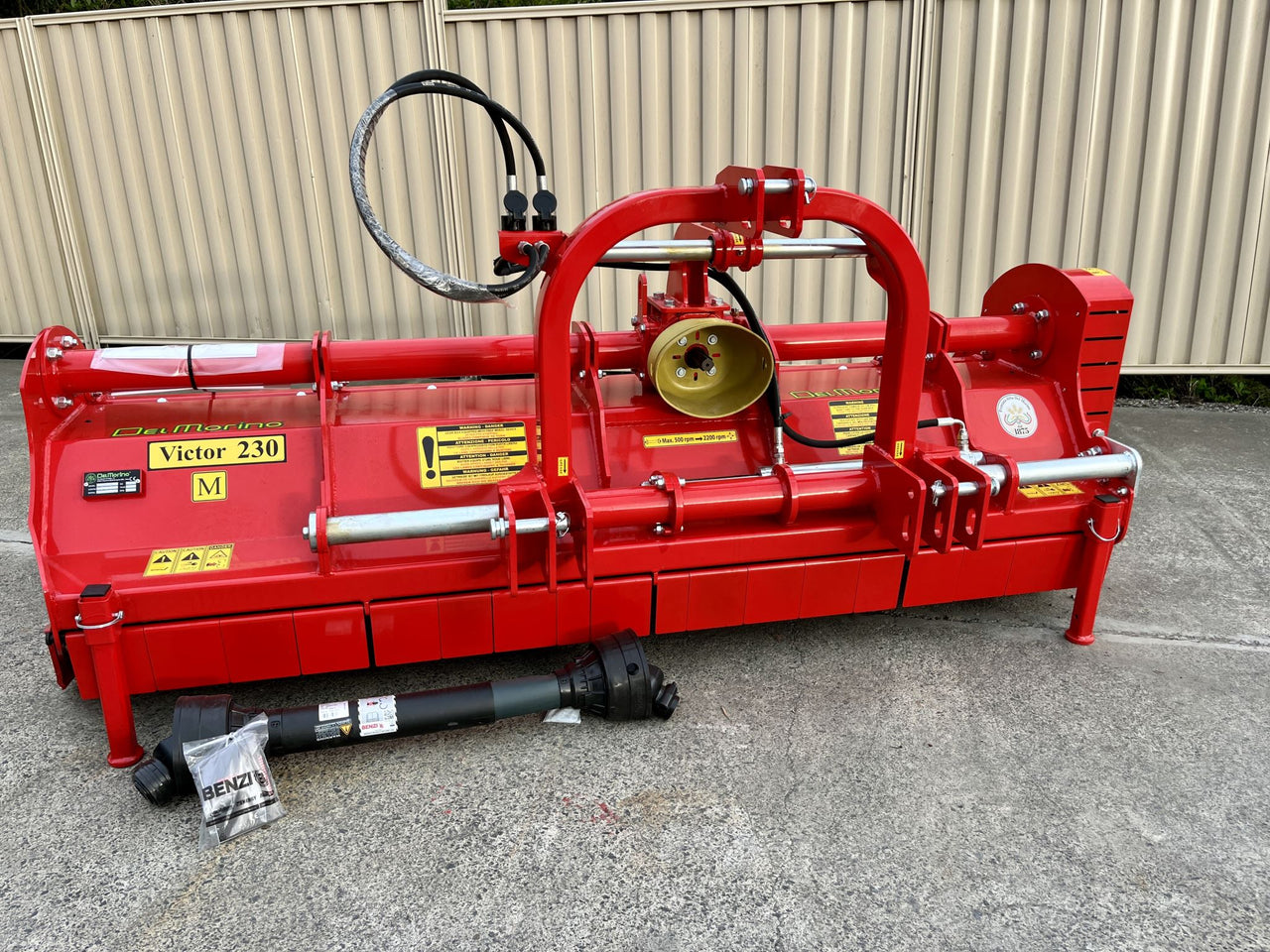

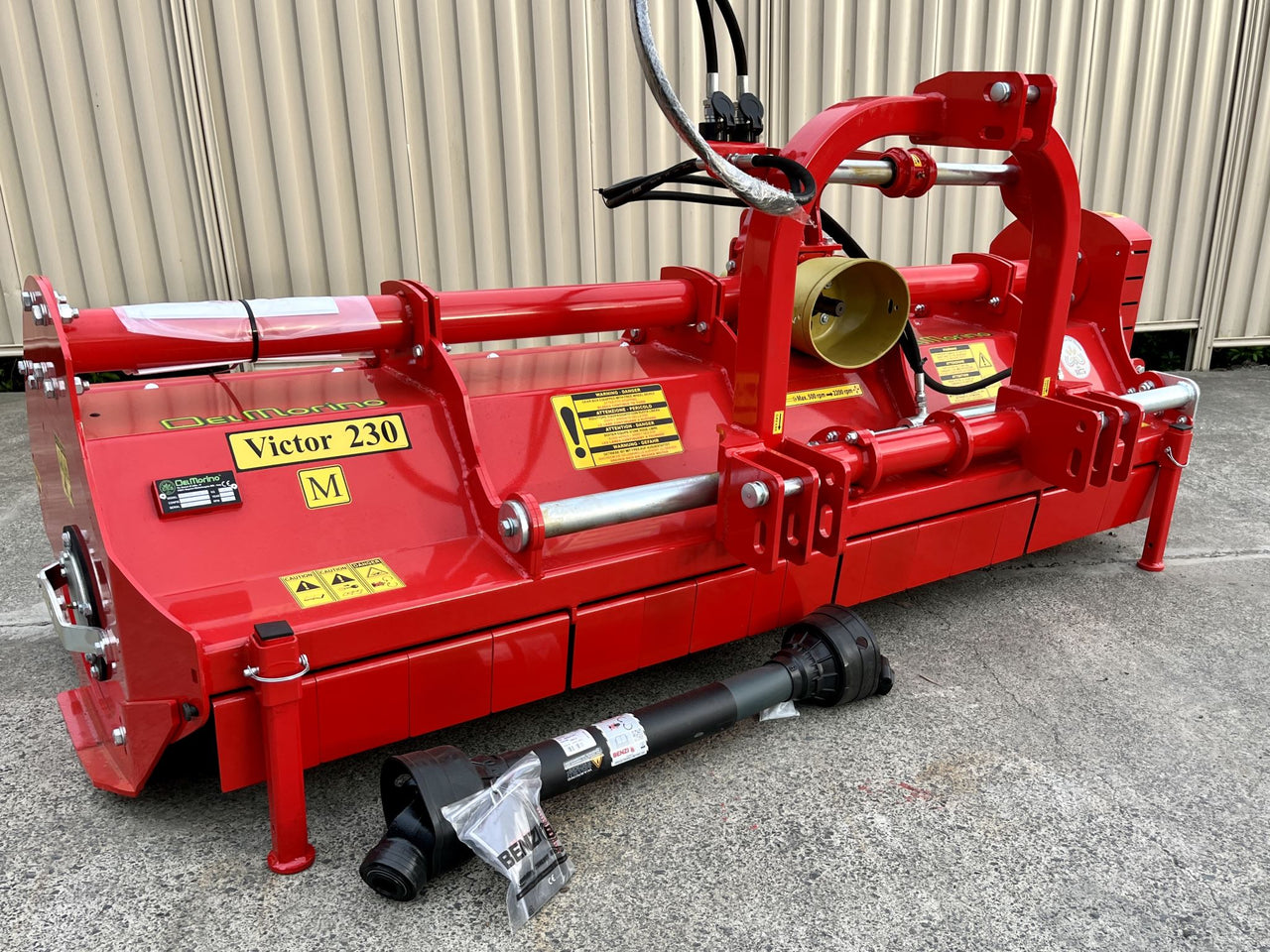

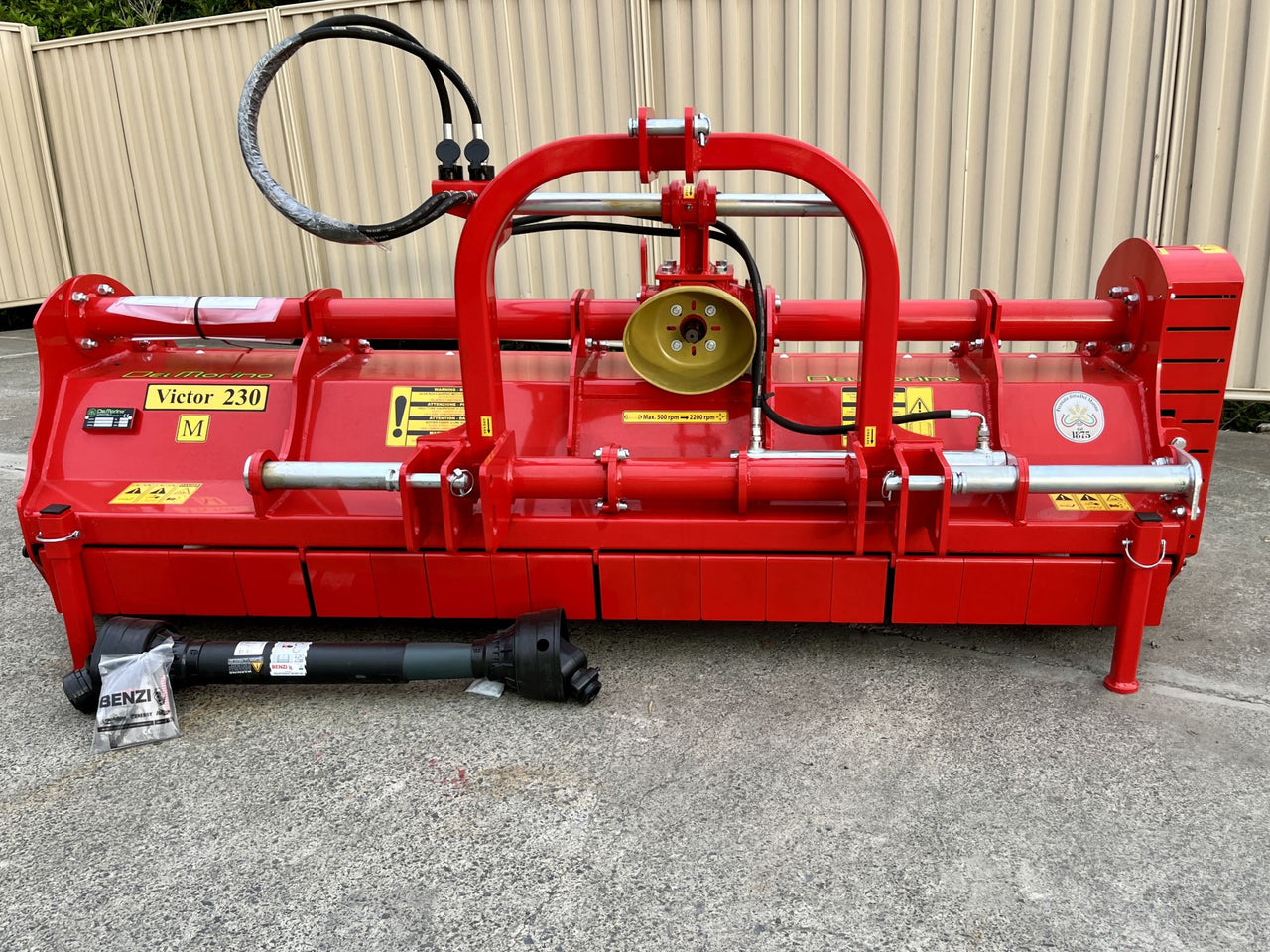

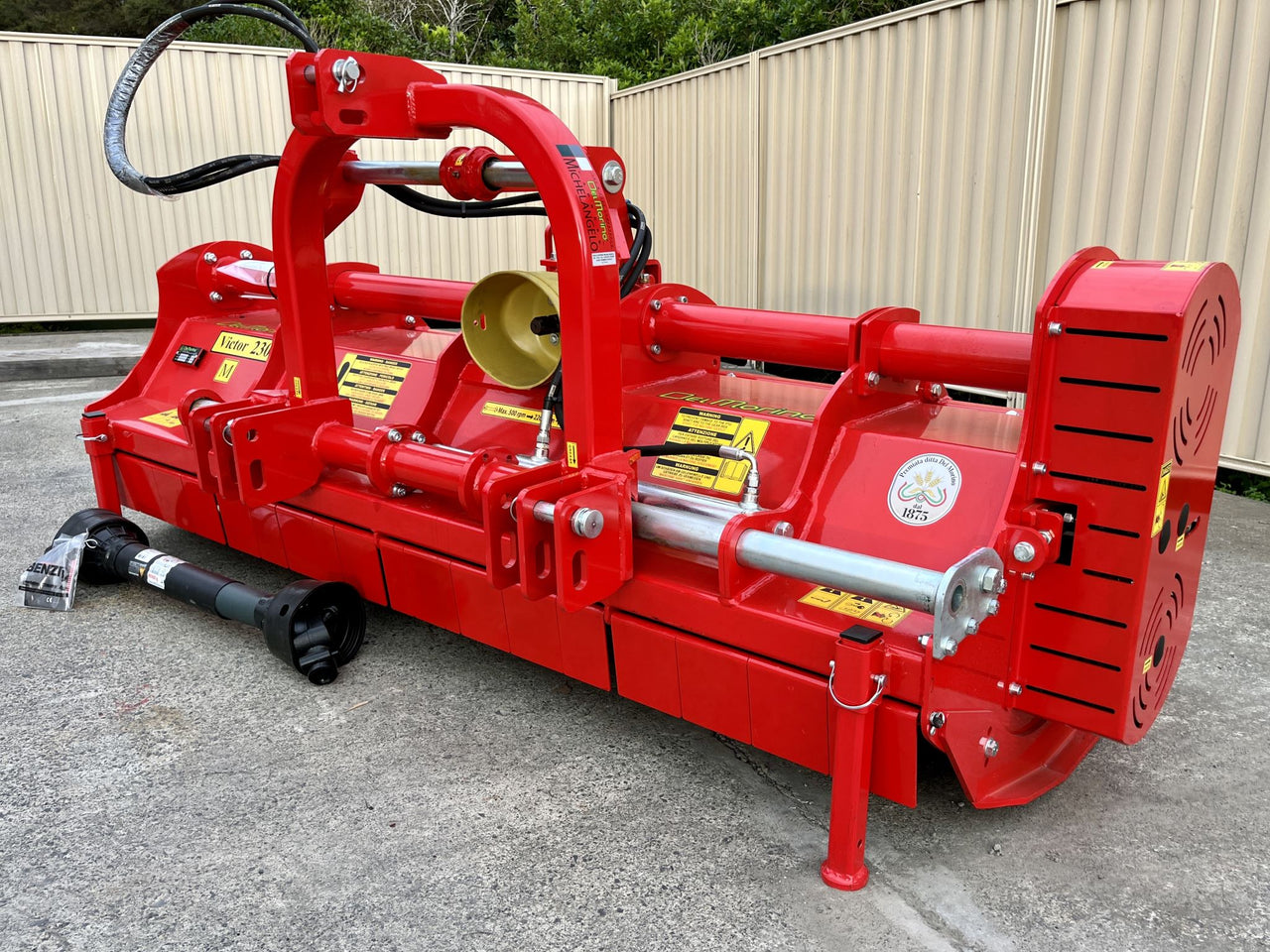

DelMorino Victor 230 Flail Mulching Mower

Del Morino has more than 140 years of manufacturing agricultural equipment in Caprise Italy.

OVERVIEW

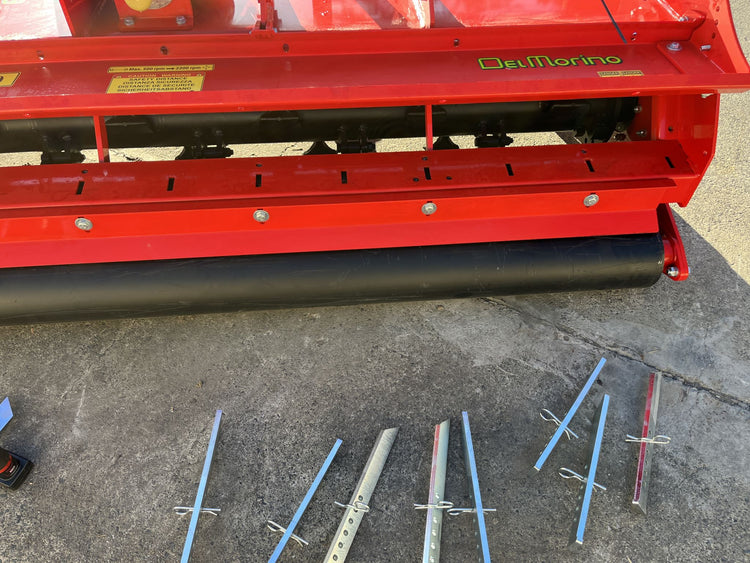

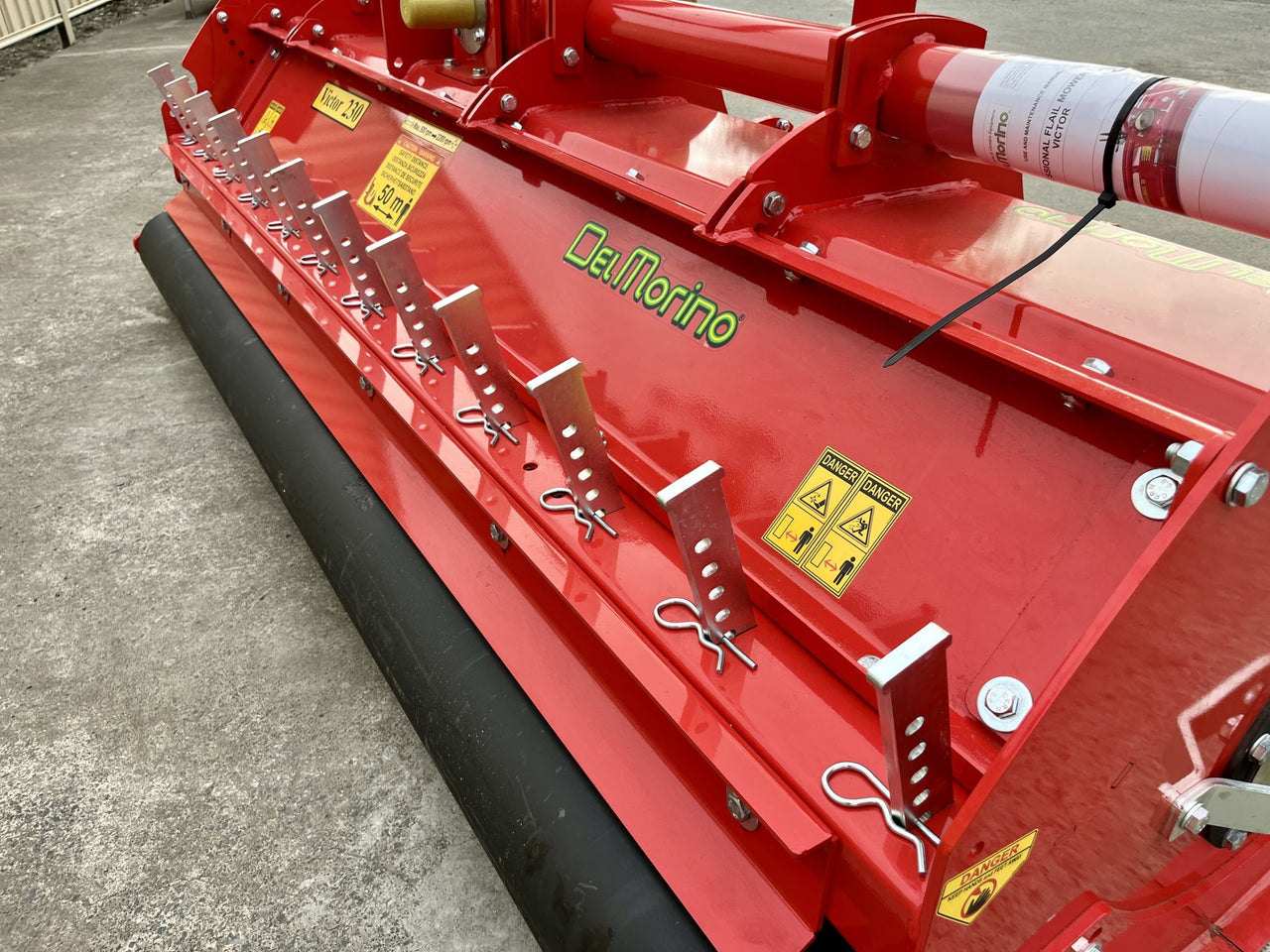

The Demorino Victor is a professional flail mower for the demanding farmer with a 4-belt drive and is suitable for medium to high-horsepower tractors. Multipurpose design, hydraulic side shift, reversible mounting opening rear door and removable and adjustable pruning rakes.

FEATURES AND BENEFITS

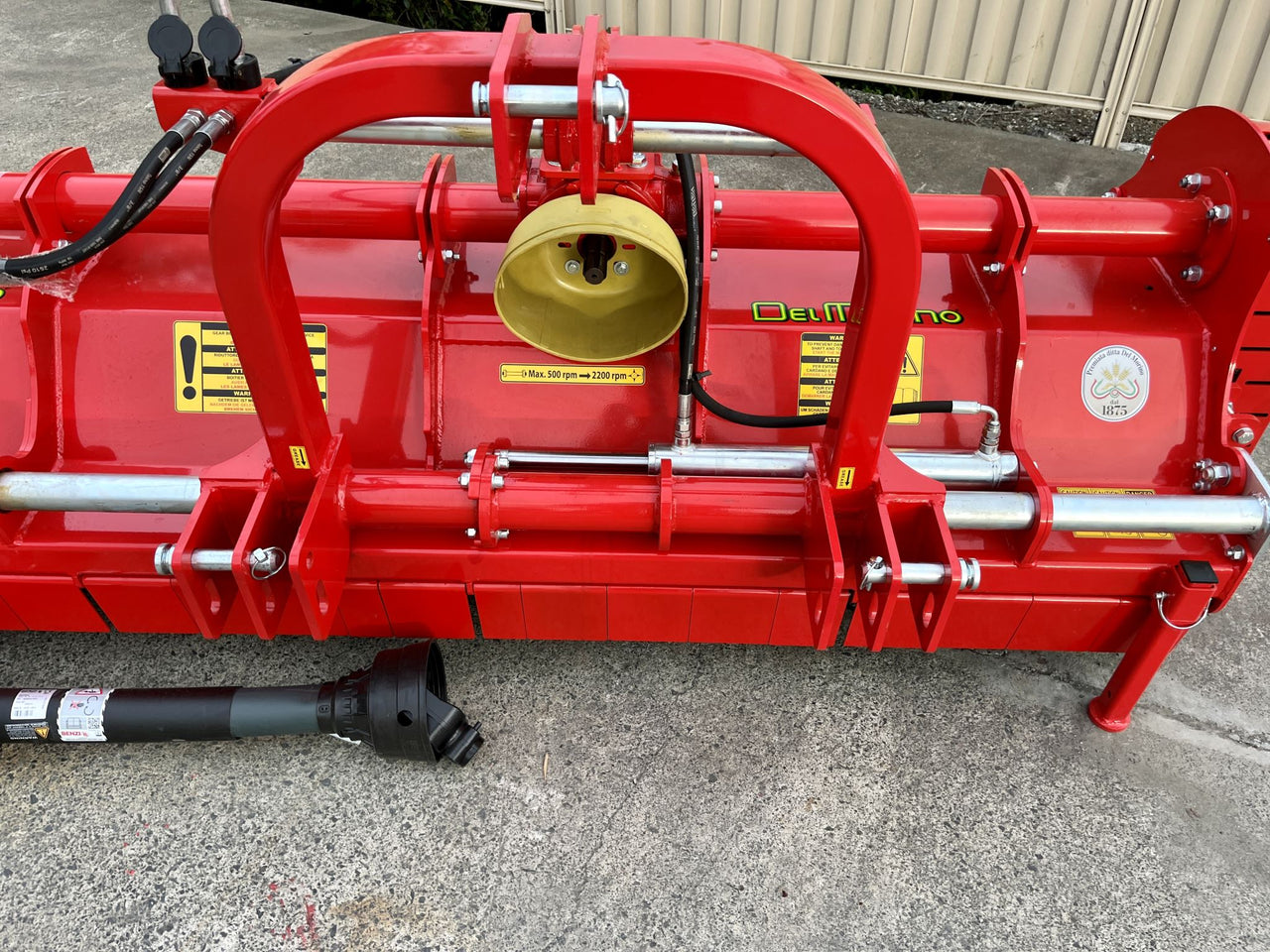

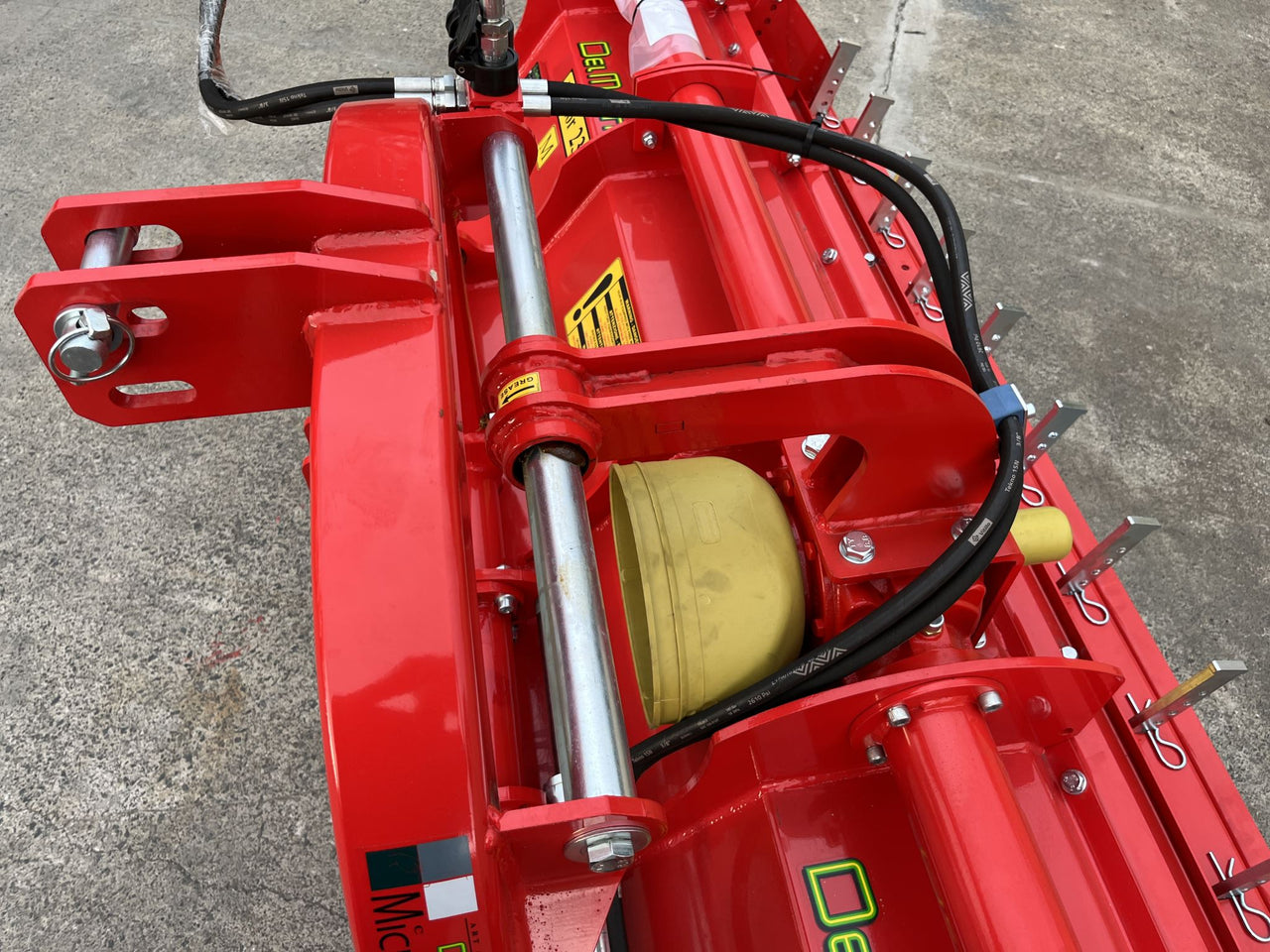

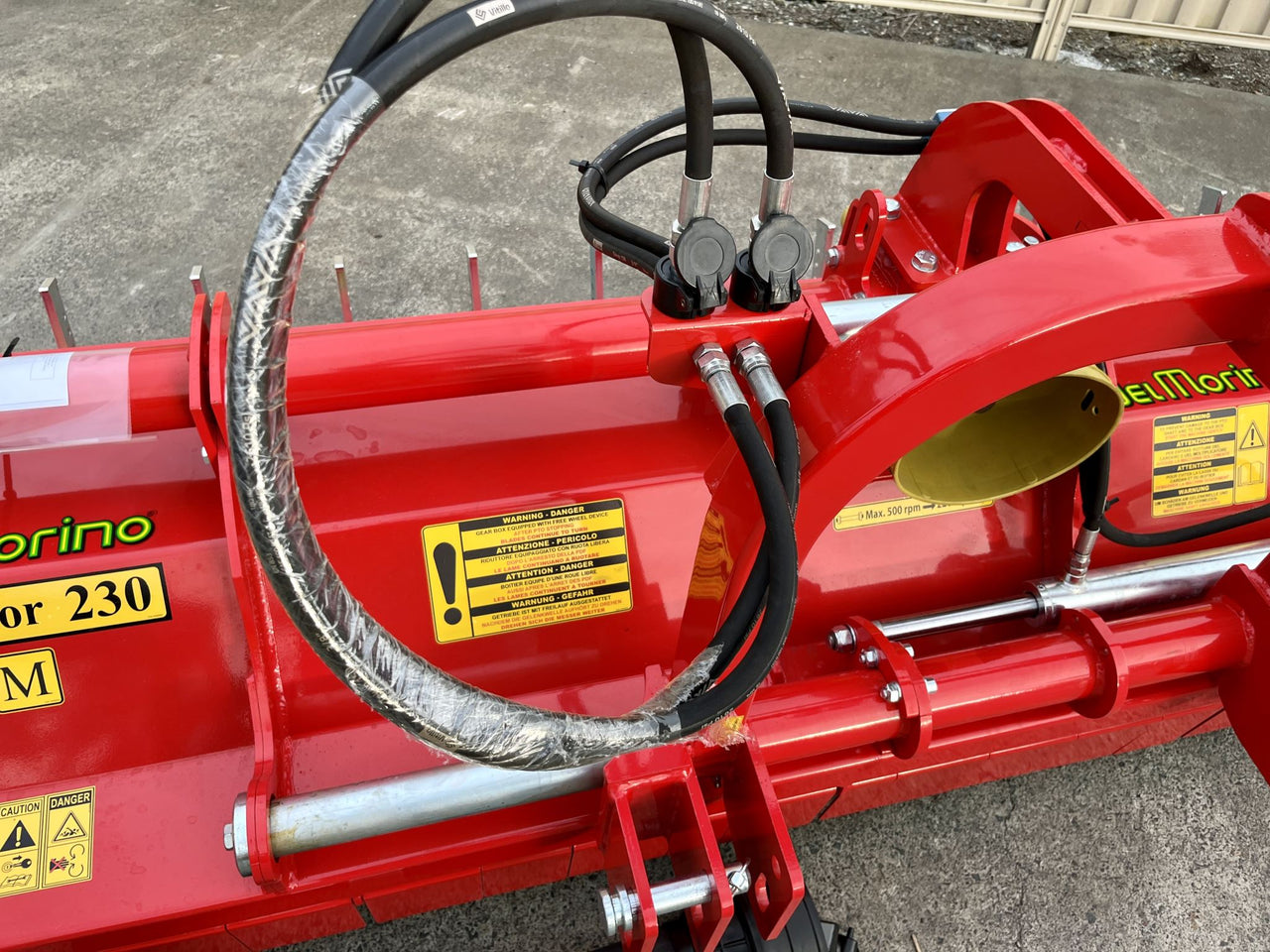

- Reversible  Mounting  with hydraulic side shift

- 3-point link Category 2

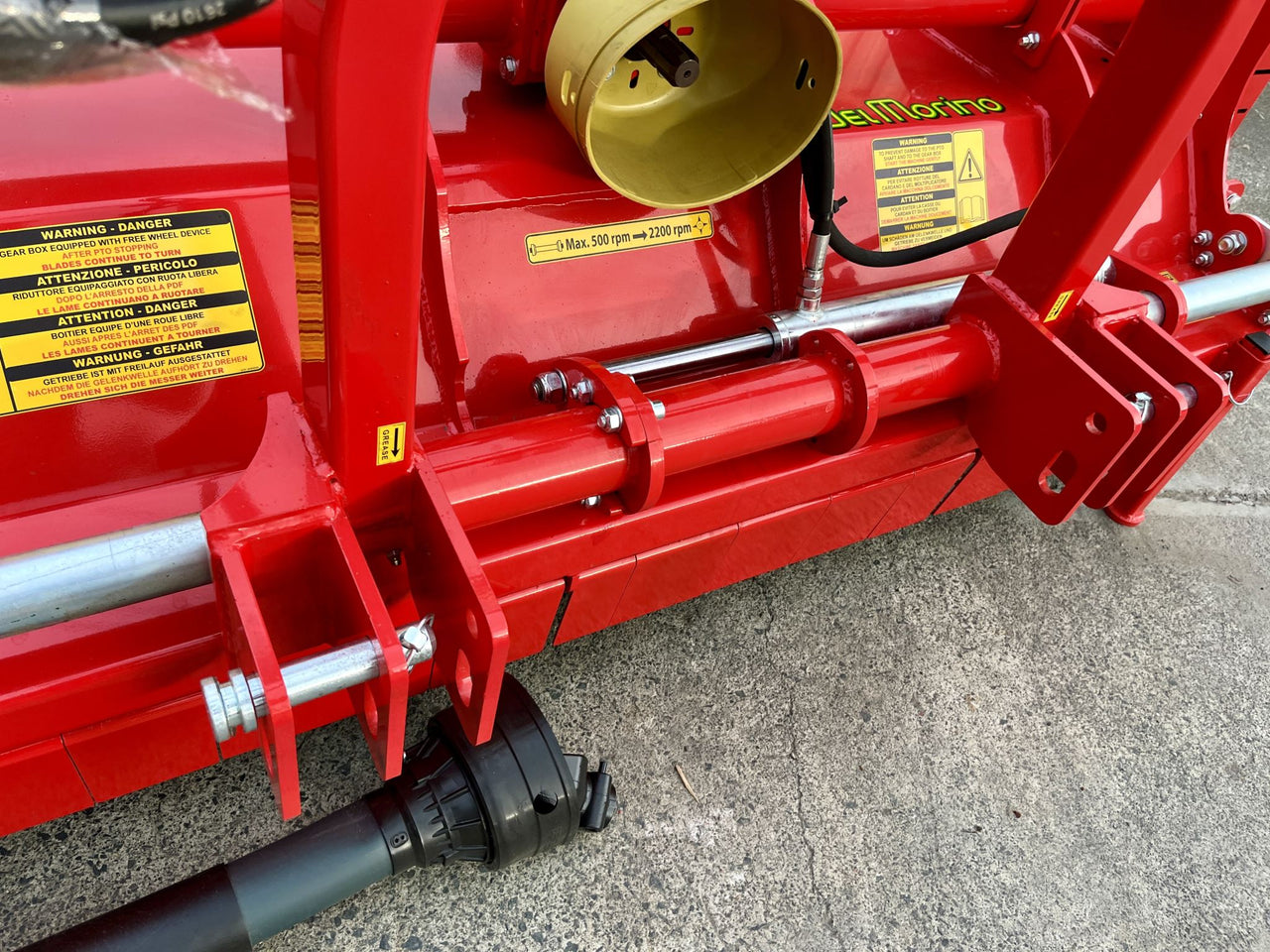

- Cast iron gearbox, with freewheel and pass-through shaft.

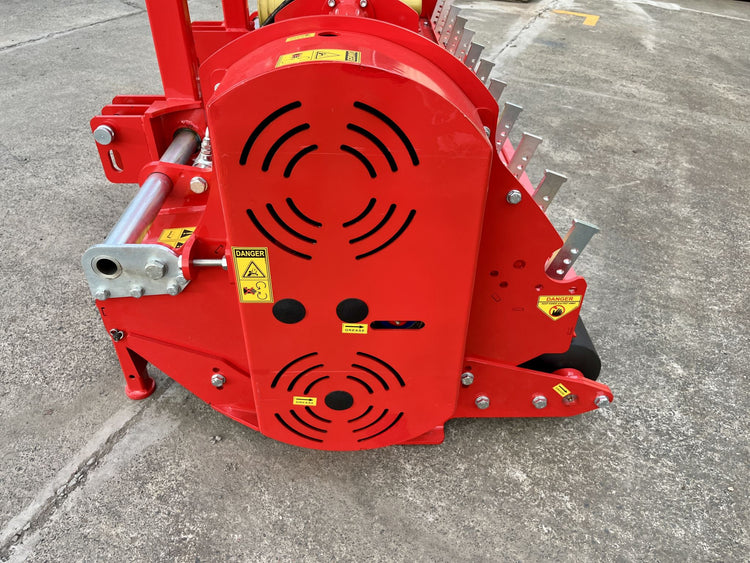

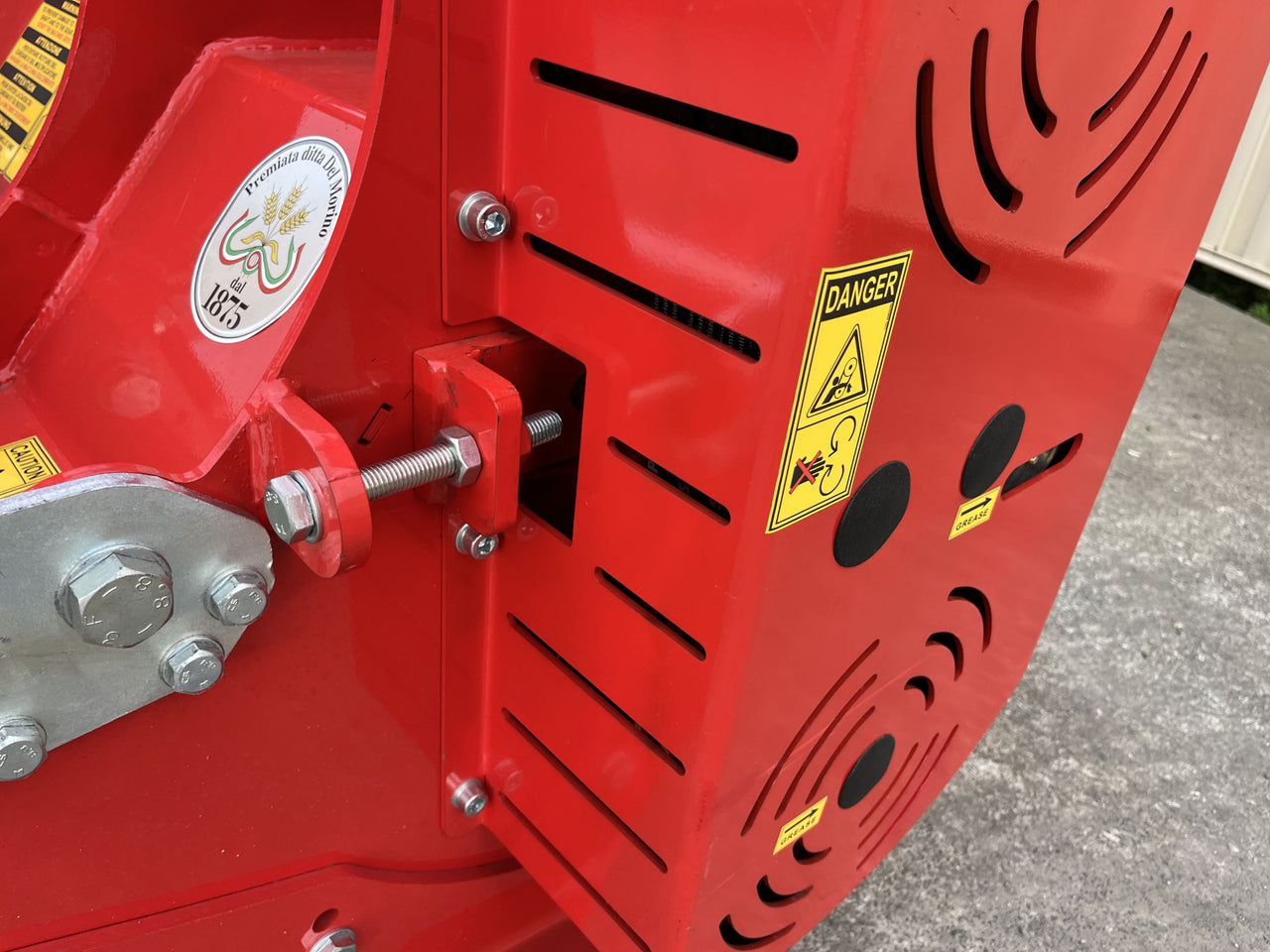

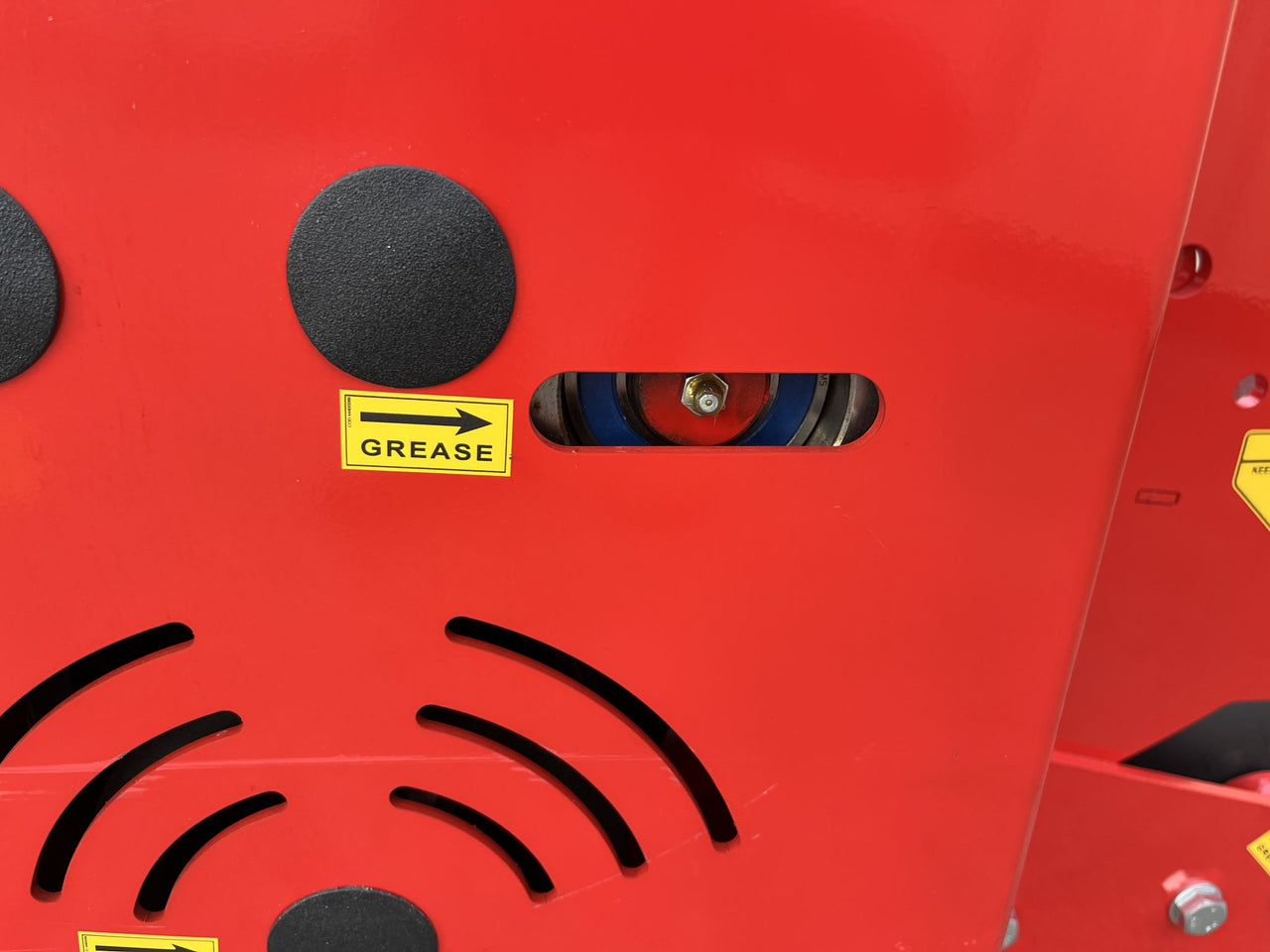

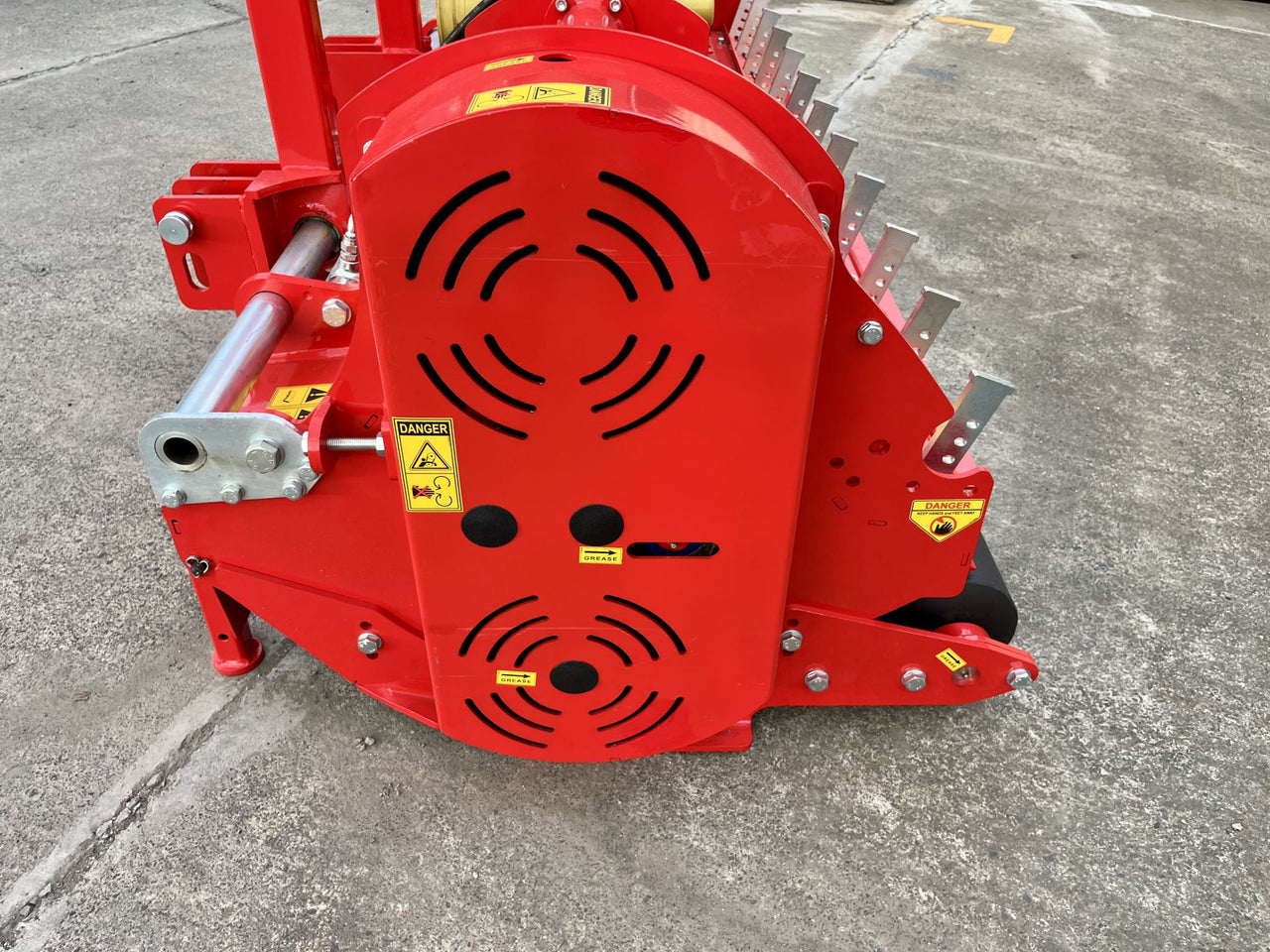

- 4 belt transmission, ventilated with externally adjustable tensioner

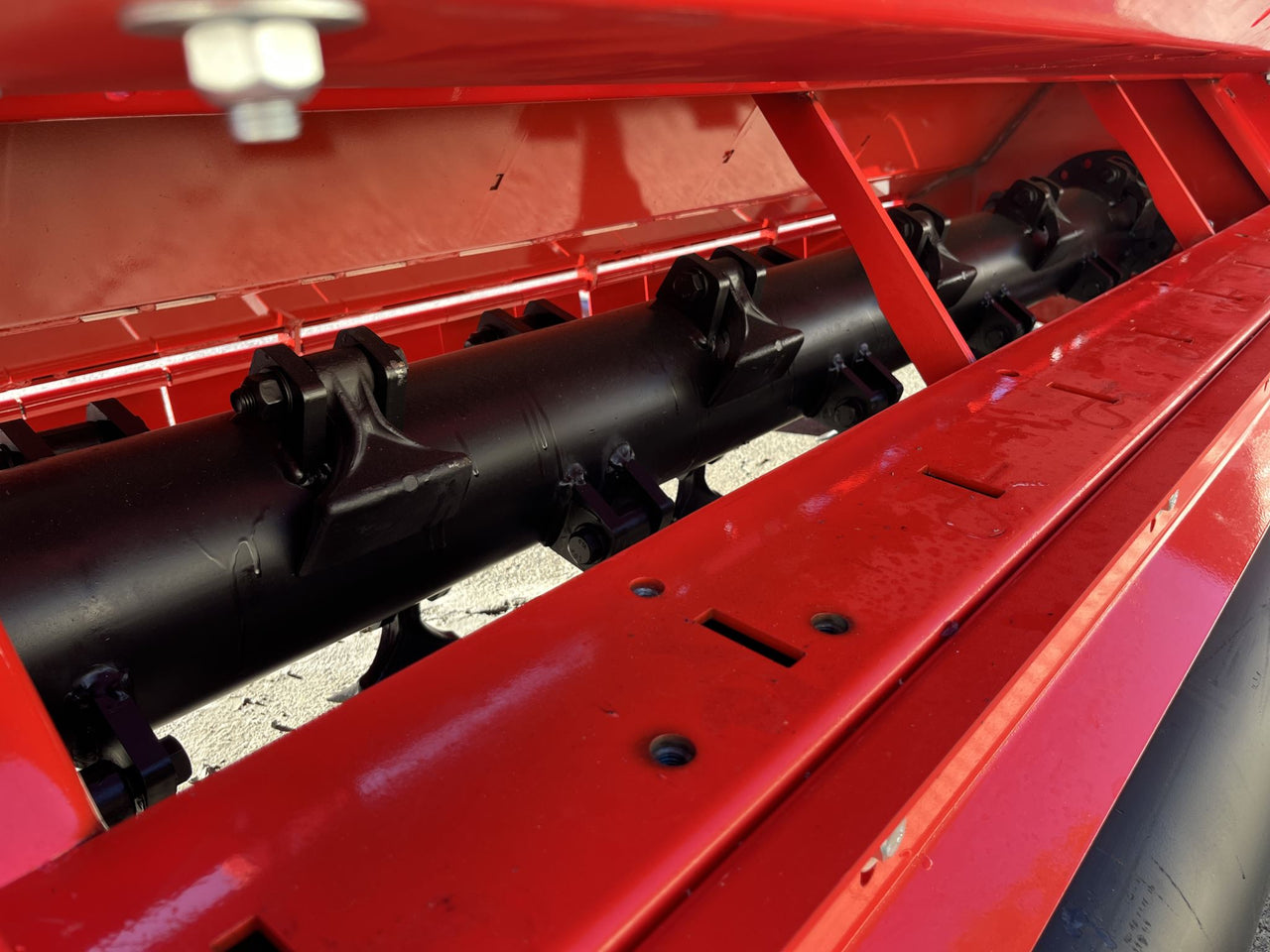

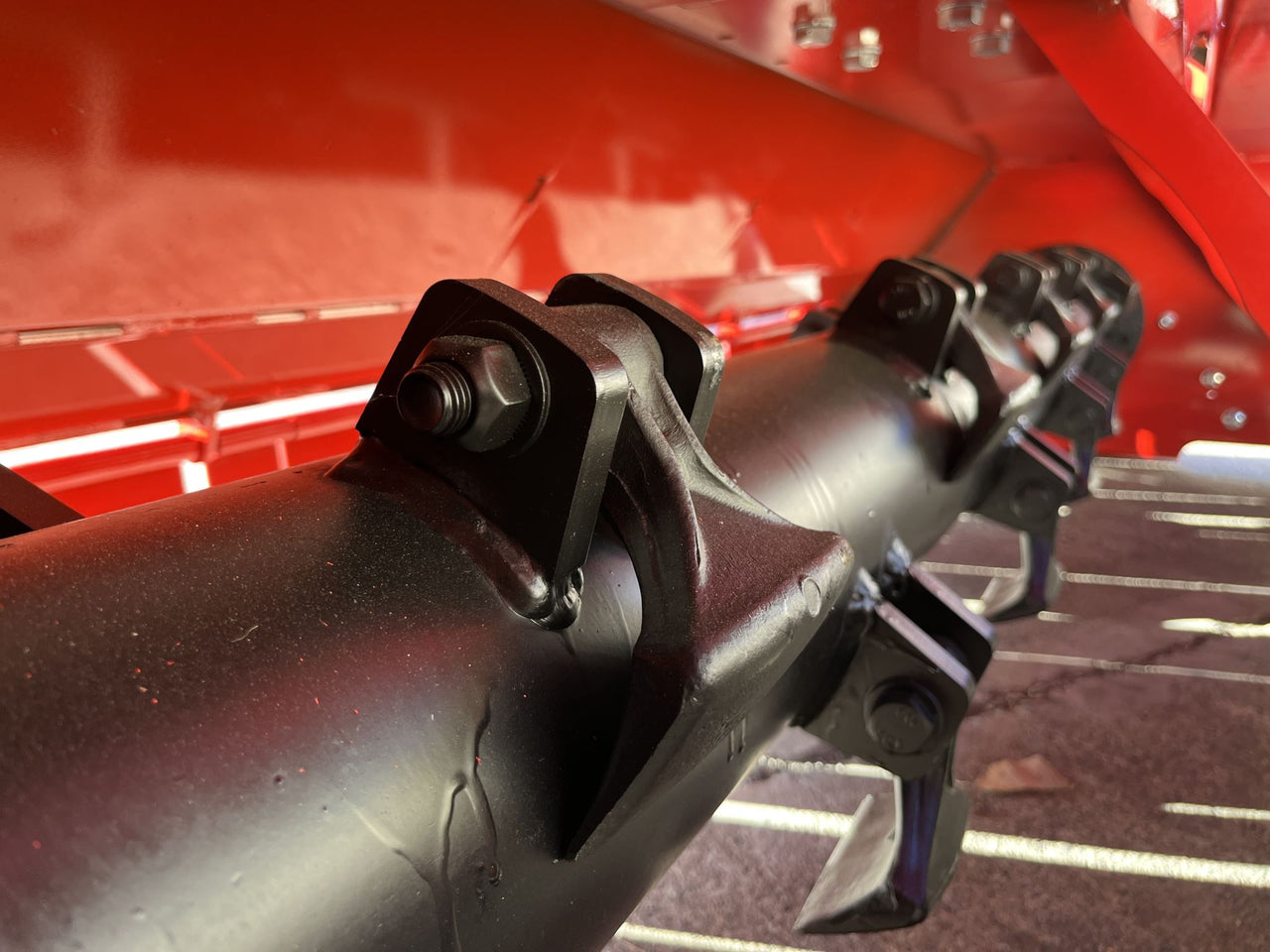

- Rotor with heavy-duty hammers

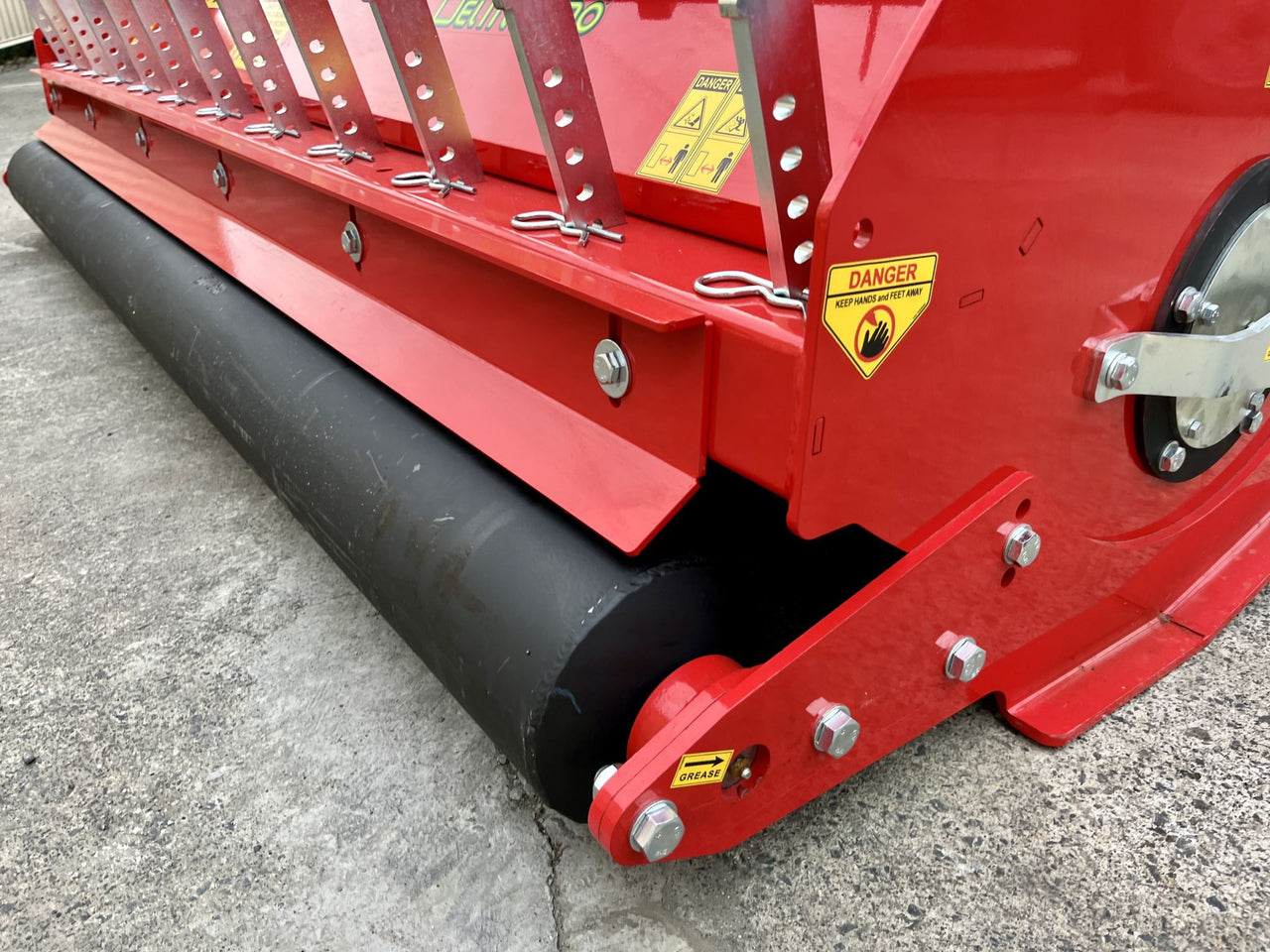

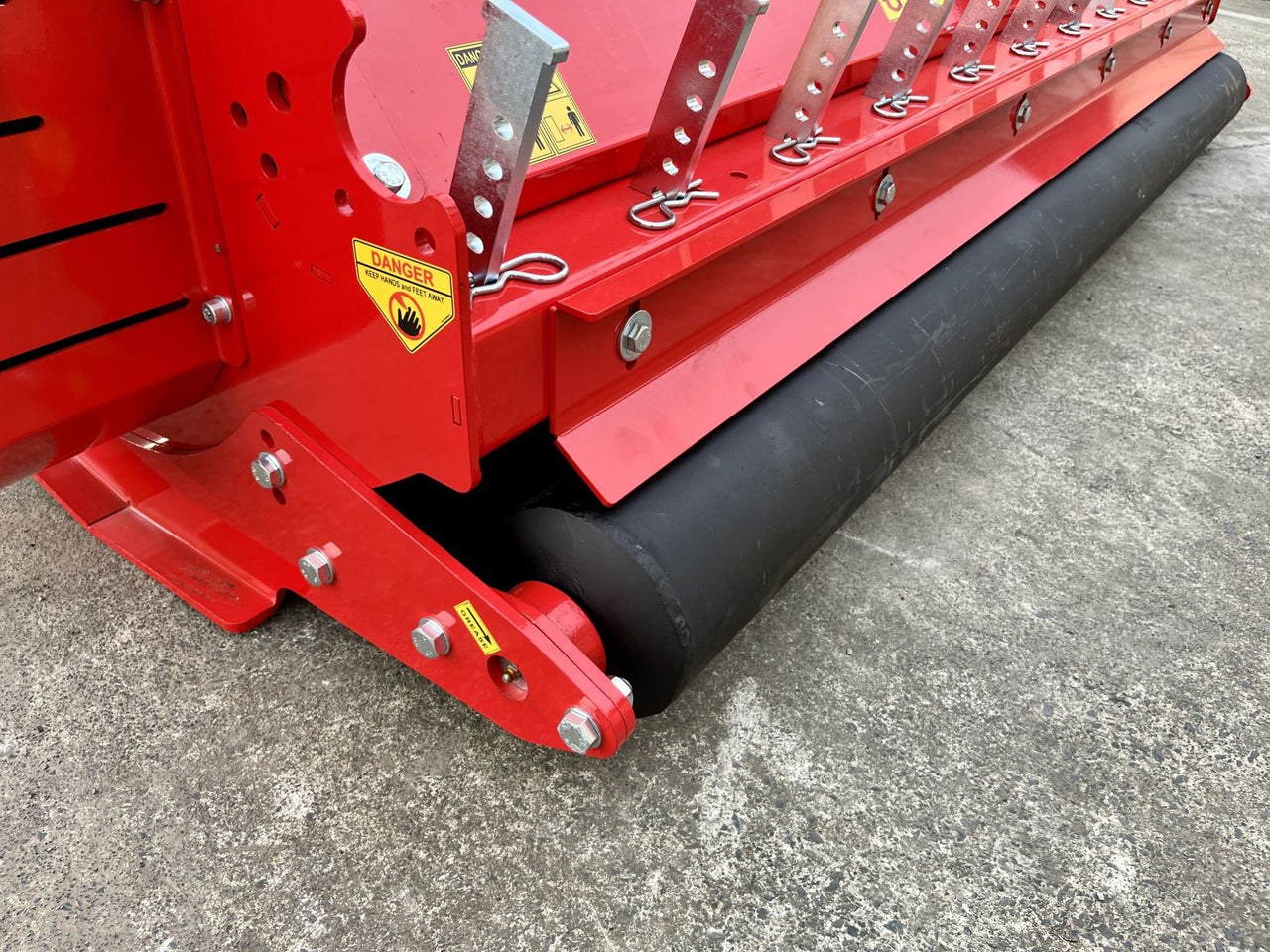

- Adjustable rear roller with 3 positions

- Adjustable skids

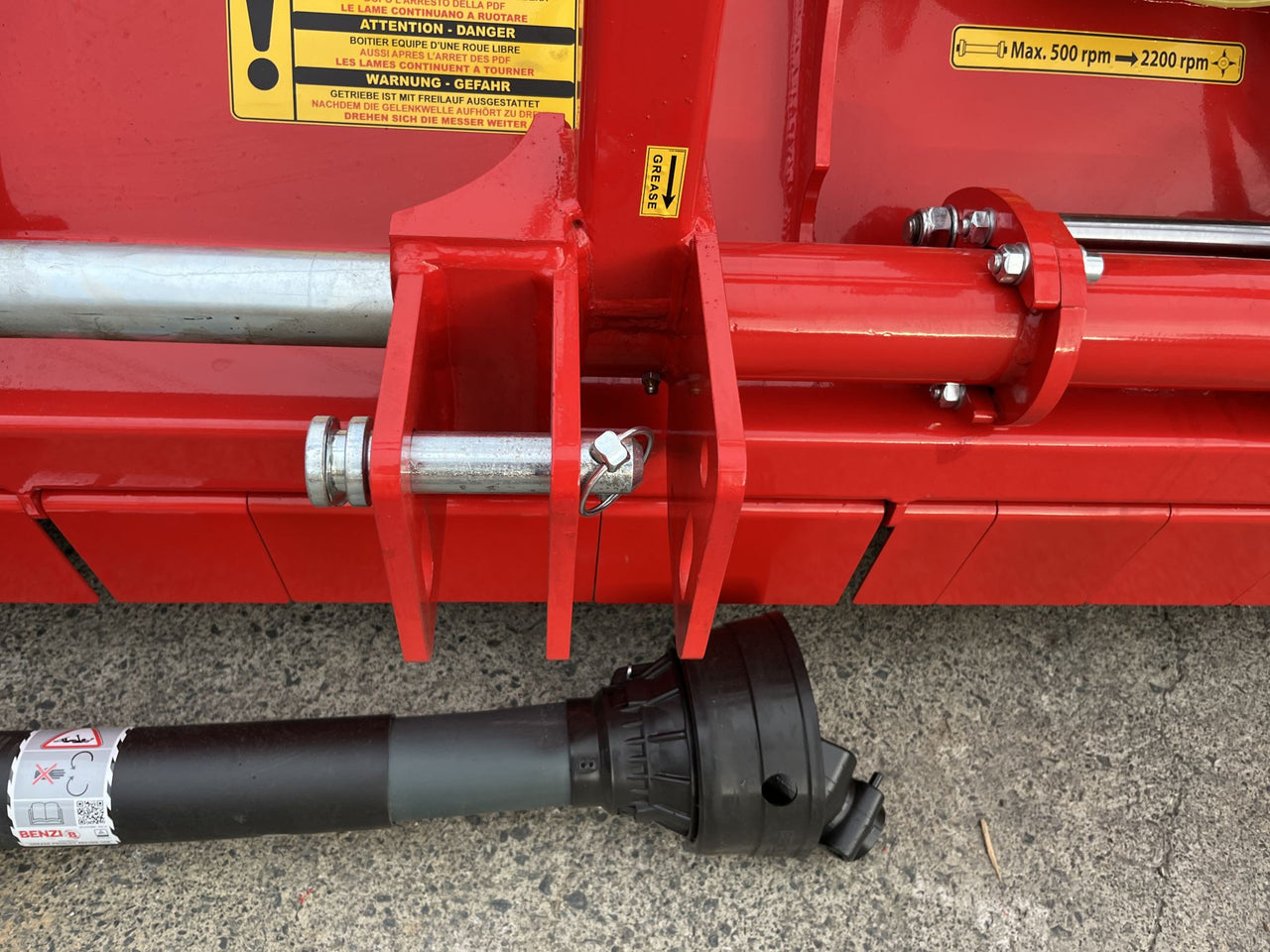

- PTO shaft  series 6

Specifications Units
Cutting width 2240 mm
Overall Width 2550 mm
Tractor 80-125 HP
Linkage Category 2 3-point linkage
Cutting Height

30-100mm

Drive belts

4 x SPB 1450 red power 3 belts

Side thickness

8mm

Body thickness

5mm

Roller size and thickness

178mm Diameter x  4.5mm thickness

Rotor size and thickness

168mm Diameter x 10mm thickness

Rotor Speed

2410 RPM

Hammers  20
Weight  755kg
