Overview

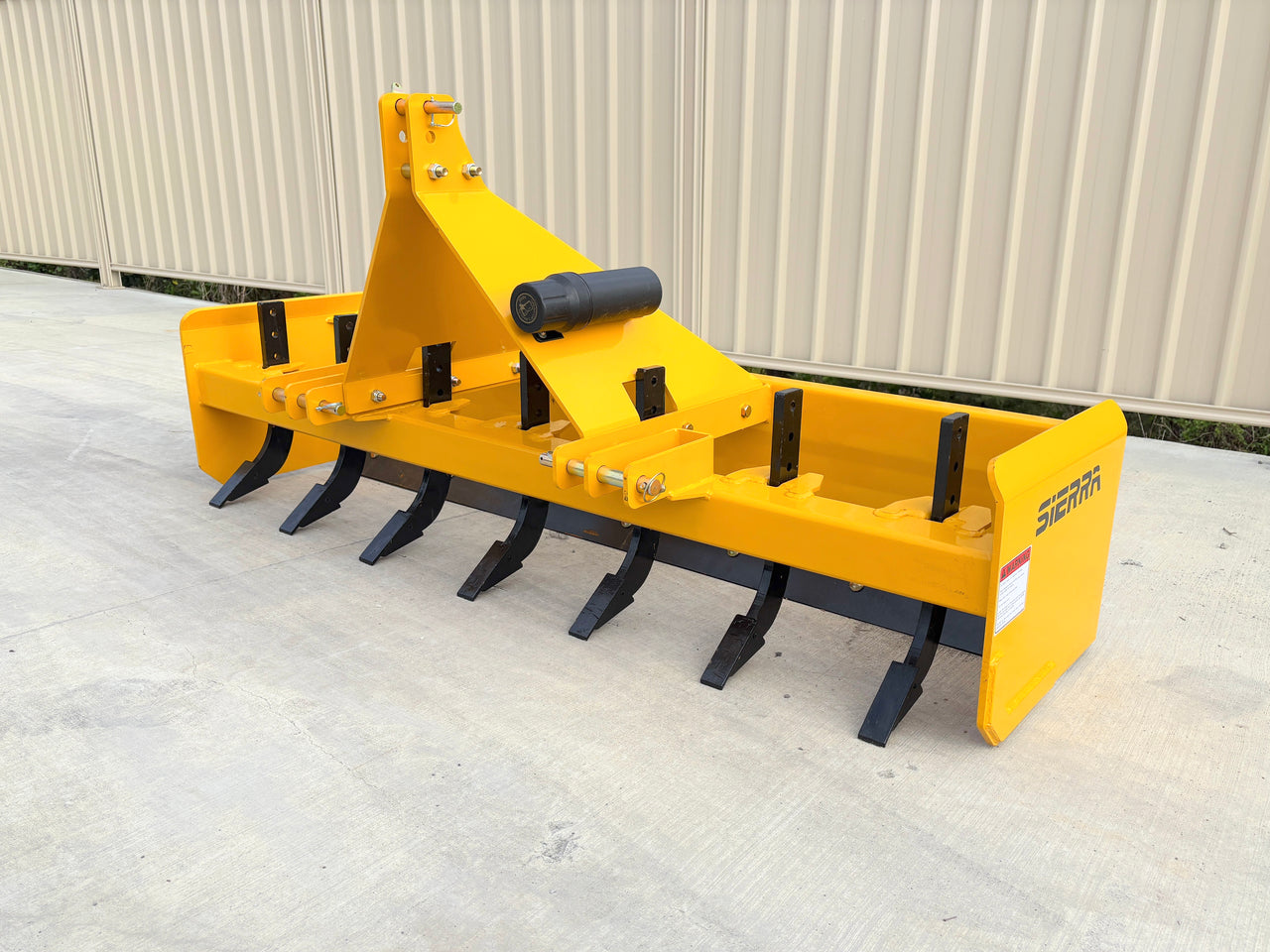

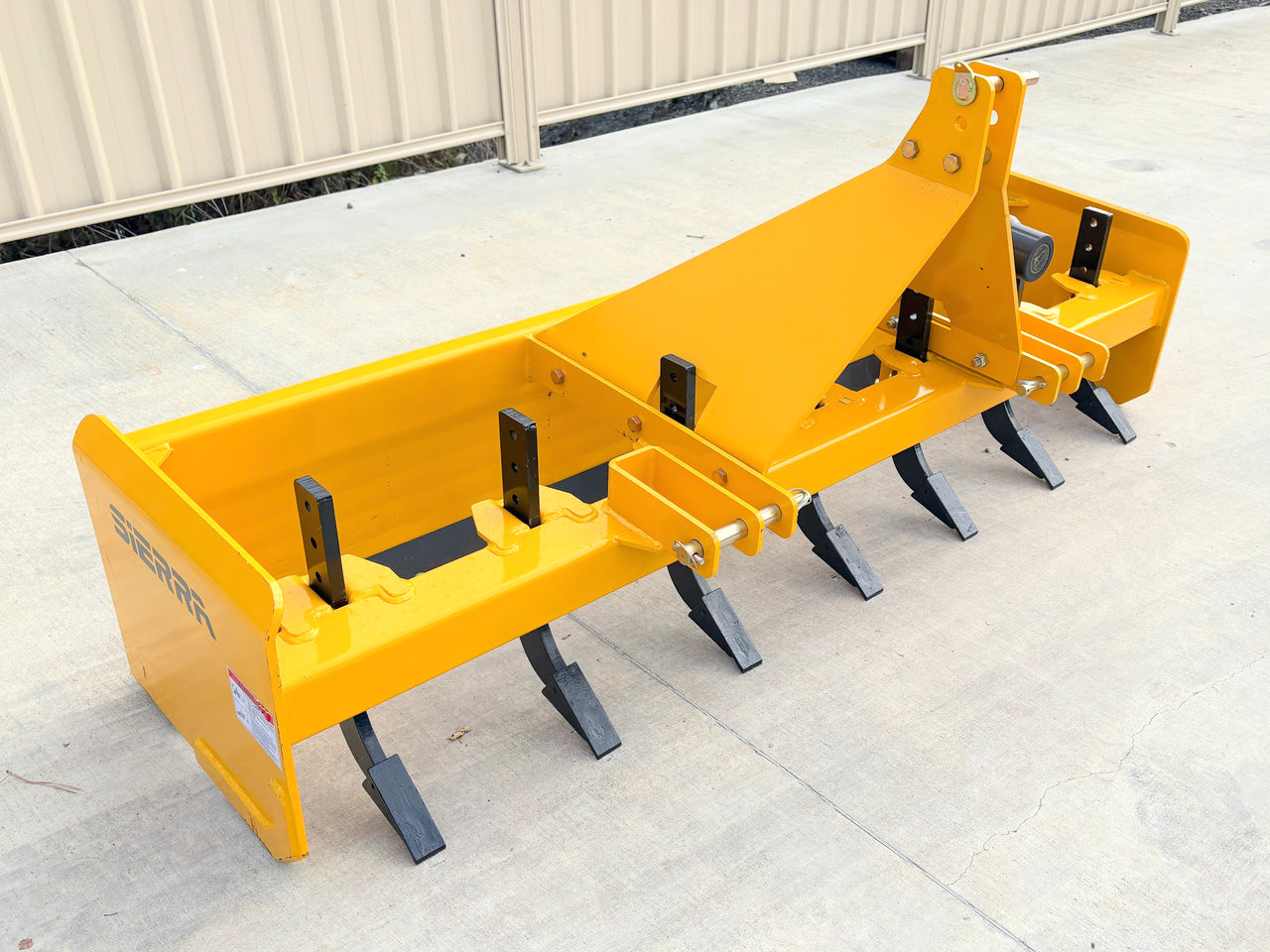

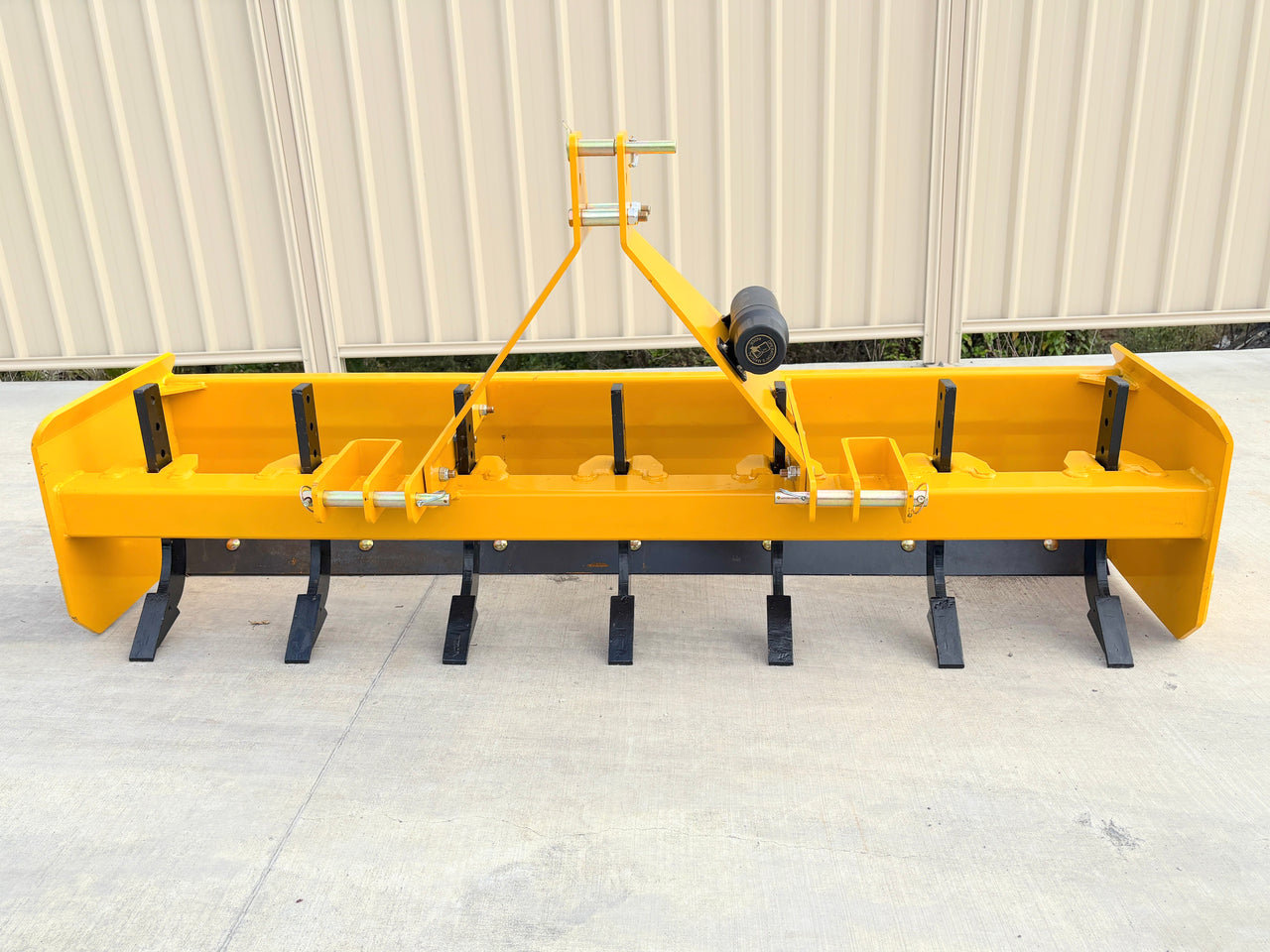

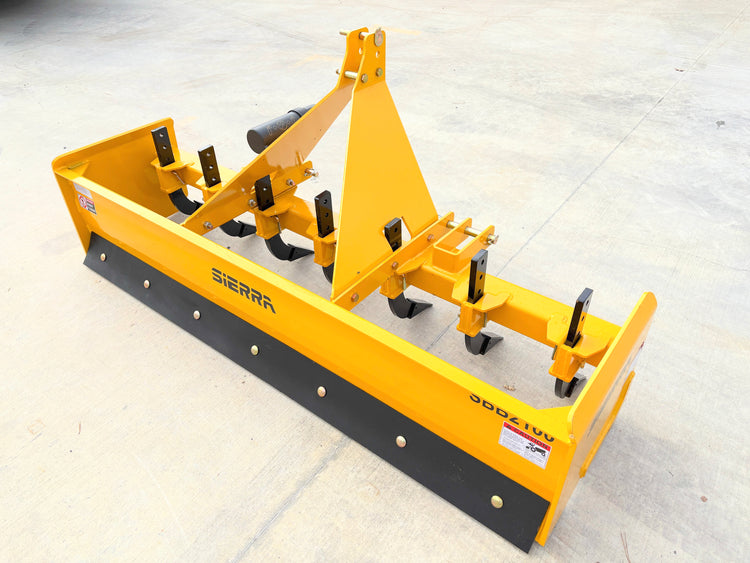

The Sierra 7ft (2.1m) box blade is a heavy-duty landscaping implement designed for land levelling, driveway grading and turf preparation. Suitable for Category 1 and 2 tractors from 38-75 HP. Features famously strong construction with 12mm gusseted side walls, clevis linkage points and reversible cutting edges. Proven design sold in NZ for over 10 years.
Features & Benefits
- 7ft (2.1m) cutting width ideal for Category 1 and 2 tractors 38-75 HP

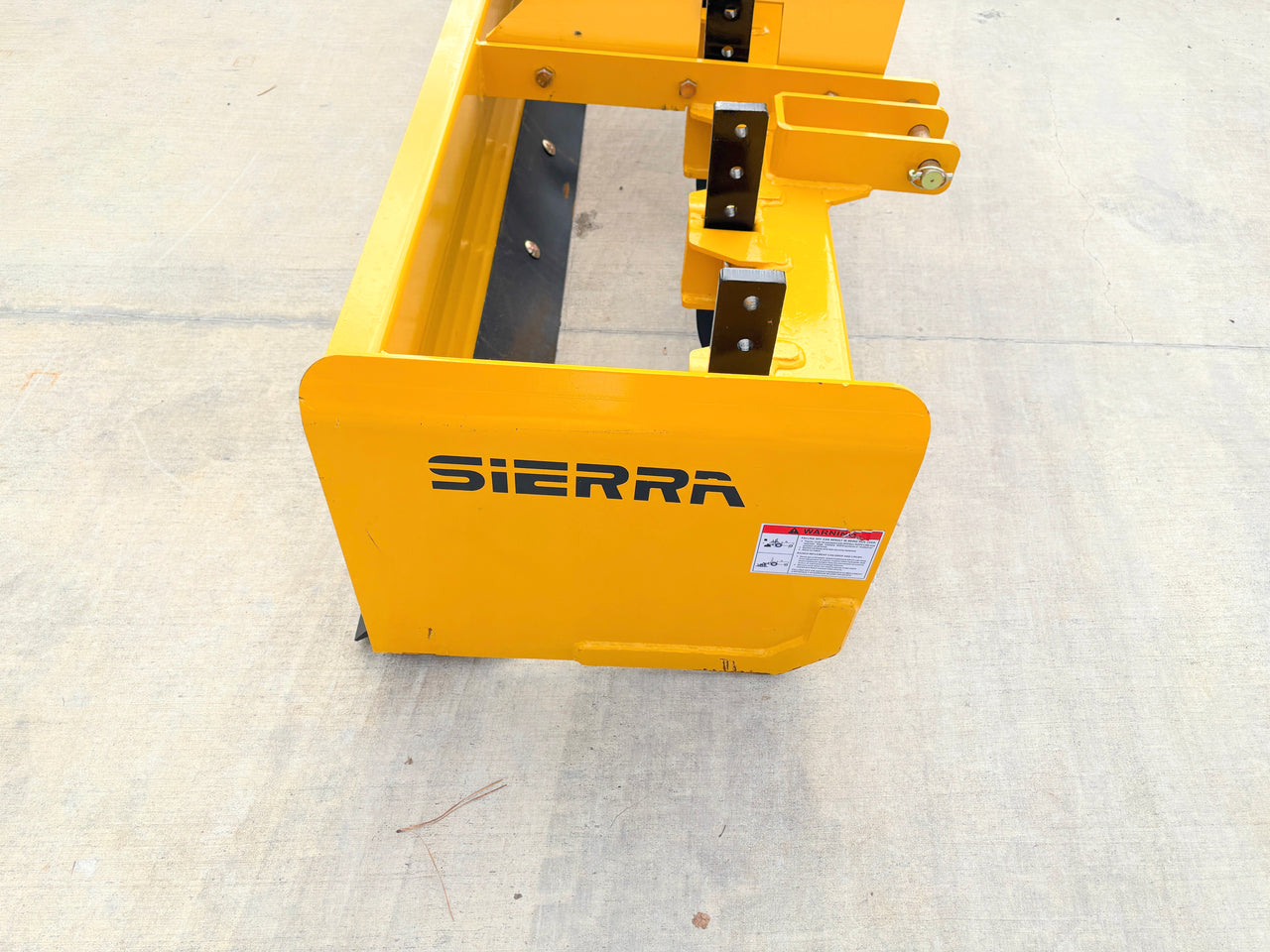

- Heavy-duty construction: 12mm thick gusseted side walls, 10mm headstock, 5mm mouldboard

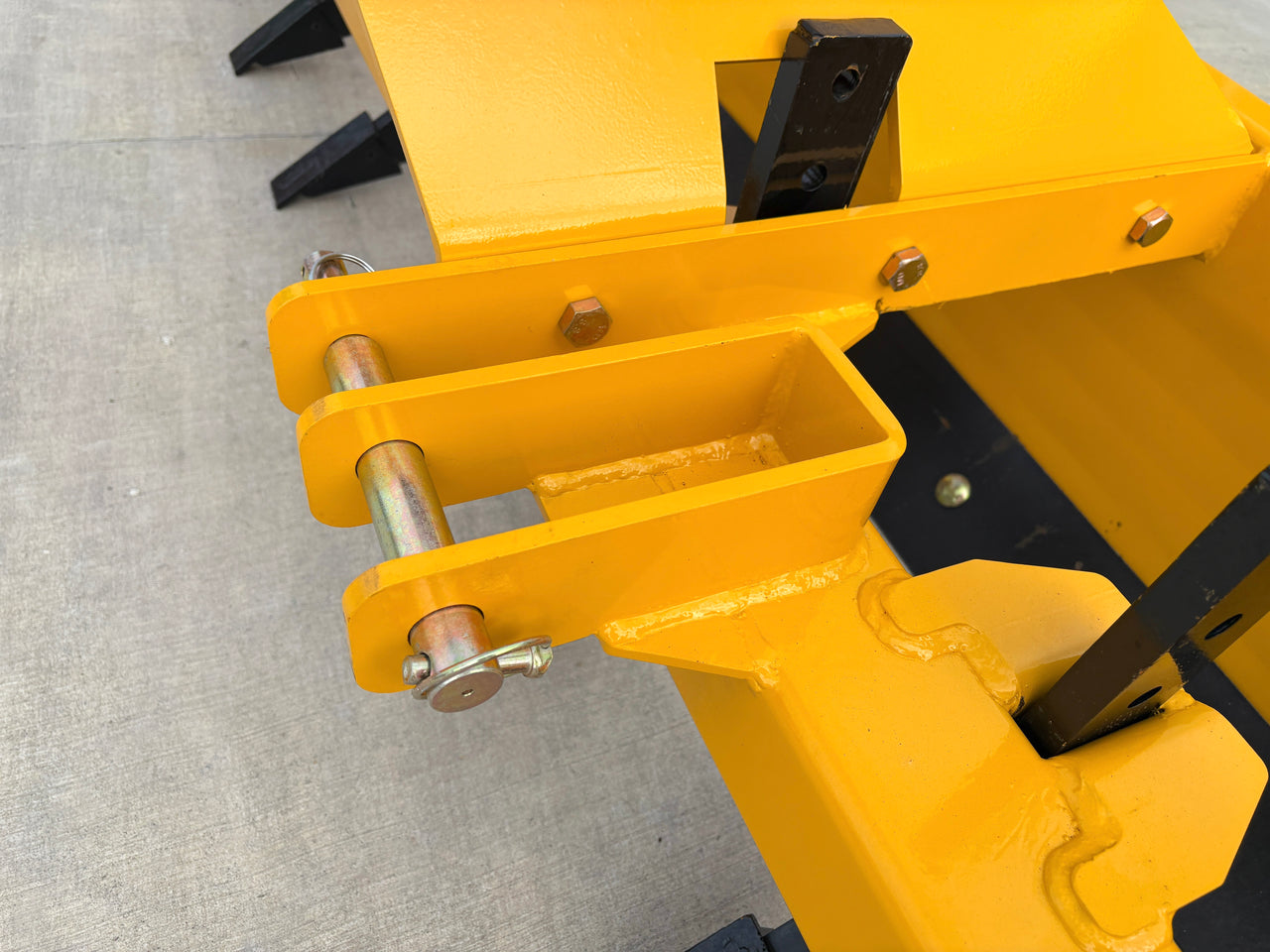

- Clevis linkage points for strength and quick connection/removal
- Dual category linkage pins compatible with different tractor sizes.
- Quick hitch(CAT 1) compatible for fast attachment

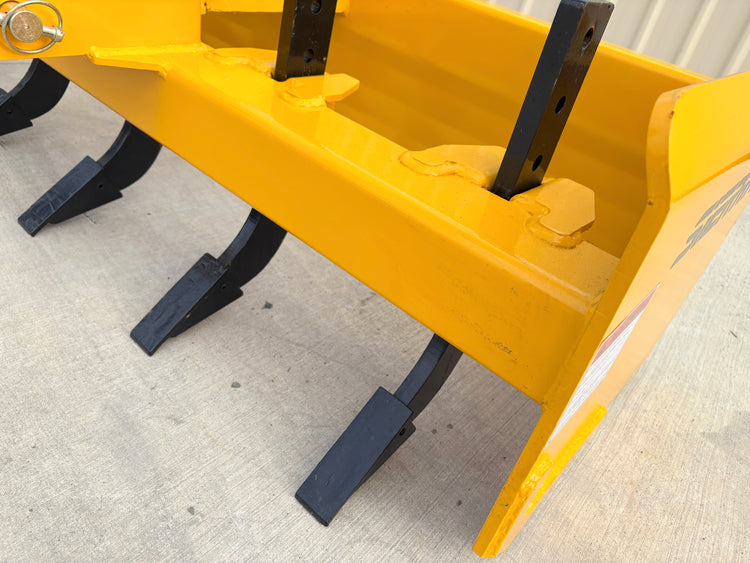

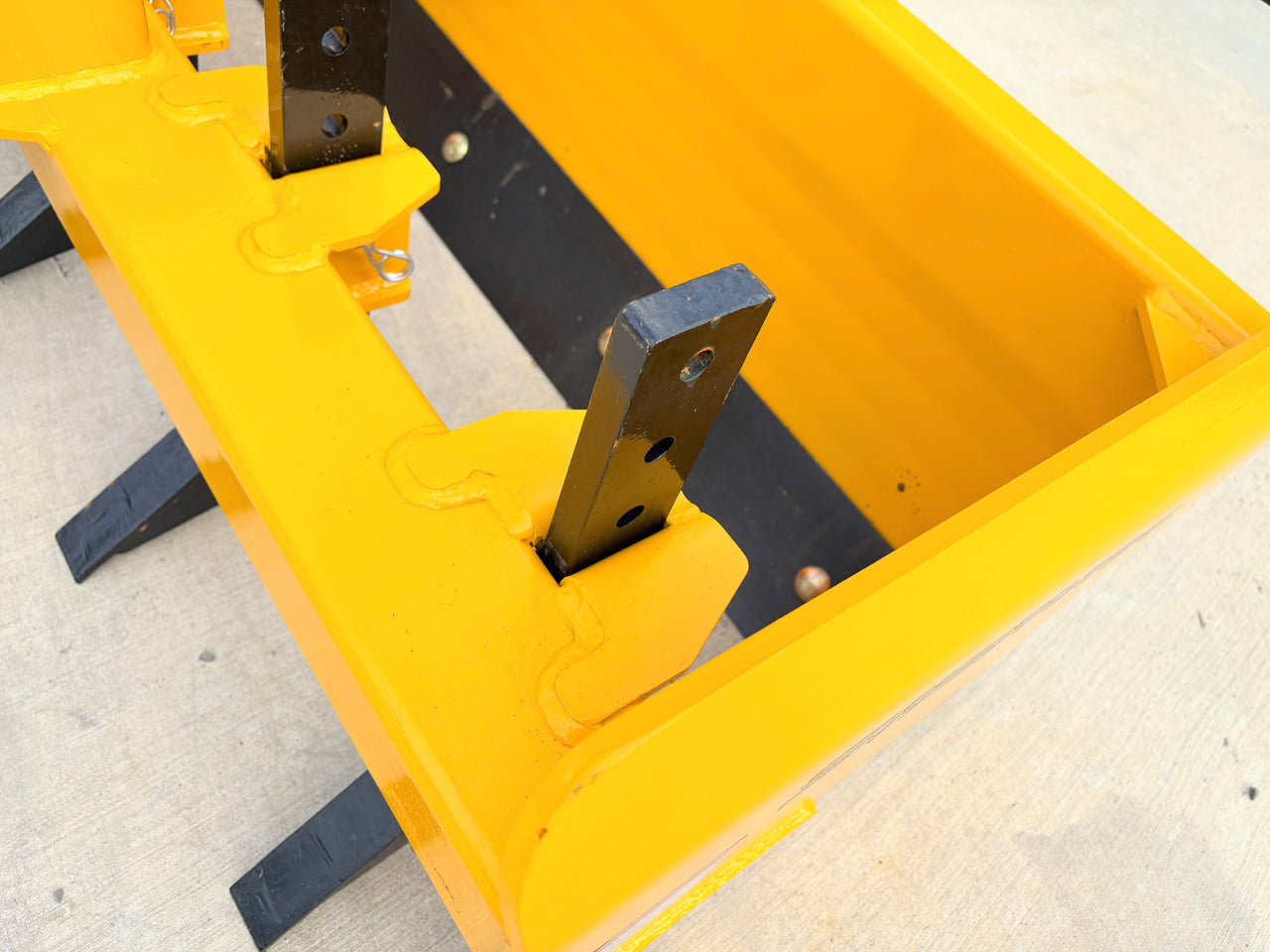

- 7 height-adjustable ripper shanks (18mm thick, 60mm section depth) break up hard ground

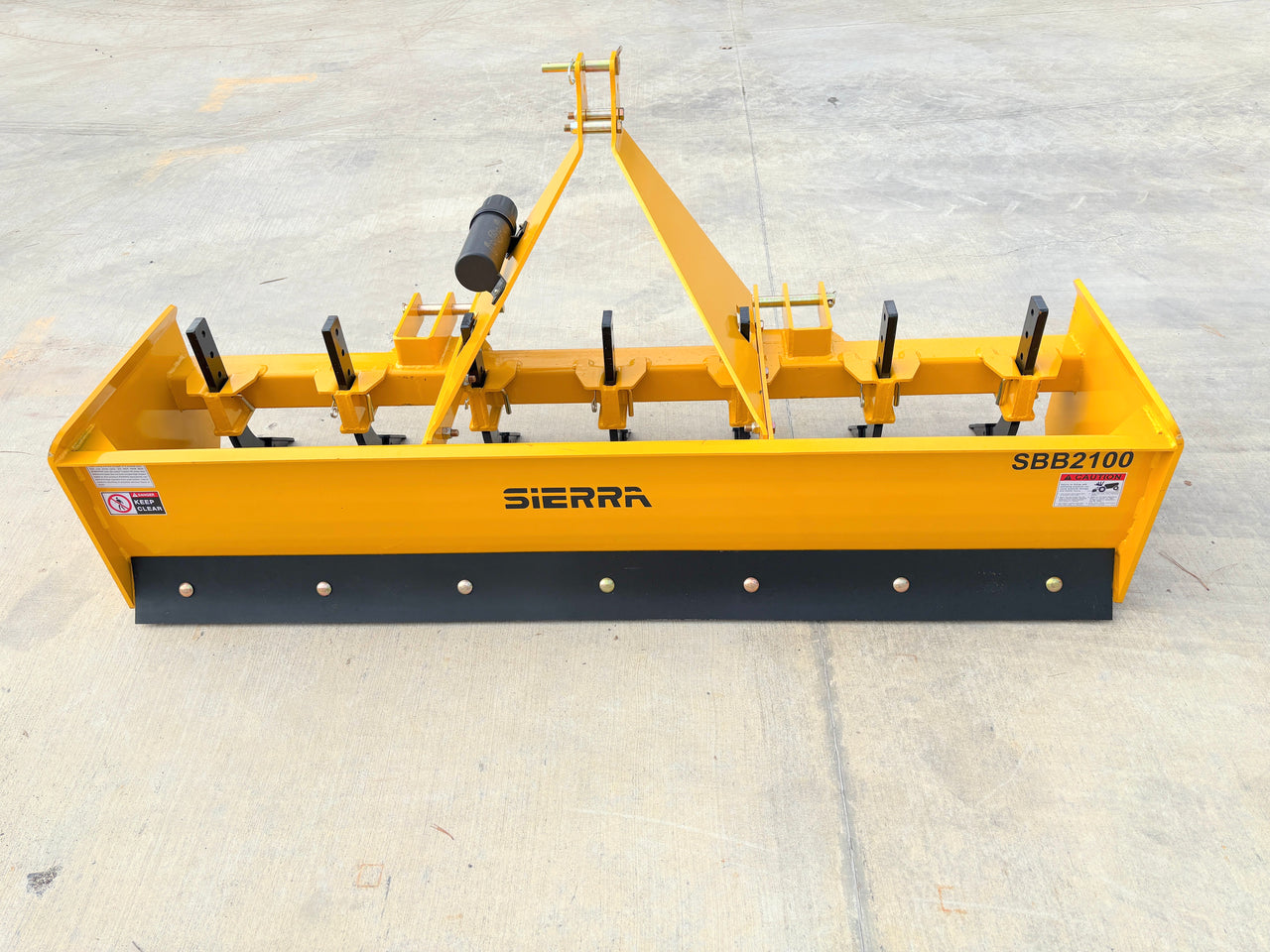

- Reversible curved profile cutting edges (forward and rear-facing) for push and pull operation
- 1.06 m³ capacity carries scraped material to fill holes and ruts as you work
- Ripper shanks can work unto 150mm below blade for effective ground penetration
- Designed and proven in New Zealand conditions for over 10 years
Specifications
| Specification | Value |
| SKU | SBB2100 |
| Overall Width | 2115 mm |
| Cutting Width | 2100 mm (7 ft / 2.1 m) |
| Side Wall Depth | 570 mm |
| Mouldboard Height | 470 mm |
| Weight | 280 kg |
| Capacity Volume | 1.06 m³ |
| Hitch Points | Clevis style |
| 3-Point Linkage | Category 1-2 |
| Number of Ripper Shanks | 7 |
| Ripper Shank Thickness | 18 mm |
| Ripper Shank Section Depth | 60 mm |
| Ripper Shanks Working Depth | 150 mm max below blade |
| Side Panel Steel Thickness | 12 mm |
| Mouldboard Steel Thickness | 5 mm |
| Headstock Steel Thickness | 10 mm |
Best For
- Land levelling and grading
- Driveway and track maintenance and surface rejuvenation and rut removal.
- Backfilling trenches with minimal material wastage
- Turf preparation and ground smoothing
- Landscaping applications on lifestyle blocks and farms
- Tidying up rutted gravel driveways
Compatibility
- Tractor HP Range: 38-75 HP
- Hitch Type: Category 1-2 three-point linkage with clevis style hitch points
- Quick Hitch: Compatible
What's Included
- Sierra 7ft box blade main unit
- 7 adjustable ripper shanks(installed)
- Reversible curved profile cutting edges (installed)
- Dual category linkage pins
Warranty & Support
12-month warranty. Designed and proven in New Zealand conditions.
Shipping & Freight
This item ships via freight. Weight: 280 kg. Contact us for freight quote and delivery options to your location.
