1.5m Galvanised Transport tray with Cage and Towbar
1.5m Galvanised Carry all Transport Tray with Cage and Towbar.
OVERVIEW
This sturdy, 1.5m wide galvanised steel Transport tray with towbar may be just what you need for the lifestyle block or for the boat tractor at the beach
This is our top line model with heavier wall thickness, build and laser cut componentry
FEATURES AND BENEFITS
-Strong steel frame, hot dip galvanised with no sealed sections (so it wont fill with water)
-We designed this with a reinforced subframe and gusseted towbar fitting for pulling your trailer..
-1.5m wide appx and 995mm deep deck made with galvanised steel floor planks
-Headboard and sides stand 890mm high from the deck
-Inside cage measures 1420x970mm
-Space between bars is 180mm
-Rear door is hinging
-Features are reinforced, and there is a tow bar tongue for fitting a tow ball.
-Galvanized steel decking planks which lets the water run through. Unlike a ply wood floor and will never go rotten.
-Set up with dual category Cat 1 and 2 pins so will fit most tractors up to about 100HP with a 3 point linkage.
-Does not include towball
-For the boat tractor people this will extend the towing point appx 1m from the rear of your tractor, meaning you dont have to back as far into the water when launching your boat.

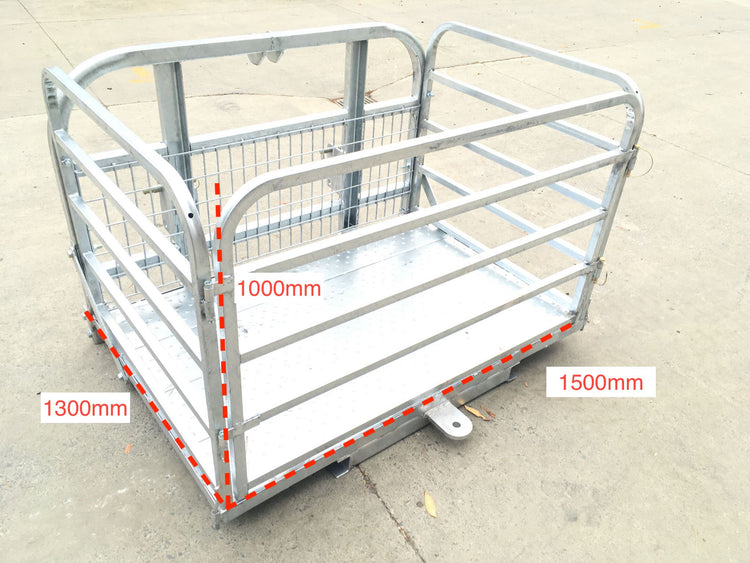

Specifications | Units |
Width | 1500mm |
Load area depth | 1.02m |
Depth | 1300mm |
Height of deck | 1000m |
Inside cage size | 1420 x 970mm |
Space between bars | 180mm |
Weight | 117Kg |
Towing capacity with towball | 3500kg |
Tractor | up to 100HP Cat 1 and 2 pins |
Linkage | 3 pt linkage |
These trays are shipped flat packed, nut and bolt assembly required.
