Overview

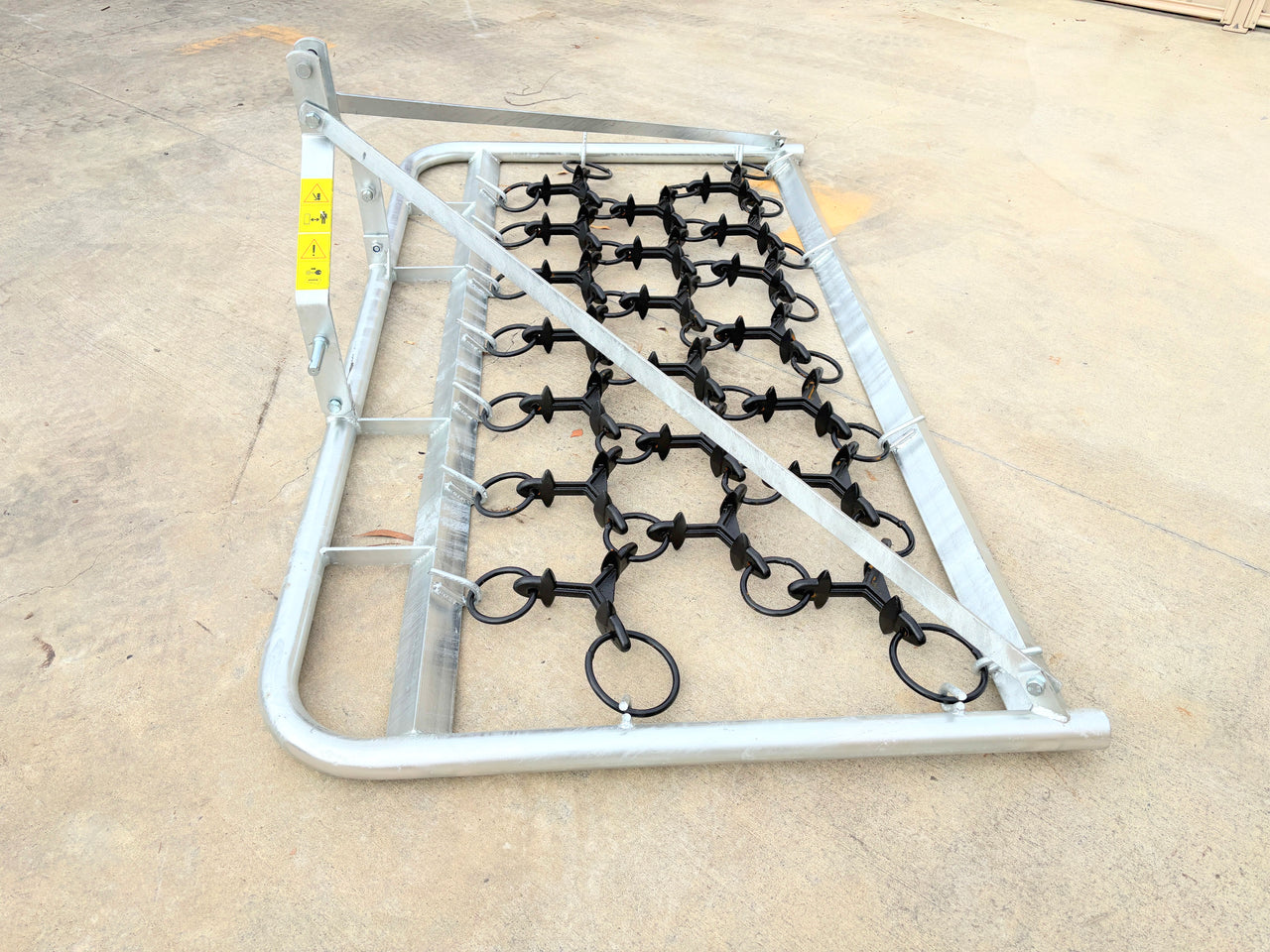

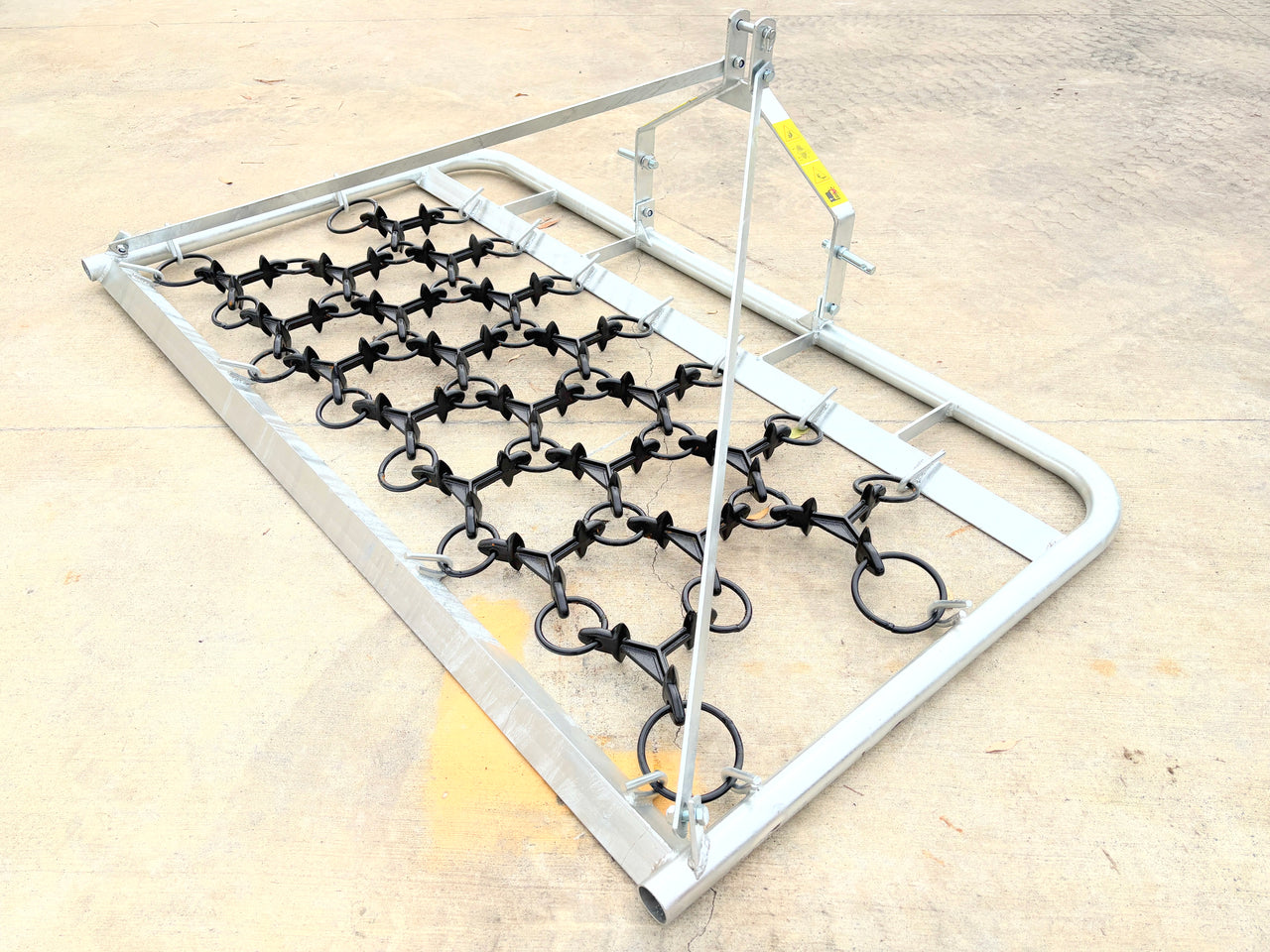

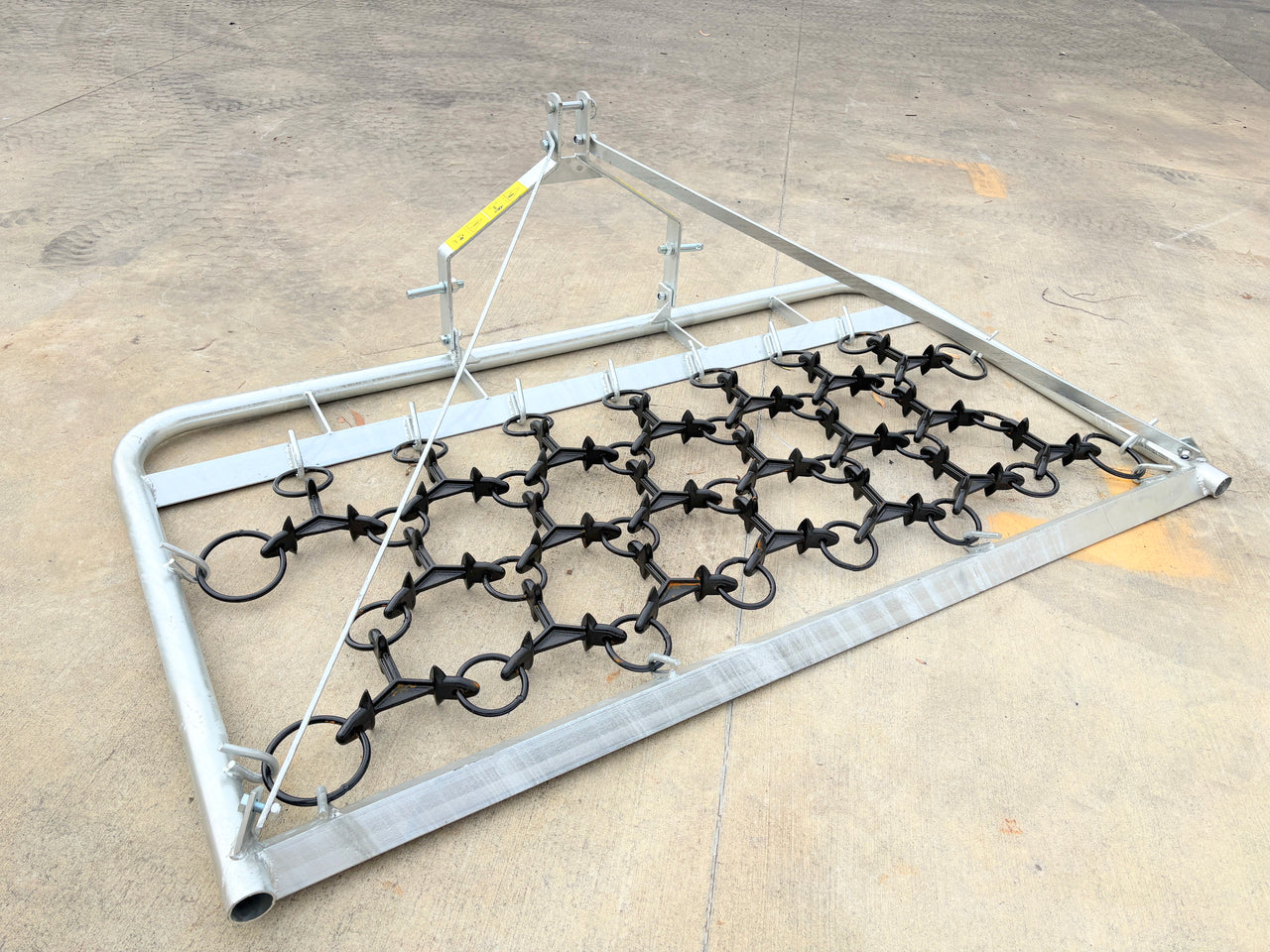

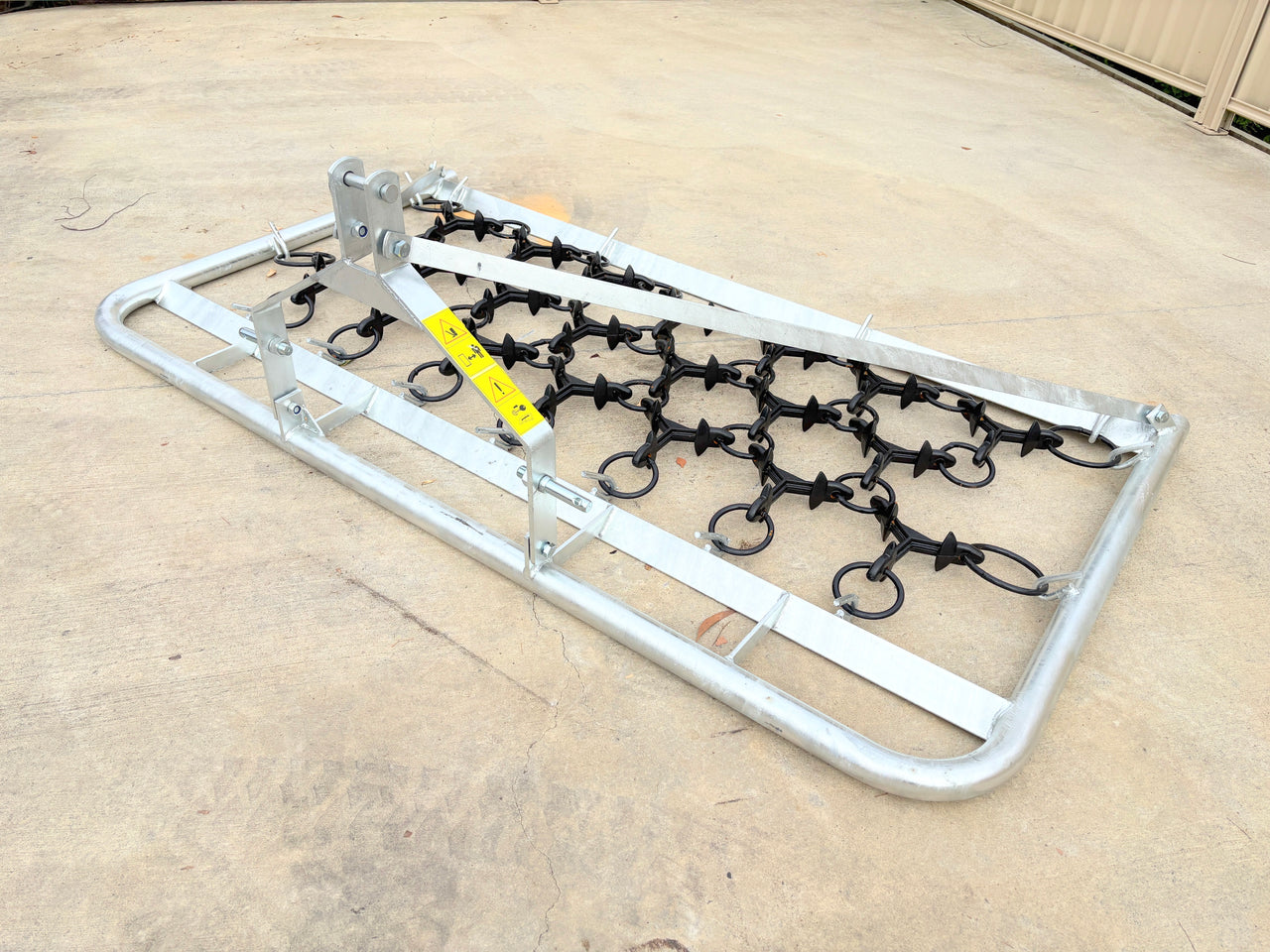

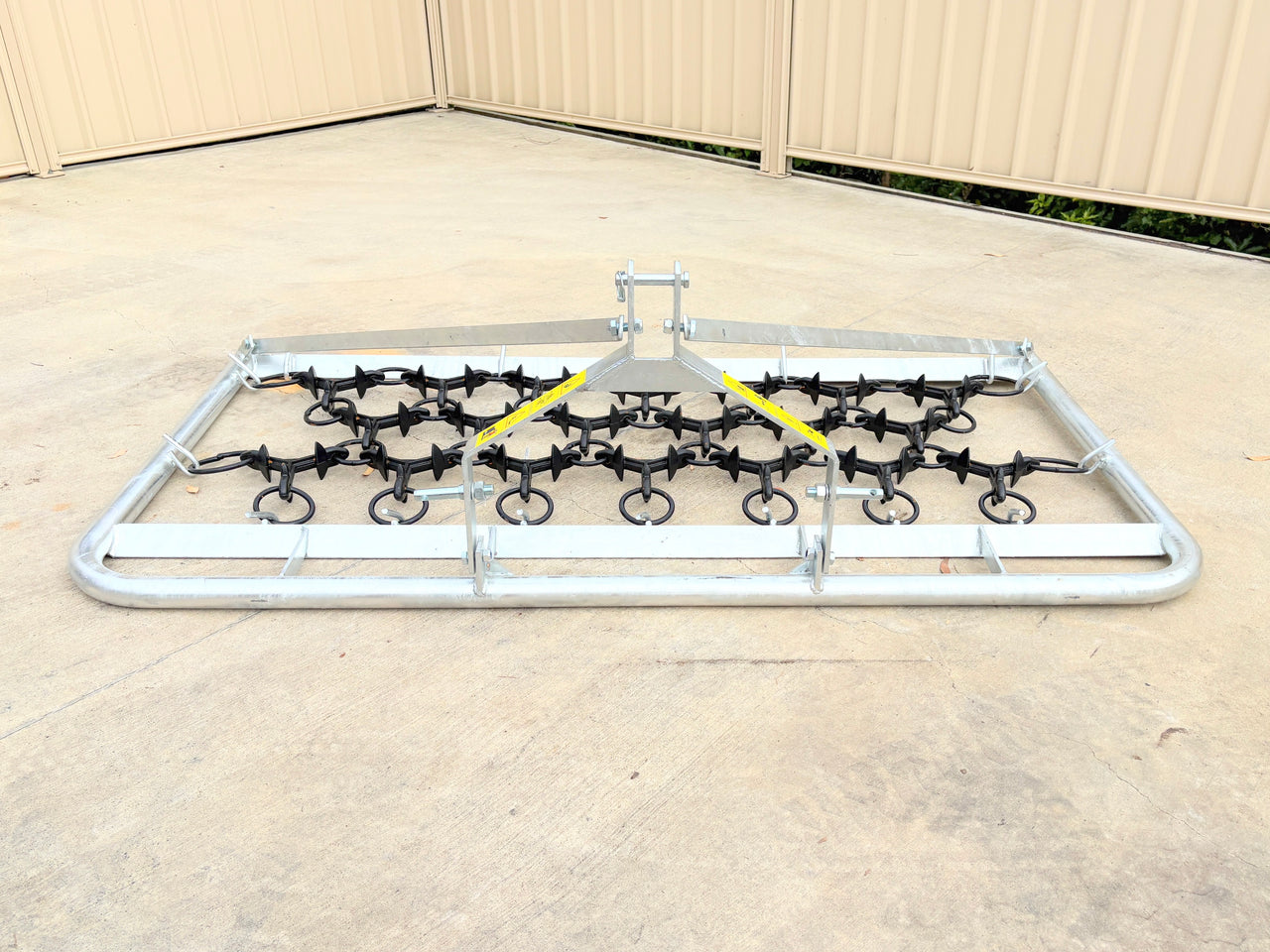

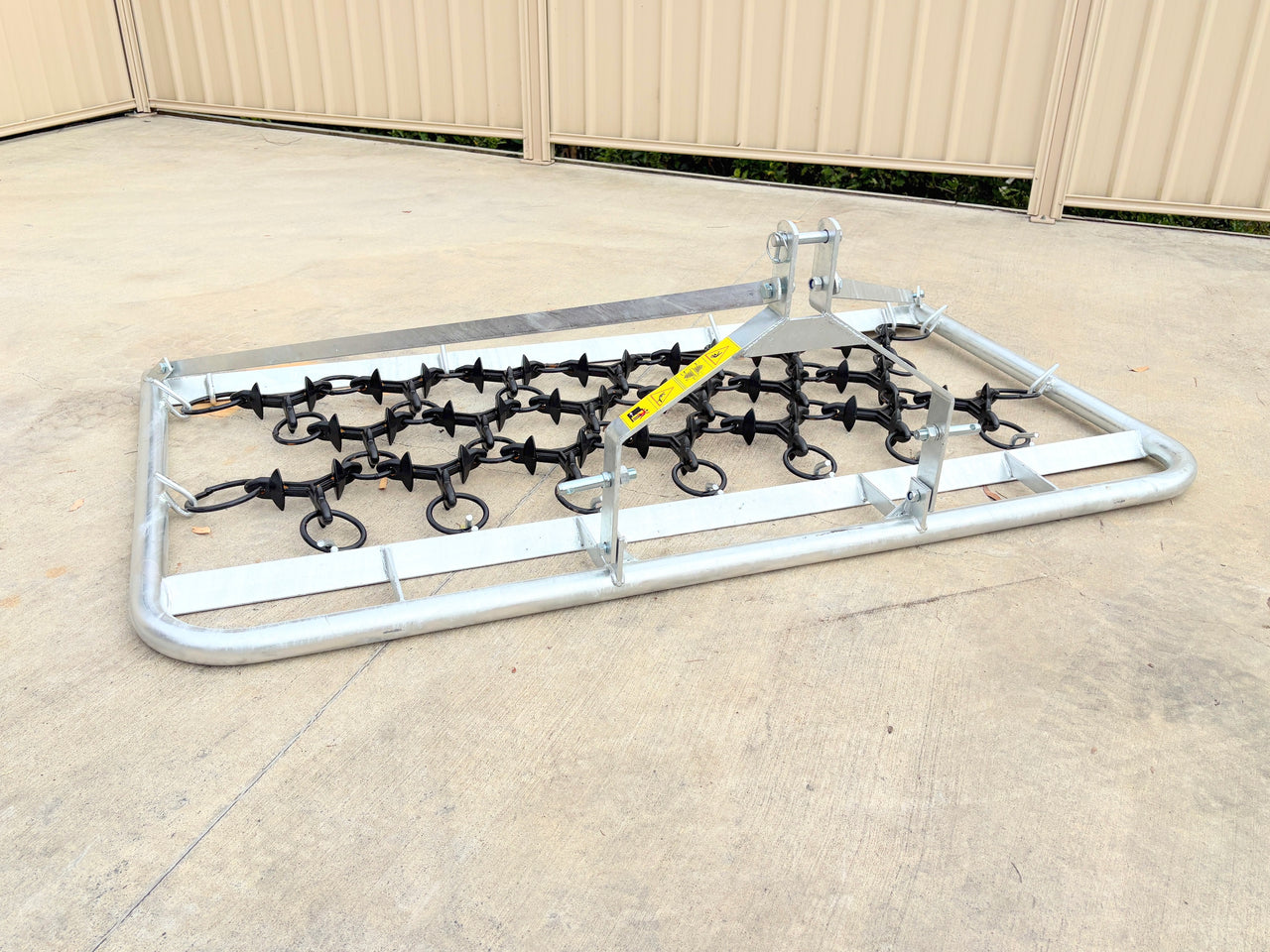

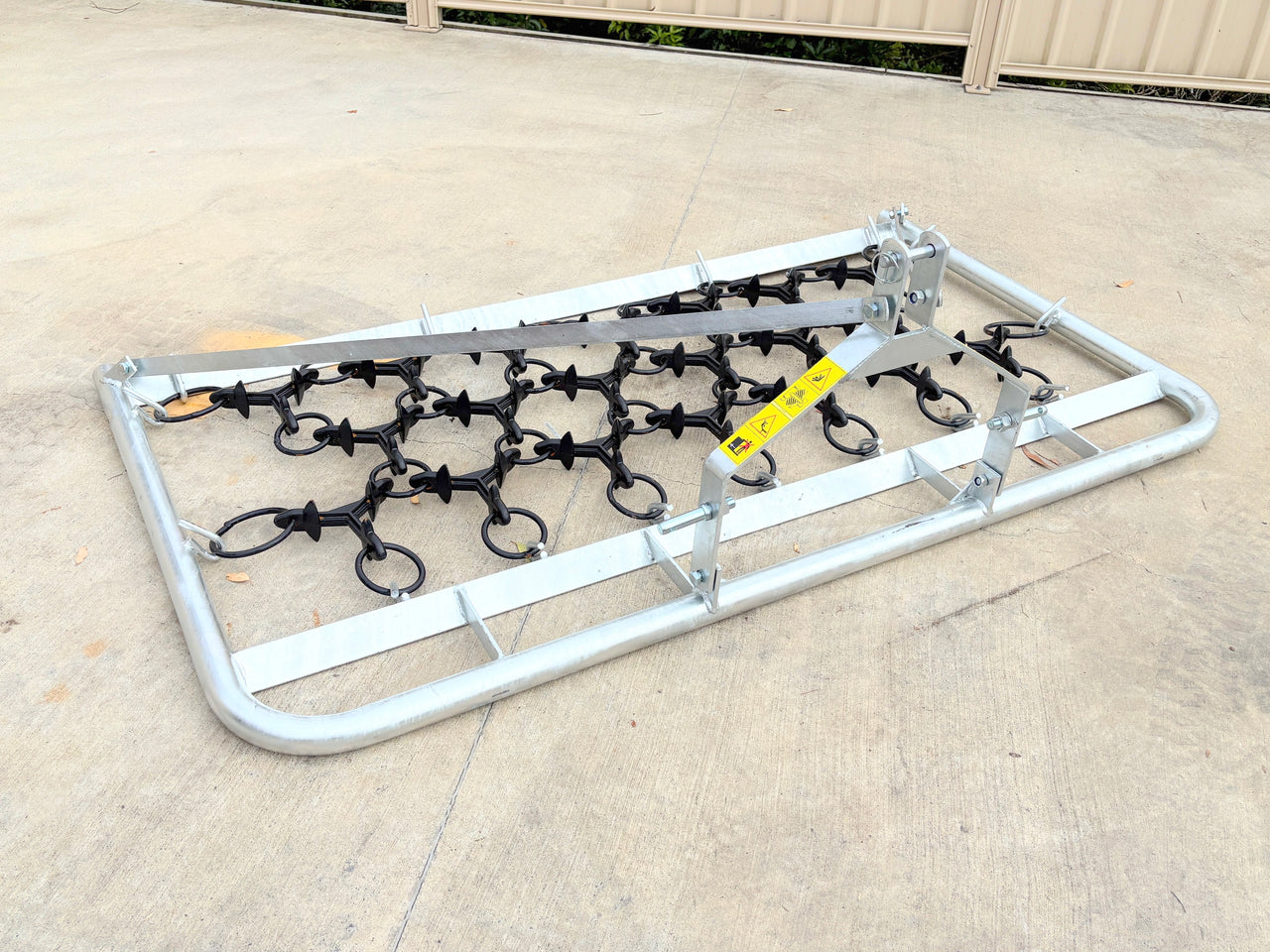

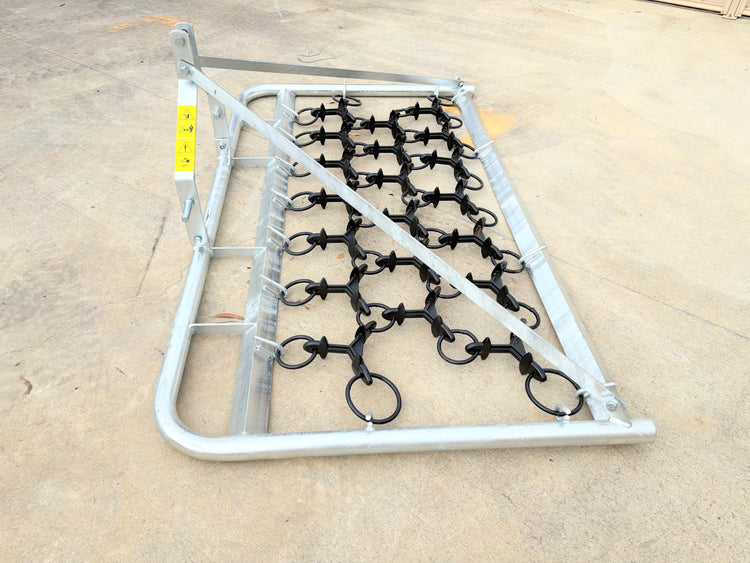

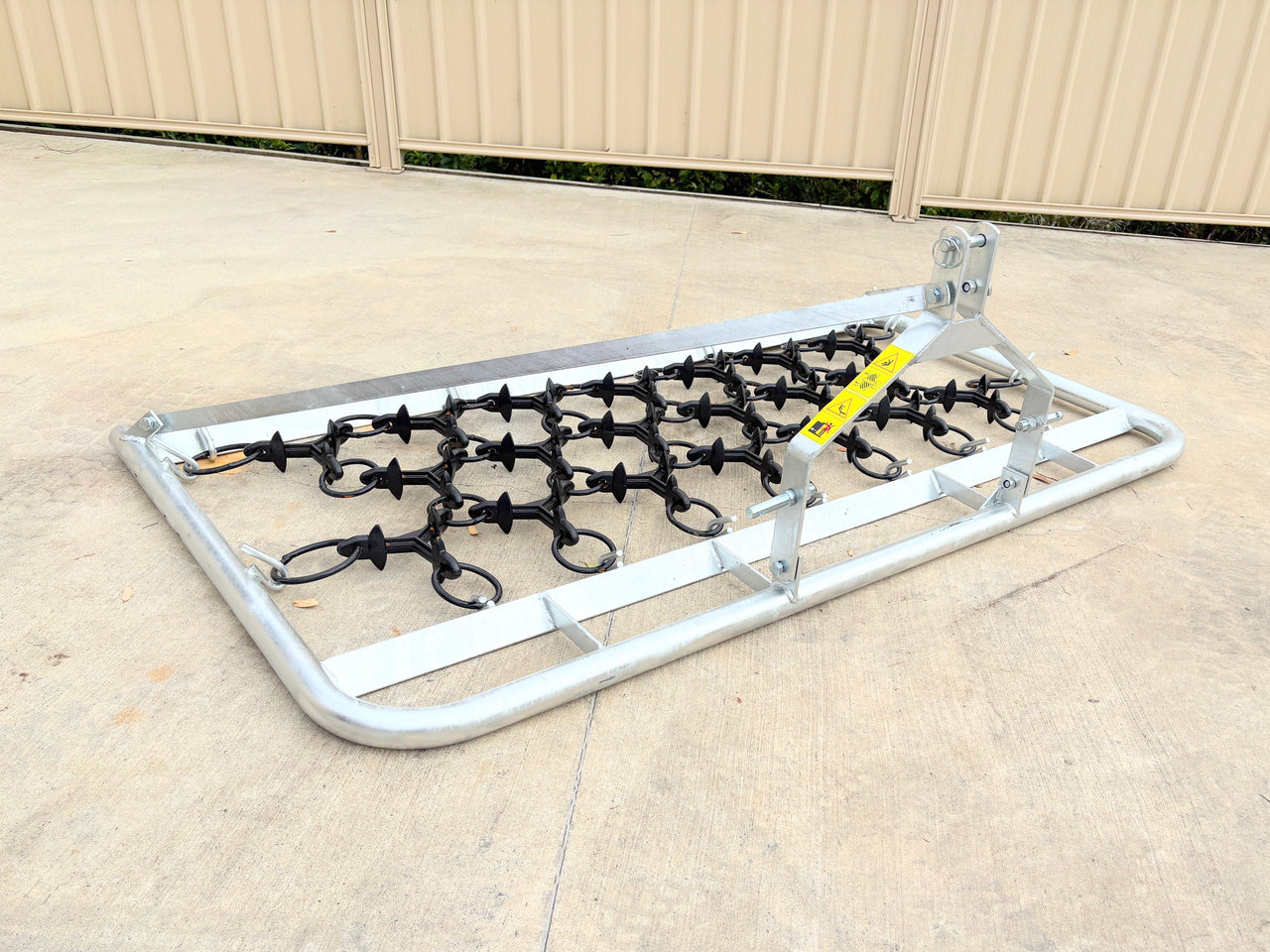

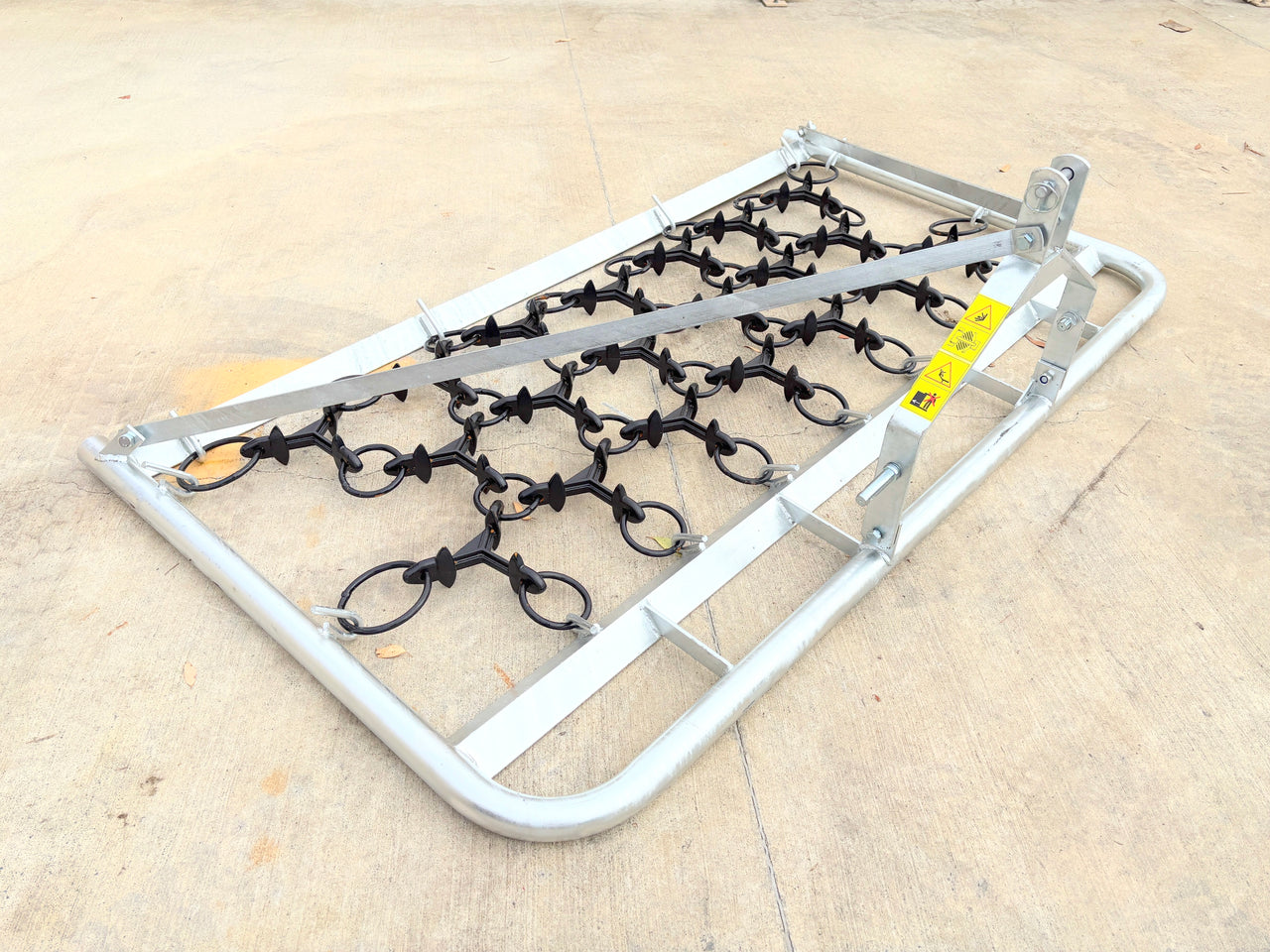

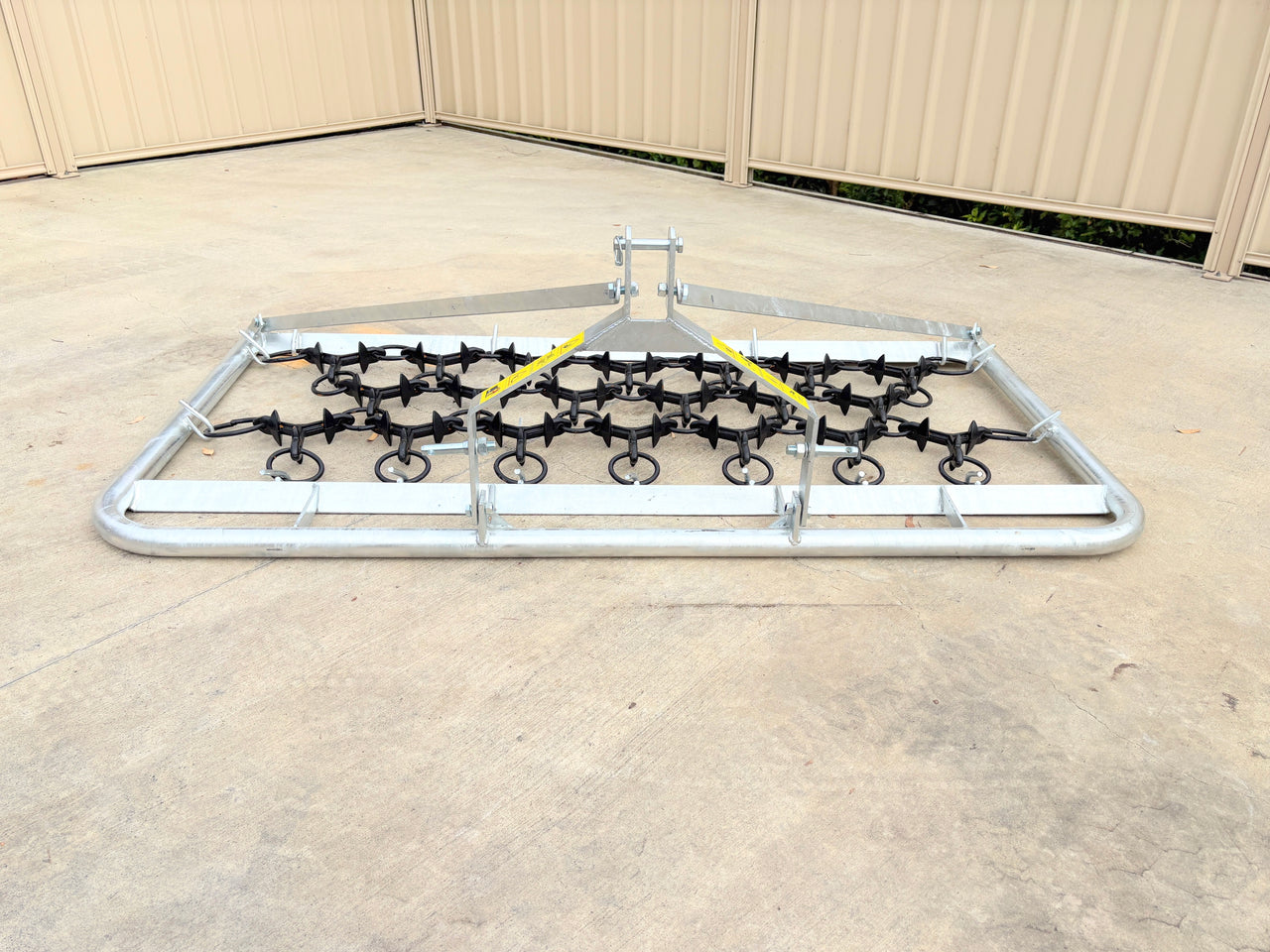

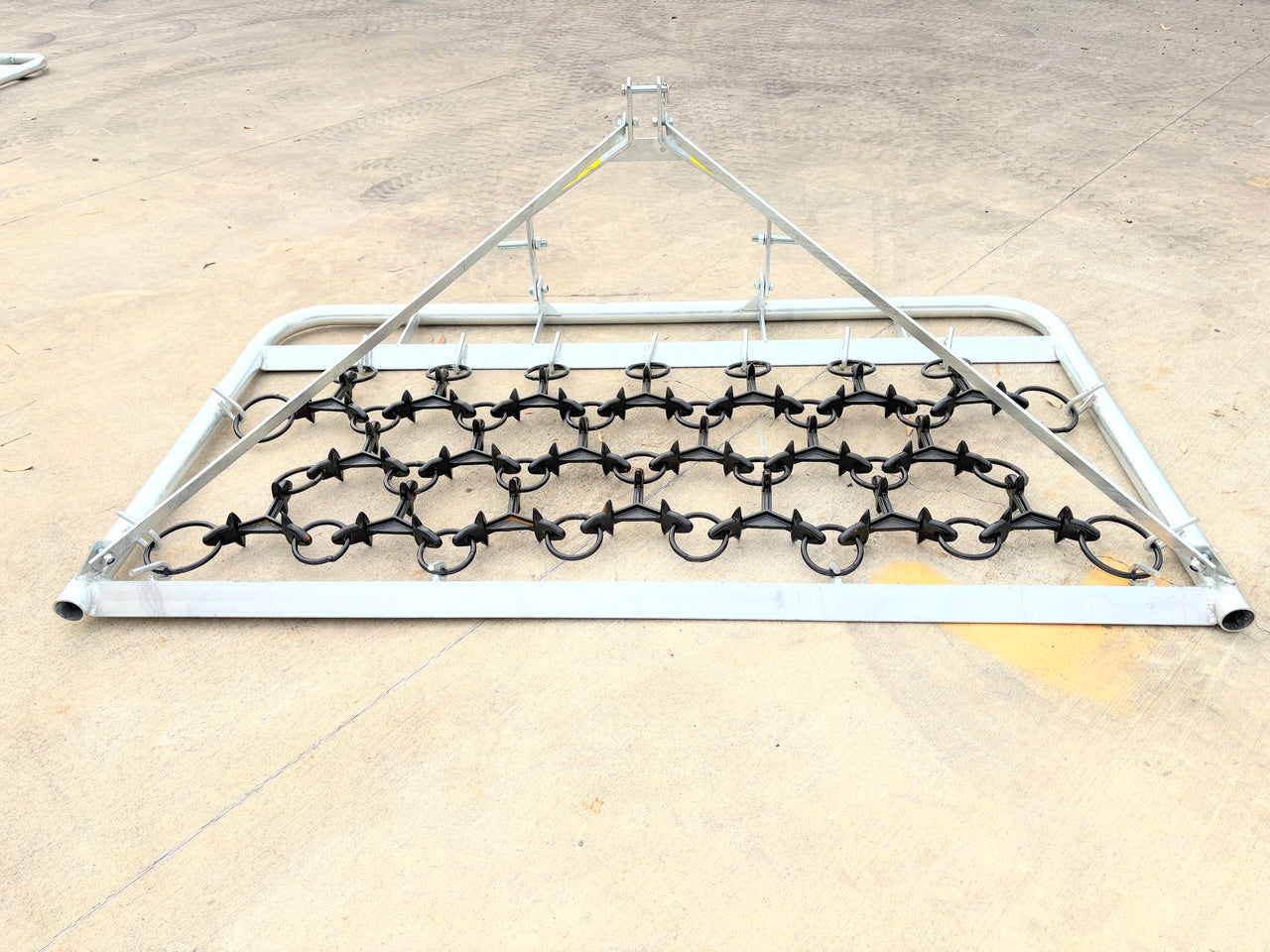

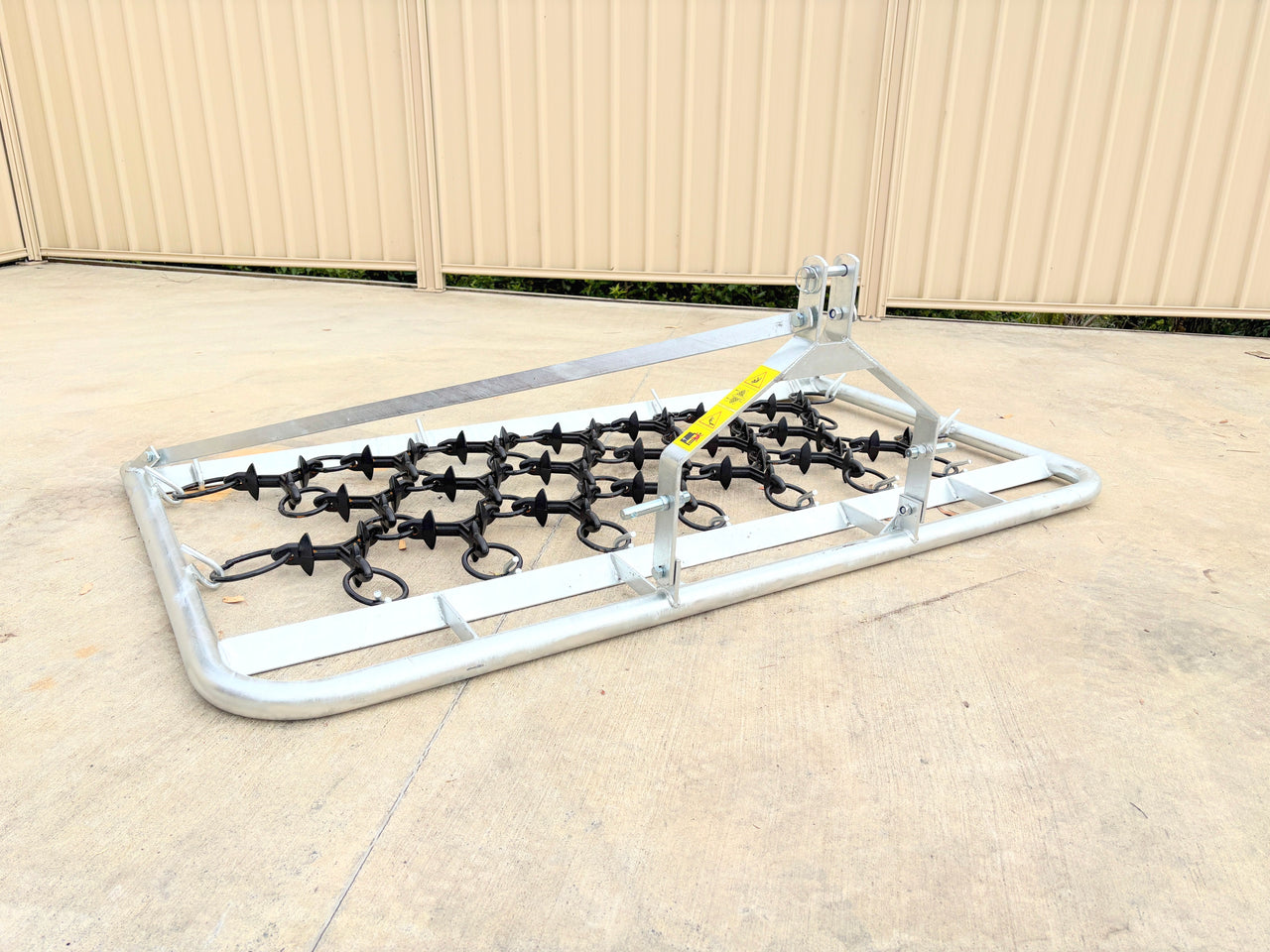

The Sierra 3 Point Linkage Mounted Chain Harrow is a 2.35m wide implement designed for compact tractors in the 25-45 HP range. Built for pasture maintenance and seedbed preparation, it mixes manure into pasture, knocks down high spots, incorporates seed, and levels uneven ground. The mounted design allows you to lift the harrow for transport and manoeuvre into tight spaces rather than dragging it in circles.
Features & Benefits
- Galvanised steel frame (2350mm wide × 1250mm deep) resists corrosion
- Category 1 three-point linkage with 720mm arm centres fits most compact tractors
- Heavy duty forged harrow links are reversible for extended service life
- Spiked rings aerate soil, remove thatch, and break up compacted ground
- Mixes manure evenly into pasture
- Knocks down high spots and levels uneven surfaces
- Incorporates seed for improved germination
- Improves soil drainage and pasture health
- Lift capability allows backing into corners and easier material spreading
- 125kg weight provides effective ground penetration without excessive compaction
Specifications
| Specification | Value |
| Width | 2350mm |
| Depth (overall) | 1250mm |
| Height | 700mm |
| Weight | 125kg |
| Frame Material | Galvanised steel |
| Linkage Type | Category 1, 720mm centres |
Best For
- Pasture maintenance and renovation
- Seedbed preparation and seed incorporation
- Breaking up surface compaction and pugging
- Mixing manure and organic matter into pasture
- Levelling paddocks and knocking down high spots
- Thatch removal to improve grass growth
- Lifestyle blocks and small to medium farms
Compatibility
- Tractor HP Range: 25-45 HP
- Hitch Type: Category 1 three-point linkage (720mm arm centres)
What's Included
- 1 × Sierra 3 Point Linkage Mounted Chain Harrow (2.35m)
- Reversible forged harrow links
- Category 1 linkage pins
Warranty & Support
This product is covered by Sierra's standard 12 month manufacturer warranty. For warranty claims or technical support, contact Implements Direct.
Shipping & Freight
This item requires freight shipping due to its size and weight. Freight costs will be calculated at checkout based on your delivery location. The harrow ships on a pallet and requires the 3 point linkage to be bolted on before use.
