Overview

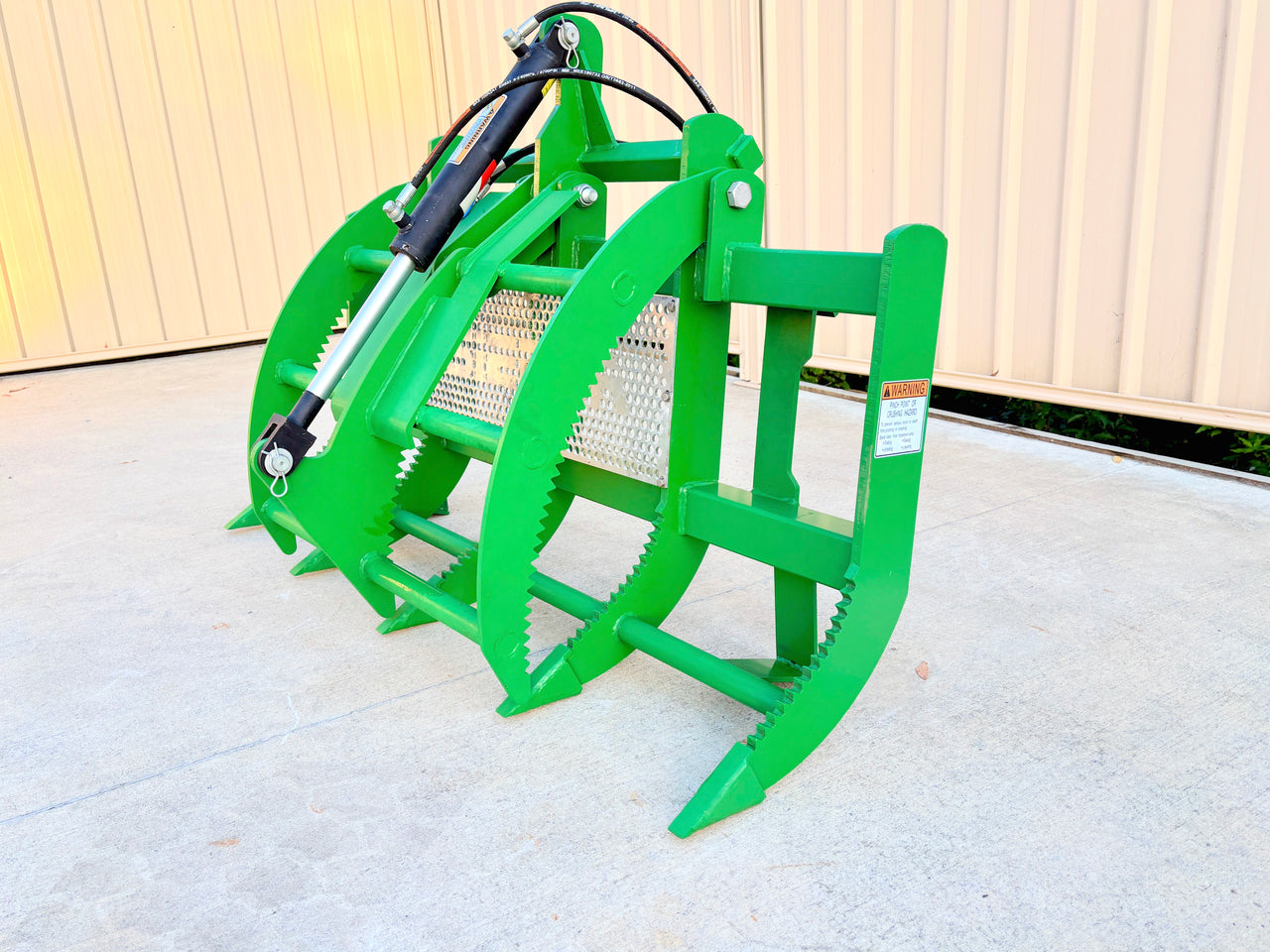

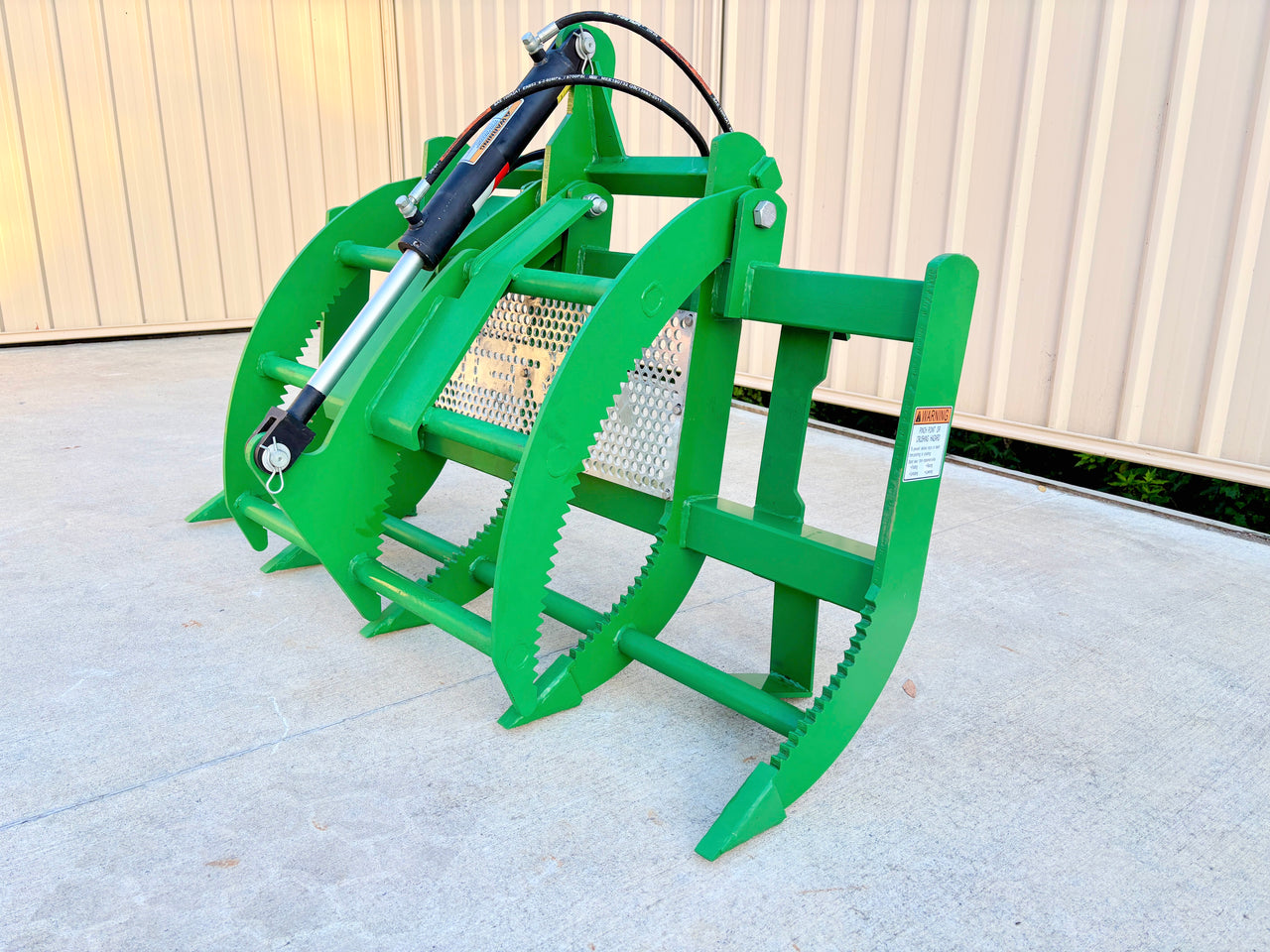

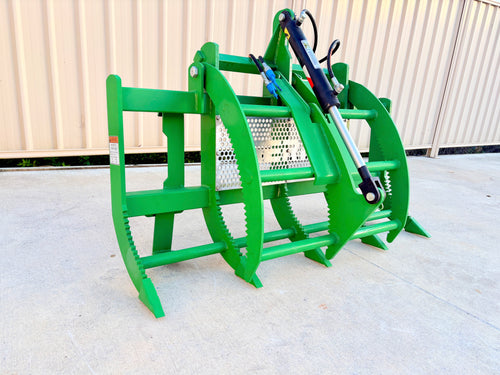

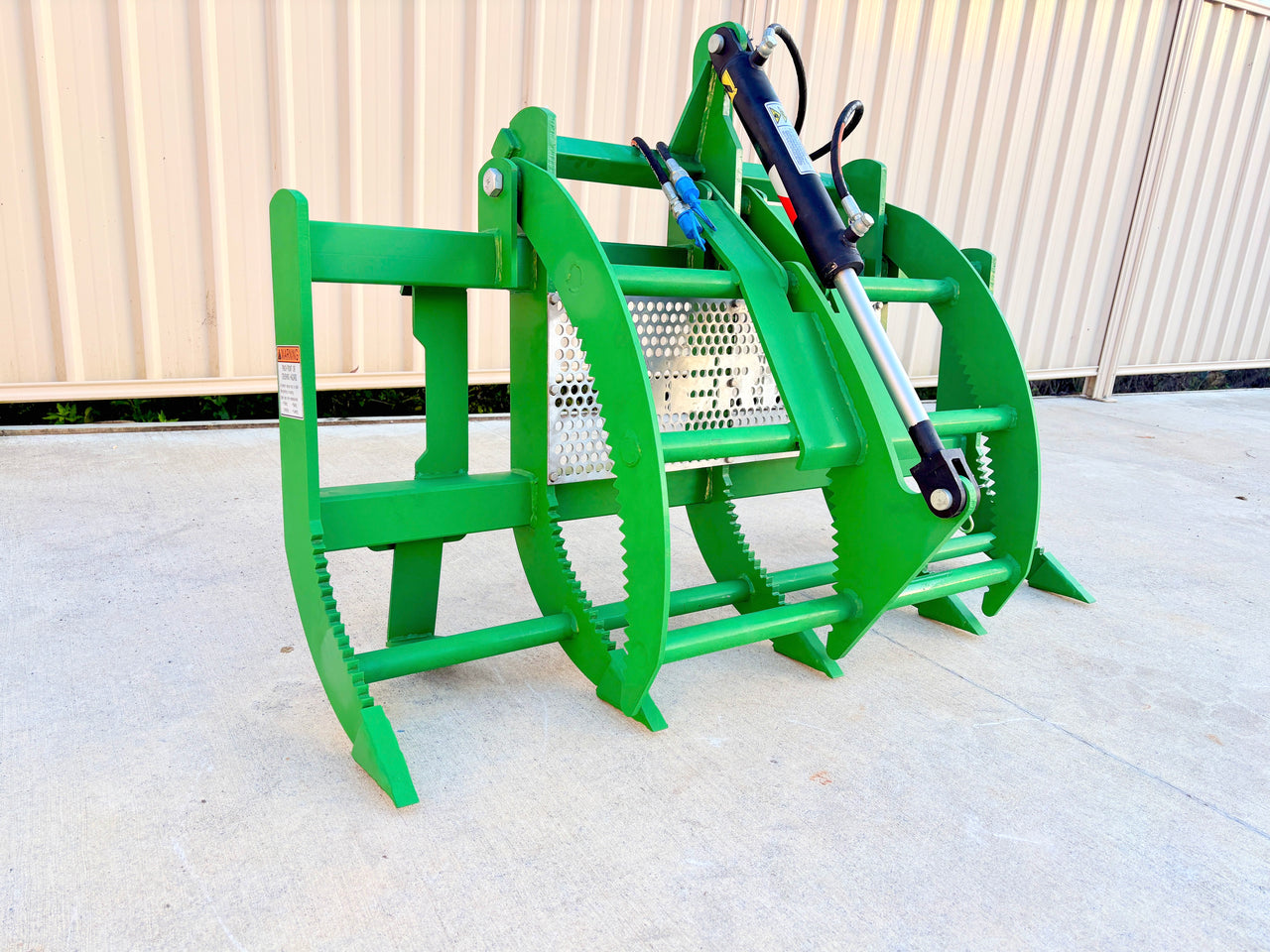

Sierra brush grapple for John Deere loader on compact tractors 30-60 HP. Ideal for cleaning up fallen trees, prunings, roots, and general rubbish. Lower tines have ripper points to scarify soil and debris. Suits John Deere 3 and 4 series compact tractors.

Features & Benefits

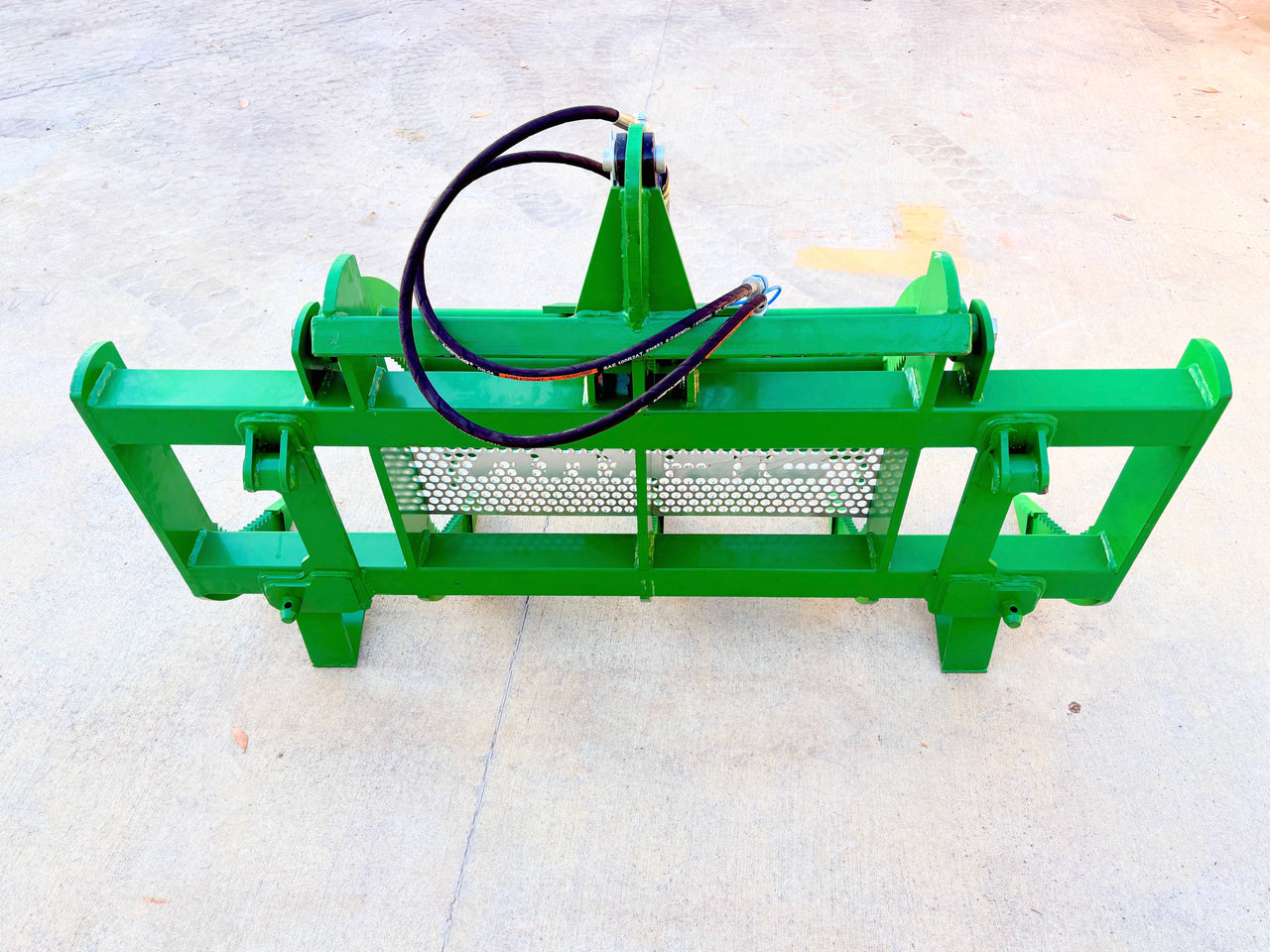

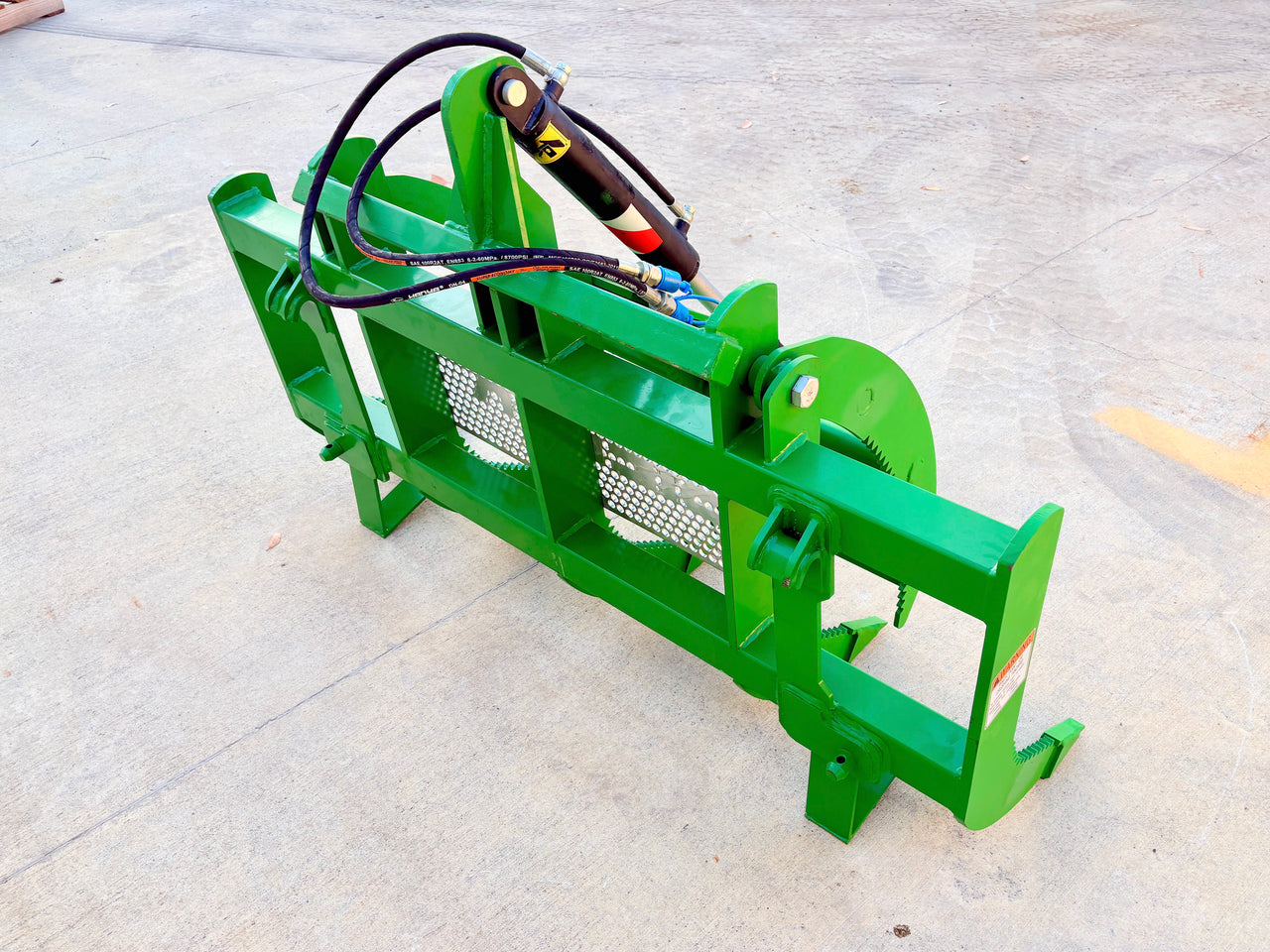

• Hook and pin linkage for John Deere loaders on compact tractors
• Serrated Jaws for better grip

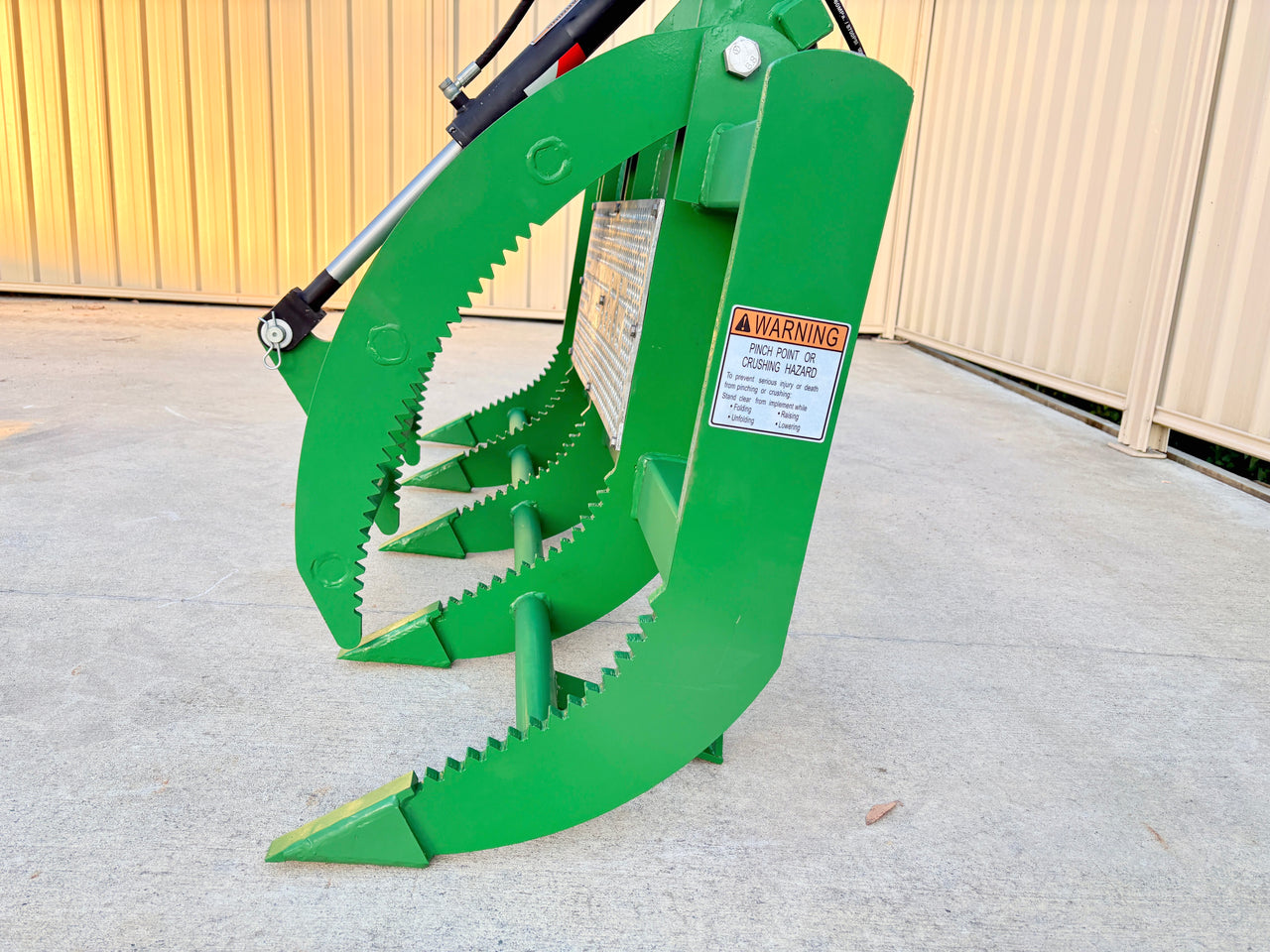

• 16mm thick lower tines with ripper points for scarifying soil and debris
• 860mm maximum opening for bulky brush and timber
• Grease fittings on all pivot points for easy maintenance
• 2 male ag-style quick-release couplings on hydraulic hoses
• Not suitable for sub-compact 1 series tractors (180kg weight)

Specifications

Specification	Value
Width	1560mm
Overall Height	1100mm
Max Opening	860mm
Upper Clamp Width	860mm
Lower Tine Thickness	16mm
Weight	200kg
Tractor HP Range	30-60 HP
Hitch Type	John Deere hook and pin loader
SKU	SLGJD1200

Best For

Fallen tree cleanup, pruning removal, root clearing after tree removal, general rubbish and brush handling on farms and lifestyle blocks.

Compatibility

Tractor: John Deere 3 and 4 series compact tractors, 30-60 HP
Hitch: John Deere hook and pin loader attachment This model is for all newer JOHN DEERE loaders including, but not limited to the 120R, D120, H120, H130, H160, D160, H165, D170, H180, 220R and similar that use the hook and pin set-up, does not fit 500 series loaders that have a different pin spacing
Note: Not suitable for sub-compact 1 series tractors due to 200kg weight

What's Included

• Sierra brush grapple
• 2 x male ag-style quick-release hydraulic couplings on hoses

Warranty & Support

12-month warranty. Parts and support available through Implements Direct NZ.

Shipping & Freight

Truck Freight item — shipping calculated at checkout based on location. Delivery via Mainfreight.
