TLBES 120 Excavator Mulcher 75-90 LPM

Lipa

$12,595.00 NZD inc GST

$10,952.20 NZD exc GST

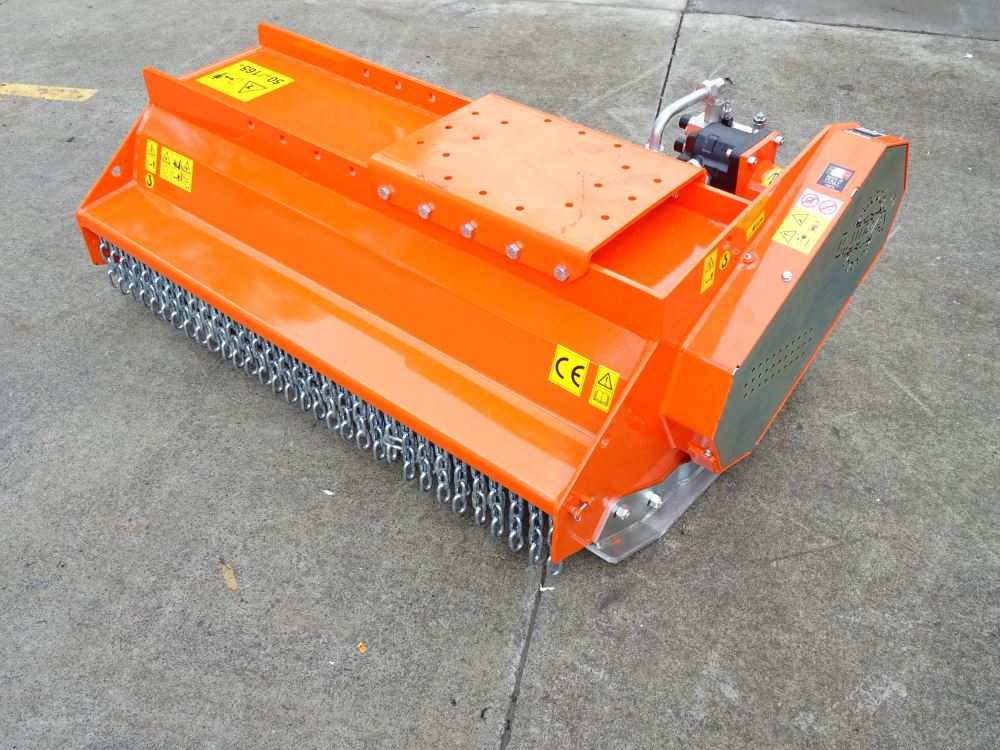

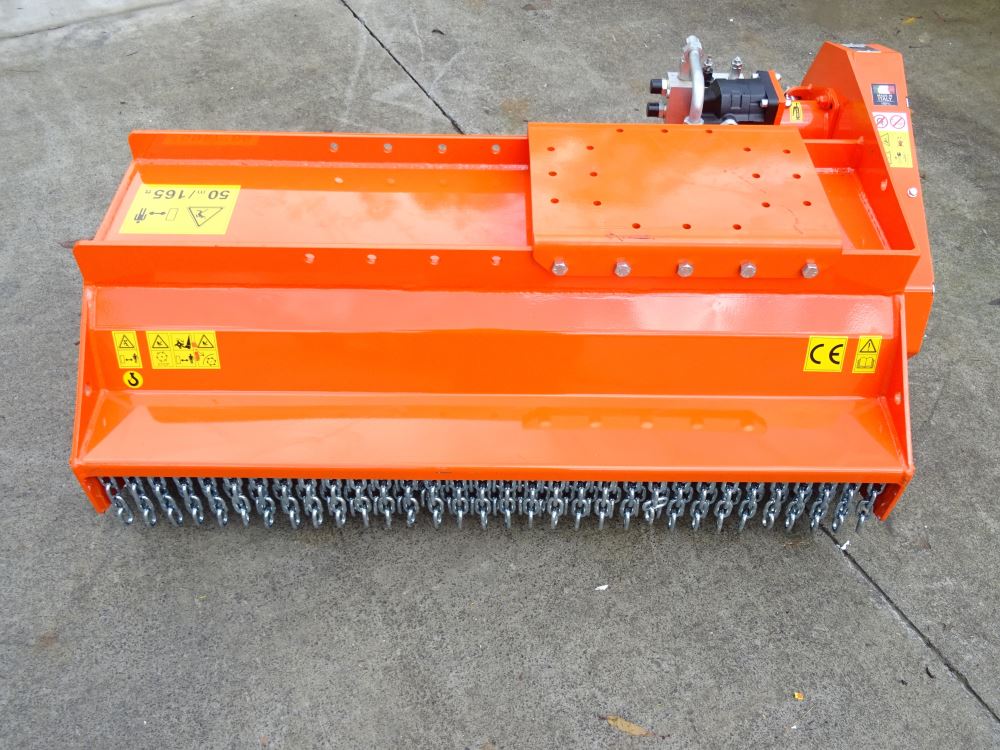

TLBES-120 Mulching Mower for Excavator suitable for  75-90 LPM

OVERVIEW

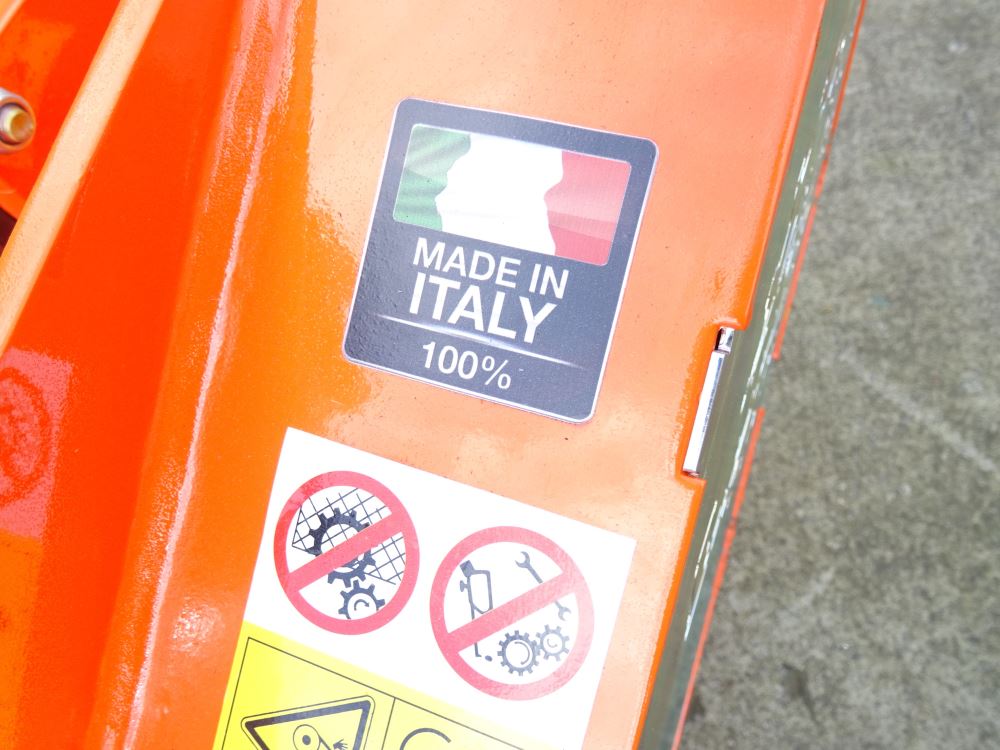

The TLBE-120 with group 3 Casappa  30/43 motor,  sutiable for 75-90 LPM of Oil flow .This Italian made  Excavator mounted flail mower head is  perfect for mulching grass, blackberry ,gorse , and saplings in those hard to reach locations ( generally up 70-100 diameter)

 It can be matched to Excavators from 8-13 ton

FEATURES AND BENEFITS

-It has solid, well designed construction with 10mm wall thickness, and 8mm thick side plates.

-It is suitable for oil flow up to 75LPM.

-Optional flow regulators are available to provide constant flow on higher flow machines

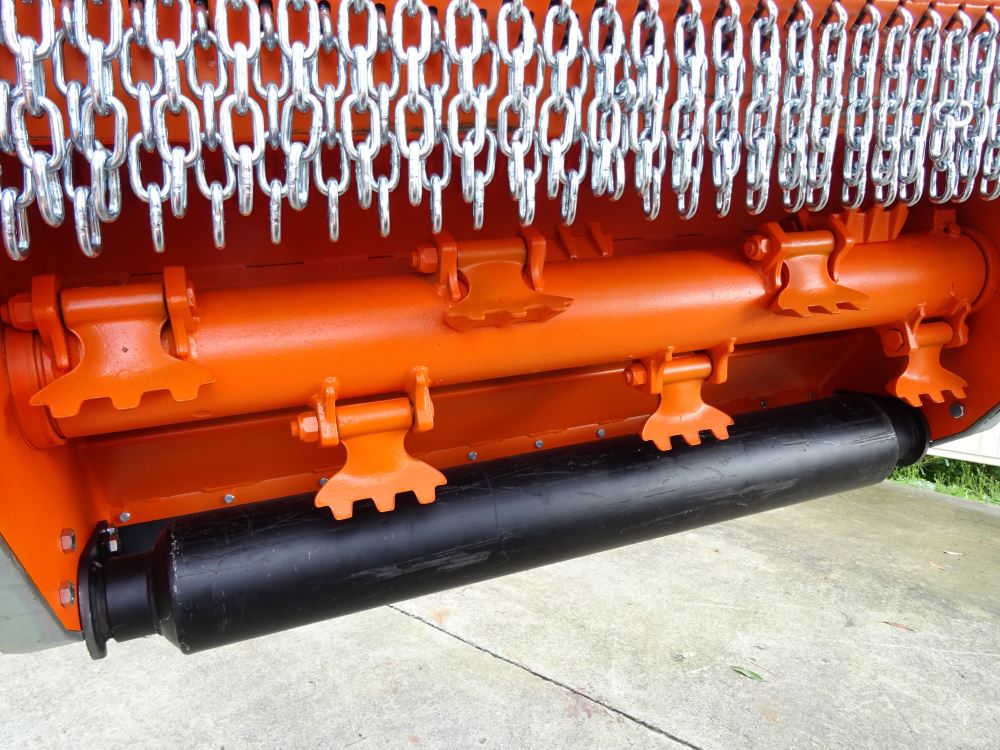

-Adjustable rear roller with scraper

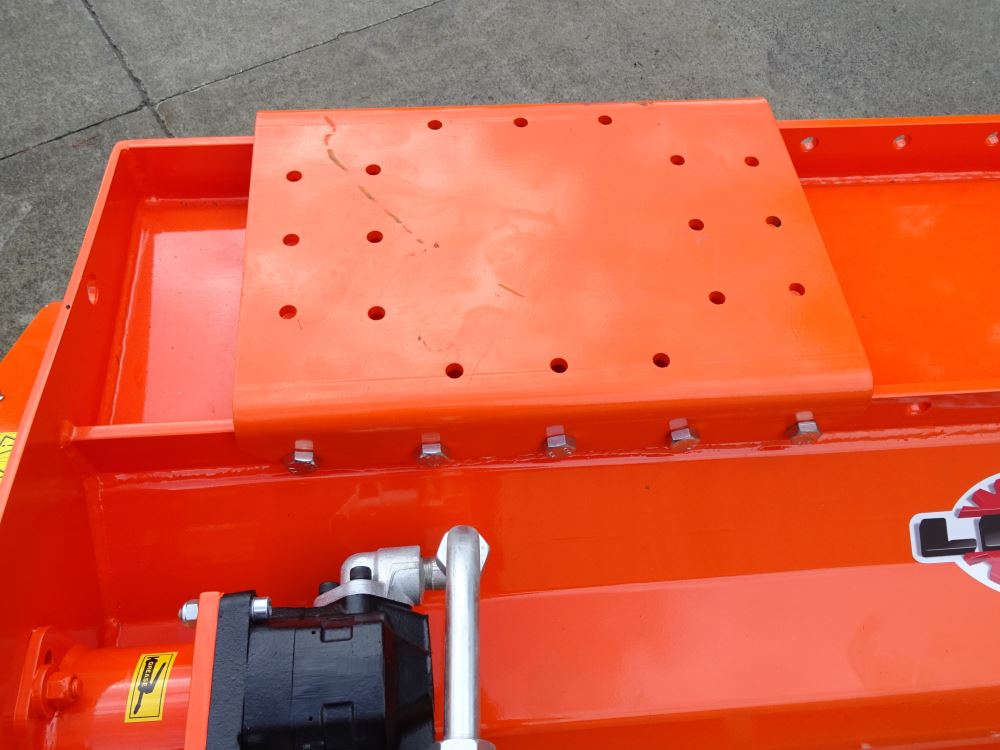

- Adjustable position headstock

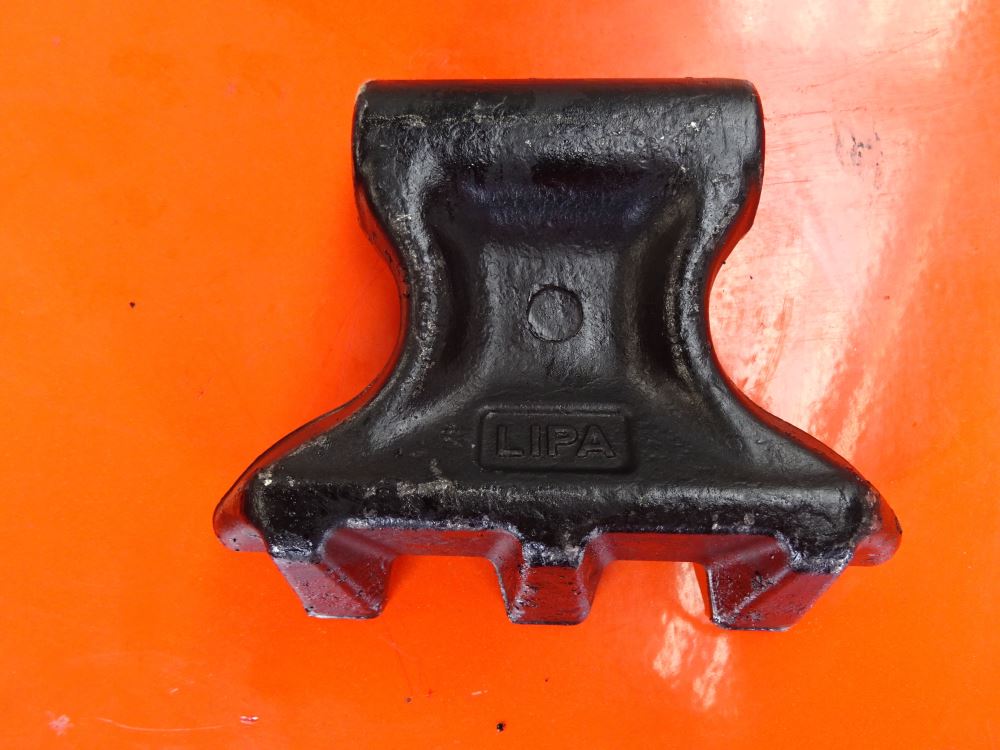

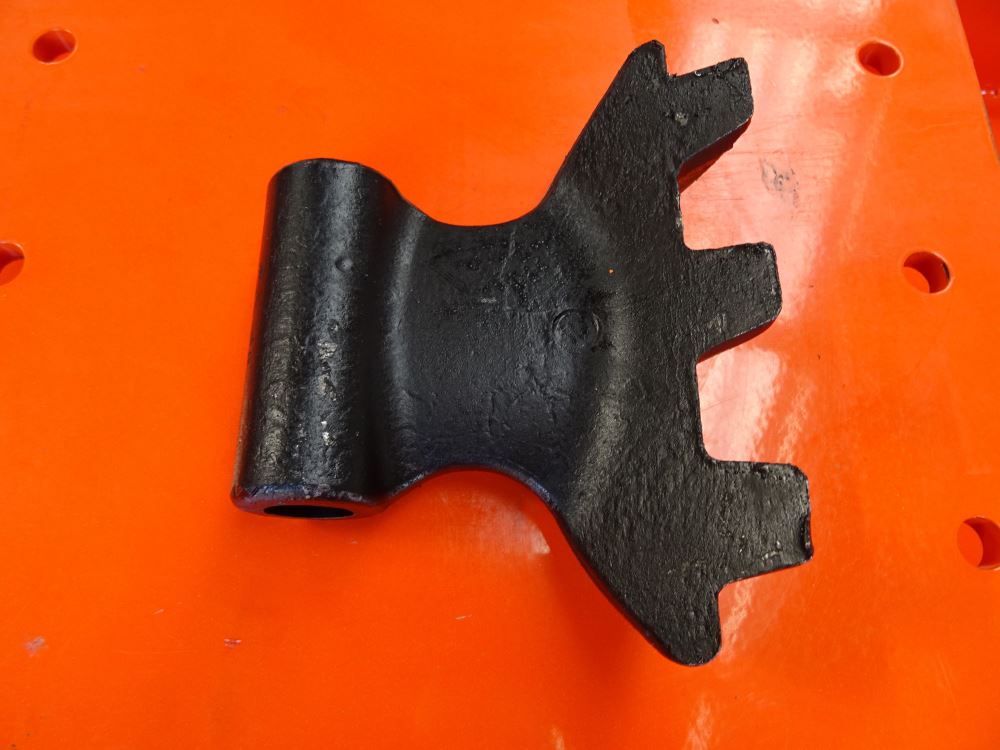

-7 Forged  toothed Hammers

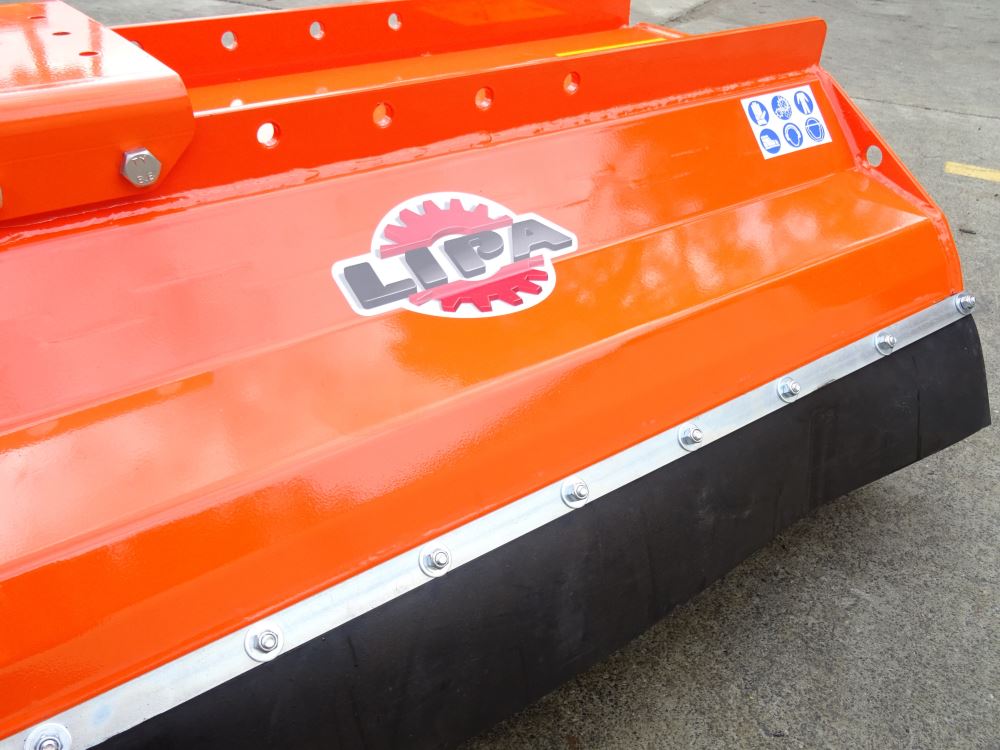

- Features zinc platedt chain guard, and rubber guards

-Does not come with hoses or hitch but we can supply to your requirements. price excludes excavator attachment brackets and pins.



Specifications

 Units

Overall Width

1400mm
Cutting Width 1240mm
Depth 1050mm

Overall Height

1000mm
Weight 340kg
Number of hammers 7
Cutting Capacity 70mm
Oil Flow Requirement up to 75 LPM
Rotor diameter and thickness 140mm x 8
Maximum hydraulic pressure  4060 PSI (280 Bar)
Number of Belts 3
Wall thickness 10mm
Cowl and side plate thickness 8mm
Motor Series 3 Casappa hydraulic
