Compatible with Category 1 sub compact tractors (18-30 HP).
Overview

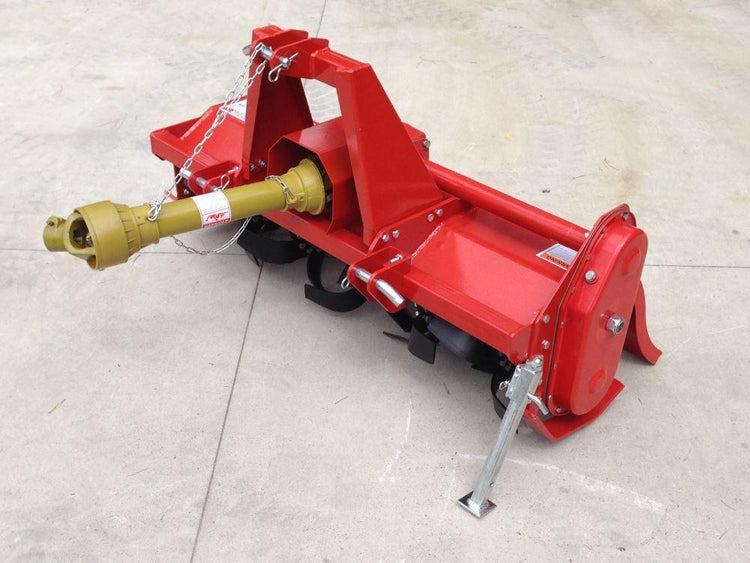

The Sierra STX48 1.2m (48") gear drive rotary hoe is designed for sub compact tractors 18-30 HP. Features full gear drive system for durability and slip clutch protected PTO for safety. 30 hardened steel blades provide thorough soil cultivation. Built for soil conditioning, seedbed preparation and weed control on lifestyle blocks, small market gardens, nurseries and vineyards.
Features & Benefits
- 1.2m (1220mm / 48") working width for compact tractors
- Full gear drive system (no chains) with oil bath lubrication
- Heavy-duty stamped A-frame three-point hitch with double lower clevis hitch points
- Series 4 PTO shaft with slip clutch to protect tractor drive line
- 30 rotor blades (6 tines per flange) made of hardened steel
- Adjustable offset lower hitch points for versatile operation
- Adjustable skids for depth control (1-4" adjustment range)
- Heavy-duty curved drag board for smooth finish
- Parking stand for easy hookup
- Powder coat finish for durability
- Lightweight construction: 180kg for easy handling
- Tilling depth up to 165mm (6.5")
Specifications
| Specification | Value |
|---|---|
| SKU | STX0048 |
| Working Width | 1220 mm (48") |
| Overall Width | 1300 mm |
| HP Required | 18-30 HP |
| Tilling Depth | 165 mm (6.5") |
| Height | 650 mm |
| Rotor Blades | 30 (6 tines per flange) |
| Weight | 180 kg |
| 3-Point Linkage | Category 1 (offset capable, quick hitch compatible) |
| Drive System | Full gear drive in oil bath (no chains) |
| PTO Speed | 540 RPM |
| PTO Shaft | Series 4 with slip clutch |
| Depth Adjustment Range | 1-4" (25-100mm) |
| Blade Material | Hardened steel |
Best For
- Lifestyle block soil preparation and cultivation
- Small market garden and vegetable growing
- Landscaping and nursery operations
- Vineyard inter-row maintenance
- Seedbed preparation and weed control
- Fertiliser incorporation
Compatibility
- Tractor HP Range: 18-30 HP
- Hitch Type: Category 1 three-point linkage (offset capable, quick hitch compatible)
- PTO: 540 RPM Series 4 with slip clutch
- Tractor Type: Compact tractors
What's Included
- Sierra STX48 rotary hoe main unit
- PTO shaft Series 4 with slip clutch
- Parking stand
- Operators Manual
Warranty & Support
12 month Warranty Backed by Sierra quality standards. Ideal for New Zealand conditions.
Shipping & Freight
This item ships via Mainfreight. Weight: 180 kg. Add to cart and enter your address for freight quote and delivery options to your location.
Note
Ships lubed - assembly required for 3-point linkage.
