Overview

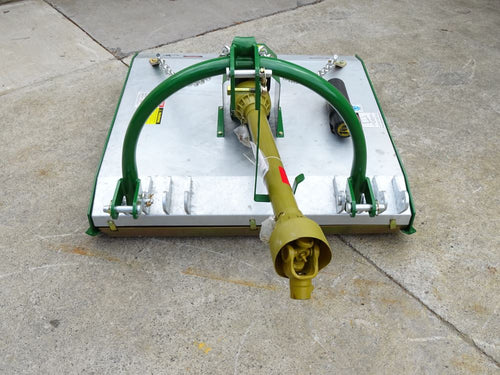

The Sierra galvanised slasher mower for topping paddocks and controlling excess growth. Suitable for tractors 16-40 HP with Category 1 three-point linkage. 1070mm cutting width with offset or centre mounting options. Hot-dip galvanised deck with reinforced construction. Floating three-point linkage design. Adjustable cutting height 50-90mm.

Features & Benefits

• Hot-dip galvanised deck resists corrosion
• 3.2mm steel deck with additional reinforcements
• Offset or centre mounting options on three-point linkage
• Floating headstock design follows ground contours
• Adjustable skids: 50-90mm cutting height
• Parabolic rounded skid section reduces ground impact
• 3-leaf bar blade carrier with hardened bushes
• 2 boron step-down blades

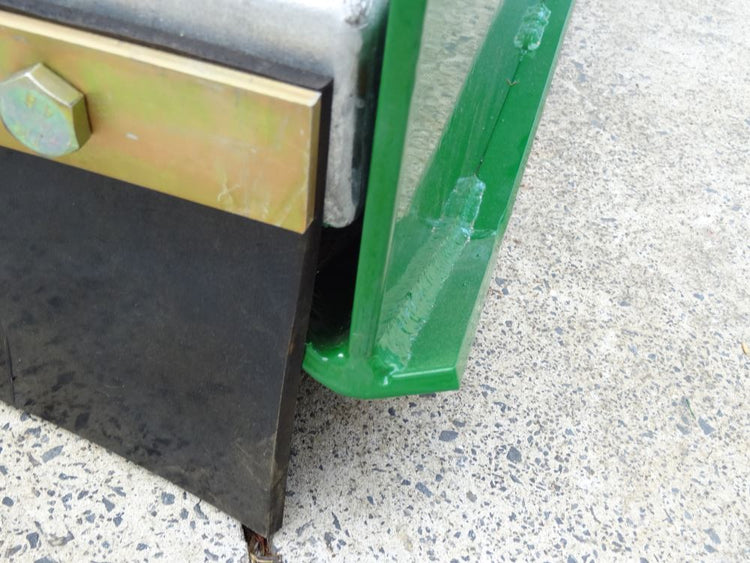

• Front metal stone guard and rear rubber skirt
• Series 4 PTO shaft with shear bolt protection
• PTO shaft holder for storage
• Collapsible floating headstock with clevis-style pins
• Powder-coated skids and gearbox safety guard

Specifications

Specification	Value
Model	SSM36
Overall width	1170mm
Cutting width	1070mm
Depth	1090mm
Overall height	670mm
Weight	147kg
Cutting height adjustment	50-90mm
Tractor HP range	16-40 HP
Linkage type	Category 1 three-point linkage
Mounting options	Centre or offset
PTO shaft	Series 4 with shear bolt protection
PTO speed	540 RPM
Gearbox ratio	1:1.93
Blade carrier	3-leaf bar with hardened bushes
Blades	2 boron step-down blades
Deck material	Hot-dip galvanised steel, 3.2mm thick
Stone protection	Front metal guard, rear rubber skirt

Best For

• Topping paddocks and pastures
• Controlling excess grass growth
• Maintaining lifestyle blocks and farms
• Verge and roadside mowing (with offset mount)
• General slashing and mulching

Compatibility

• Tractor HP Range: 16-40 HP
• Hitch Type: Category 1 three-point linkage
• PTO: 540 RPM
• Mounting: Centre or offset position

What's Included

• Sierra 1.17m slasher mower
• Series 4 PTO shaft with shear bolt protection
• 2 boron step-down blades (fitted)
• Category 1 linkage pins (clevis-style)
• PTO shaft holder
• Operation manual

Warranty & Support

Backed by Sierra's 12 month manufacturer warranty. Contact Implements Direct for product advice and technical support.

Shipping & Freight

Weight: 147kg. Ships via truck freight. Freight costs calculated at checkout based on your location.
