Novaquip NSR0010 Single Tine Ripper with Pipe Laying Attachment

Novaquip

$895.00 NZD inc GST

$778.27 NZD exc GST

Overview

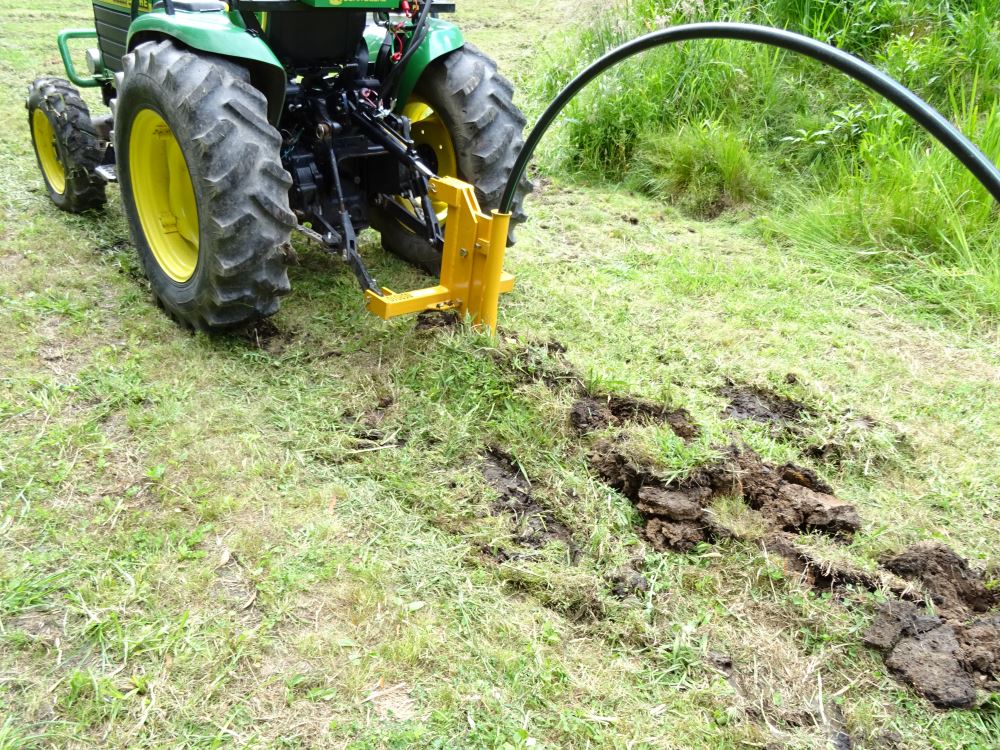

The Novaquip NSR0010 is a single tine ripper designed for breaking up compacted soils, creating drainage channels, and subsoiling on lifestyle blocks and farms. It includes a pipe laying attachment that allows irrigation pipe or cable to be fed underground in a single pass as the tine opens the ground. Suits Cat 1 tractors from 20–45 HP.

Features & Benefits

  • Pipe laying attachment included — lays irrigation pipe or cable in one pass as the tine rips

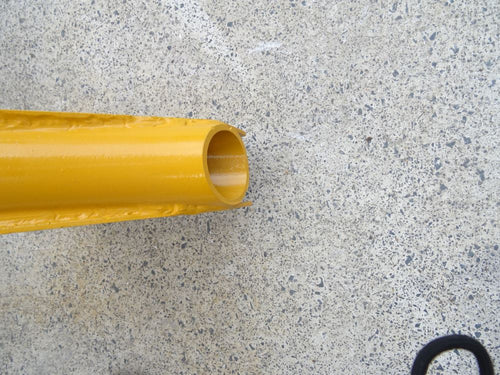

  • 40mm OD pipe laying capacity through a 50mm ID feeder tube
  • Replaceable and reversible cutting edge on the ripper shank for extended wear life

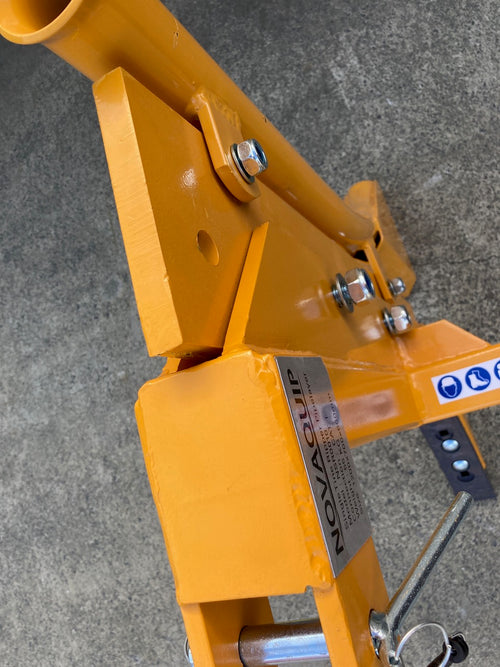

  • Heavy-duty gusseted and reinforced steel frame construction
  • Adjustable frame depth setting — 450mm to 650mm — suits compact tractors with limited 3-point linkage lift height
  • Supplied complete with Cat 1 pins and linchpins
  • Suitable for ripping, subsoiling, drainage, aeration, and irrigation pipe laying

Specifications

Specification Value
Length 670 mm
Width 650 mm
Height 960 mm
Weight 55 kg
Adjustable depth range 450–650 mm
Pipe laying capacity (OD) 40 mm
Feeder tube (ID) 50 mm
Linkage type Category 1 3-point linkage
Tractor HP range 20–45 HP
SKU NSR0010

Best For

  • Breaking up compacted or hard soils on lifestyle blocks and farms
  • Creating drainage channels in wet or waterlogged areas
  • Laying irrigation pipe or cable underground in a single pass
  • Subsoiling and aeration ahead of pasture renovation

Compatibility

  • Tractor HP: 20–45 HP (Cat 1 max)
  • Hitch type: Category 1 3-point linkage

What's Included

  • NSR0010 single tine ripper frame
  • Pipe laying attachment with 50mm ID feeder tube
  • Cat 1 pins and linchpins
  • Replaceable/reversible cutting edge (fitted)

Warranty & Support

Backed by Novaquip's standard manufacturer warranty. Contact Implements Direct for warranty claims and spare parts support.

Shipping & Freight

This item ships via Mainfreight freight. Free shipping applies to the nearest Mainfreight depot or a metro address. Rural delivery surcharges may apply — contact us to confirm your delivery address before ordering.
