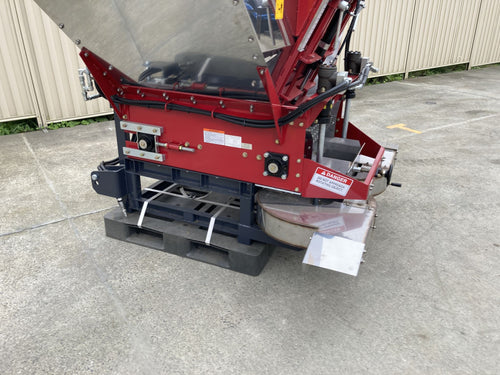

Iris Viking 1500 Spreader with side band spreading attachments

Overview:

The Iris Viking 1500 Multi Spreader will spread granular fertiliser, compost or lime i

It features a  hydraulic drive system with  500mm wide stainless steel mesh chain conveyor and twin spreading discs with side dressing attachments to band spread lime, mulch etc under orchard rows.

Features & Benefits:

• Stainless mesh conveyer: It conveys exact amounts of fertilizer or sand and is more durable than rubber conveyors
• Stainless steel parts:  the hopper, feeding conveyor belt, spinner disc, vanes and deflector plate
• Relief valve : The durability of the hydraulic motor that rotates the spinner disc is improved including a relief valve (It controls the  shock pressure that occurs when the motor stops)
• The speed of the spinner disc and feeding conveyor belt can be controlled by a hydraulic control valve.



Specifications

Specifications	Units
Hopper Capacity	1.32m3
Nominal Capacity	1500kg. (1.5) tonne
Width	1870mm
Length	1960mm
Height	1660mm
Capacity	780 Litres (0.78m3)
Weight	700kg (empty)
Spreading width	20-25 meters (broadcast )( side dresser maybe less distance)
Attachment	3 Point Link
Spinner and shutter system	Hydraulic
Spinner Discs width	600mm
Mesh chain width	500mm
Hopper material	Stainless steel
Power	Hydraulic
Linkage	3-point link mounted
Tractor	Category 2

Notes:

Made by Iris Spreaders in Korea

The side diressers can be unbolted and a standard deflection plate is included so the spreader can be used for Broadcast spreading also.
