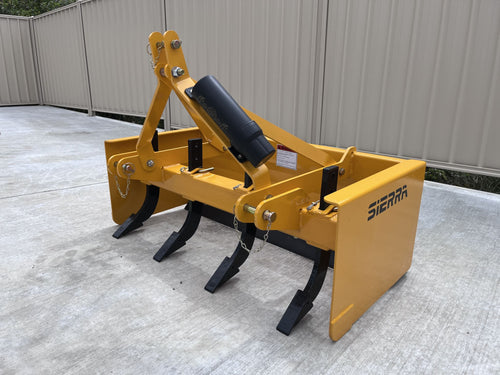

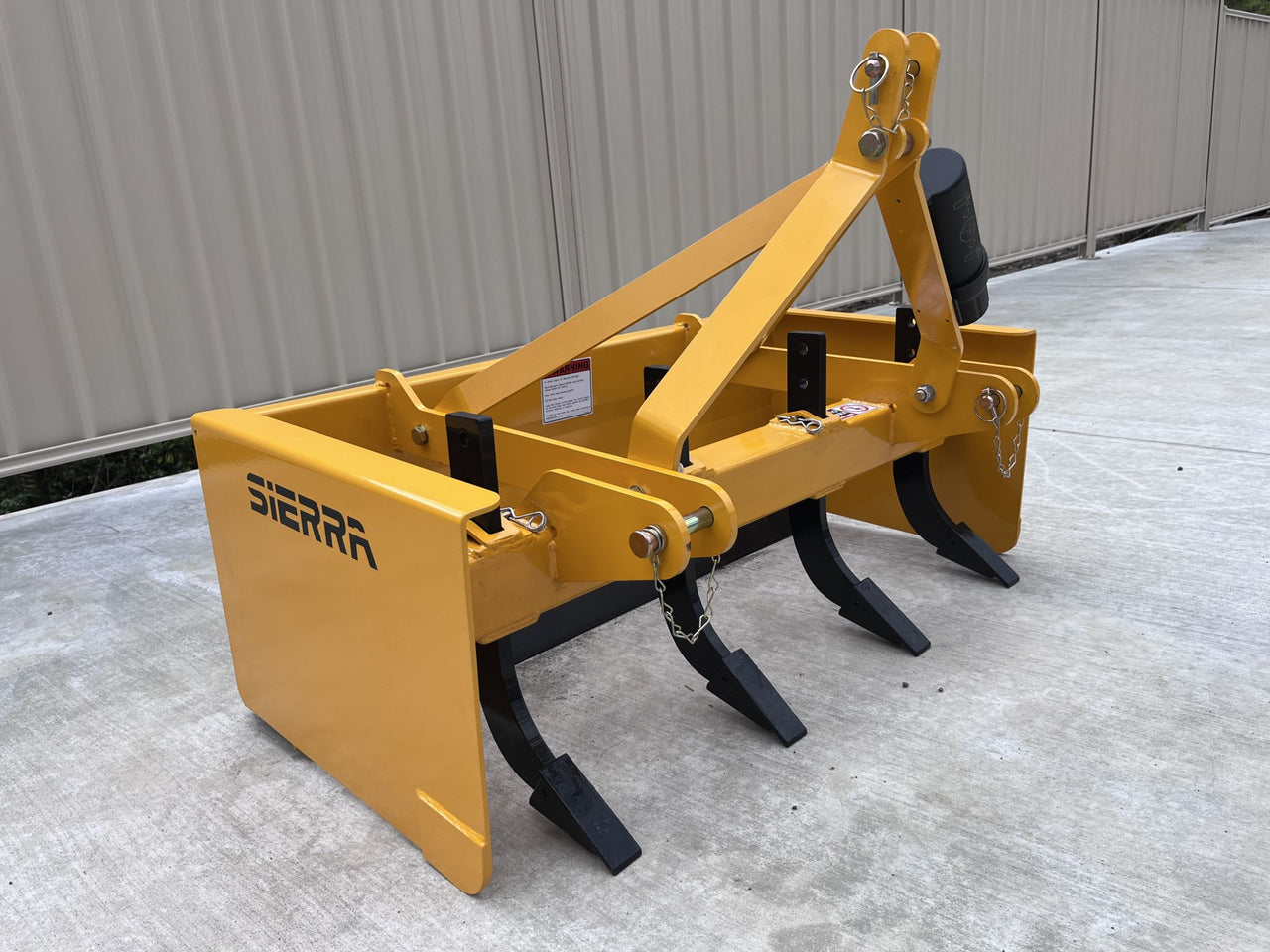

Sierra 4ft Box blade for Compact tractors


$1,195.00 NZD inc GST

$1,039.15 NZD exc GST

Sierra 1.2m Box blade for Sub / compact tractors.


The Sierra compact box blade has been designed with all the important features for strength and durability in a size suitable for the best balance and performance of modern compact / sub-compact hydrostatic tractors. It makes easy work of earthmoving like cutting and levelling or driveway grading tasks.

Ideal for tractors up to 1.2m in width with cat 1 linkage.

The 4ft / 1.2m wide model has 4 adjustable ripping tines which can be adjusted to cut to 150mm below the surface to help fracture hard ground and let the cutting edges carve material off with ease.

Features & Benefits

  • Adjustable ripper shanks
  • Durable 6mm side plates with welded wearplates at the bottom and folded reinforcements at the top which act as gussets bracing the sides and the mouldboard.
  • The lower clevis style linkage points are made from 12mm thick steel and are welded to the main beam and rear mouldboard creating a straight pull from your linkage arms to the ripper beam.
  • Quick hitch compatible
  • Curved rear mould board and curved reversible cutting edge are designed to smoothly cut material from the surface. Then as it builds up the curved face of the mould board it will curl over and mix together, which is great for reconditioning gravel driveways mixing the fine and coarse aggregate together.
  • There are front and rear-facing cutting edges so you can push as well as pull making it easier to move material to where you want it.


Overall Width 1.23m
Weight 152 KG
Connection Category 1 3 Point Linkage
Tractor range 15-38 HP
No of Ripper tines  2 pcs


Shipped with the 3-point linkage A frame disassembled so minor assembly is required.
