Sierra Box Blade 6ft

Sierra

$2,595.00 NZD inc GST

$2,256.54 NZD exc GST

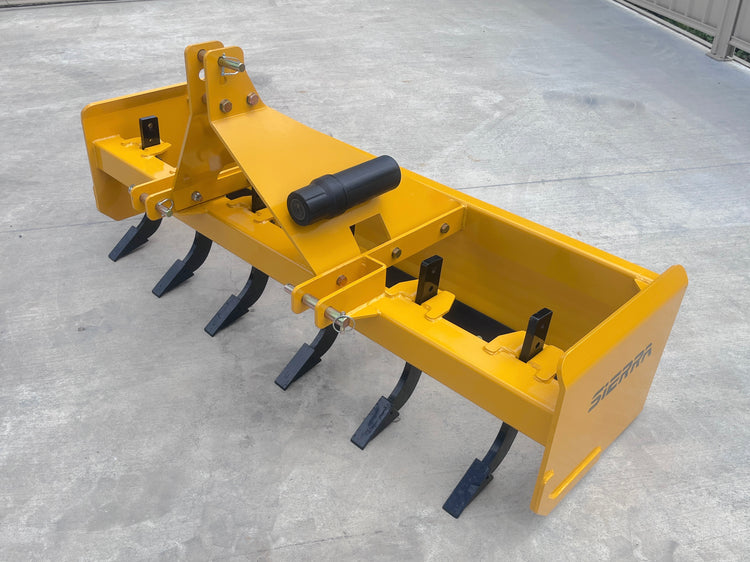

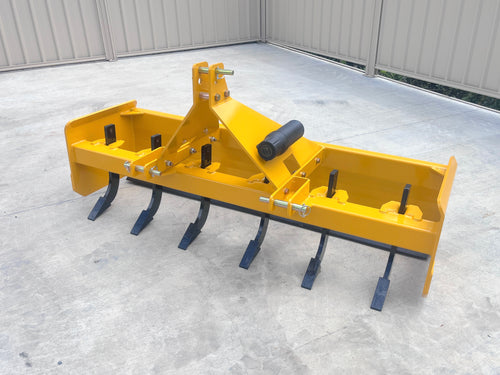

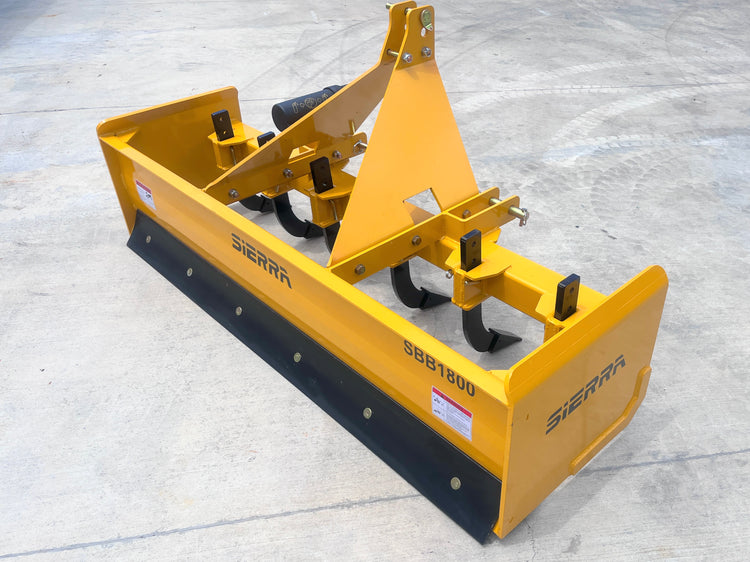

Sierra 6ft (1.8m) Box Blade

Sierra box blades the best partner for your tractor when landscaping, land levelling, backfilling trenches, preparing for turf, track /driveway grading and many other applications!

Overview

This famously strong and efficient box blade is the quickest easiest implement for all your landscaping applications. Everything from tidying up rutted gravel driveways, land levelling, turf and track preparation, and backfilling trenches can be done with minimal wastage as they carry the material with them, and fill in the holes and ruts as you go.



Features & Benefits

-Ideal for smaller sized tractors 28-75 HP (5ft width for smaller tractors also available)

-Famously strong design, gusseted side walls and heavy-duty Headstock

-Clevis hitch points for strength, speedy connection and removal of the implement.

-Dual category linkage pins allow for use on different-sized tractors

-Also Quick hitch compatible

-Height adjustable Ripper Shanks

-Reversible curved profile cutting edges. one forward facing, one rear-facing, so it can be used to push and pull material.

-These are mounted on the mold board at the rear of the box and smooth out the ground once it's been scarified.

 -Sierra box blades are easy to use and take some skill and the hassle out of grading and levelling that's associated with regular grader blades

 Specifications

Specifications

 Units

Overall Width

1860 mm
Cutting Width 1820 mm
Depth 550 mm

Moldboard Height

435mm
Weight 260kg

Hitch points

Clevis style

Linkage 3 pt linkage  Category 1-2
Number of Ripper Shanks 6
Tractor power range 25-45 HP
Capacity volume 0.42m3

Steel thickness on side panels

12mm
Steel thickness of Mold board 5mm
Steel thickness of headstock  10mm
Ripper Shanks working depth 150 mm below the blade

Ripper Shanks Section depth

 60mm

Ripper shank thickness

18mm



Designed and proven in NZ

12-month warranty
