Overview

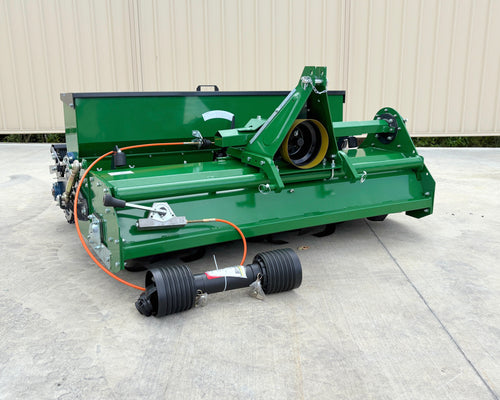

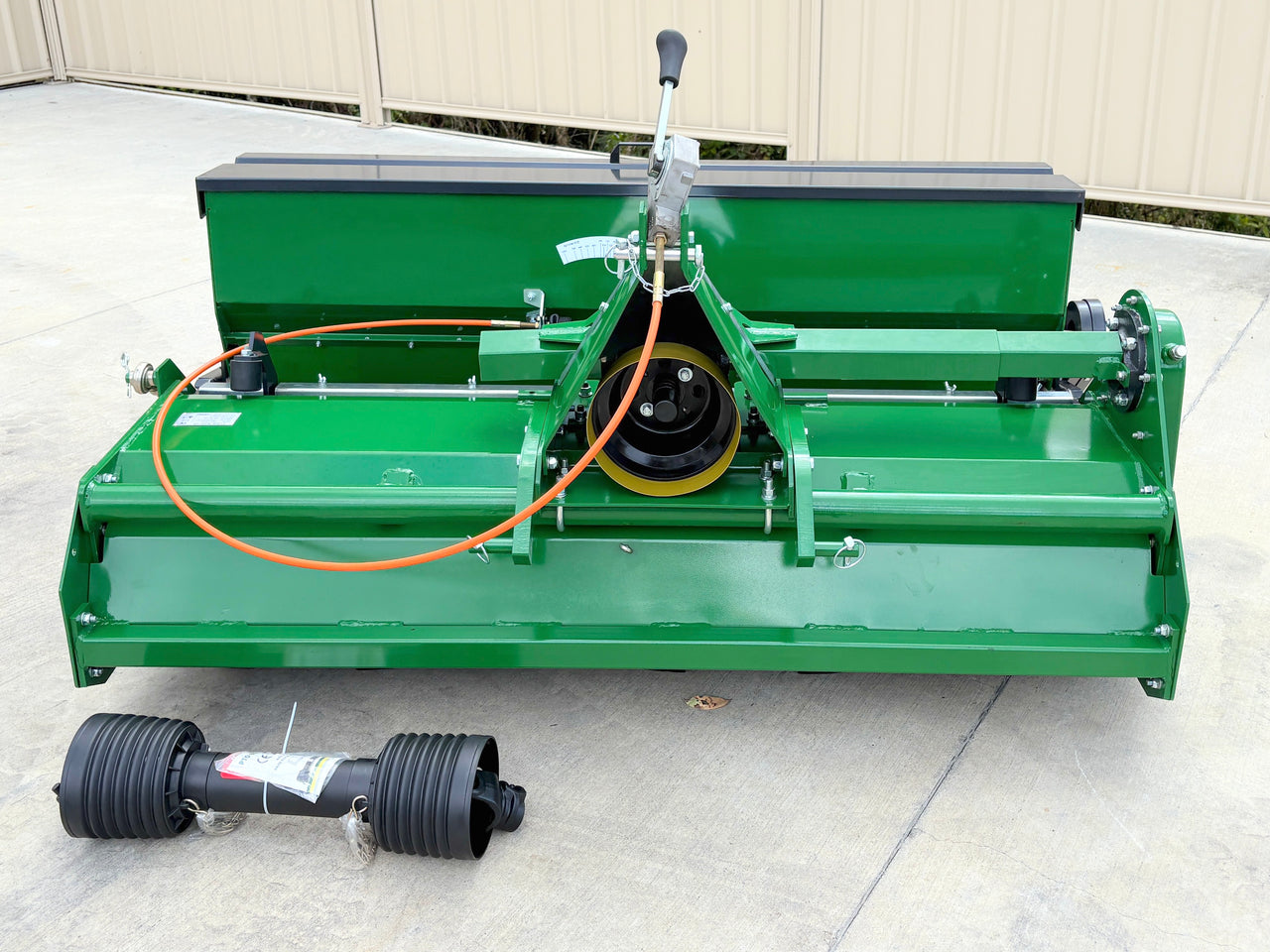

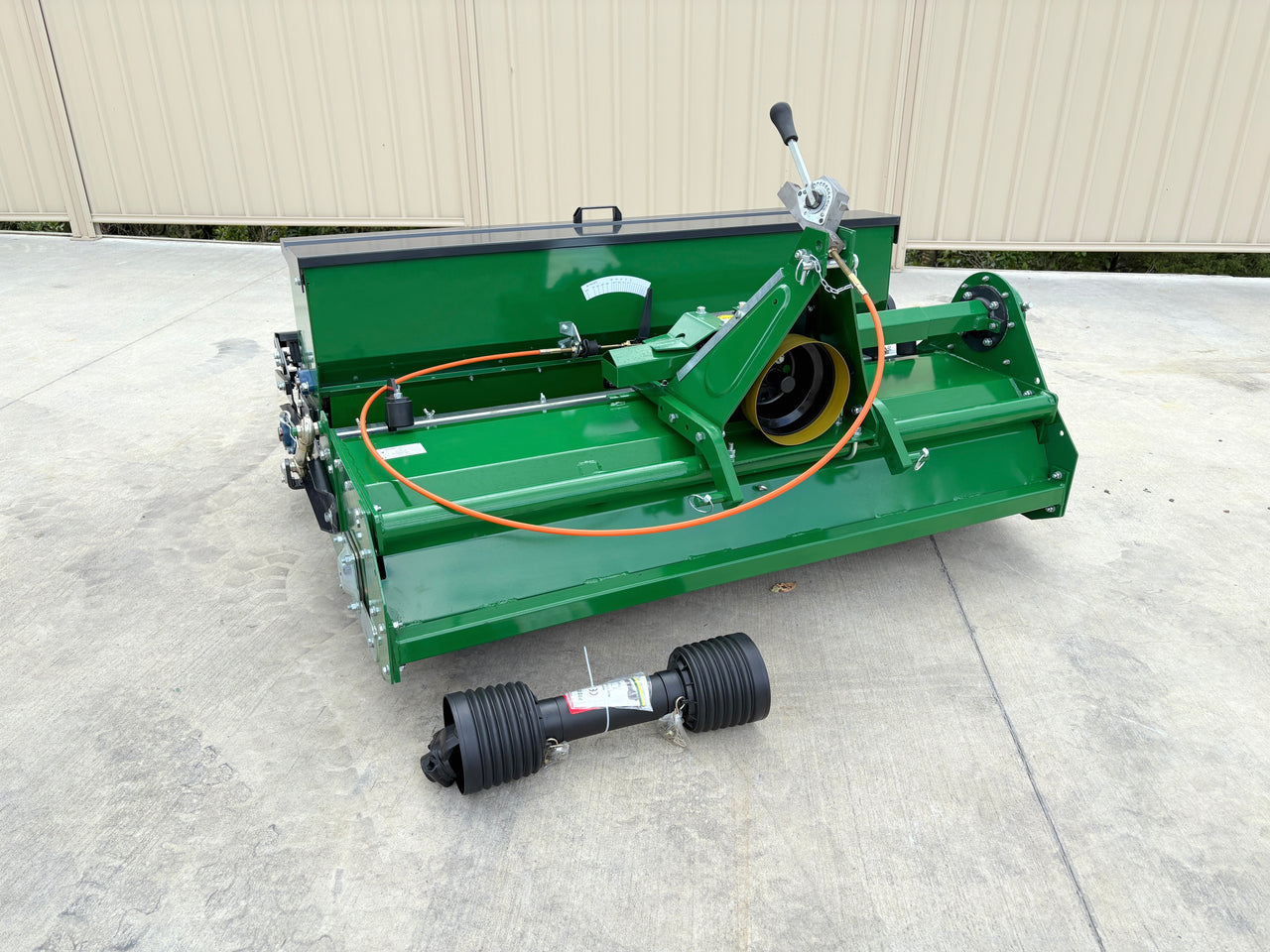

Sierra stone burier with integrated seeder. Suitable for tractors 35-55 HP with Category 1N three-point linkage. 1.55m working width , this machine filters soil and buries stones, leaving fine soil seedbed on top. Adjustable seedbox mounted between rotor and roller drops seed at selected rate, compressed into ground by rear roller. Designed for turf preparation, landscaping, and pasture renovation.

Features & Benefits

• 1.55m (1550mm) working width
• Reverse rotation design filters soil and buries stones
• Integrated adjustable seedbox for simultaneous seeding
• Rear roller compresses seeds into ground for optimal germination
• Side transmission with chain drive
• Category 1N three-point linkage with 120mm side shift capability
• 32 rotor blades (8 flanges with 4 blades per flange)
• Adjustable rear roller for depth control
• Brush and scraper on rear roller prevents clogging
• Series 4 PTO shaft with shear bolt protection
• 125mm tilling depth for effective stone burial
• 420kg weight provides stability

Specifications

Specification	Value
Model	HSB165S
Working width	1550mm (1.55m)
Overall width	1670mm
Tractor HP range	35-55 HP
Tilling depth	125mm
Depth (overall)	1450mm
Height	900mm
Rotor blades	32 (4 blades per flange, 8 flanges)
Weight	420kg
Three-point linkage	Category 1N (120mm side shift)
Drive system	Side transmission with chain drive
PTO shaft	Series 4 with shear bolt protection
Seeder	Adjustable seedbox (included)

Best For

• Landscaping and turf preparation with simultaneous seeding
• Stone and debris burial with seedbed creation
• Paddock and pasture refinishing and reseeding
• New development site preparation
• House site and garden ground preparation
• Green area restoration with seeding

Compatibility

• Tractor HP Range: 35-55 HP
• Hitch Type: Category 1N three-point linkage (120mm side shift capable)
• PTO: Series 4 with shear bolt protection

What's Included

• Sierra 1.55m stone burier with seeder main unit
• Adjustable seedbox
• Adjustable rear roller with brush and scraper
• PTO shaft Series 4 with shear bolt protection
• Operation manual

Warranty & Support

Backed by Sierra's 12 month manufacturer warranty. Contact Implements Direct for product advice and technical support.

Shipping & Freight

Weight: 420kg. Ships via truck freight. Freight costs calculated at checkout based on your location. Unit ships fully lubricated. Assembly required for three-point linkage and roller attachment.
