Novaquip 3 point linkage Towbar with Tow ball and Clevis hitch

Novaquip

$395.00 NZD inc GST

$343.49 NZD exc GST

Overview

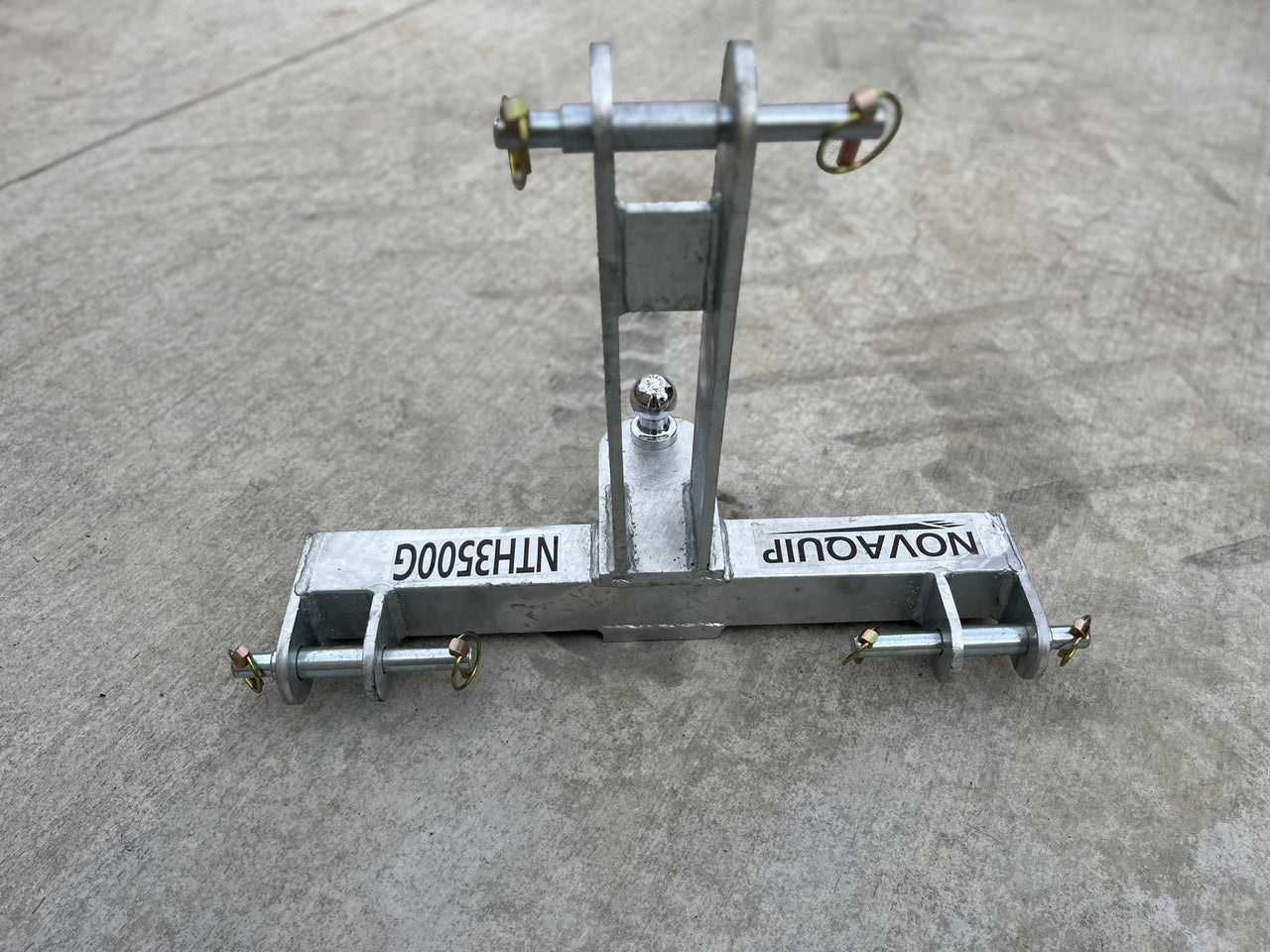

Novaquip NTH3500G Mk2 Tractor  3-point linkage tow bar with 1-7/8" towball also features a double clevis tow hitch allowing fitment of a draw pin (not included) for towing of trailers and other items that don't use a tow ball connection.

Features & Benefits

  • The tractor towbar has a 1-7/8" tow ball with a 3500 kg rating.
  • The tow ball has a 25mm shank, so the holes through the towing clevises can accept a 25mm drawbar pin.
  • The Novaquip Towbar has a Hot dip galvanised finish, which is long-lasting and durable.
  • It Includes dual category 1 and 2 stepped linkage pins which means it can fit a range of tractors from 18 Hp-120hp
  • The design of the upper towbar frame allows unrivalled visibility of the hitching area for improved ease of hookup.
  • Heavily built this unit weighs 21 KG!

Specifications

Specifications Units
Width 670mm
Height 583mm
Depth 300mm
Weight 21 kg
Between linkage Clevises 516-646 mm, the pins can be slid to the outside and quick hitch hooks can attach to the pin hanging outside.
Towball dimensions 1-7/8"( included) 3500KG rating
Towball shank 25mm
Tractor 18-120 HP
Linkage Category  1 and 2 (pins included)



Notes

The drawbar clevis has a 75mm spacing with a 16mm thick steel tongue on top and bottom so can take 25mm drawbar pin which we have available in the parts section of the website.

Delivery: Free shipping and as this is sent by courier it will be delivered to directly your address by courier or rural agent..
