Overview

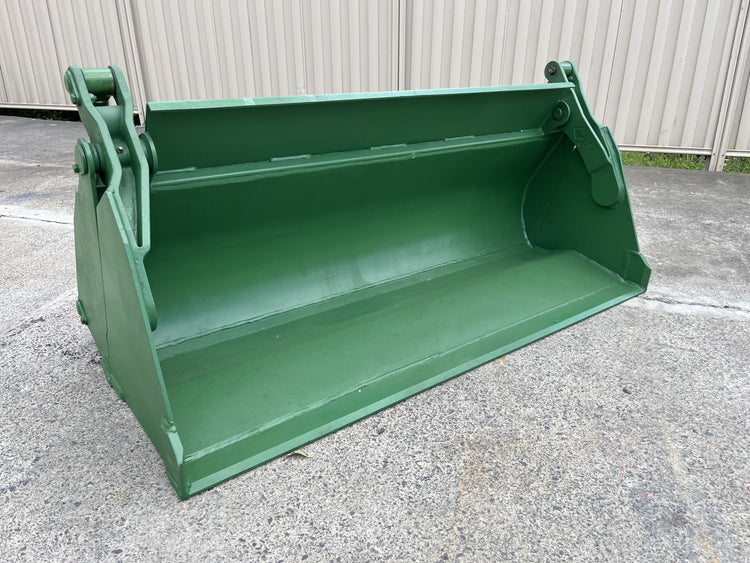

This multipurpose 4 in 1 bucket is suitable for John Deere front-end loaders with the John Deere Hook and Pin quick attach that is used on the JD compact tractor range. This heavy-duty bucket performs well on all jobs around the farm, enabling you to scoop, grade, level, load, pick up and grab with one attachment.
To operate this bucket the loader requires a double-acting hydraulic service to open and close the bucket. ( it needs hydraulic 2 plug points)
Features & Benefits
- -Strongly reinforced steel construction
- -Forged hinges with grease points
- -Reinforced sides 8mm
- -Hardox steel cutting edge 80 x 16mm
- -Side gripping teeth profile cut into bypassing sides.
- - It does not include hoses, but we can make / supply hoses to suit your required length, depending on where your hydraulic service is run from.
Specifications
| Specifications | Units |
| Width | 1555mm |
| Depth | 710mm |
| Height | 695mm |
| Weight | 255kg |
| Bottom thickness | 6mm |
| Side Thickness | 8mm |
| Shell thickness | 6mm |
| Blade |
80 x 16mm (400HB) |
| Rams |
60mm ID |
| Coupling type |
JD quick attach |
| Volume |
0.19m3 |
Notes
4 in 1 bucket (60") suitable JD300CX/400CX and other similar john deere loaders This size bucket is likely to be suited to 3 and 4 Series John Deere Compact tractors
