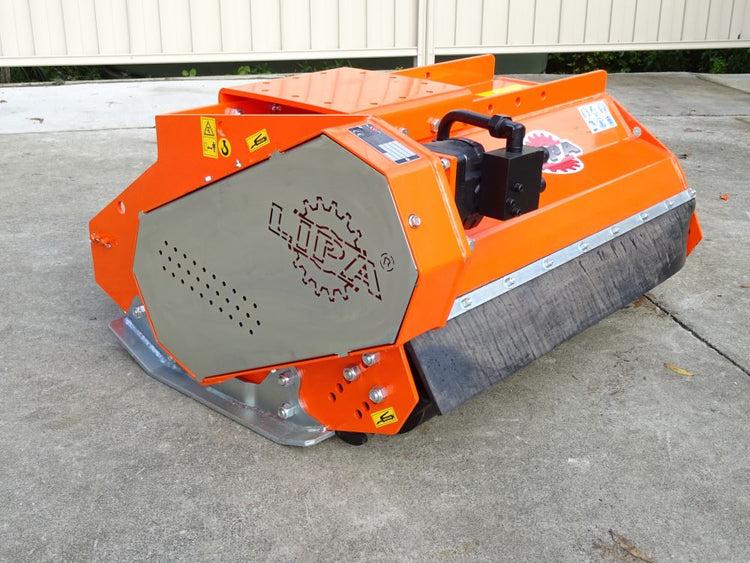

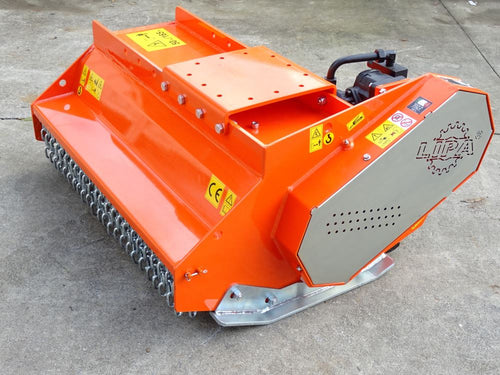

TLBES-100 Flail Mulching Mower for Excavator

Overview

The LIPA TLBE-S-100 with Casappa 30/51 motor is suited up to 88-100 LPM Max of Auxiliary oil flow

This Excavator mounted shredding head, perfect for cutting/mulching grass, undergrowth, shrubs, and saplings in those hard to reach locations ( branches or small trees generally up 70-100mm  diameter). It can be matched to Excavators from 5-8 tonnes

Features & Benefits

-The 30/51 motor, rated for 100LPM Max

 -It has solid, well designed construction with 10mm wall thickness, and 8mm thick side plates.

-Adjustable rear roller with scraper

- Adjustable position headstock

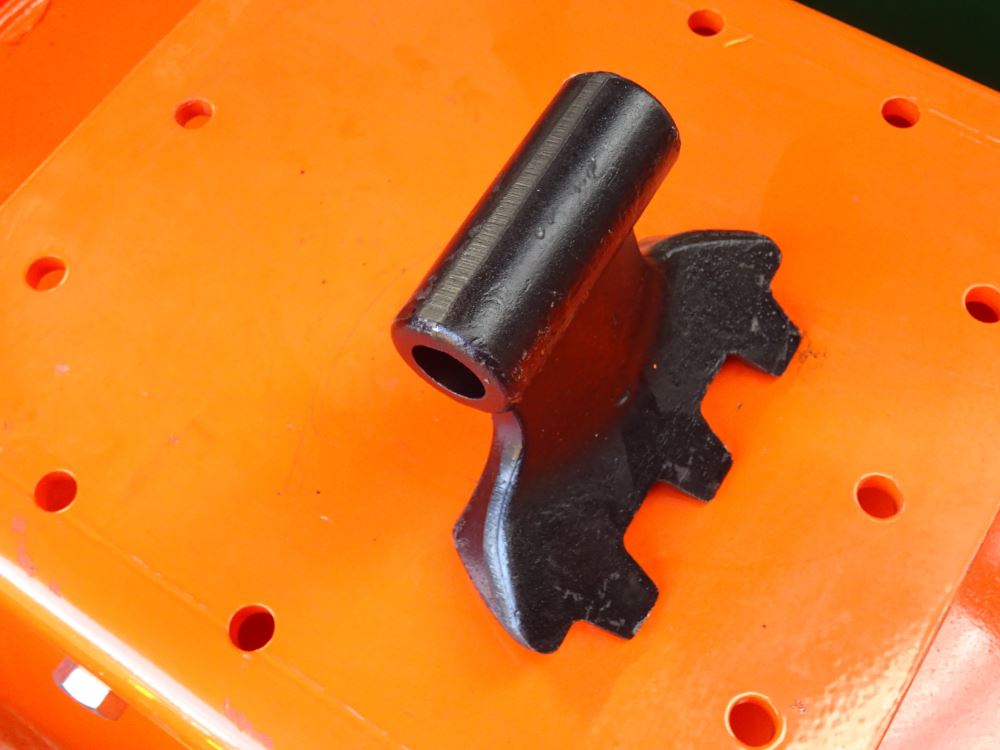

- 10  Forged toothed Hammer flails

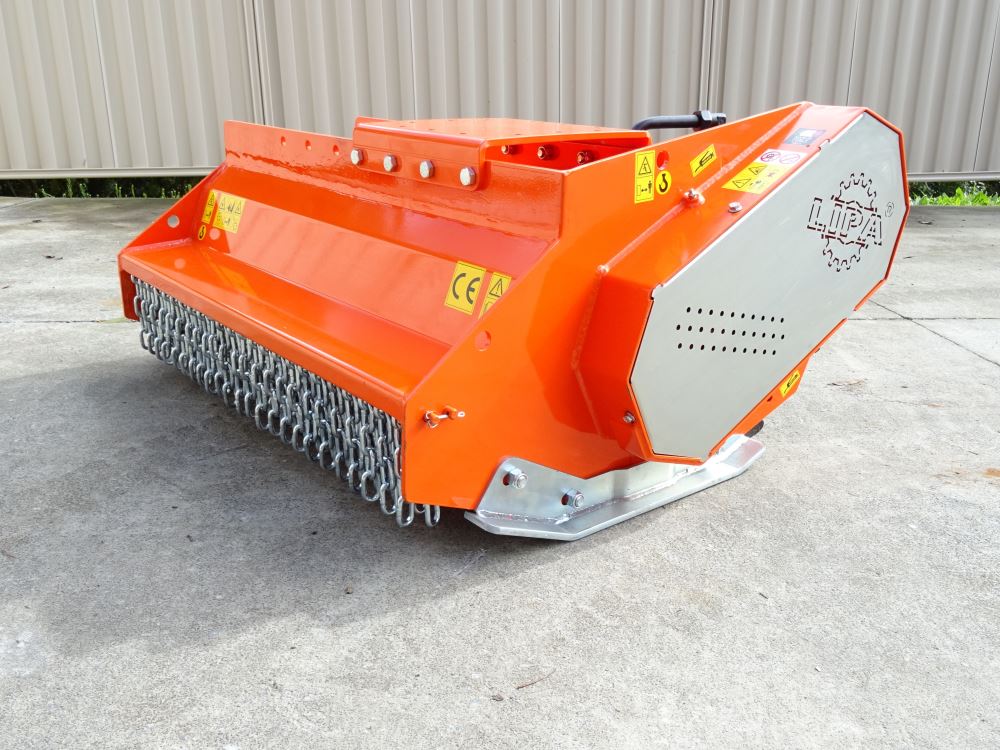

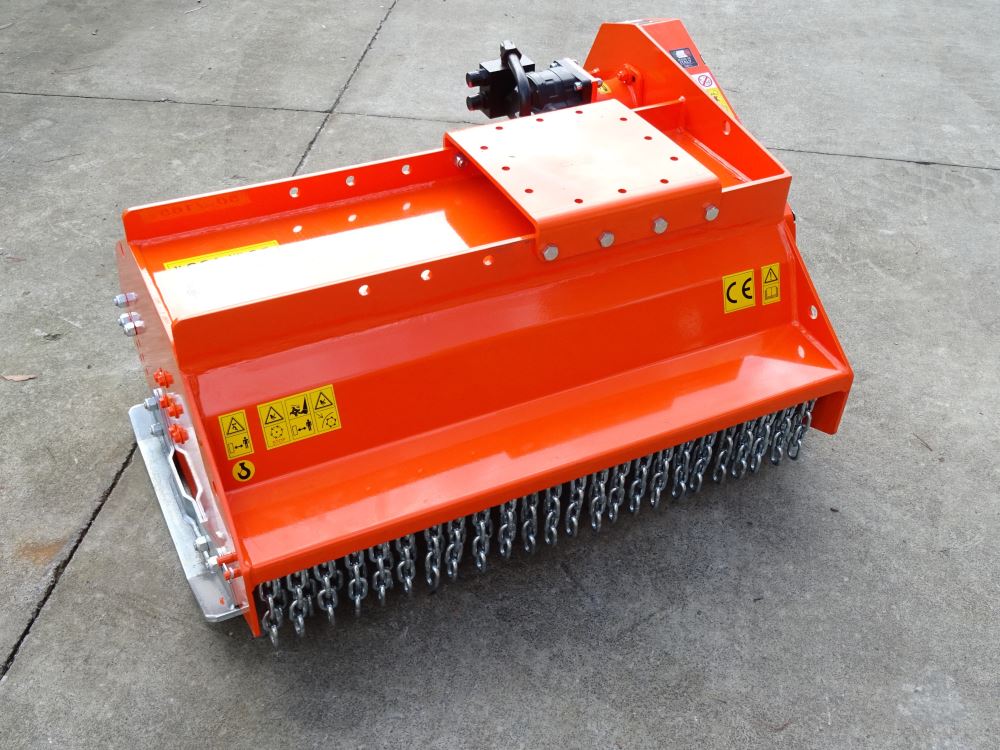

- Features zinc plated front chain and  rubber guards

-Does not come with hoses or hitch but we can supply to your requirements

Specifications	Units
Overall Width	1150mm
Cutting Width	1040mm
Depth	816mm
Overall Height	702mm
Weight	340kg
Number of hammers	10
Cutting Capacity	70mm
Oil Flow Requirement	88-100 LPM Max
Rotor diameter and thickness	140mm x 8
Rotor speed	2200RPM
Maximum hydraulic pressure	4060 PSI (280 Bar)

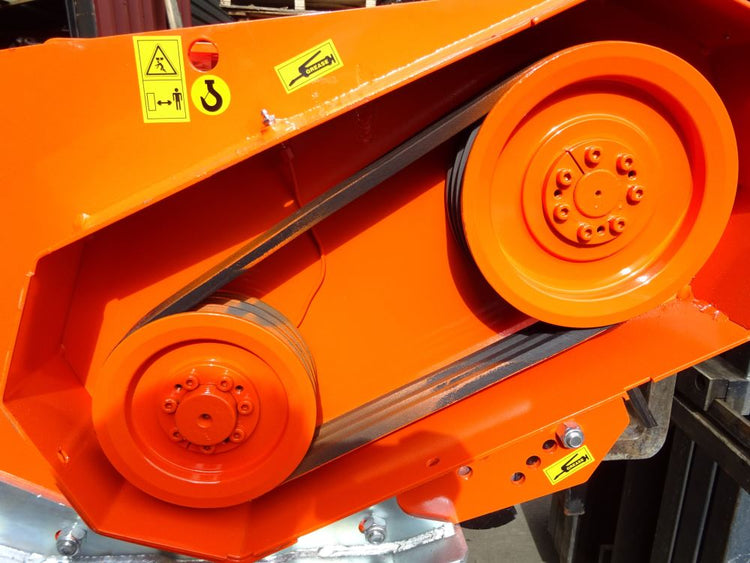

Number of Belts	3
Wall thickness	10mm
Cowl and side plate thickness	8mm
Motor	km 30:51 Casappa hydraulic
