Mulcher head TLBE-90 for Mini Excavator 3-5 ton 45-55 LPM


$9,195.00 NZD inc GST

$7,995.66 NZD exc GST

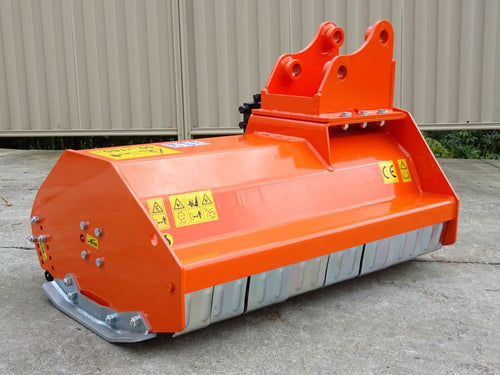

LIPA Flail Mower Mulching head TLBE 90  45-55 LPM


The TLBE-90 Flail Mower Mulcher made by LIPA Italy, is perfect for mowing grass and shredding small trees  and branches in those hard to reach locations ( generally up to 40mm diameter).  It can be fitted to Excavators from 3-5 tonnes ( pay attention to the weight of the mulcher and the tipping load of your excavator)

Features & Benefits

  • It has solid, well designed construction with a 6mm thick mower deck, and 8mm thick side plates.
  • Casappa 20:25 motor  which will power the mulcher at ideal speeds if provided with 45-55 Lpm of flow  up to 210 bar pressure
  •  Rubber flap  and chain debris shields

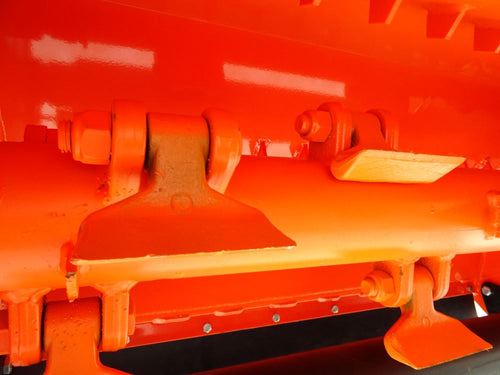

  • Smooth Forged Hammer Flails which will smash small saplings and still leave a smooth finish on grass
  • Does not come with hoses or hitch but we can supply to your requirements


Overall Width

Cutting Width 940mm
Depth 816mm

Overall Height

Weight 220 kg
Excavator Size 3-5 ton
Number of hammers 9
Cutting Capacity 40mm
Rotor Speed 2000-2500 RPM
Oil Flow Requirement 40-55 LPM
Rotor diameter and thickness 108 x 8
Maximum hydraulic pressure  3045 PSI (210 Bar)
Number of Belts 2
Protection Chain & Rubber curtain
Side plate thickness 8mm
Mower deck thickness 6mm
