Menasor Flail Mulching Mower 2.0m Heavy Duty Manual offset

SALE
Price: $5,995.00 inc GST $6,895.00 inc GST

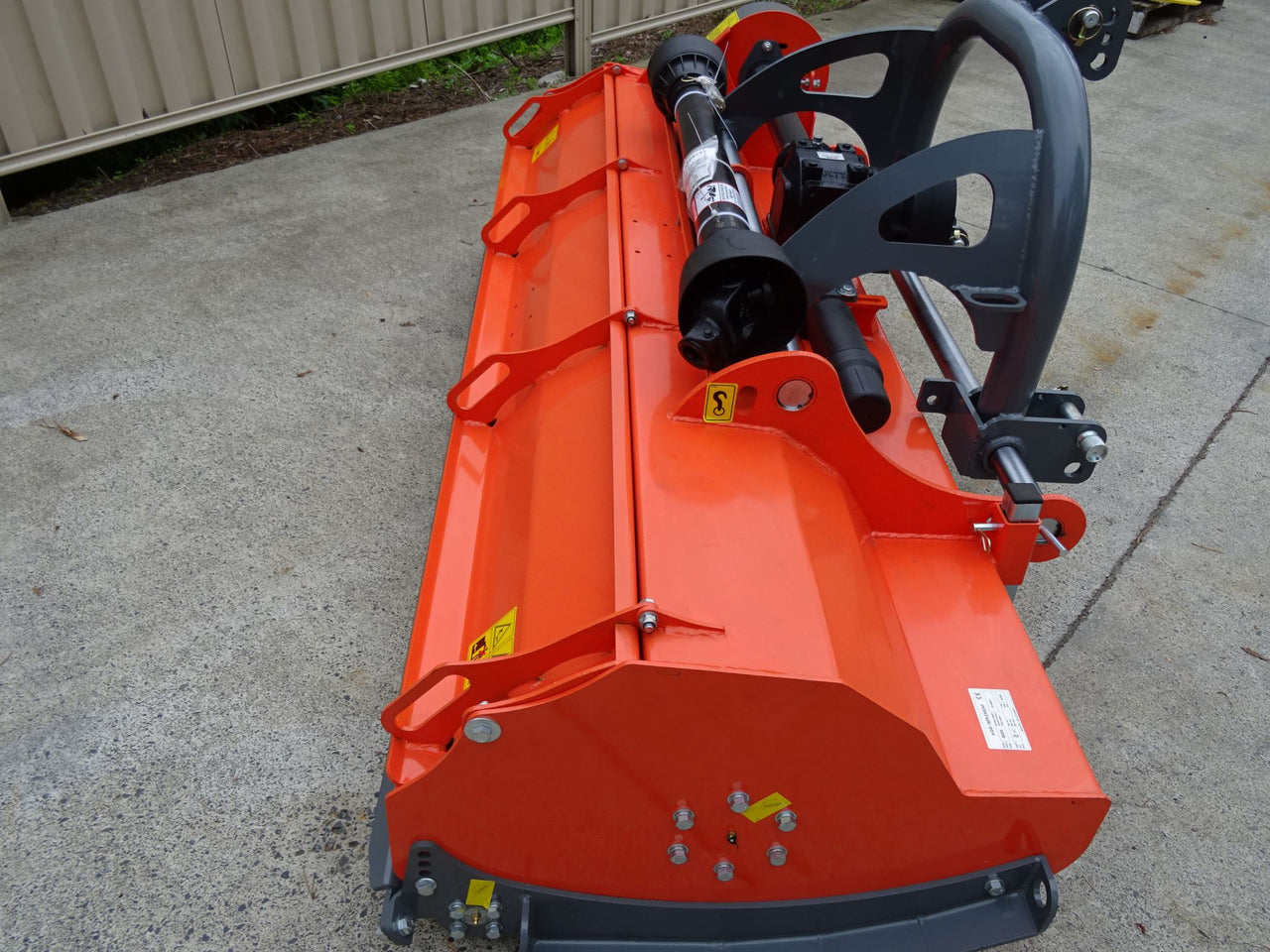

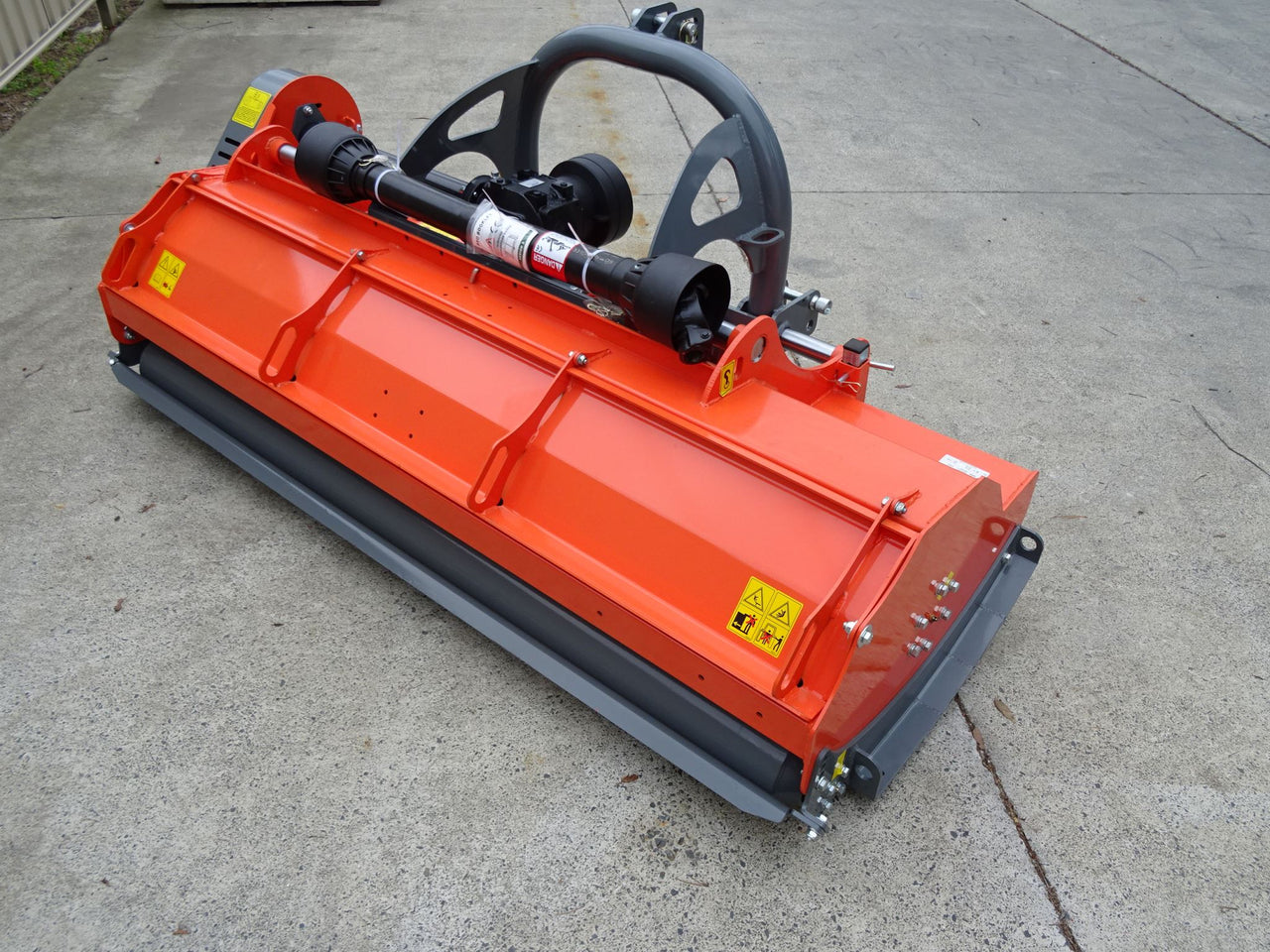

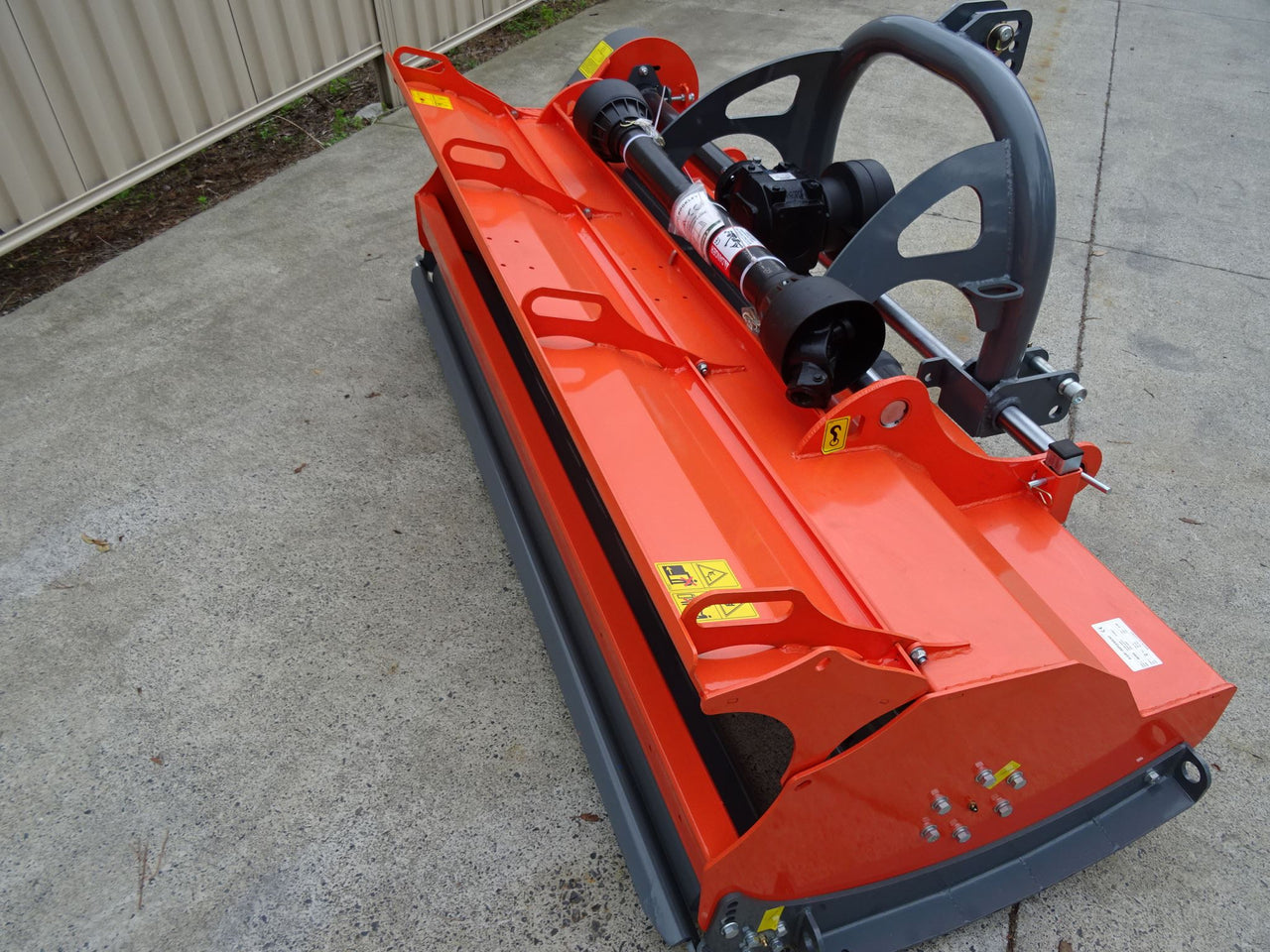

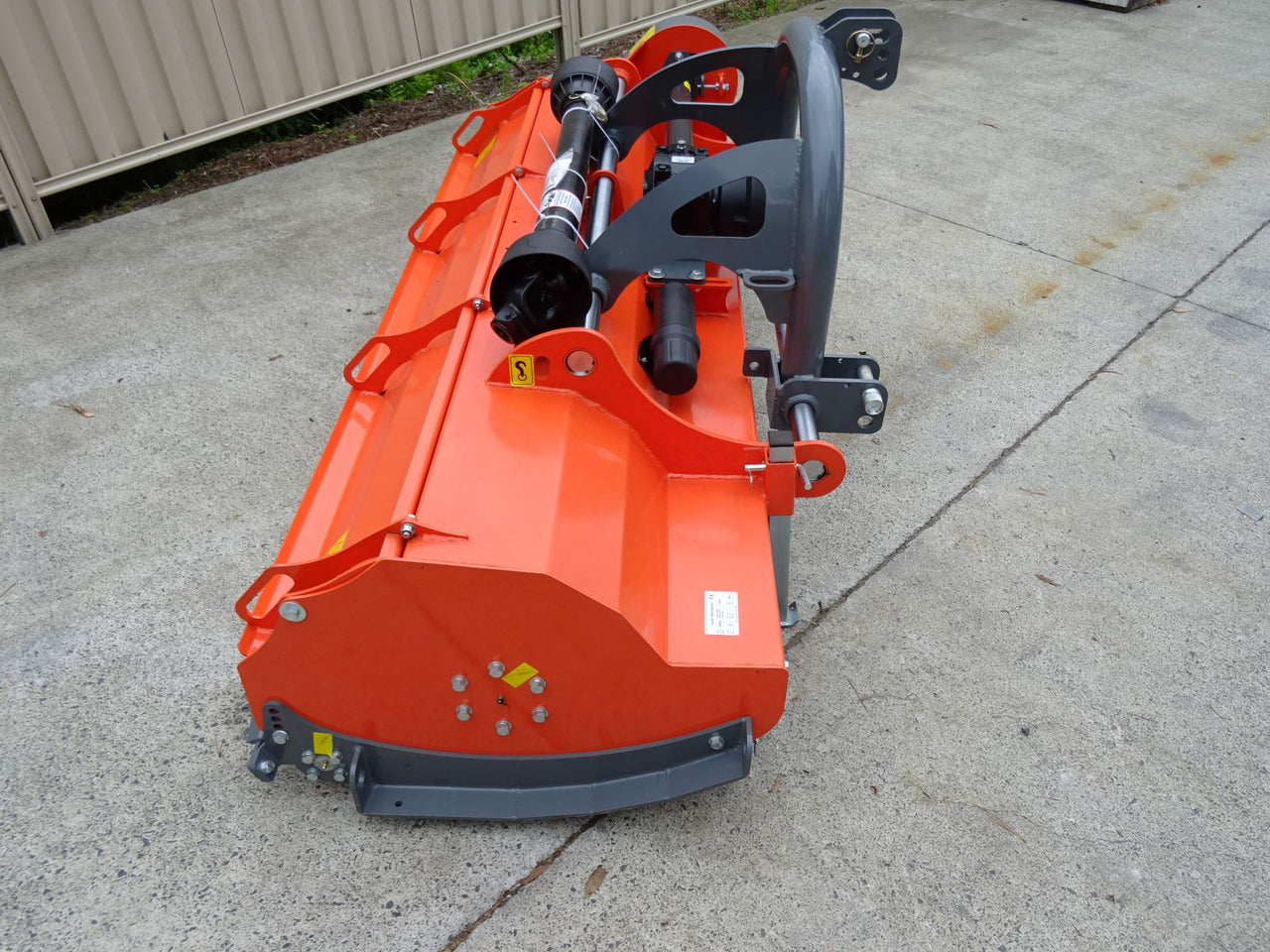

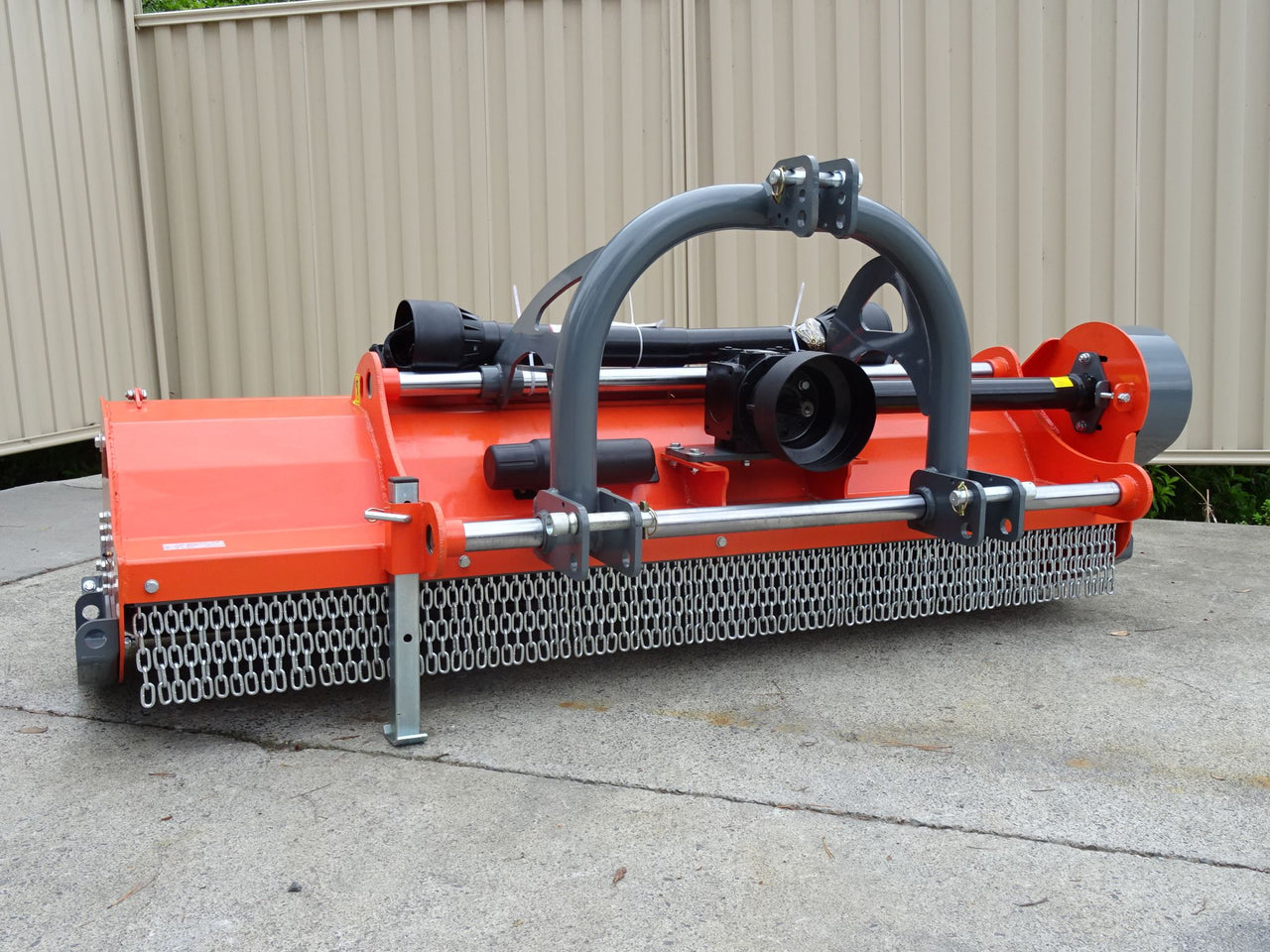

Mateng Menasor Flail Mulching Mower 2m with Manual Side Shift .

OVERVIEW:

This Flail Mulching Mower, with Manual adjustable offset, is an ideal machine for prunings, mowing and mulching, in an orchard/vineyard setting . It is suitable for mowing and mulching grass, scrub and bushes on your land and has an manual offset to navigate around trees and vines. This machine is suitable for heavier landscape conditions.


FEATURES AND BENEFITS:

- Manually adjustable offset

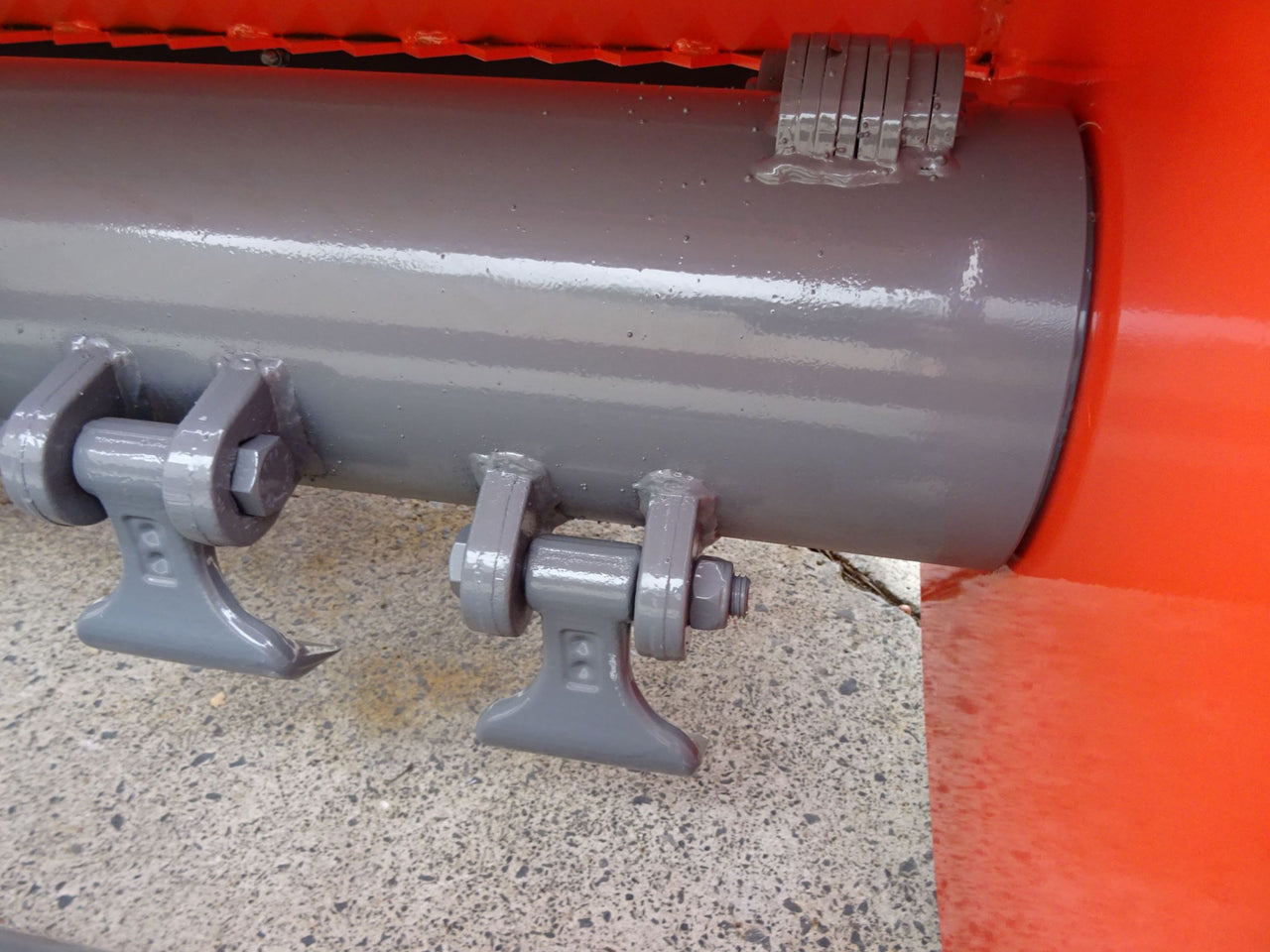

- 24 forged and hardened hammer flails, with aerodynamic pointed centre shank to help prevent grass build up

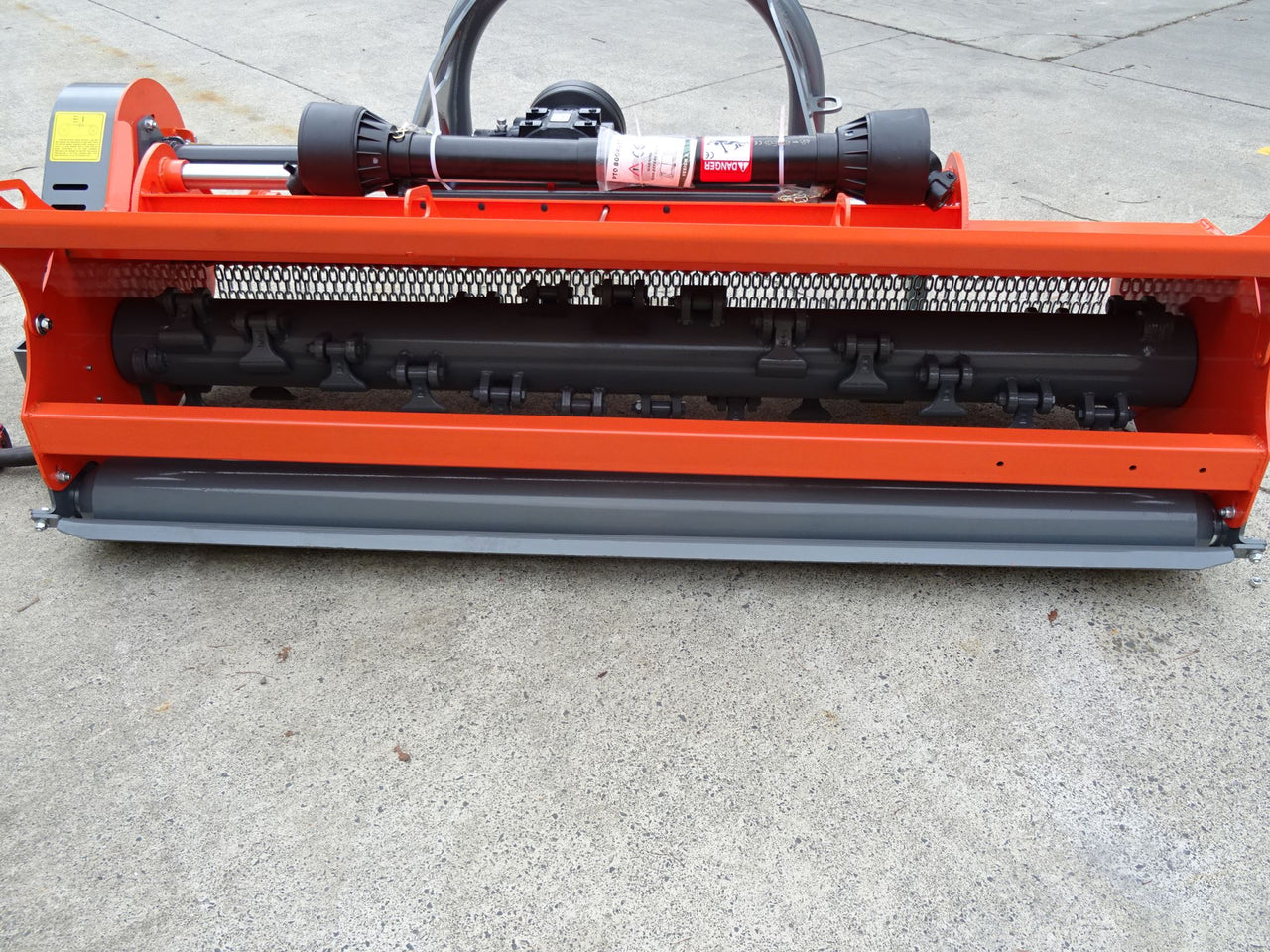

- Rear opening door for easy maintenance and to discharge high volumes of material in heavy conditions.

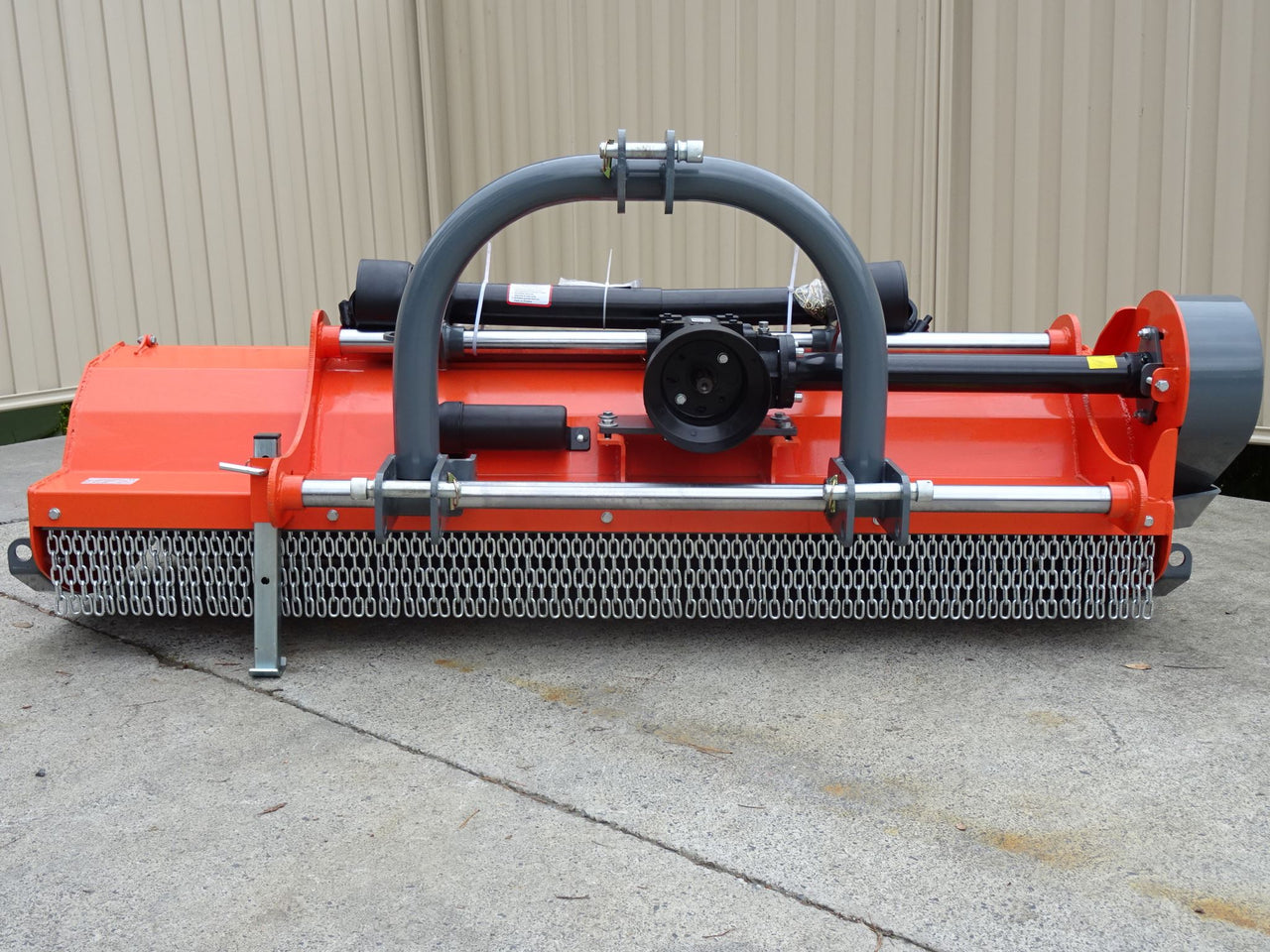

- Category 1-2   3 point linkage with fixed and floating positions for  top link pin and fixed lower hitch points

- Suits 45-95HP

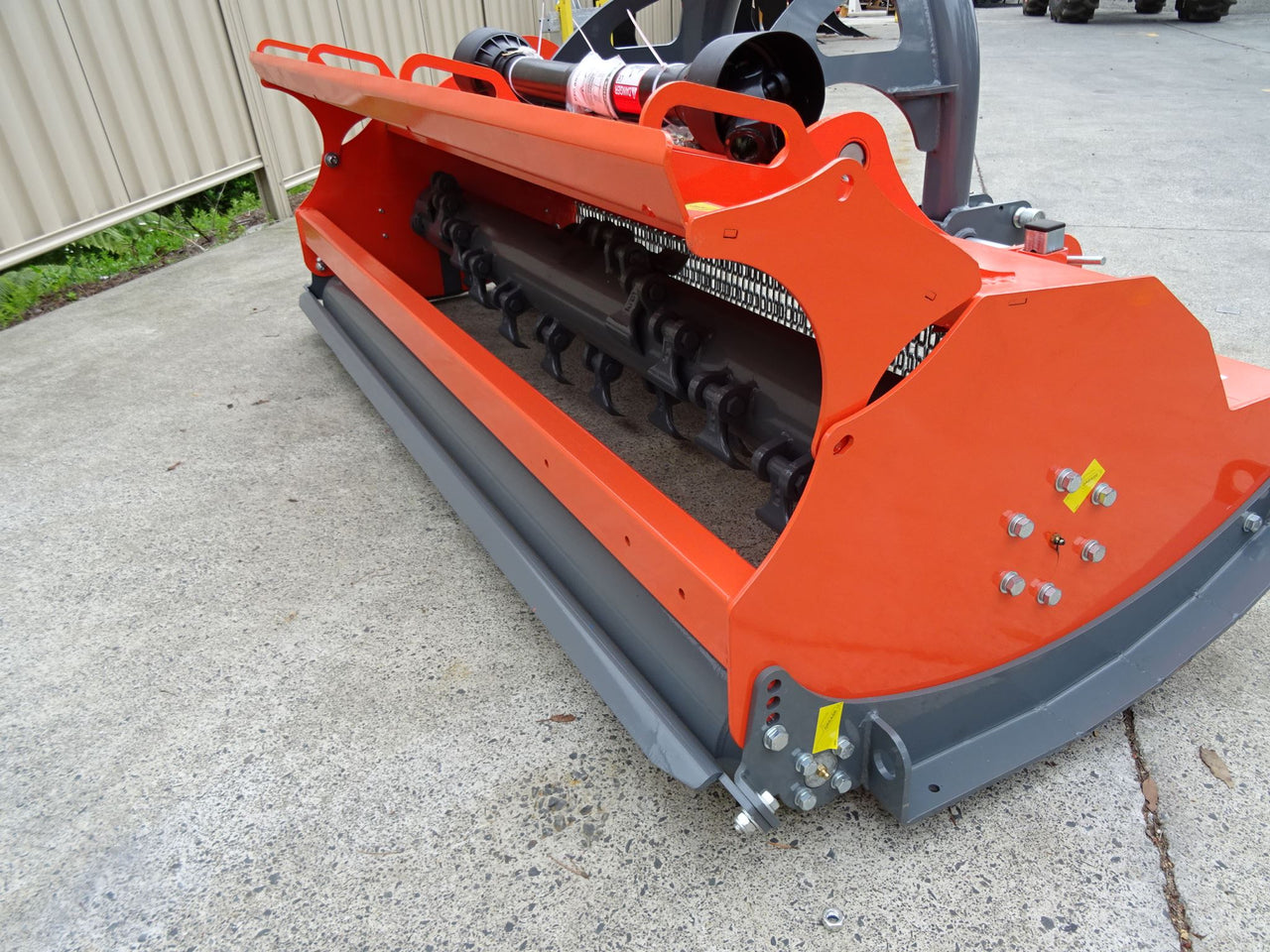

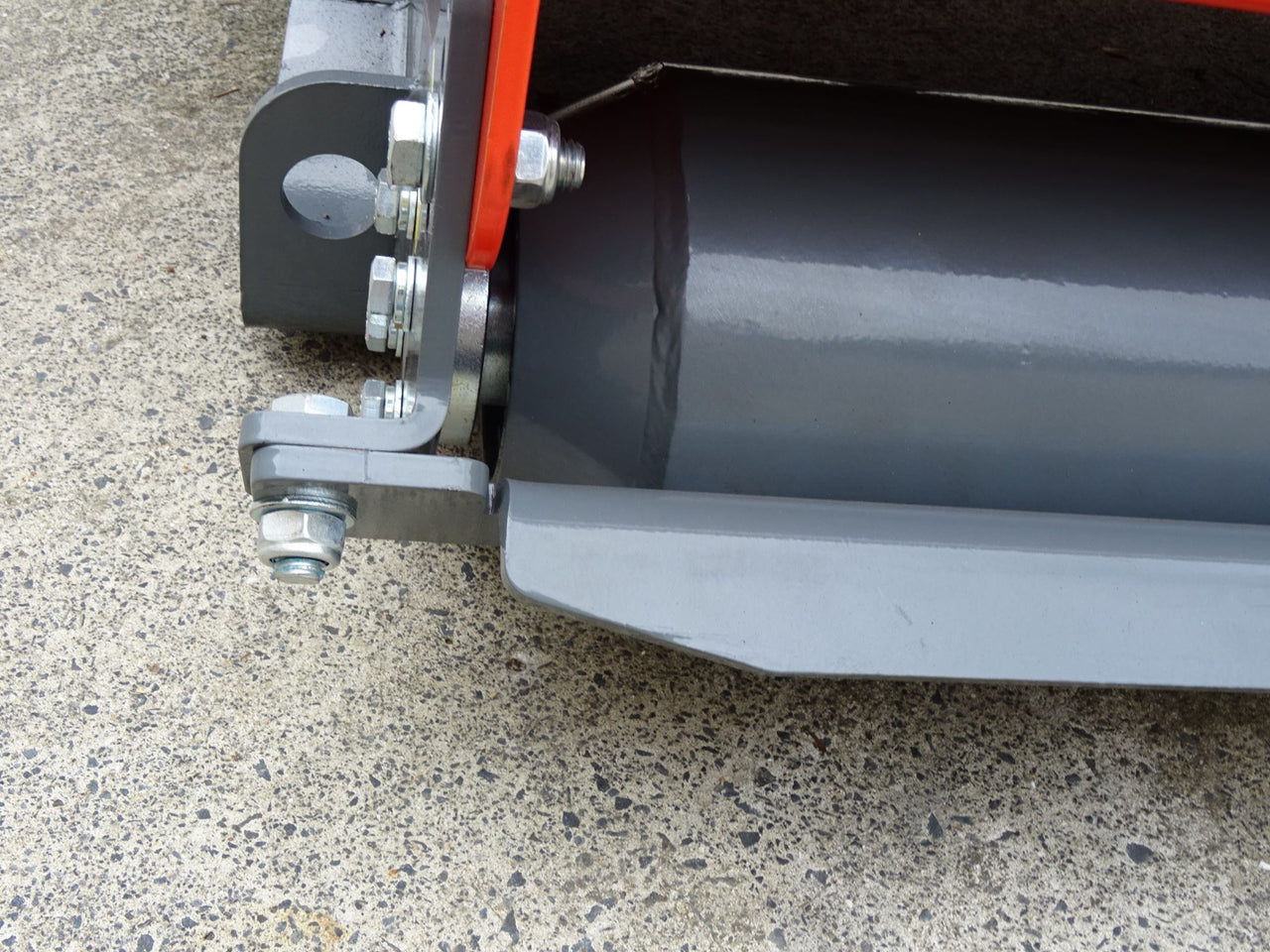

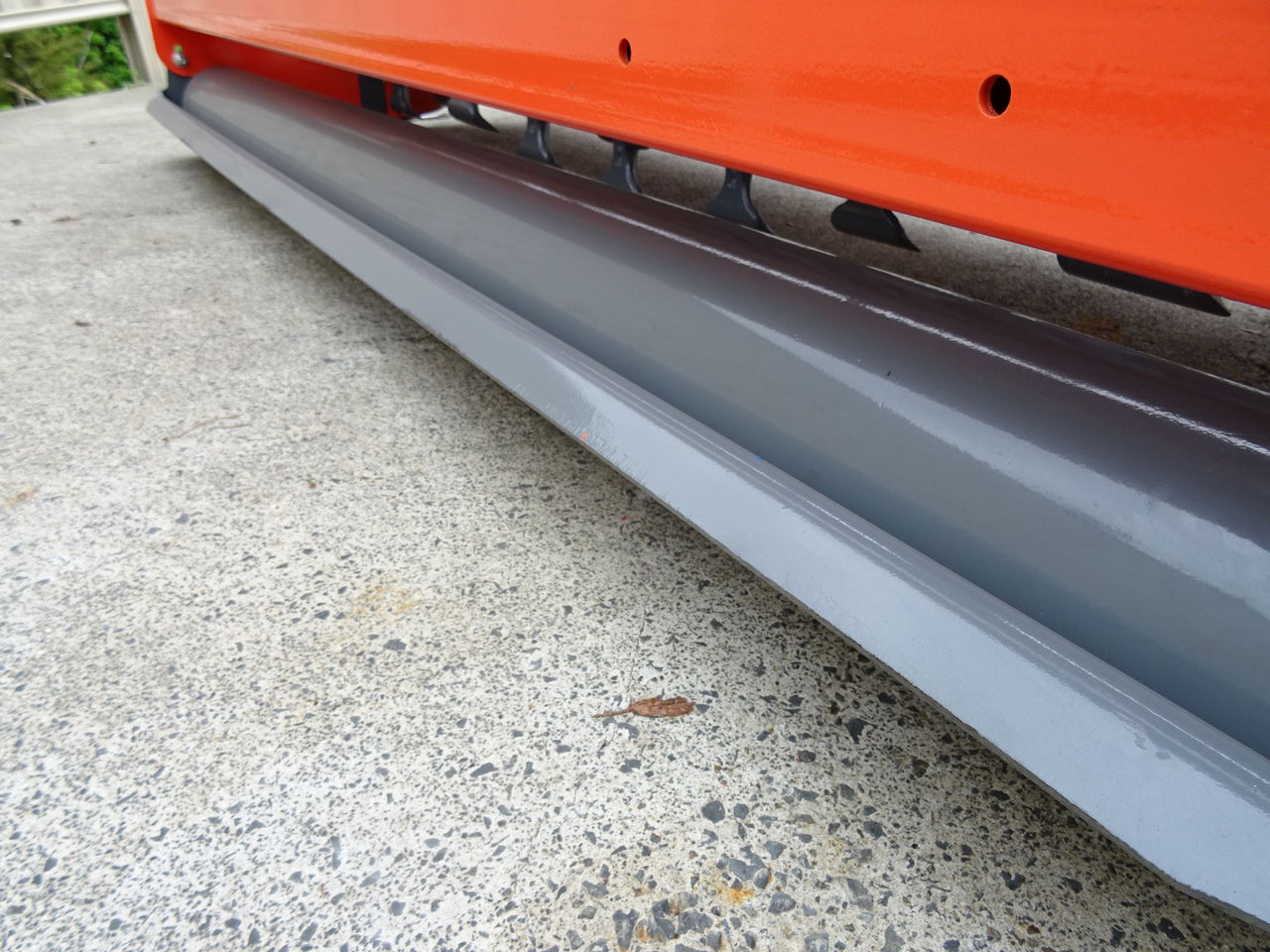

- Adjustable skids with rear roller and mud scraper

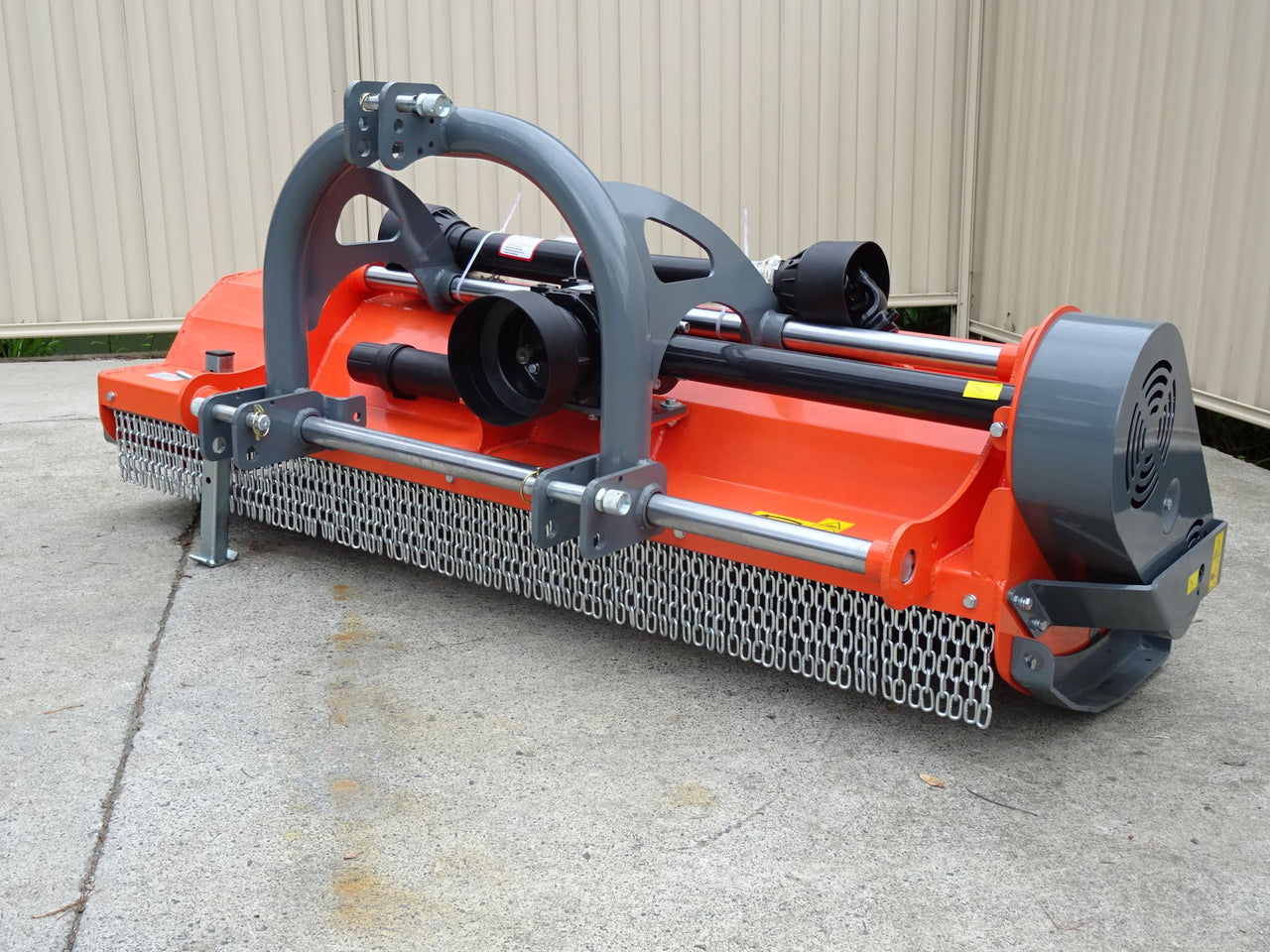

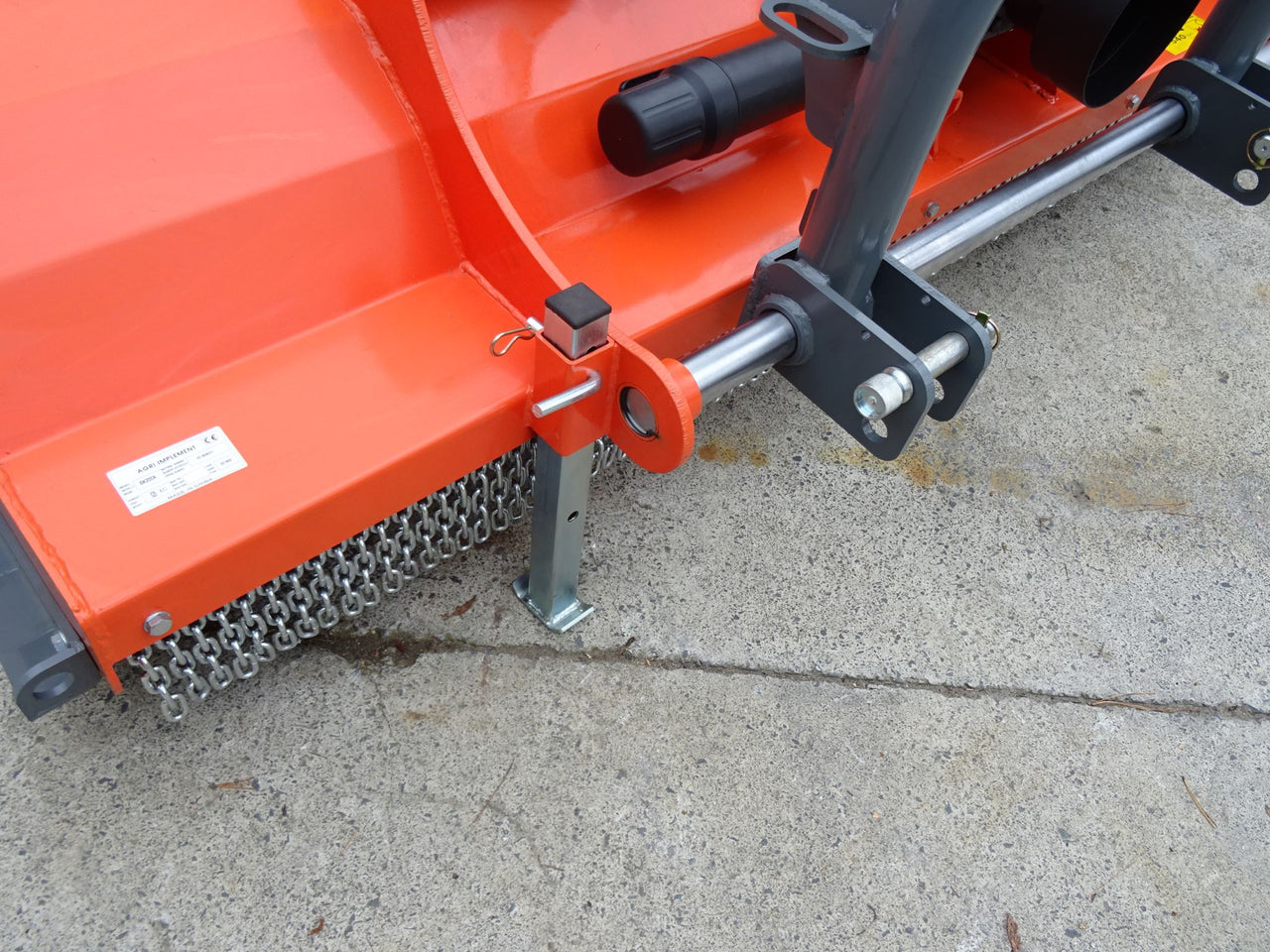

- Chain debris curtain at the front 8mm

- Lip seal infront of bearings on rotor and roller offering great protection.

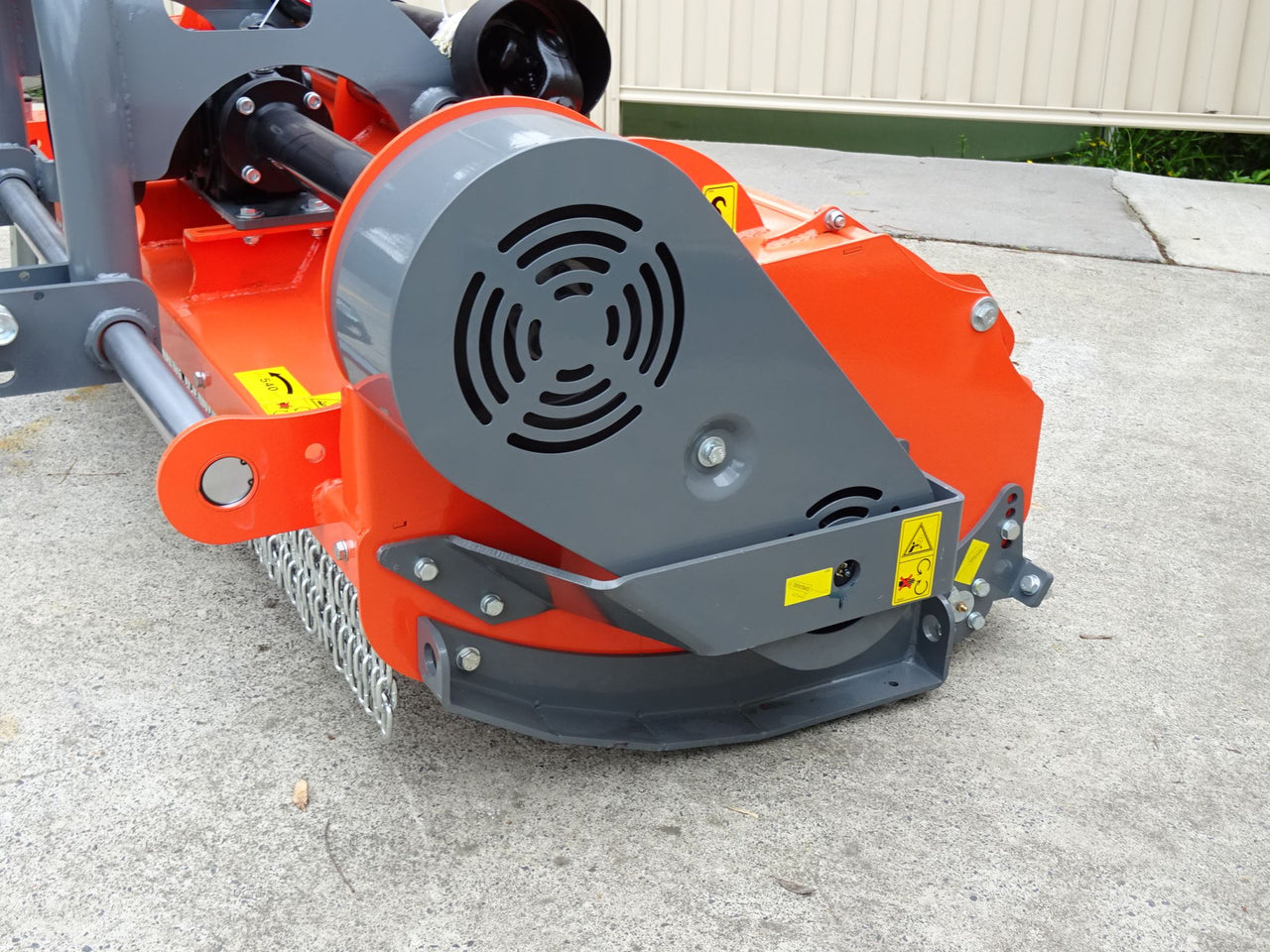

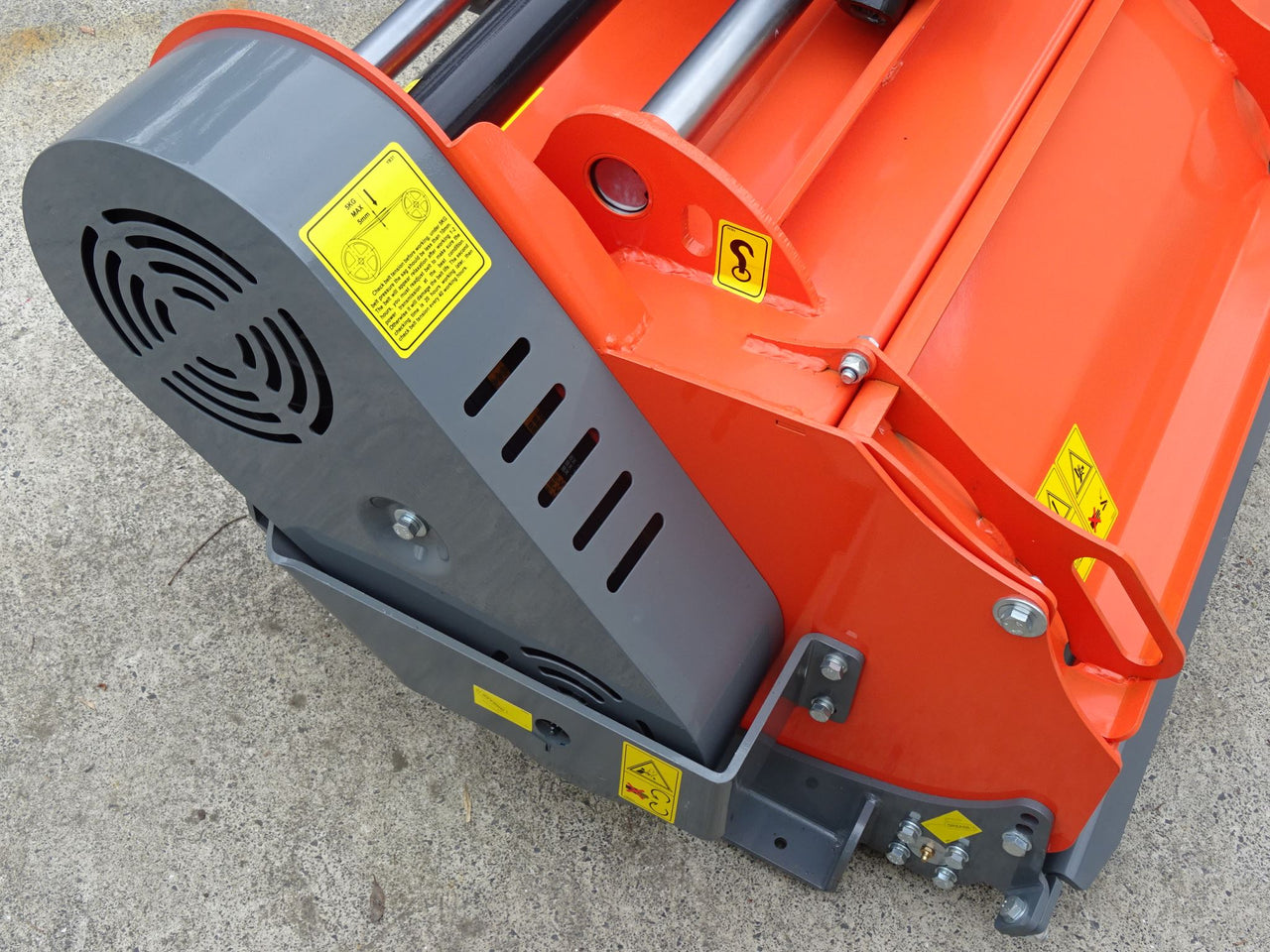

- Collision guard for belt cover

- Optional hydraulic rear opening door


- Optional hydraulic side shift with hoses



Specifications

 Units

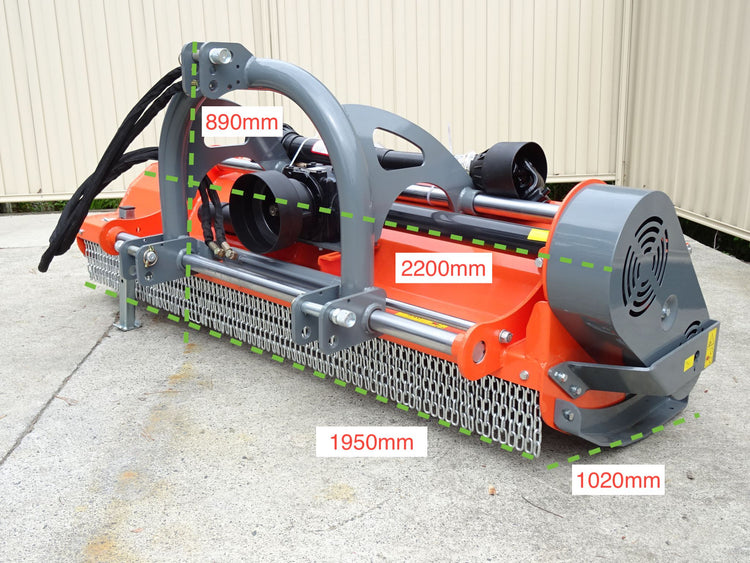

Overall Width

2200mm
Cutting Width 1950mm
Depth 1020mm

Overall Height

890mm
Weight 525kg
Offset dimensions

Offset Left 1020MM from centre: offset Right 1460mm from centre

Linkage 3 pt linkage Category 1-2
Number of hammers 22

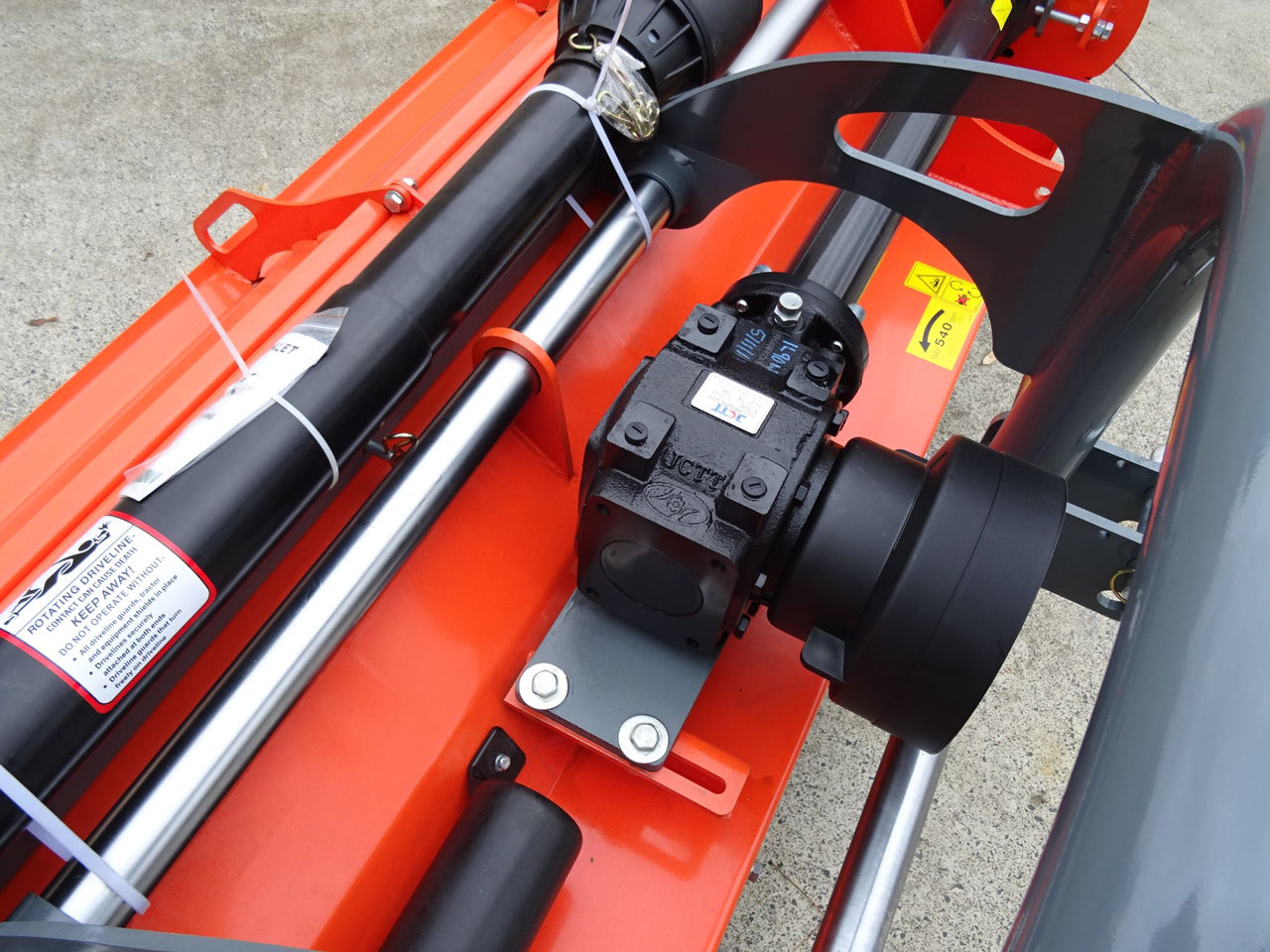

Tractor power range  50-95 HP (50 HP gearbox)
RPM 2125
Rotor Diameter 168x8mm
Tip speed m/S 39
Number of Belts 4 ( B section V Belts)
PTO Series 5

Steel thickness

5mm (rear door double skin 4mm)
Mower deck thickness 5mm
Side thickness 8mm
Hitch  10-12mm steel
