Overview

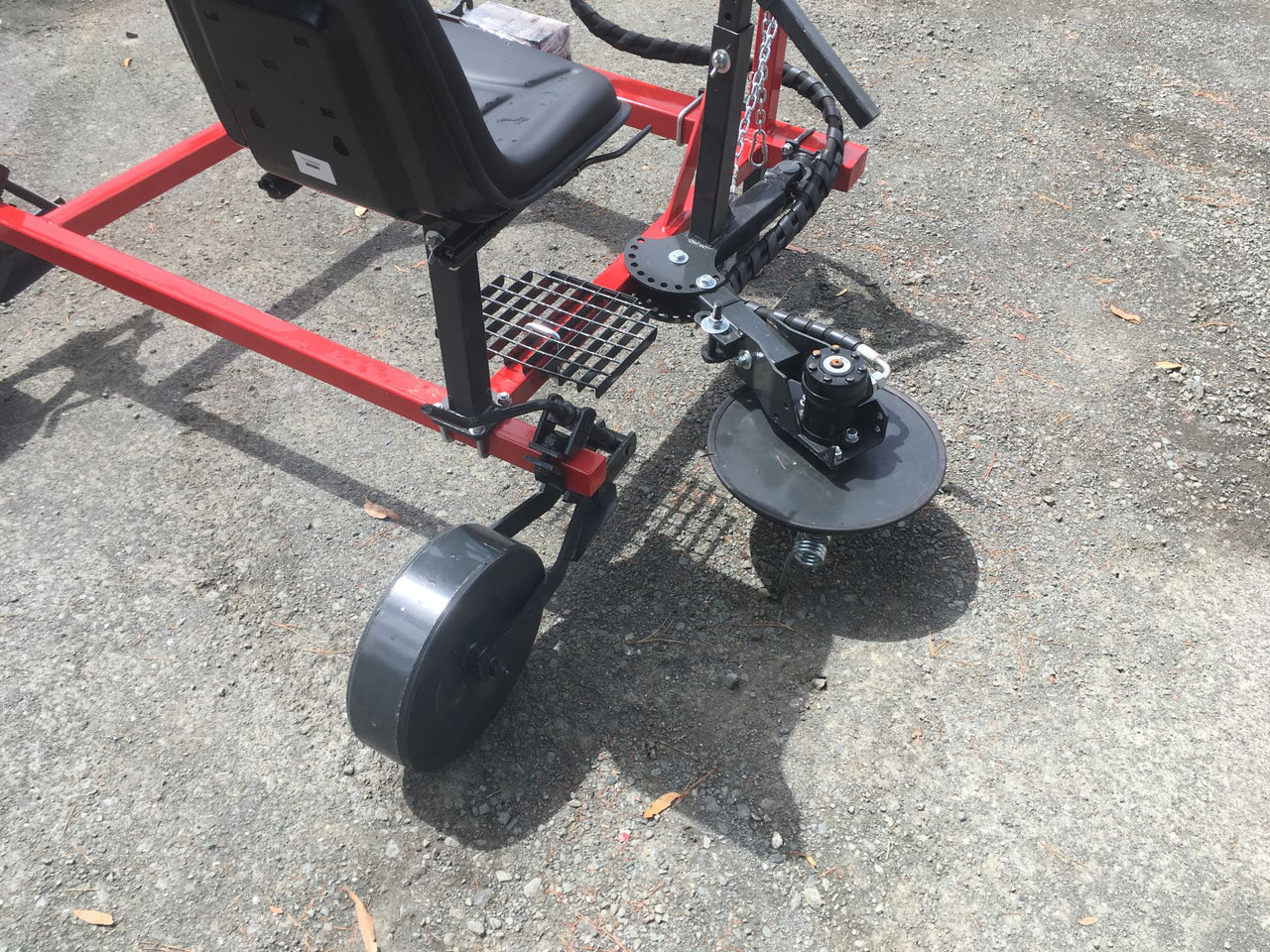

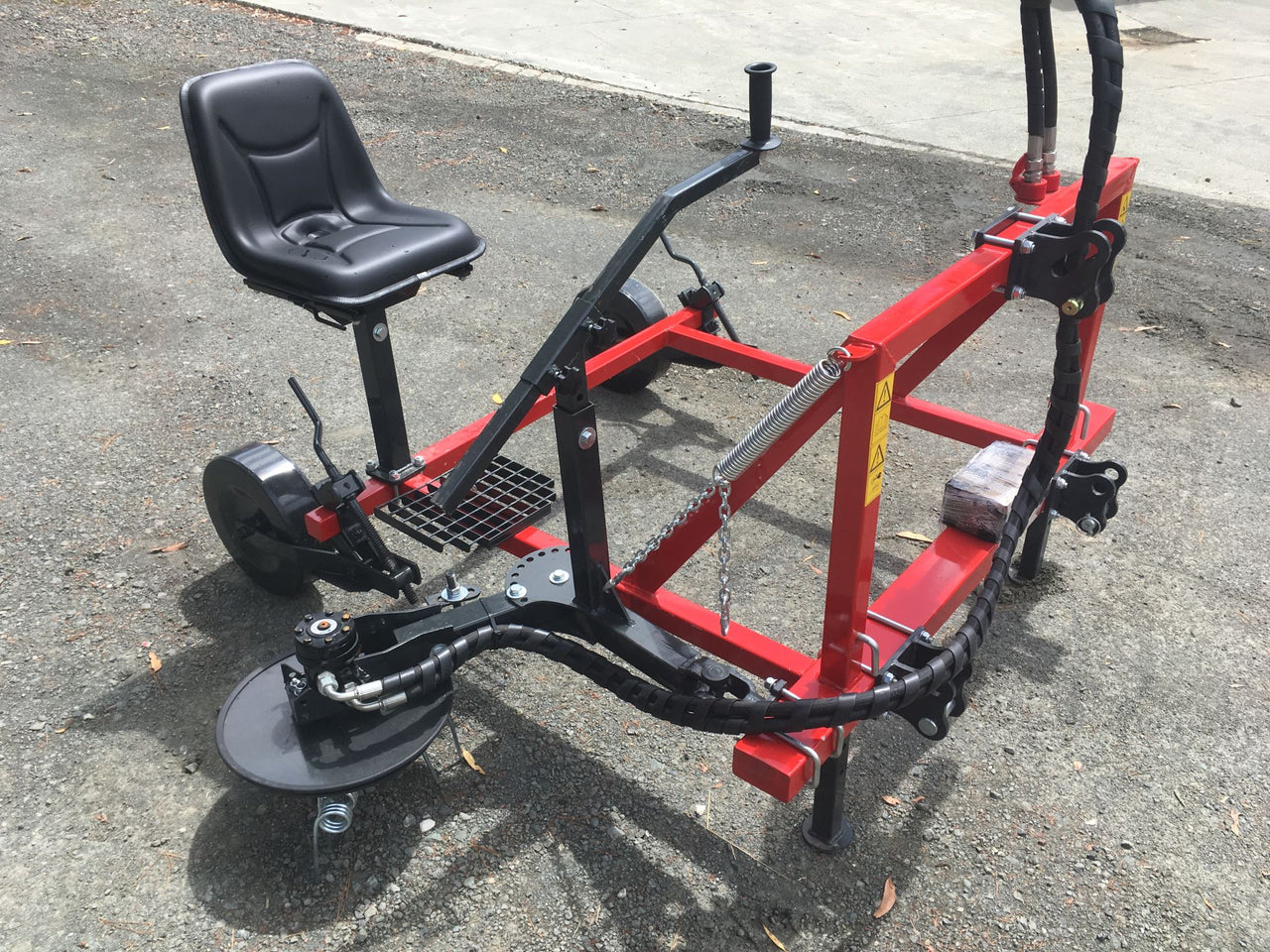

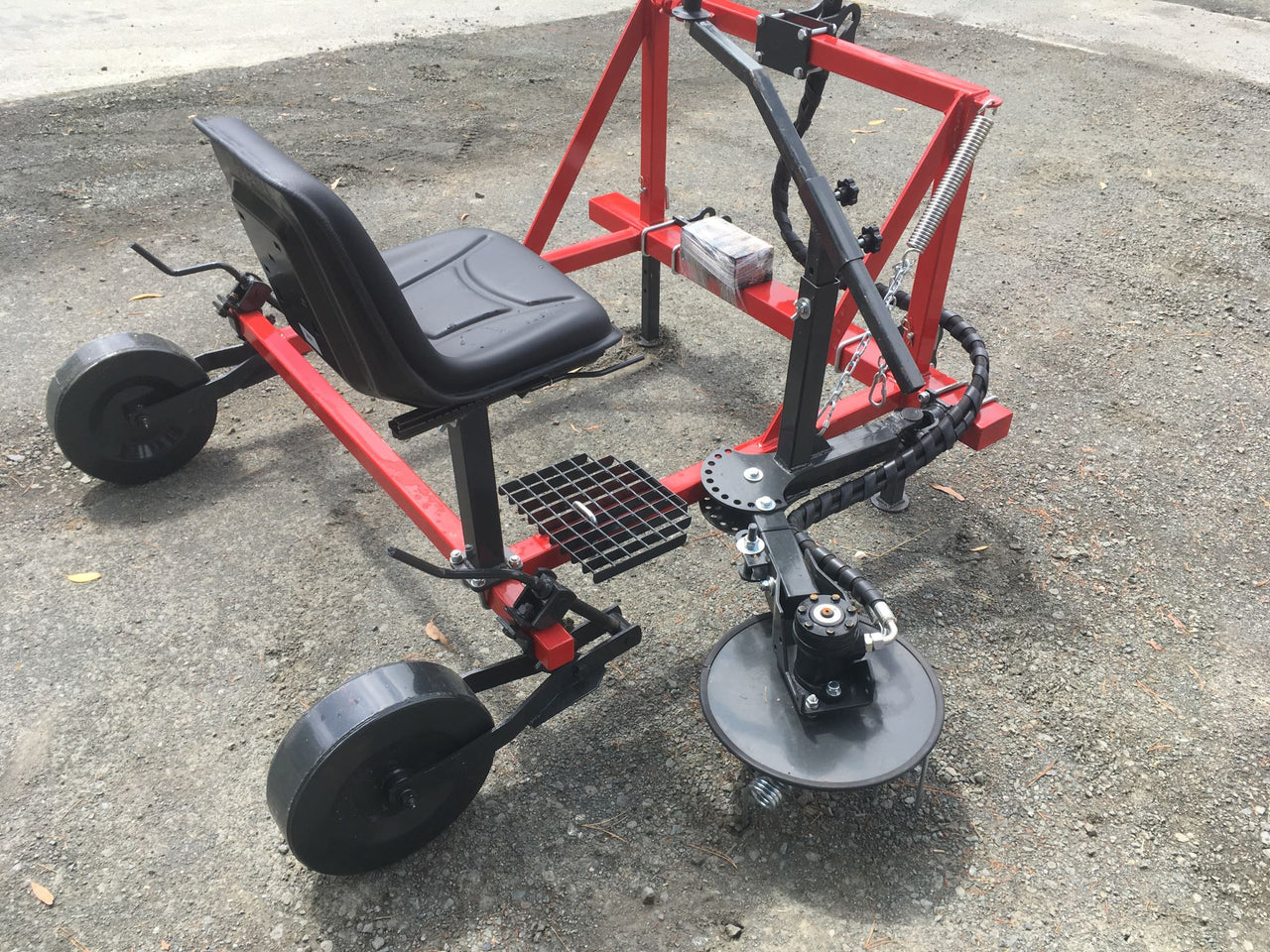

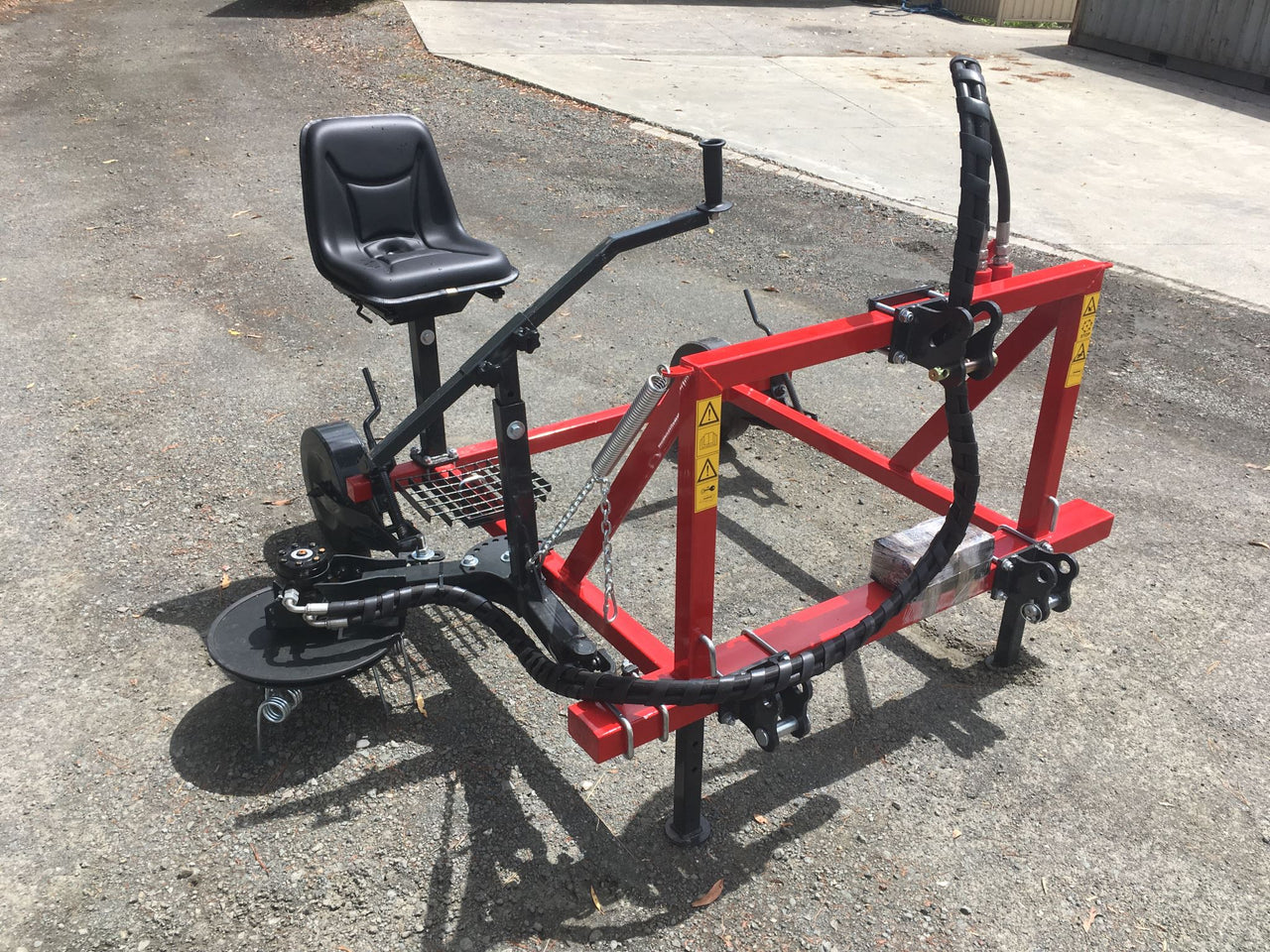

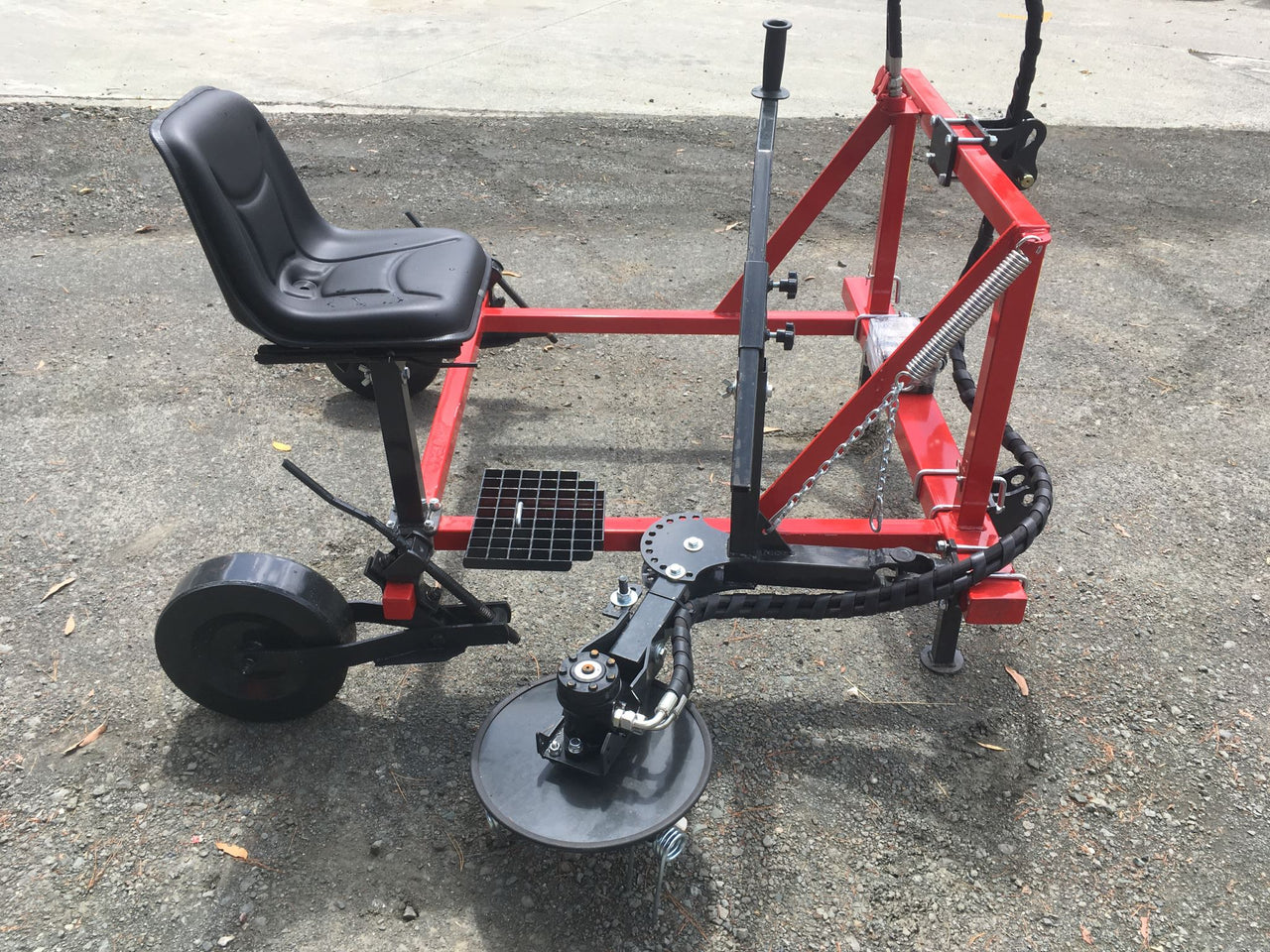

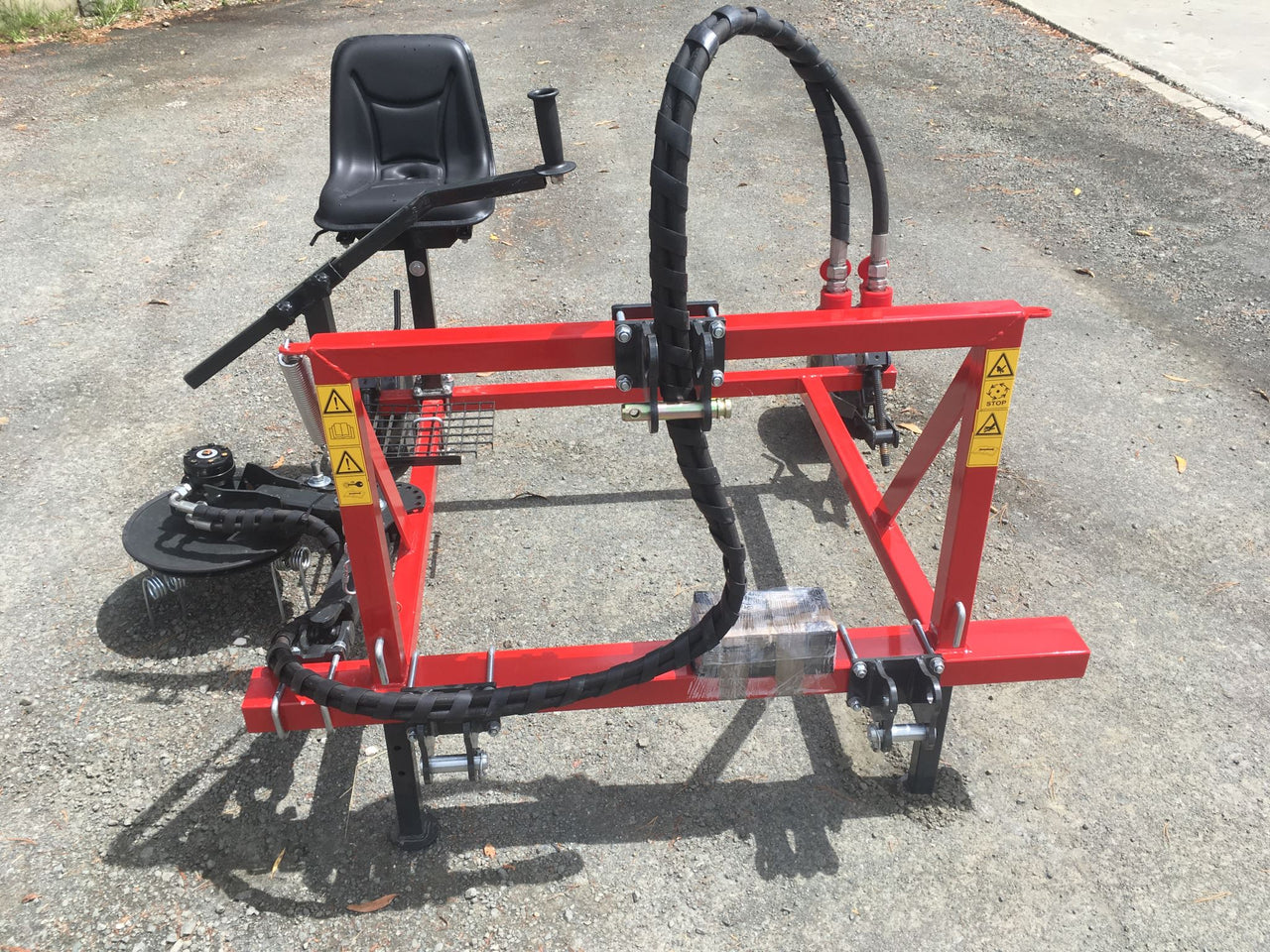

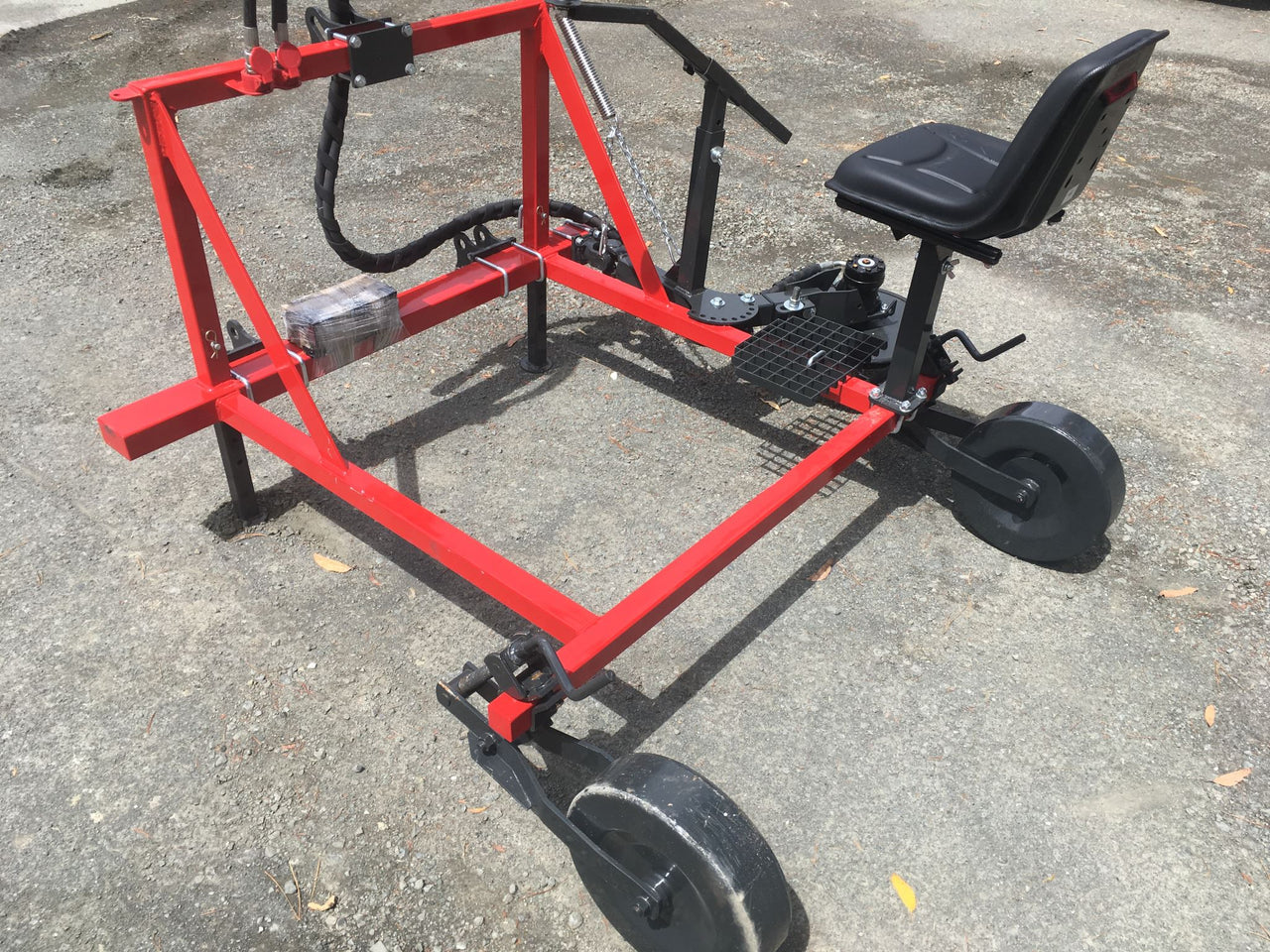

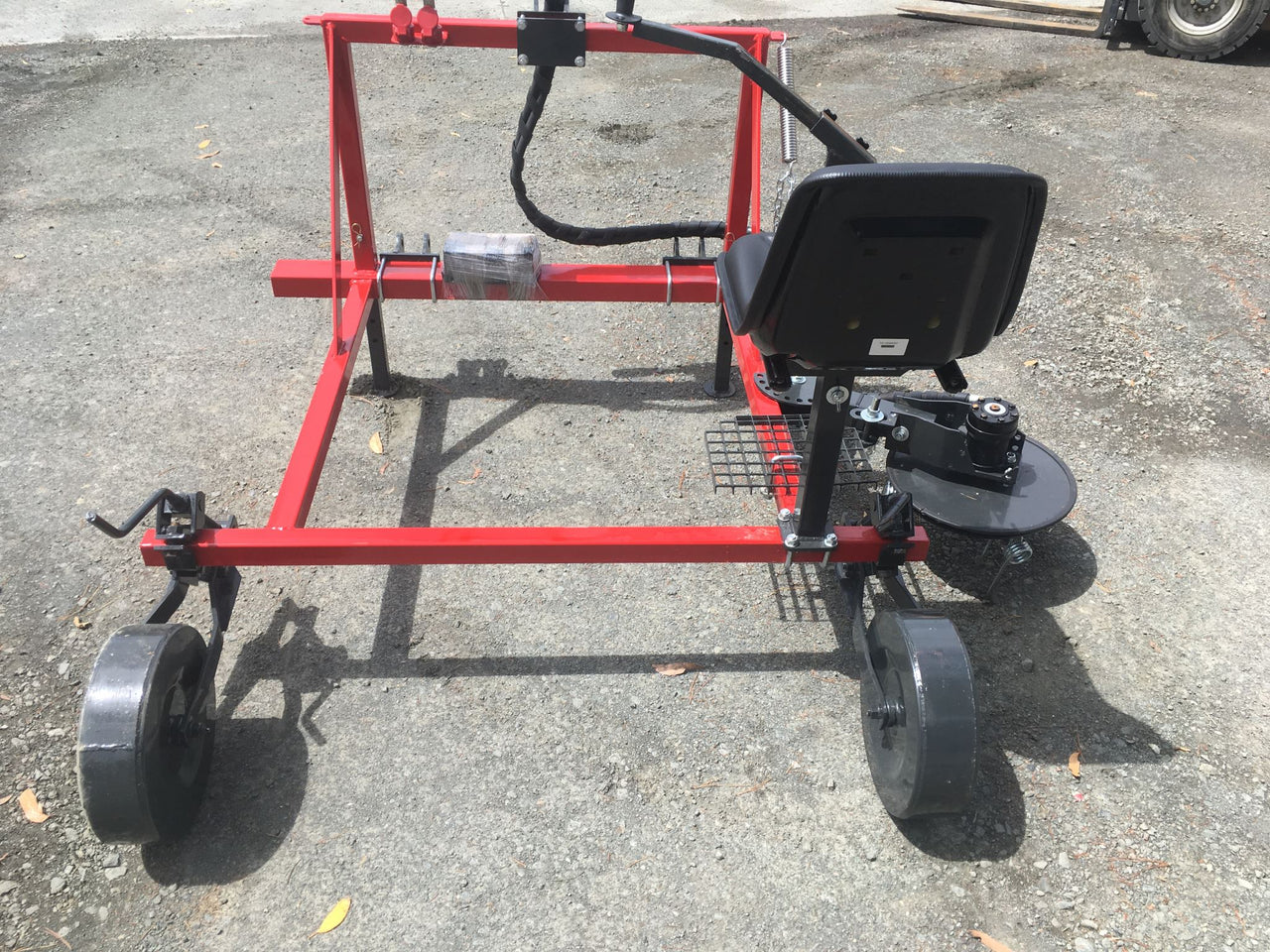

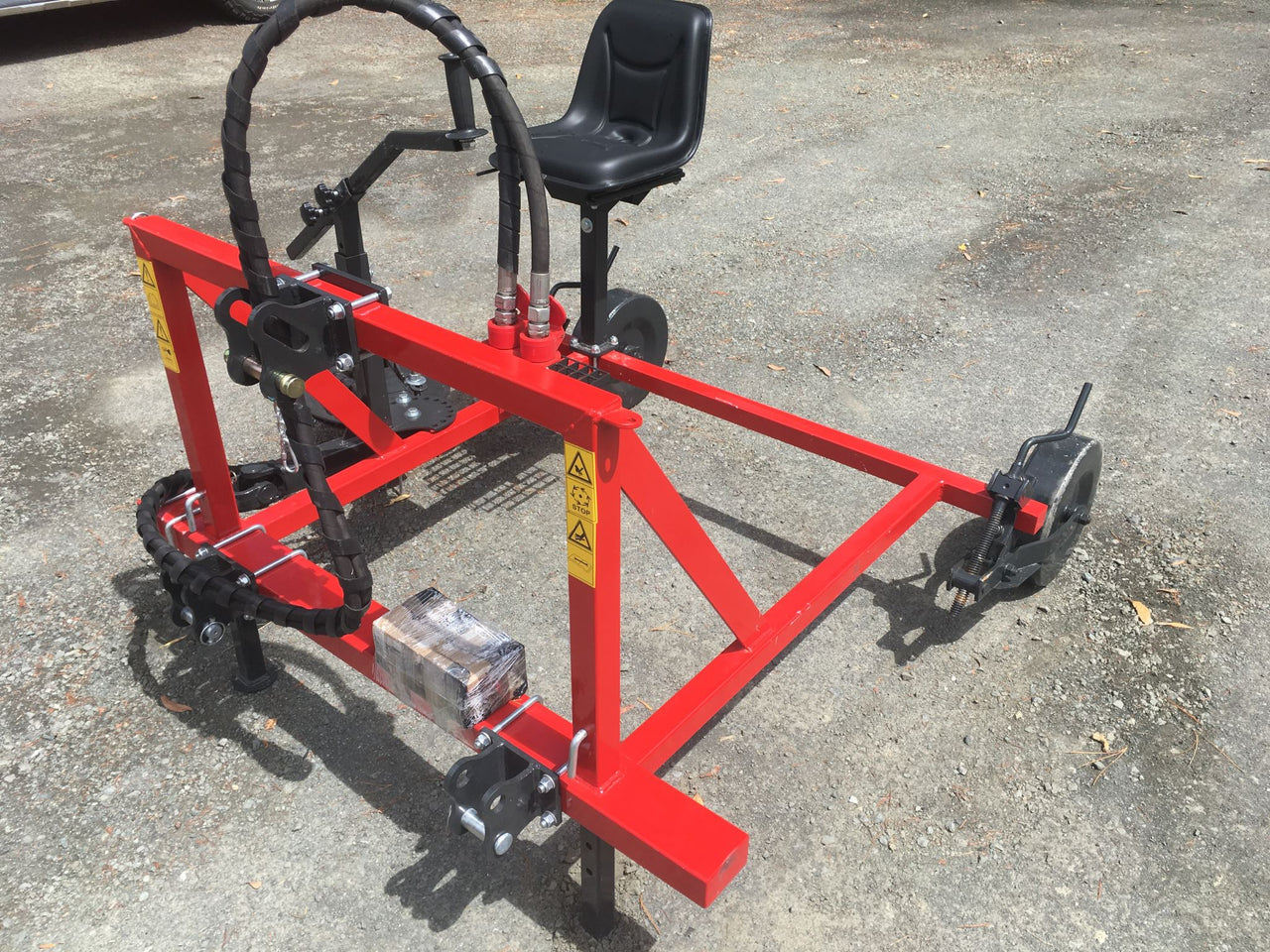

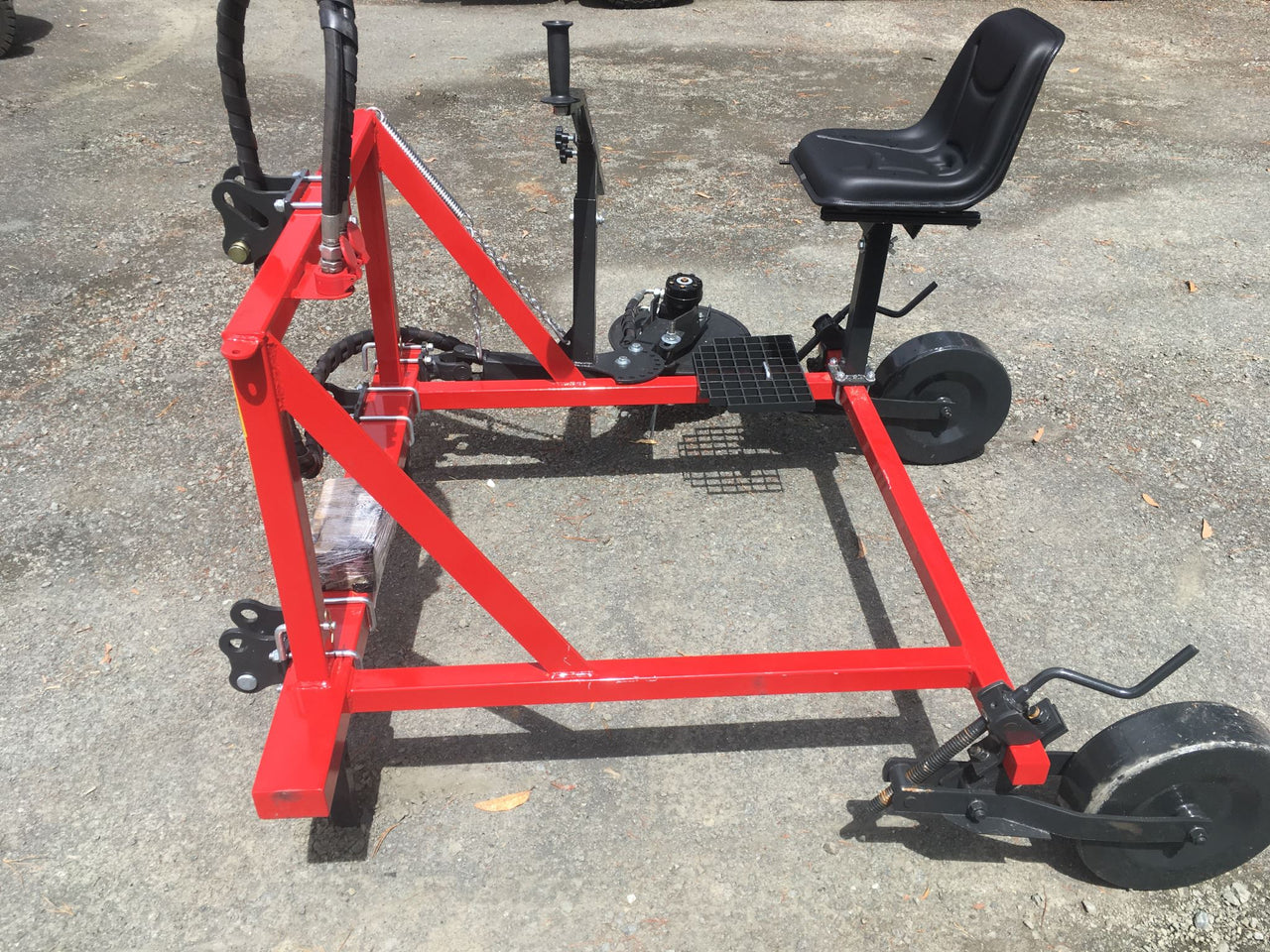

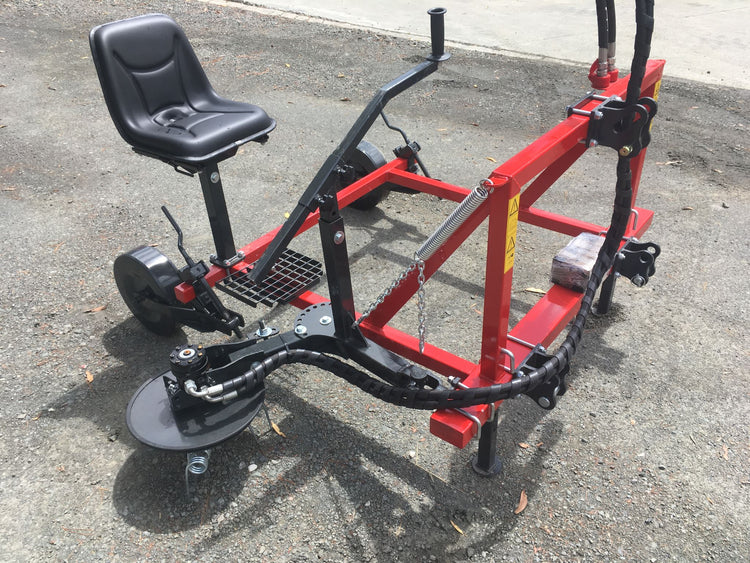

Compact hydraulic side hoe for chemical-free weed control between rows of trees, vines, or crops. Mounts on Cat 2 three-point linkage and requires one single-acting hydraulic service from the tractor. Operator-seated design with adjustable footrest for extended use. Suited to orchards, vineyards, market gardens, and lifestyle blocks running 45–120 HP tractors.
Features & Benefits
- Mounts on tractor three-point linkage with Category 2 pins — no additional mounting hardware required
- Operator seat with adjustable footrest for comfortable extended operation
- Two interchangeable hoe head tools included: spring tine and spike blade
- 150mm maximum weeding depth — effective against established weeds
- Hydraulic-powered hoe head — consistent, reliable performance without ground-drive limitations
- Single-acting hydraulic connection — simple hookup to standard tractor hydraulics
- Max working speed 5 km/h — suitable for row crop and orchard work
- Efficiency rating 0.2–0.7 Ha/h depending on conditions and row spacing
Specifications
| Specification | Value |
| Width | 2000mm |
| Depth | 1650mm |
| Height | 1300mm |
| Weight | 100 kg |
| Max weeding depth | 150mm |
| Hydraulic connection | Single-acting, 1 service required |
| Oil flow requirement | 20 LPM |
| Max working speed | 5 km/h |
| Efficiency | 0.2–0.7 Ha/h |
Best For
Orchards, vineyards, market gardens, lifestyle blocks, and row crop operations where chemical-free inter-row weed control is required.
Compatibility
Tractor HP range: 45–120 HP. Hitch type: Category 2 three-point linkage. Hydraulic requirement: one single-acting service at minimum 20 LPM.
What's Included
- Hydraulic side hoe unit
- Spring tine hoe head
- Spike blade hoe head
- Hydraulic hose connection
Warranty & Support
12 Month warranty and support from Implements Direct
Shipping & Freight
This item is shipped partially disassembled on a pallet, some nut and bolt assembly is required.
