Rotex M150 Power Harrow with Seeder and Roller

Price: $14,595.00 inc GST

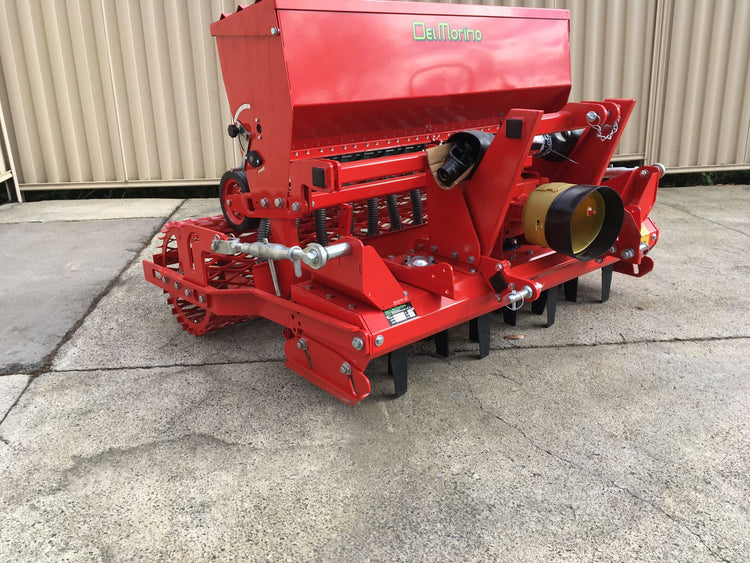

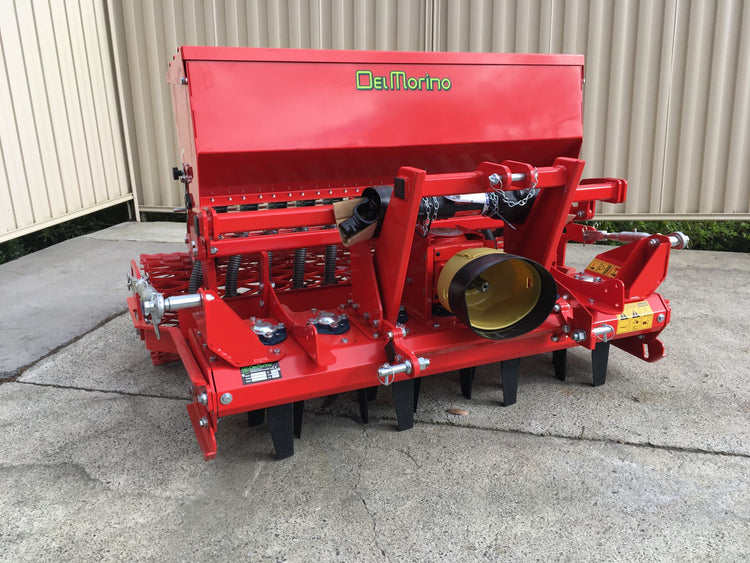

Delmorino Rotex 150 Rotary Harrow with Roller and Seeder

OVERVIEW

This is a Professional Power Harrow with 1500mm working width from Del Morino Italy, who have been producing top quality Agricultural Implements since 1852. This Harrow features high quality design and materials. Its durability and steel thickness is superior to comparable models.


 FEATURES AND BENEFITS

- Cast iron gearbox 540 rpm.

- Two blades per rotor (gear driven in an oil bath)

- Self-adjusting side protection screen, for levelling blade

- Professional series seeder

-Professional levelling bar included

-Category 1 and 2, 3 point linkage at rear

-The Rotary Harrow is operated by the PTO of your tractor with 540 rpm.

-Robust cast iron gearbox where individual rotary knives are driven ( by 370 RPM) via sprockets in the oil bath

-The rotary knife bearings are individually lubricated (grease nipple easily accessible on top of the housing).

-Each gyro has 2 easily replaceable blades installed. Knives are specially hardened and ground 8mm thick (see photo)

-Working depth of knives up to max 190 mm.

-Side shields to avoid dam formation.

-Screen roller for optimum ground leveling and depth guidance of the rotary harrow.



Specifications Units
Overall width 1750mm
Working width !500mm
Depth 1350mm
Height 1200mm
Weight  263kg
Tractor 15-45HP
Linkage Category 1 and 2, 3 point linkage
PTO

series 4 (540 RPM)

Knives  2 blades per rotor, (8mm thick)
Working depth 190mm
Gearbox  540 RPM

 100% manufactured in Italy.
