Overview

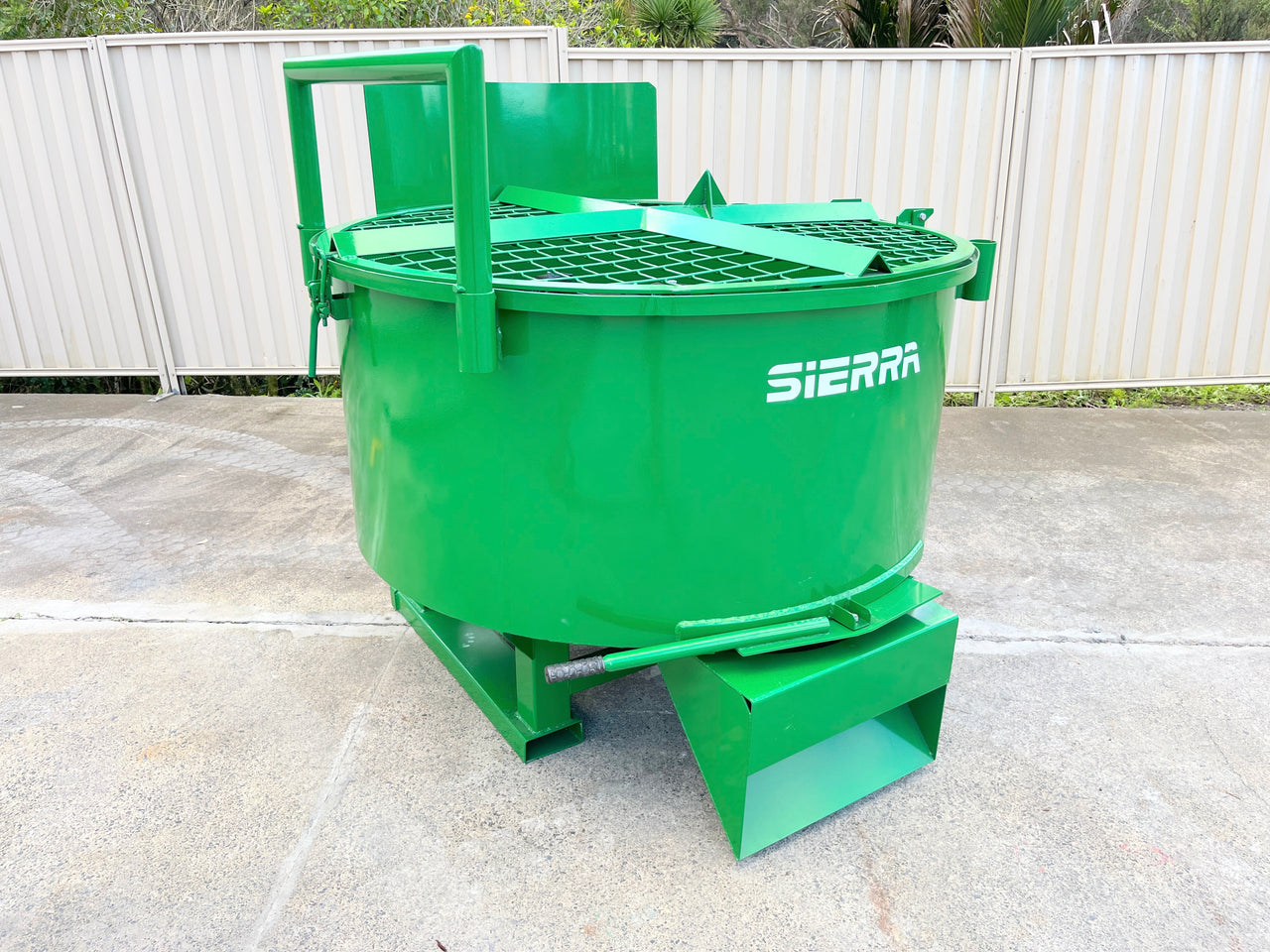

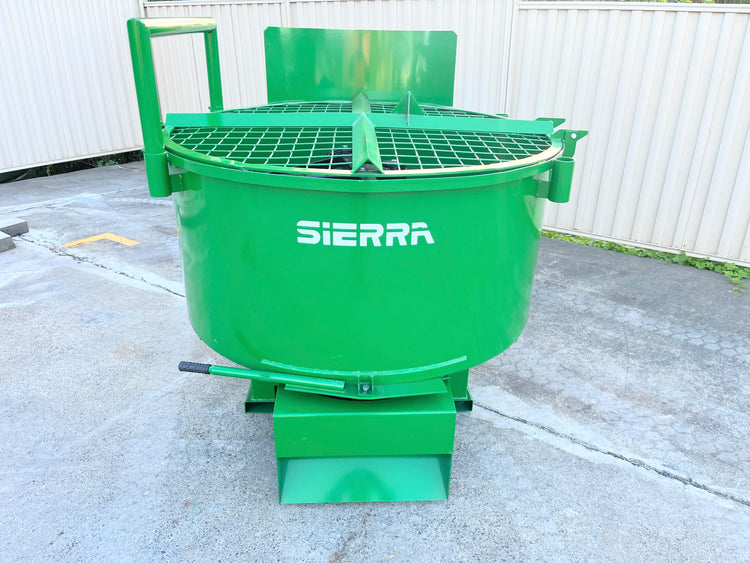

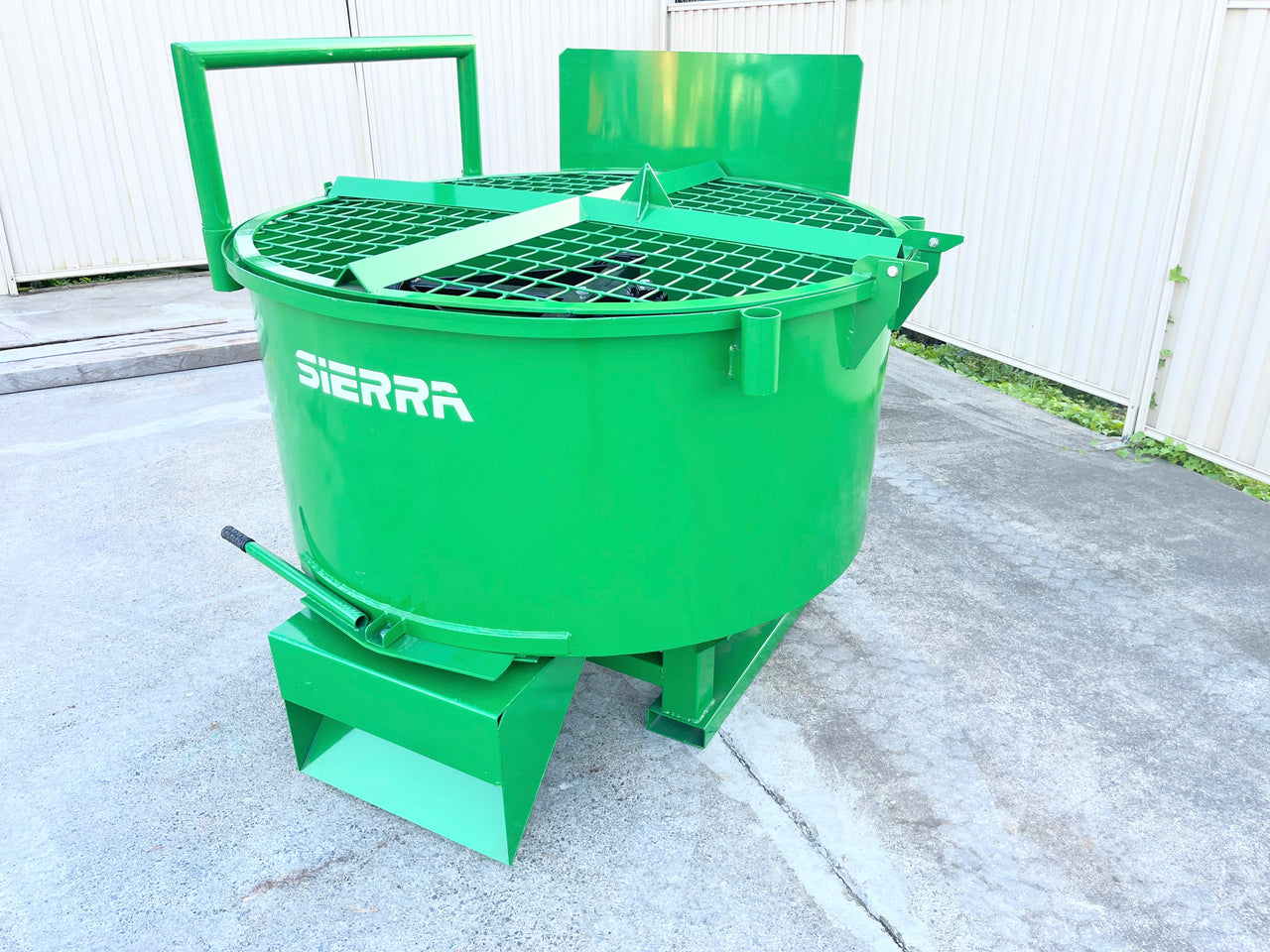

The Sierra 800-litre PTO-driven concrete mixer provided large mixing capacity on farm. Requires 75+ HP tractor. Handles large construction projects including floors and foundations. Features 4 mixing arms driven through reduction gearbox with adjustable spring-mounted paddles.

Features & Benefits

• 4 PTO-driven mixing arms via large reduction gearbox with leaf spring-mounted adjustable paddles
• Protective grating with integrated cement bag opener for quick loading
• Hand-operated rear outlet door with clip-on discharge chute
• Splash guard included to protect tractor from cement splashes
• Fork pockets in frame for easy movement when detached
• Cat. II 3-point linkage with 2 height positions (200mm & 300mm)
• PTO shaft included
• Output capacity up to 12 m³ per hour (pure mixing time)

Specifications

Specification	Value
Mixing volume	800L
Weight (empty)	630 kg
Bowl diameter	1500 mm
Loading width	1470 mm
Width	1700 mm
Depth	1770 mm
Shipping height	1340 mm
Total assembled height	1580 mm
Fork slots	700-1000 mm
3-point linkage	Cat. II, 850 mm centres
Linkage pin height	200 mm & 300 mm
Linkage span	750-950 mm
Output per hour	Up to 12 m³

Best For

• Pouring concrete floors and foundations
• Farm construction projects
• Large-scale concrete work on lifestyle blocks
• Projects requiring consistent on-site mixing capacity

Compatibility

• Tractor HP range: 75+ HP minimum
• Hitch type: Cat. II 3-point linkage
• PTO: Standard PTO connection (shaft included)
• Maximum loaded weight: Up to 2500 kg when filled to rated capacity

What's Included

• 800L concrete mixer with 4 mixing arms
• PTO shaft
• Discharge chute
• Splash guard
• Protective grating with bag opener

Warranty & Support

12 month warranty with Contact Implements Direct for  technical assistance if this is the right mixer for your tractor and job.

Shipping & Freight

This item ships on a pallet. Freight calculated at checkout based on your location.
