Overview

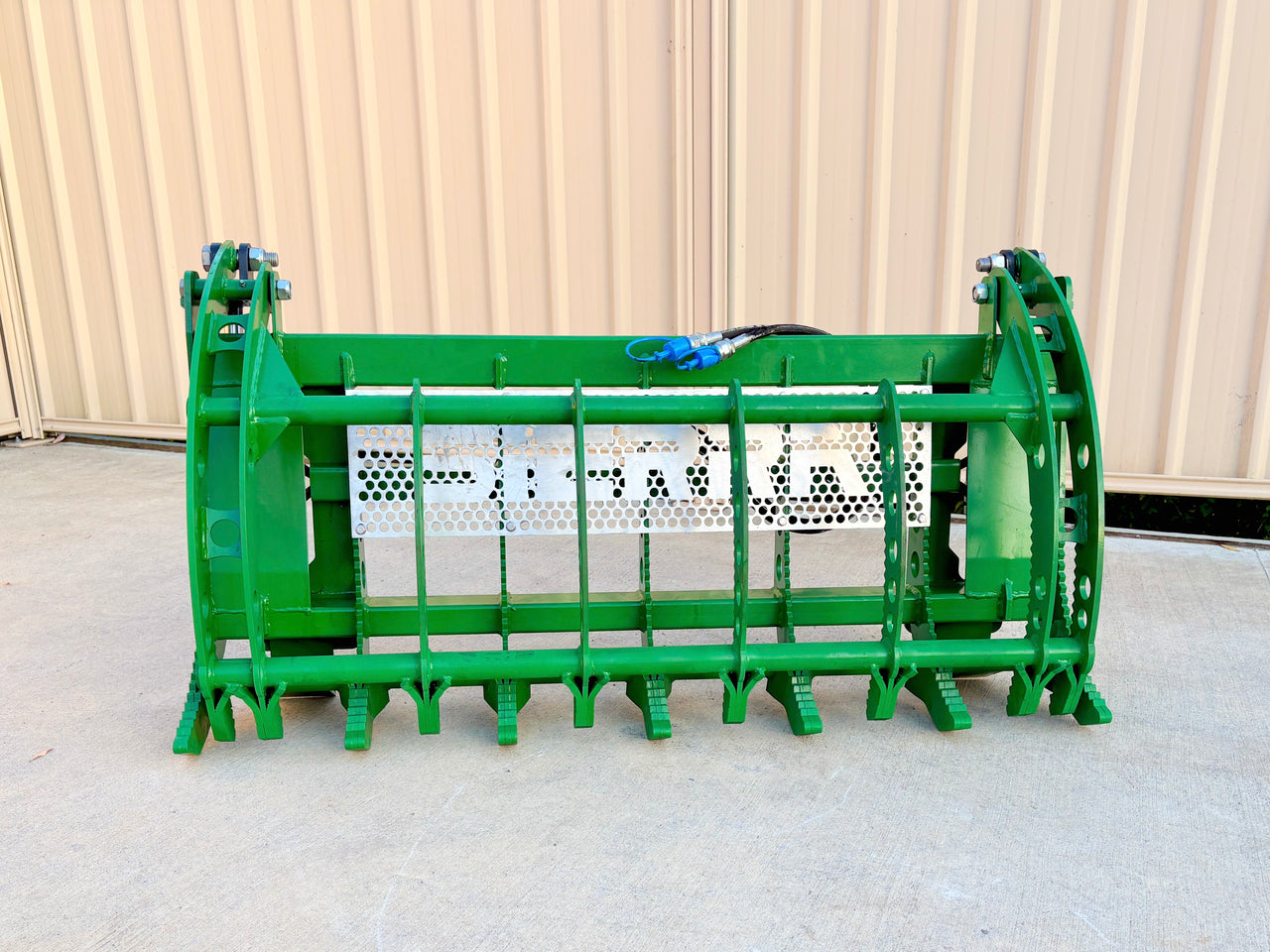

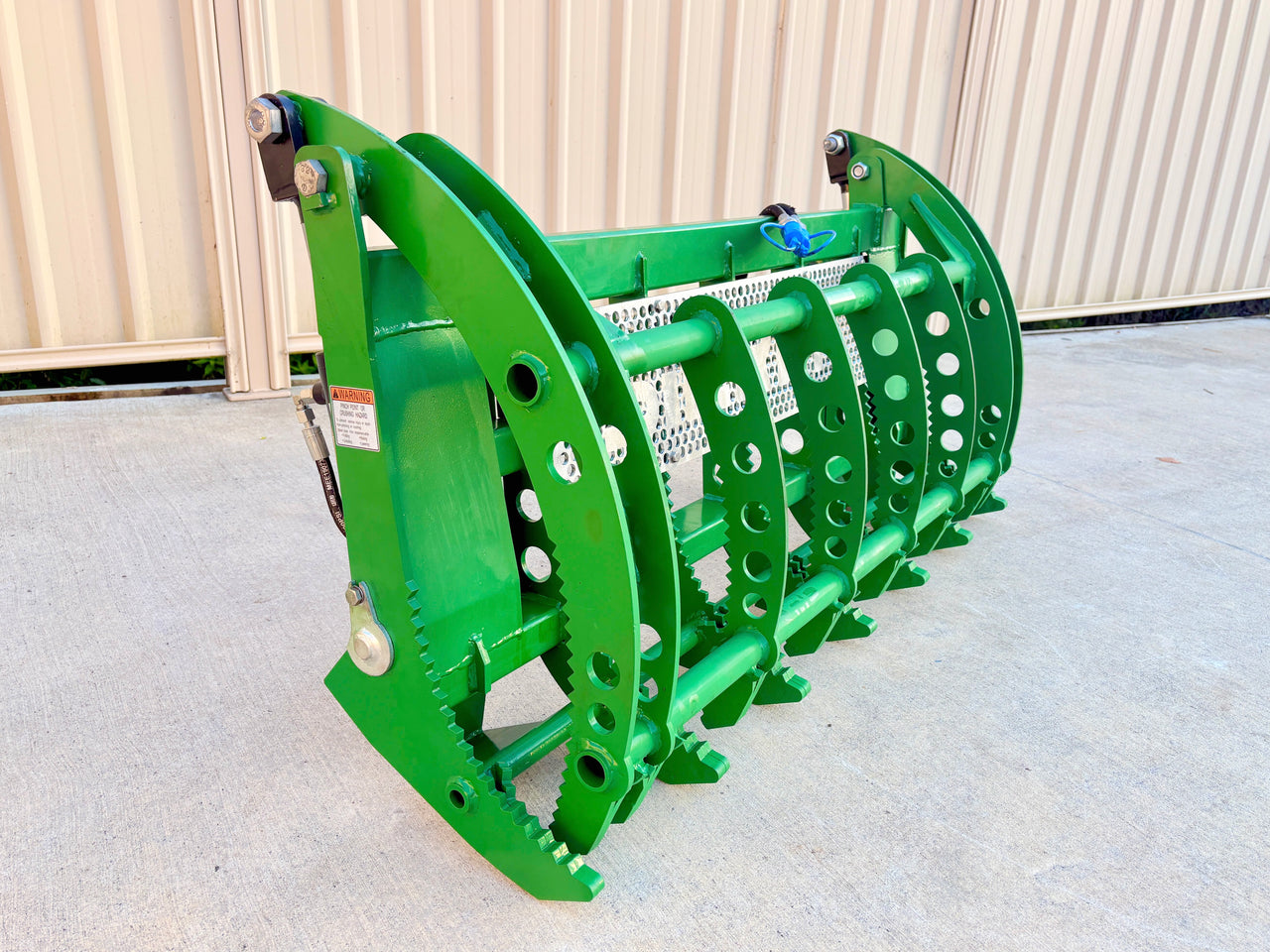

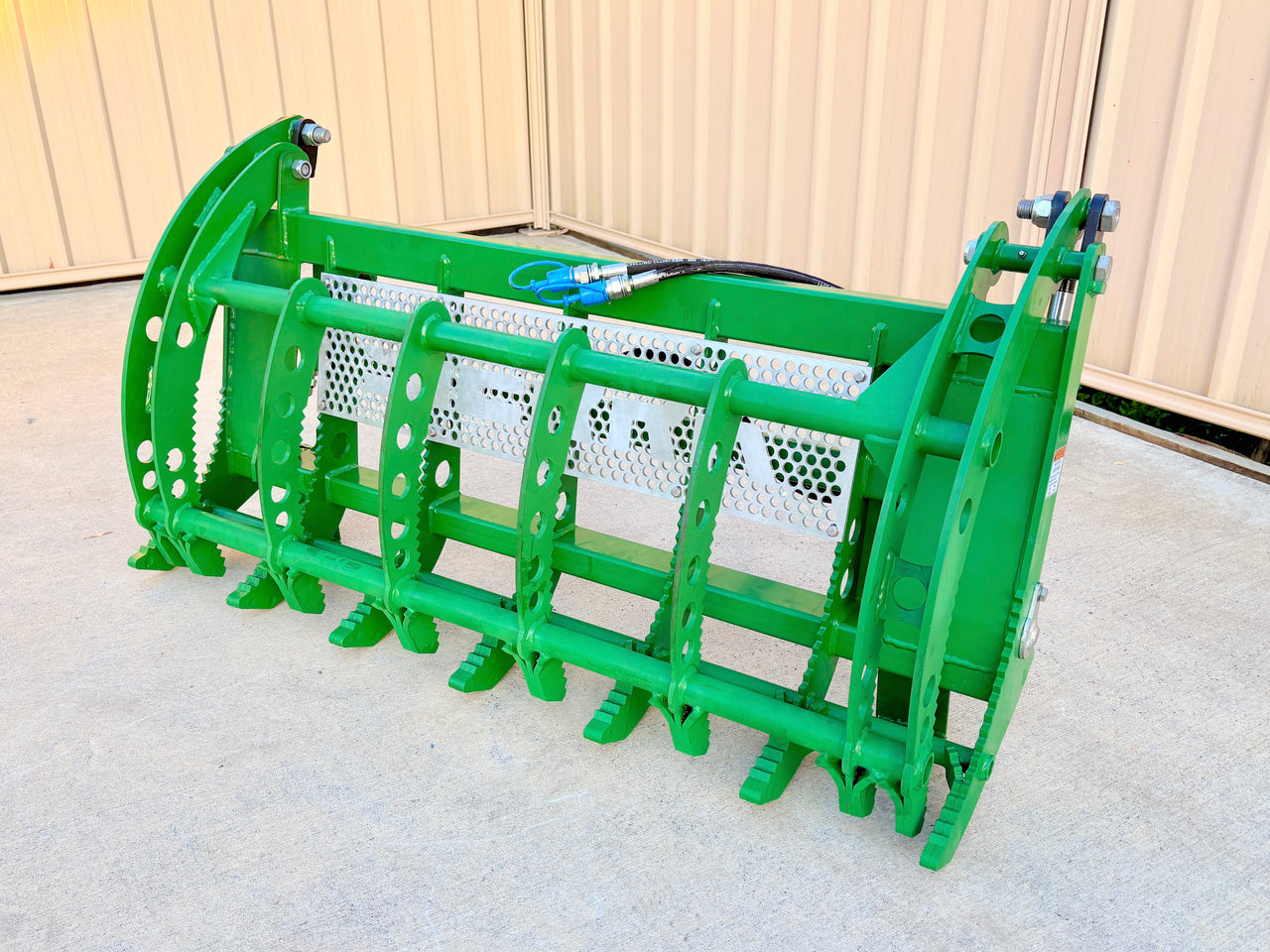

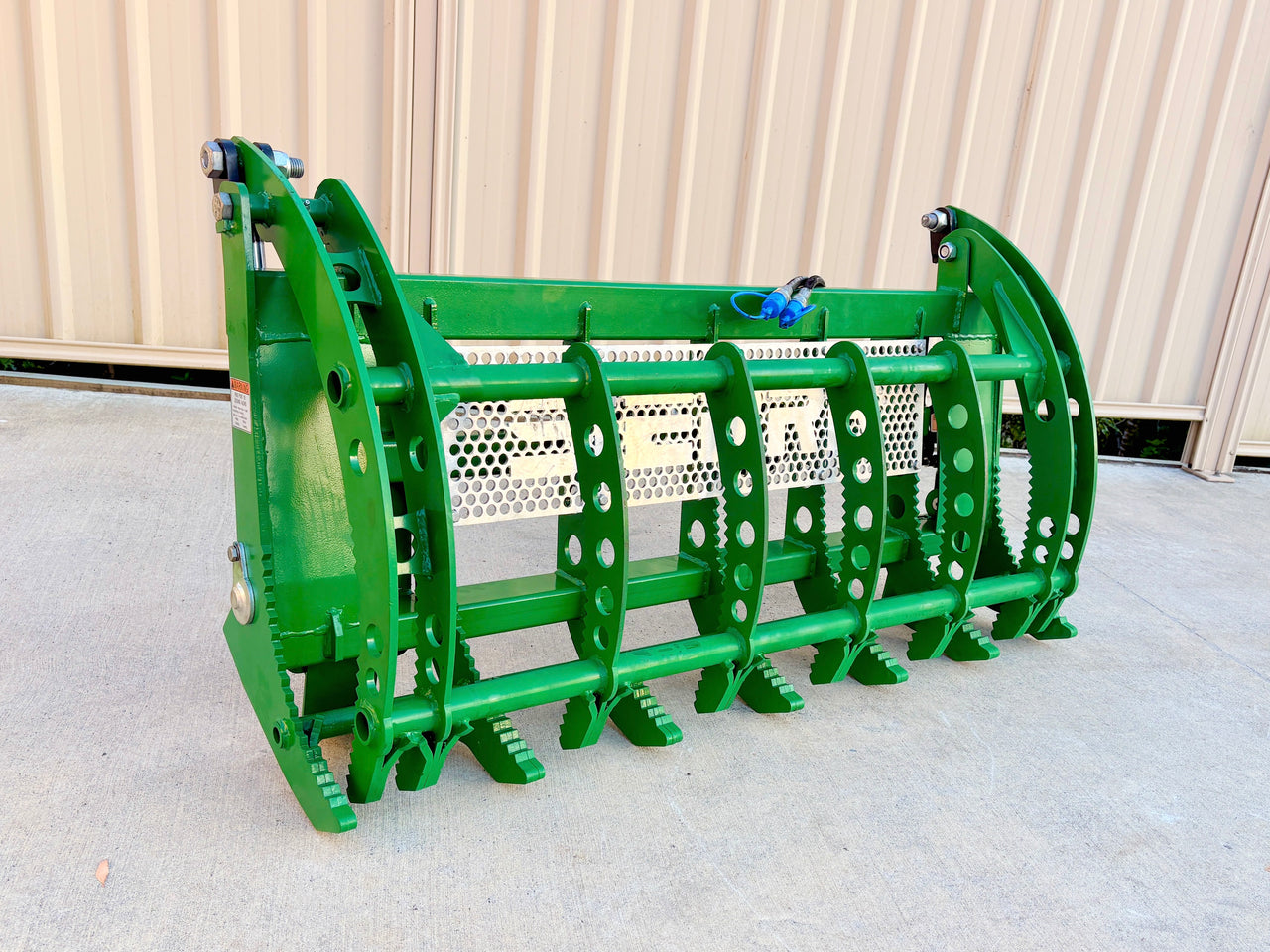

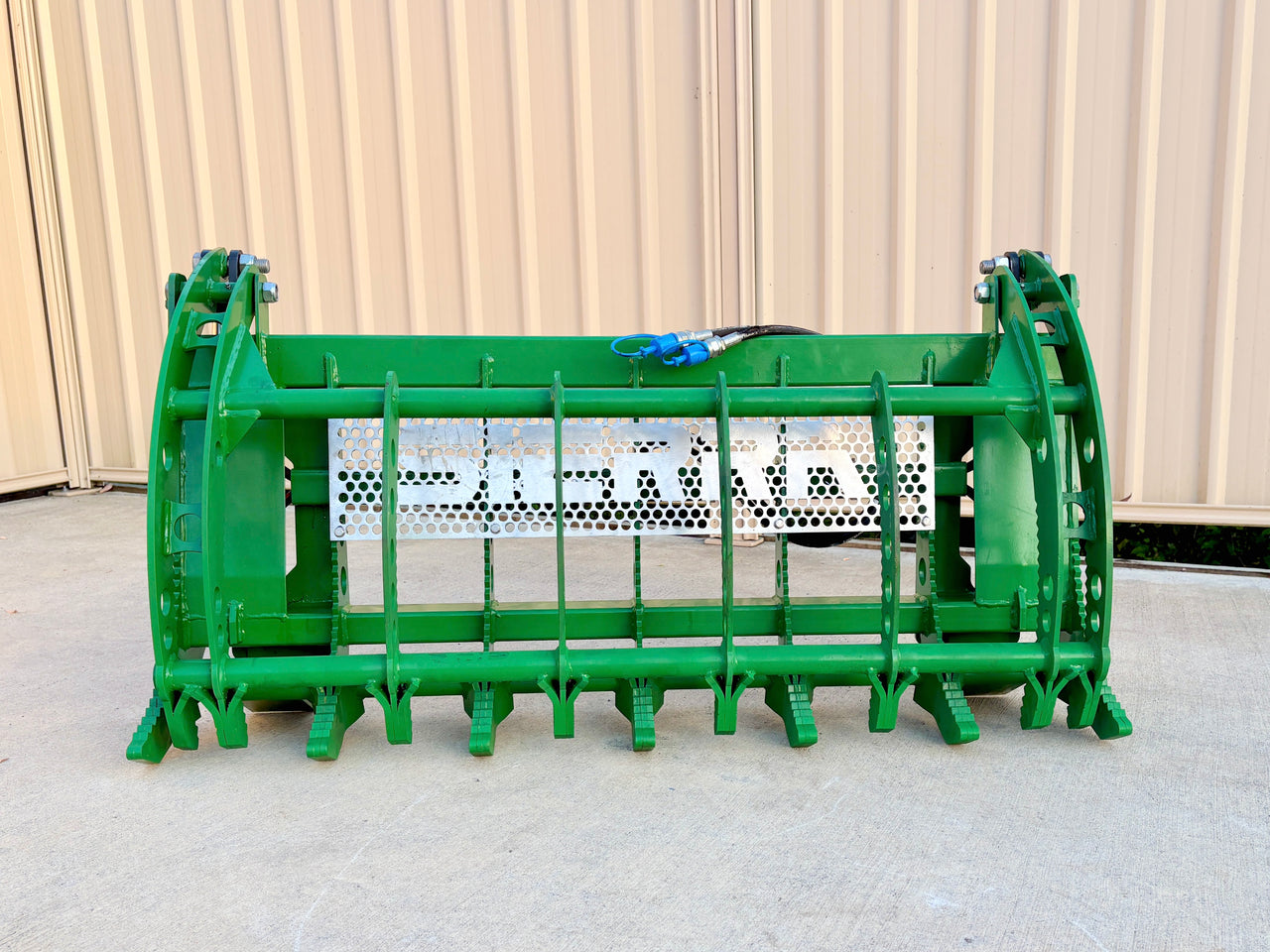

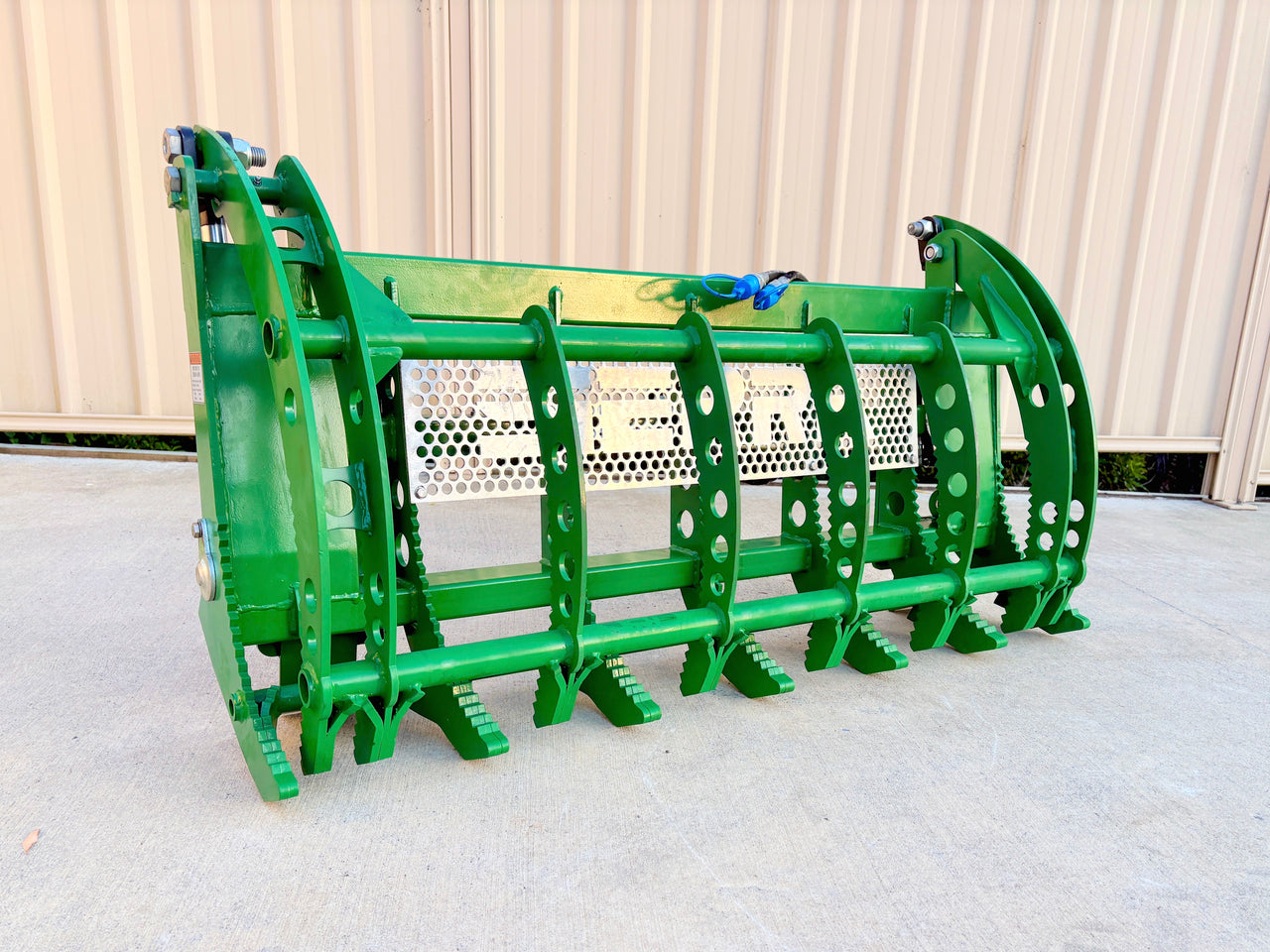

The Sierra SJDG1500 is a heavy-duty grapple built specifically for John Deere sub compact tractors with a John Deere style hook and pin quick-attach hitch. Suited to tractors in the 25–45HP range, it handles timber, brush, debris, and general material handling with confidence. With a 1410mm lower jaw, triple-laminated lower teeth, and 2"x8" hydraulic rams, it's a serious working attachment for lifestyle block owners and small farm operators.
Features & Benefits
- Designed specifically for John Deere quick-attach hitch

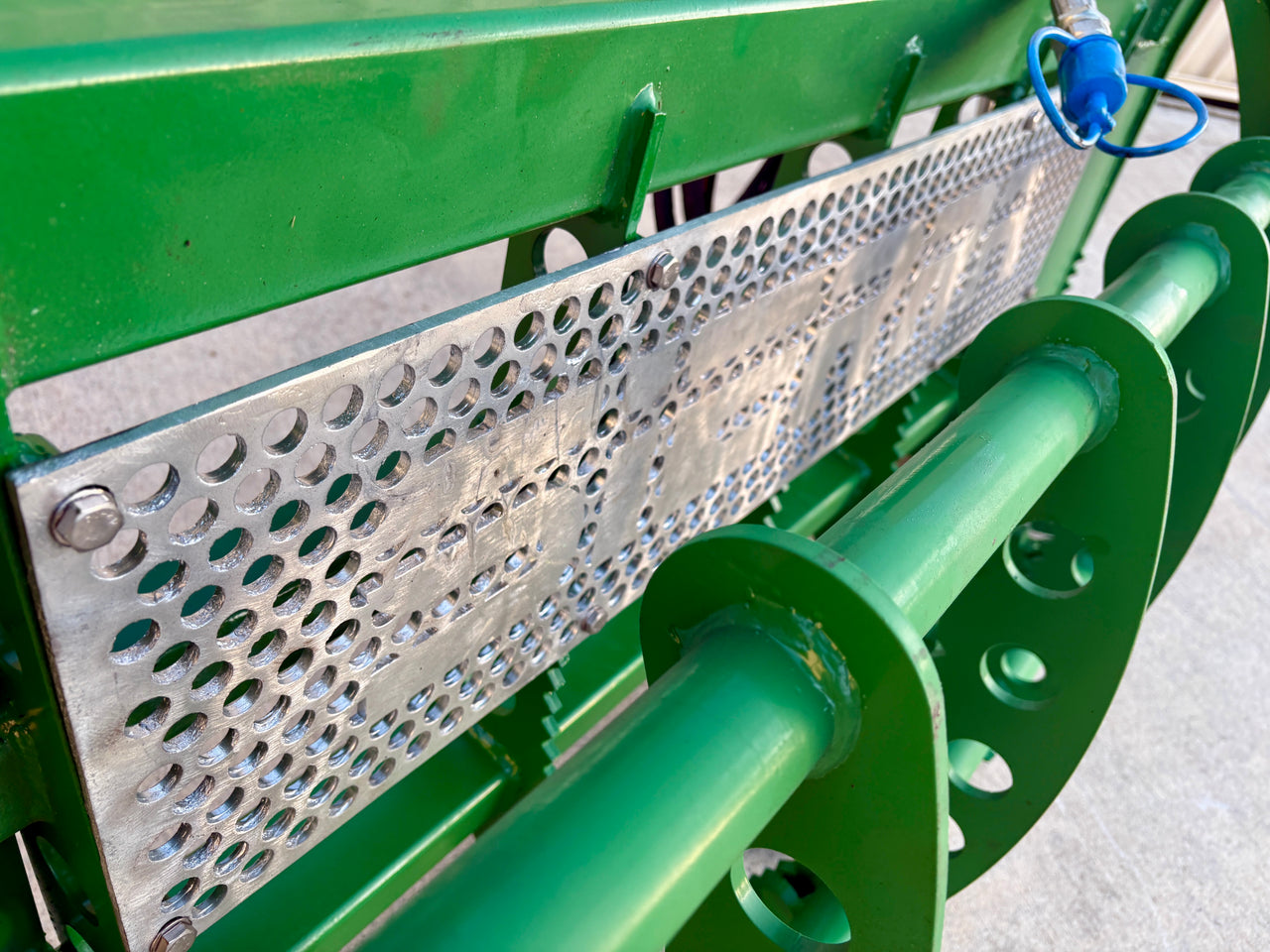

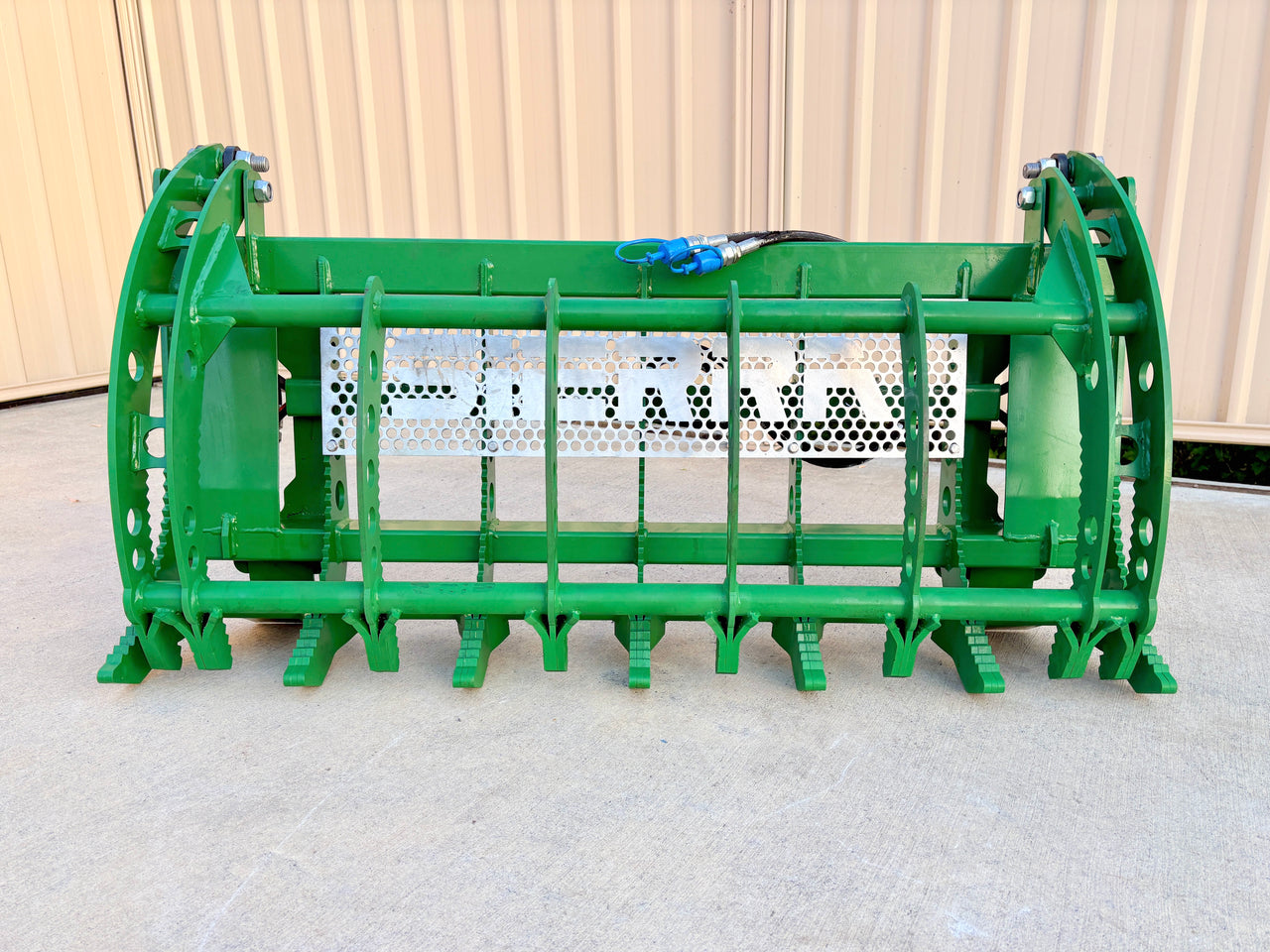

- Bolt on galvanised radiator guard to protect debris from going through the grapple towards your engine.
- 865mm tip-to-tip jaw opening for grabbing large logs, brush bundles, and bulky debris

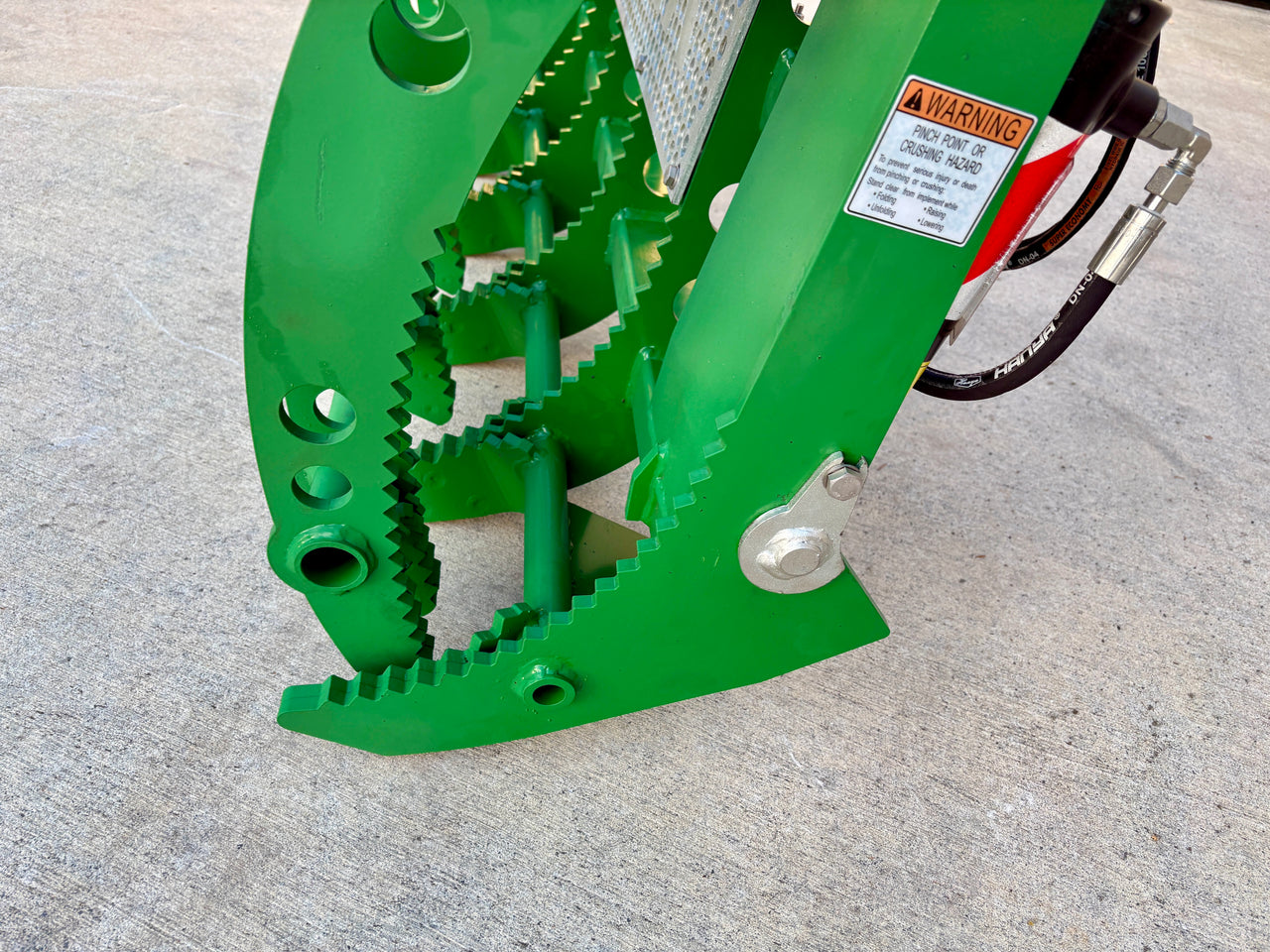

- Serrated Jaws for better grip
- 1320mm wide top jaw with 7 teeth; 1410mm wide lower jaw with 8 teeth

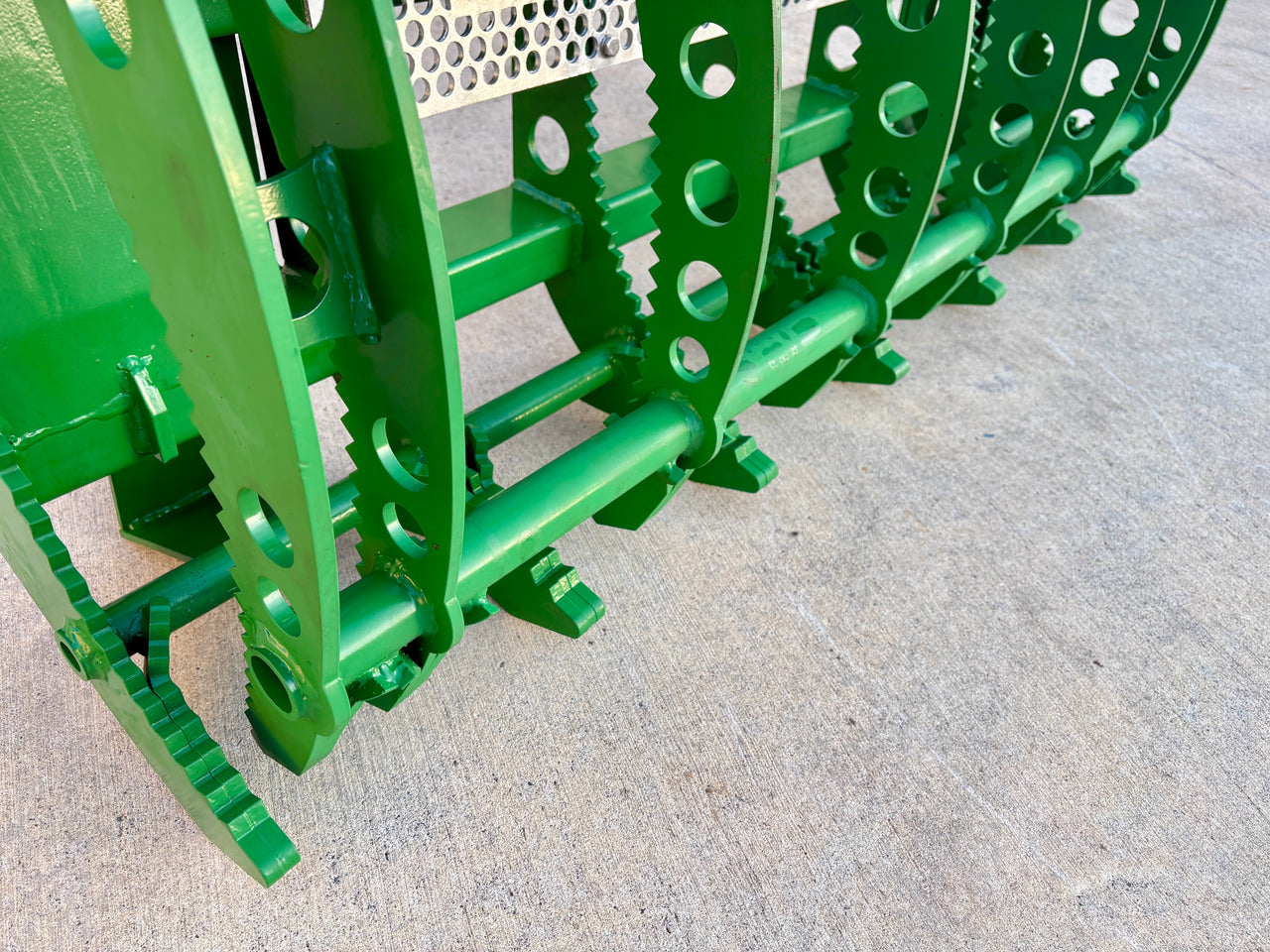

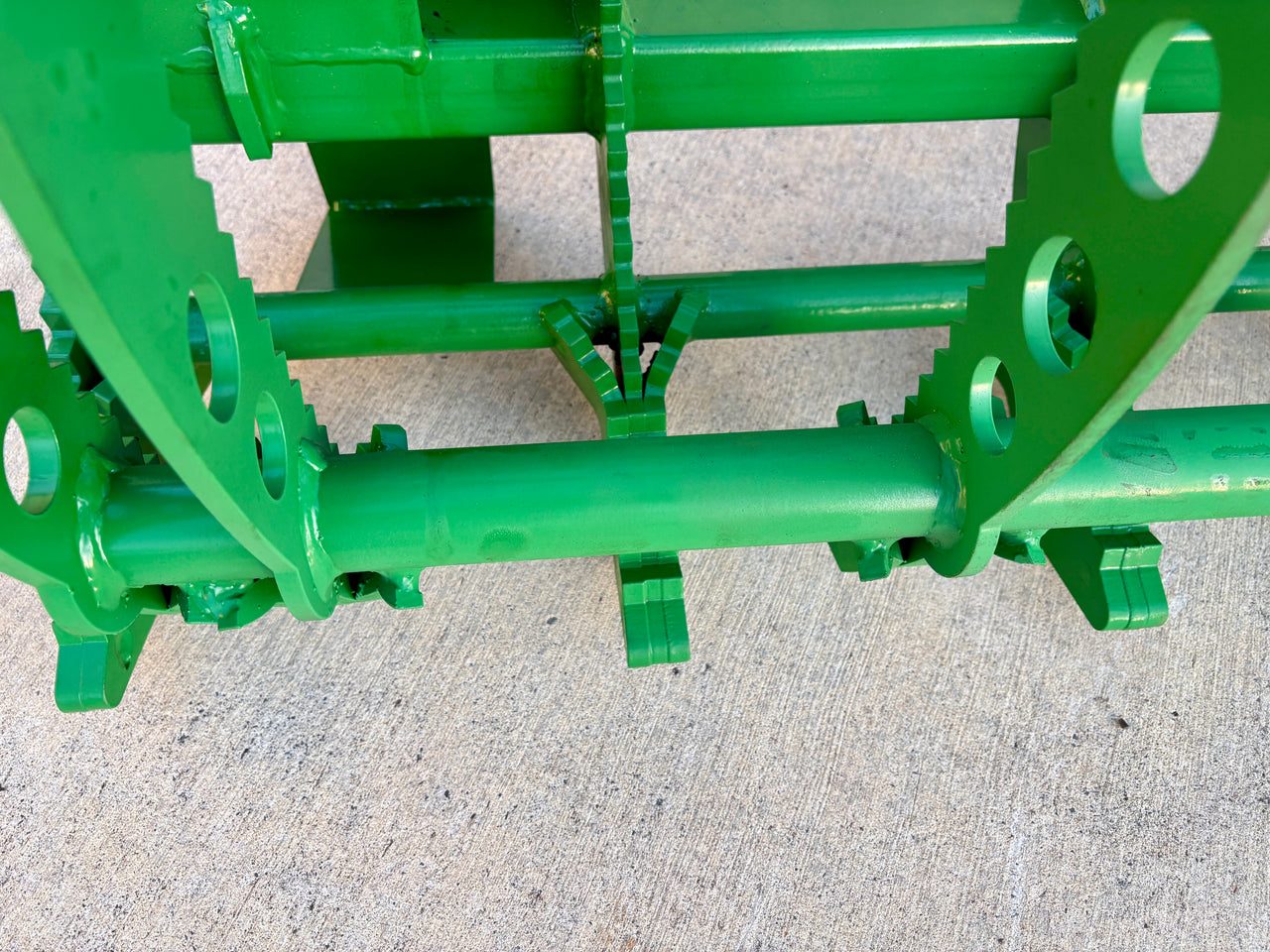

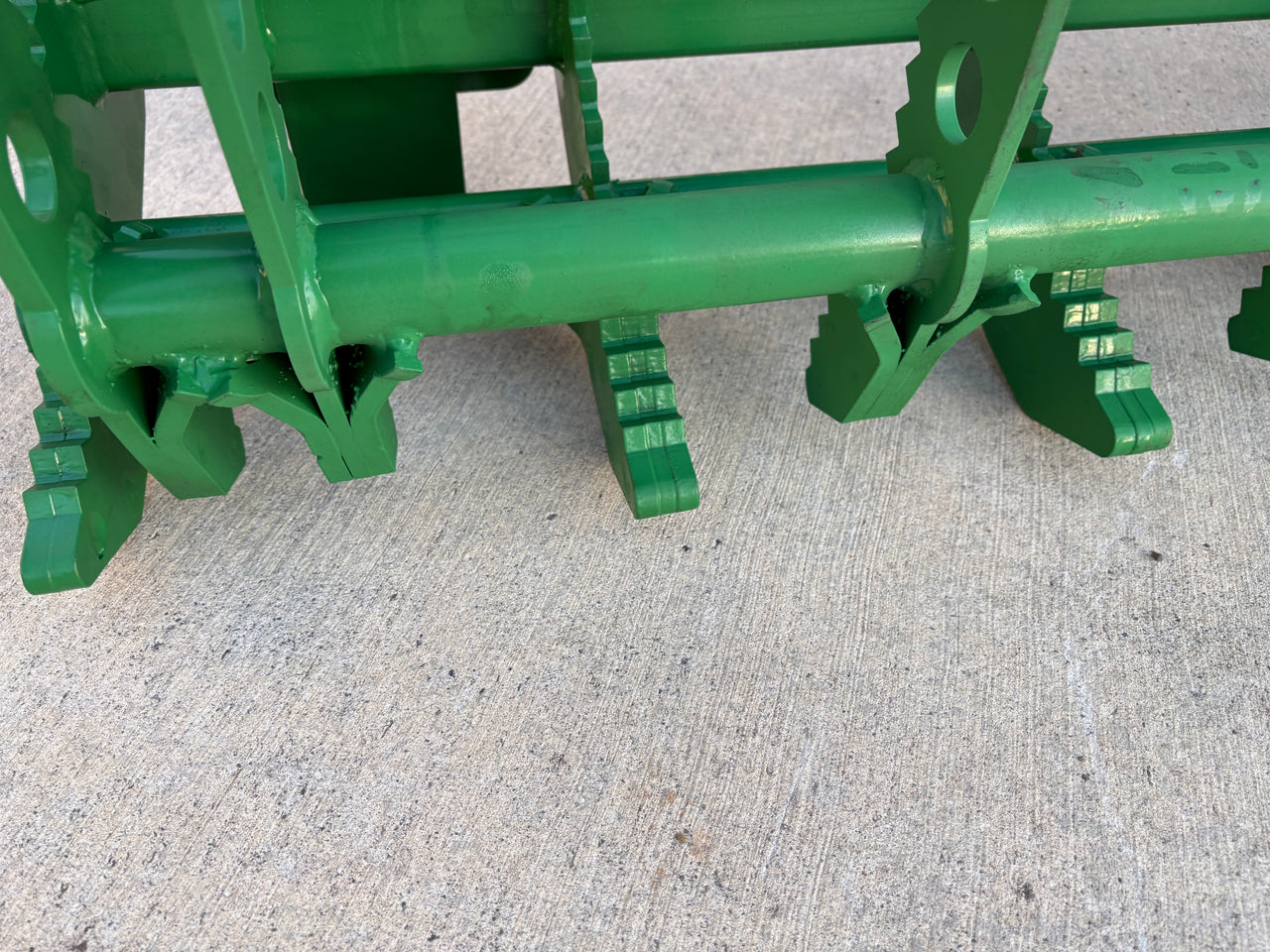

- 26mm triple-laminated lower teeth for superior grip and long service life
- 10mm and 8mm thick structural steel construction throughout

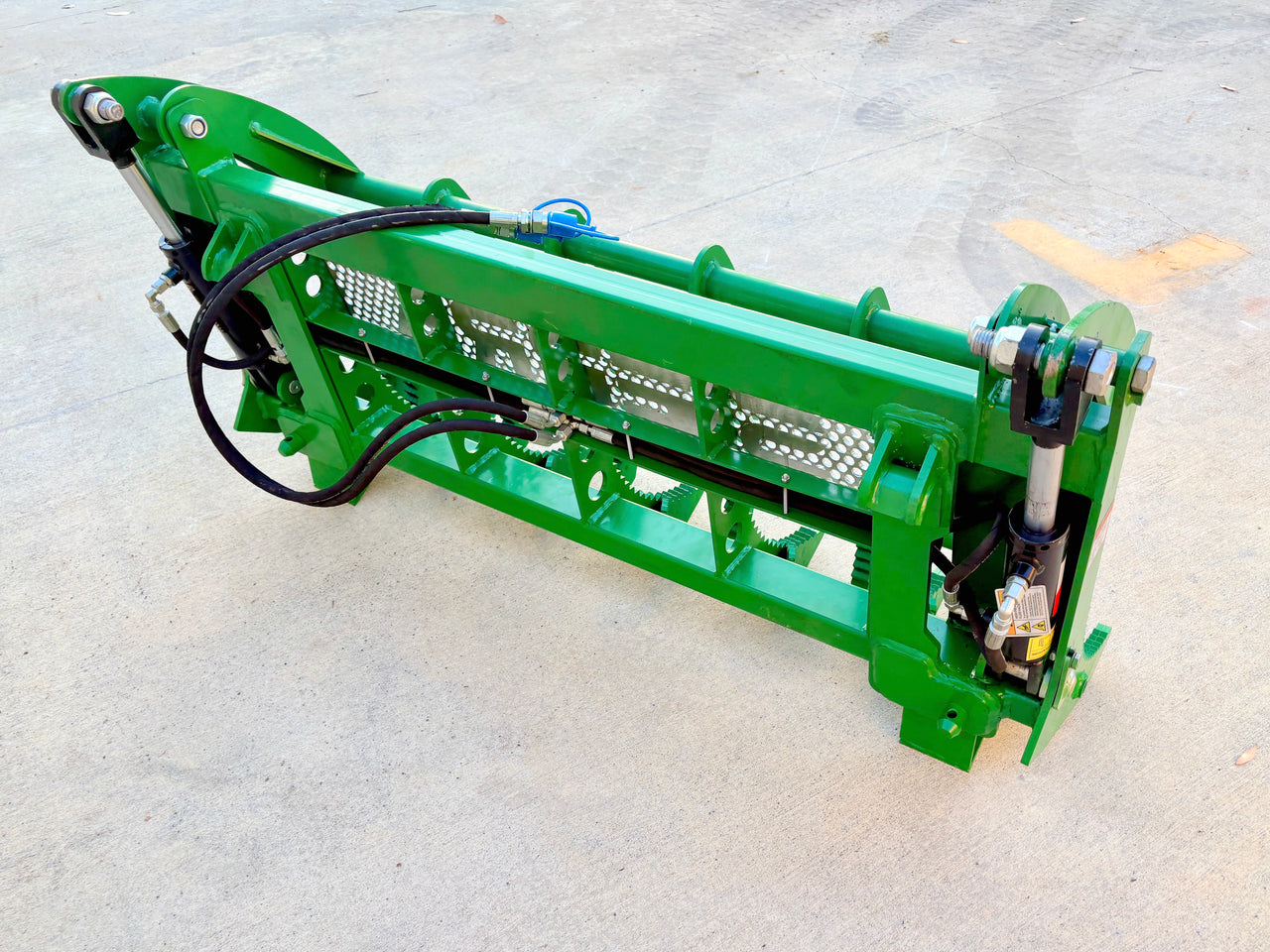

- 2"x 8" hydraulic rams for strong, positive jaw closure

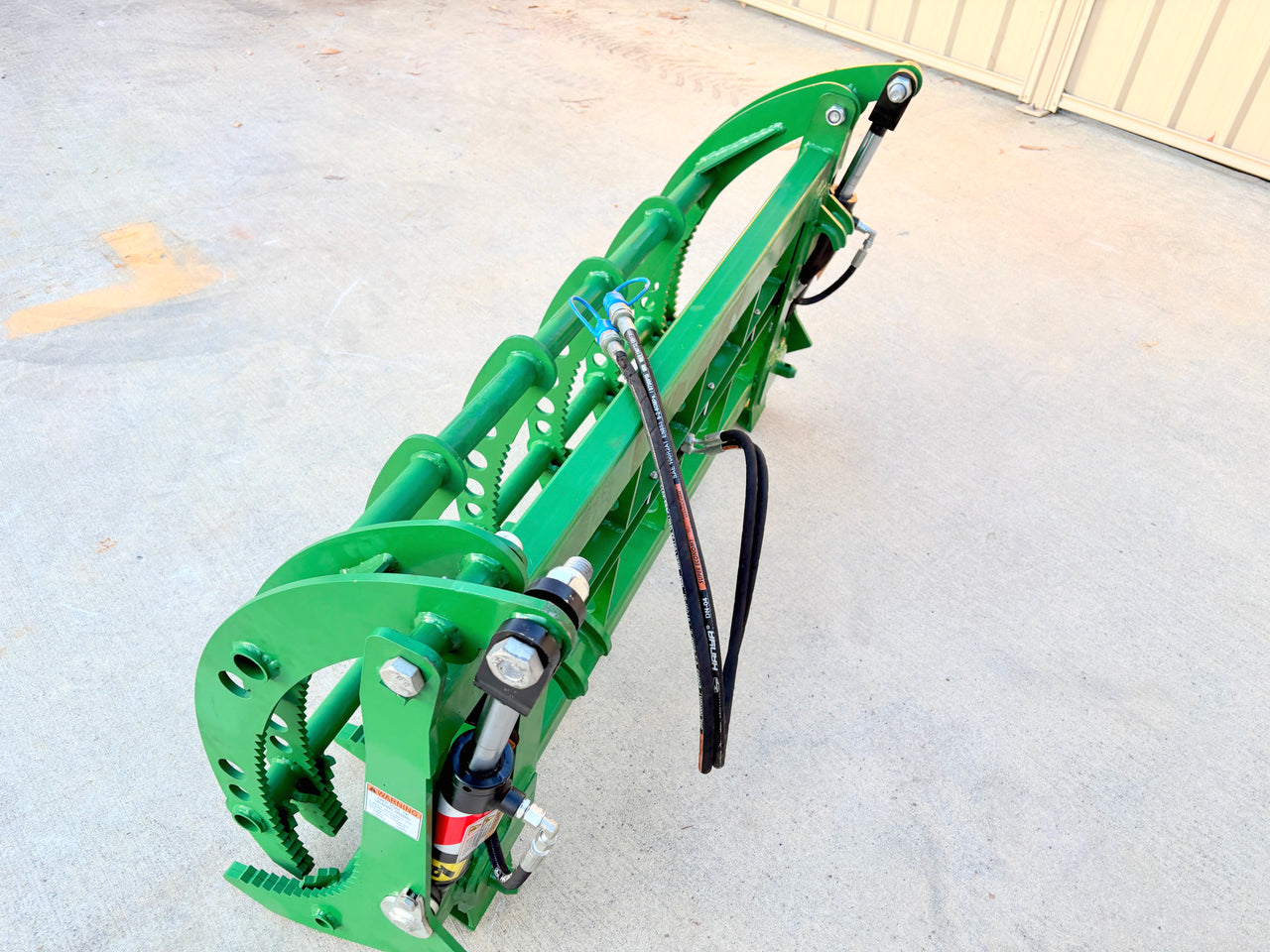

- 1.2m hoses with male quick couplers included
- Grease nipples on all pivot points for easy maintenance and extended component life
- Compact profile maintains good forward visibility from the cab
Specifications
| Specification | Value |
|---|---|
| Model | SJDG1500 |
| Weight | 150 kg |
| Hitch Type | John Deere Hook and Pin style Quick-Attach |
| Tractor HP Range | 25–45 HP |
| Jaw Opening (tip to tip) | 865 mm |
| Top Jaw Width | 1320 mm |
| Lower Jaw Width | 1410 mm |
| Upper Jaw Teeth | 7 |
| Lower Jaw Teeth | 8 (26mm triple-laminated) |
| Steel Thickness | 10mm and 8mm structural steel |
| Hydraulic Rams | 2" x 8" |
| Hose Length | 1.2 m |
Best For

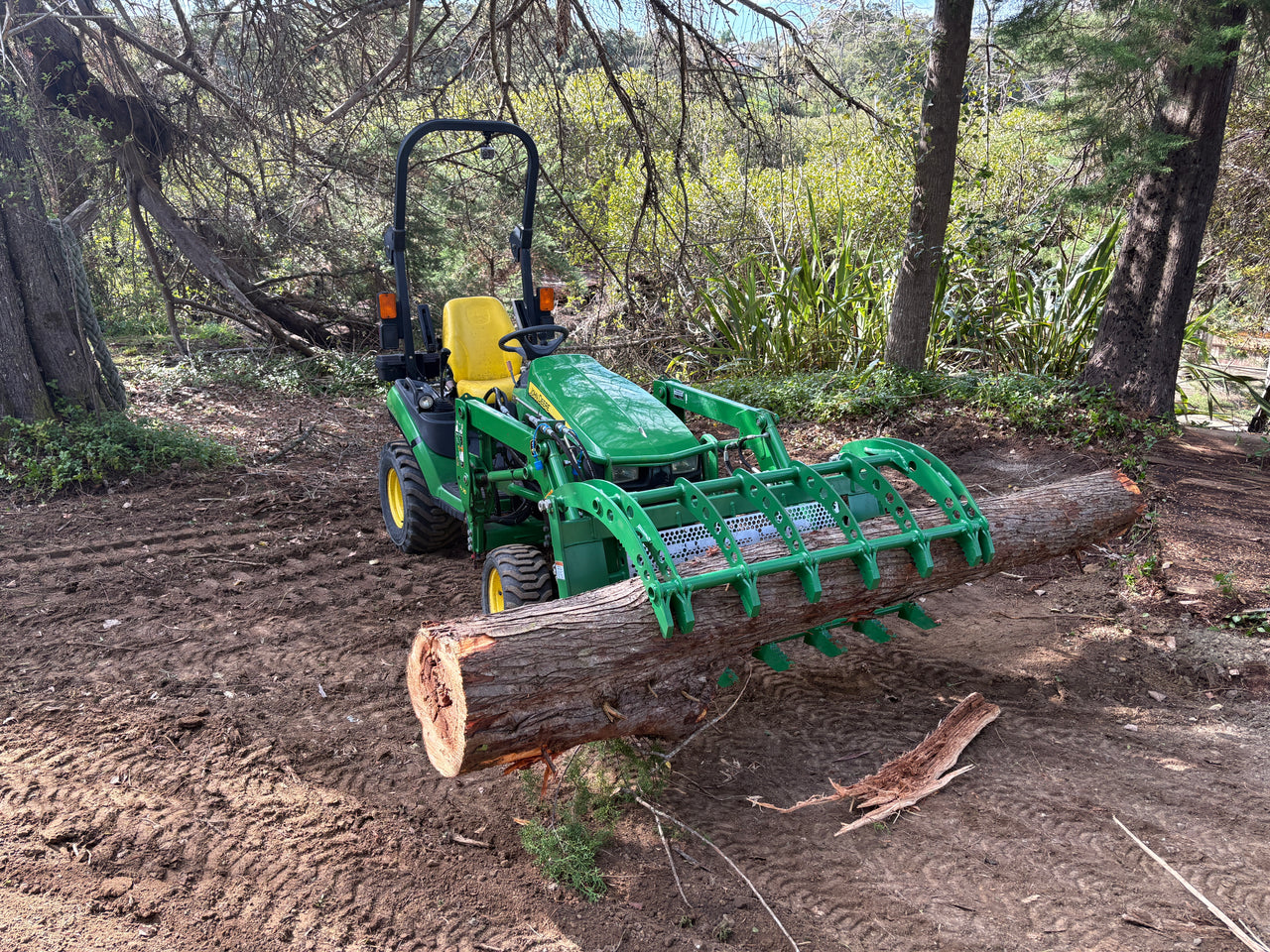

- Timber and log handling on lifestyle blocks

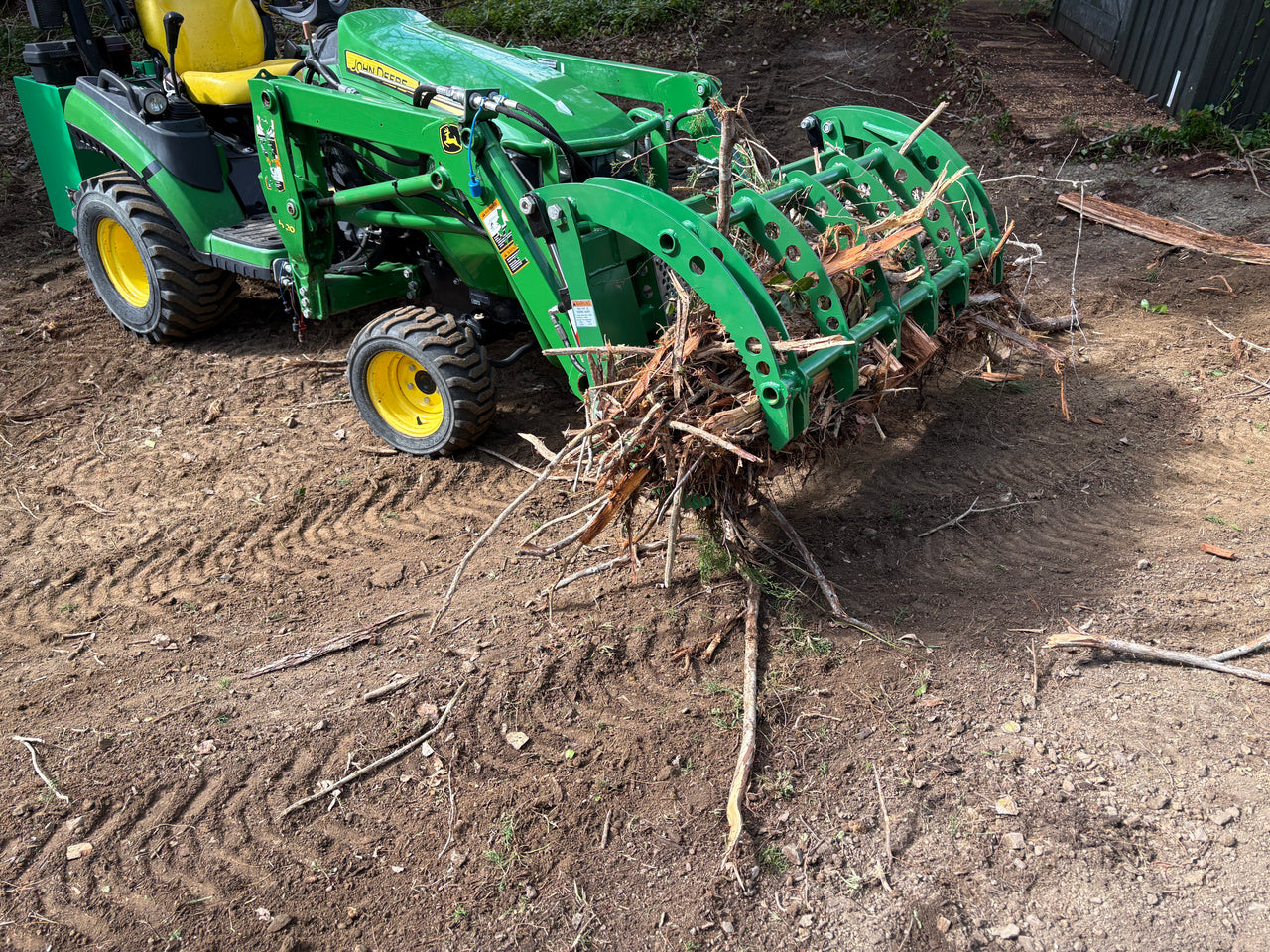

- Clearing scrub, brush, and storm debris
- General material handling and farm cleanup
- Small-scale forestry and land clearing
Compatibility
- Hitch type: John Deere Quick-Attach (JD loader hitch)
- Tractor HP range: 25–45 HP compact tractors
- This model is for all newer JOHN DEERE loaders including, but not limited to the 120R, D120, H120, H130, H160, D160, H165, D170, H180, 220R and similar that use the hook and pin set-up, does not fit 500 series loaders that have a different pin spacing
What's Included
- Sierra SJDG1500 Compact Grapple
- 1.2m hydraulic hoses with quick couplers
Warranty & Support
Backed by Sierra's standard 12 month manufacturer warranty. Contact Implements Direct for warranty claims and spare parts support.
Shipping & Freight
This is a heavy freight item and ships via pallet. Freight costs are calculated at checkout. Contact us for rural delivery or South Island freight enquiries.
