Overview

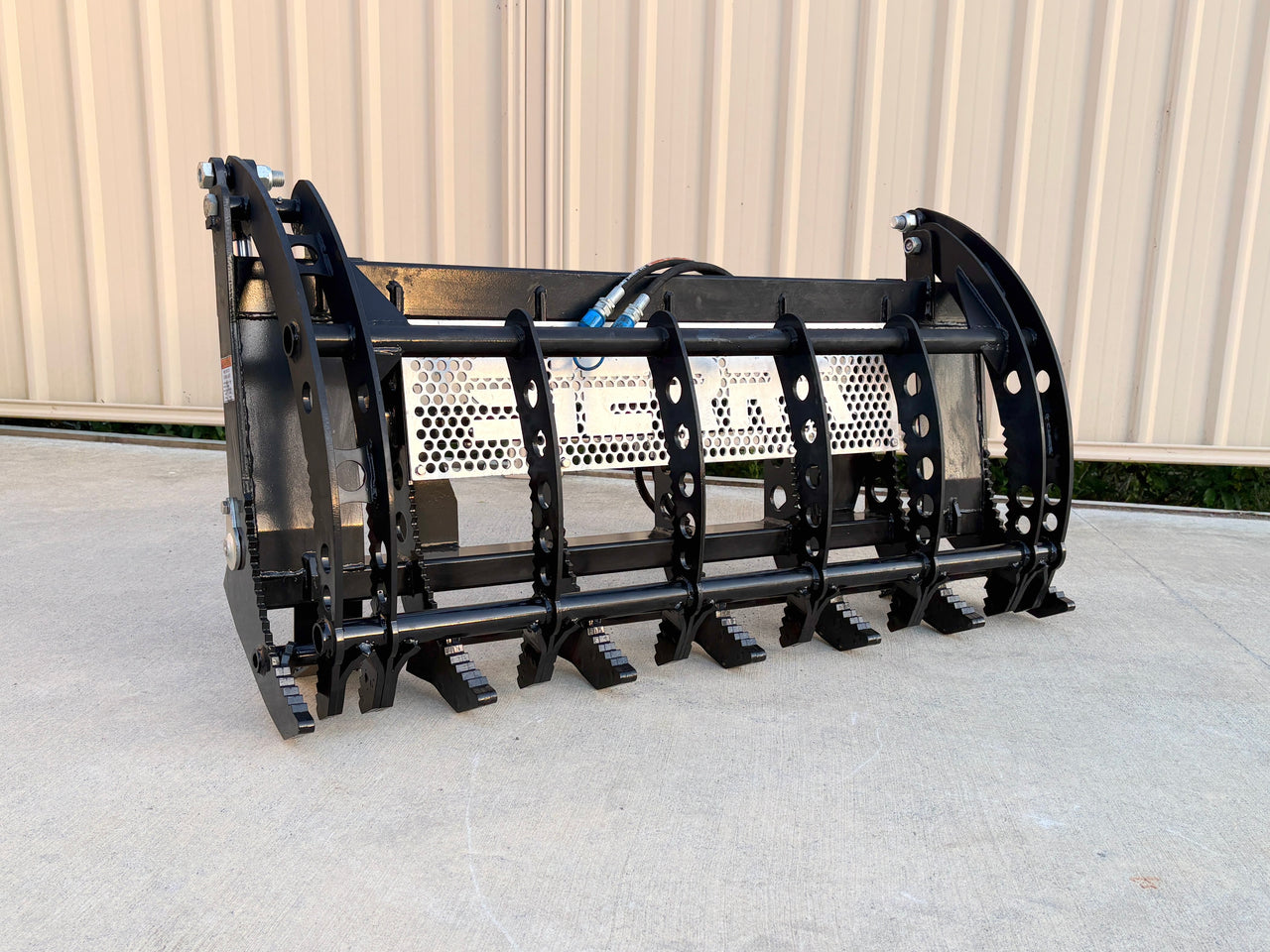

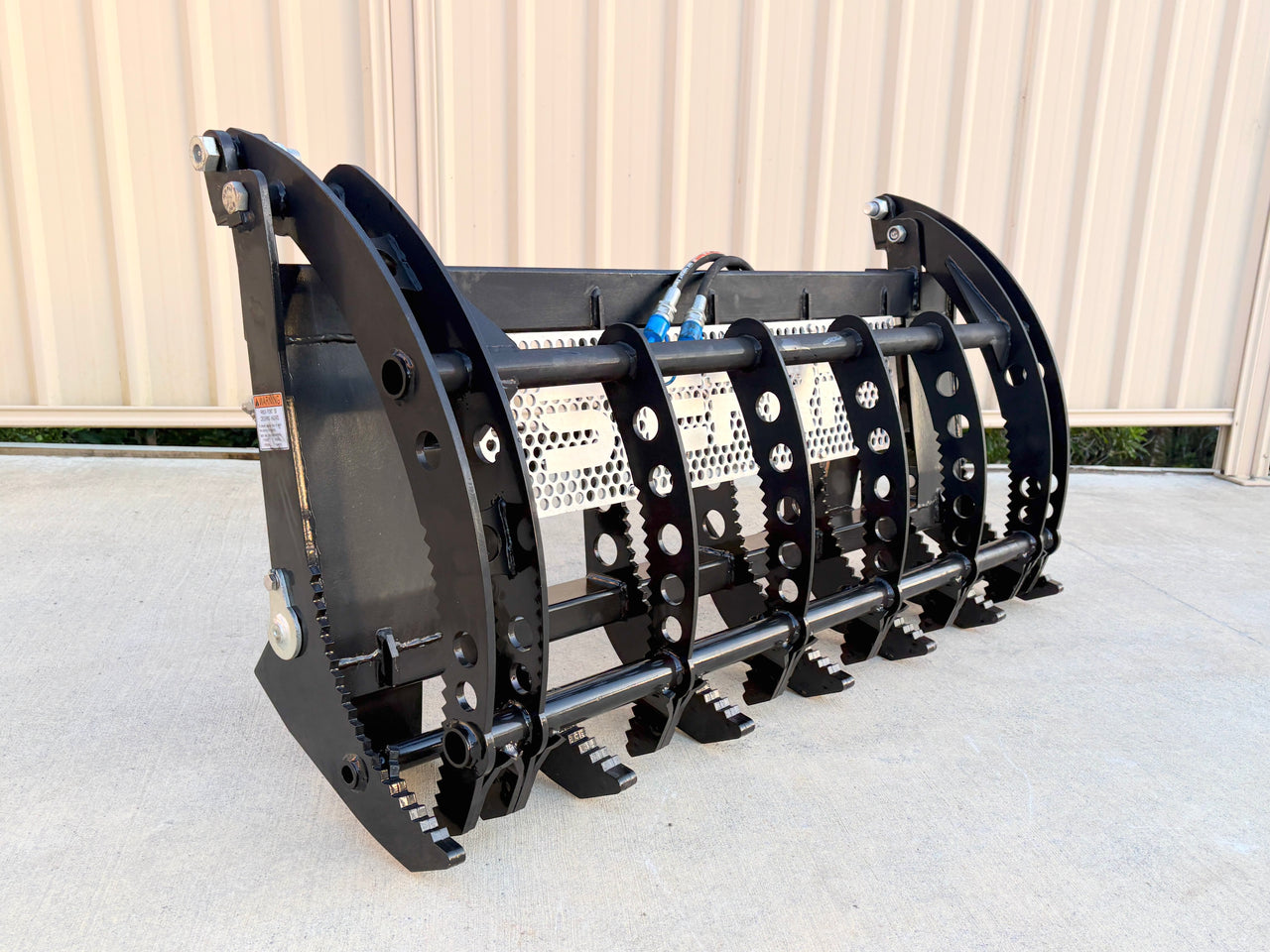

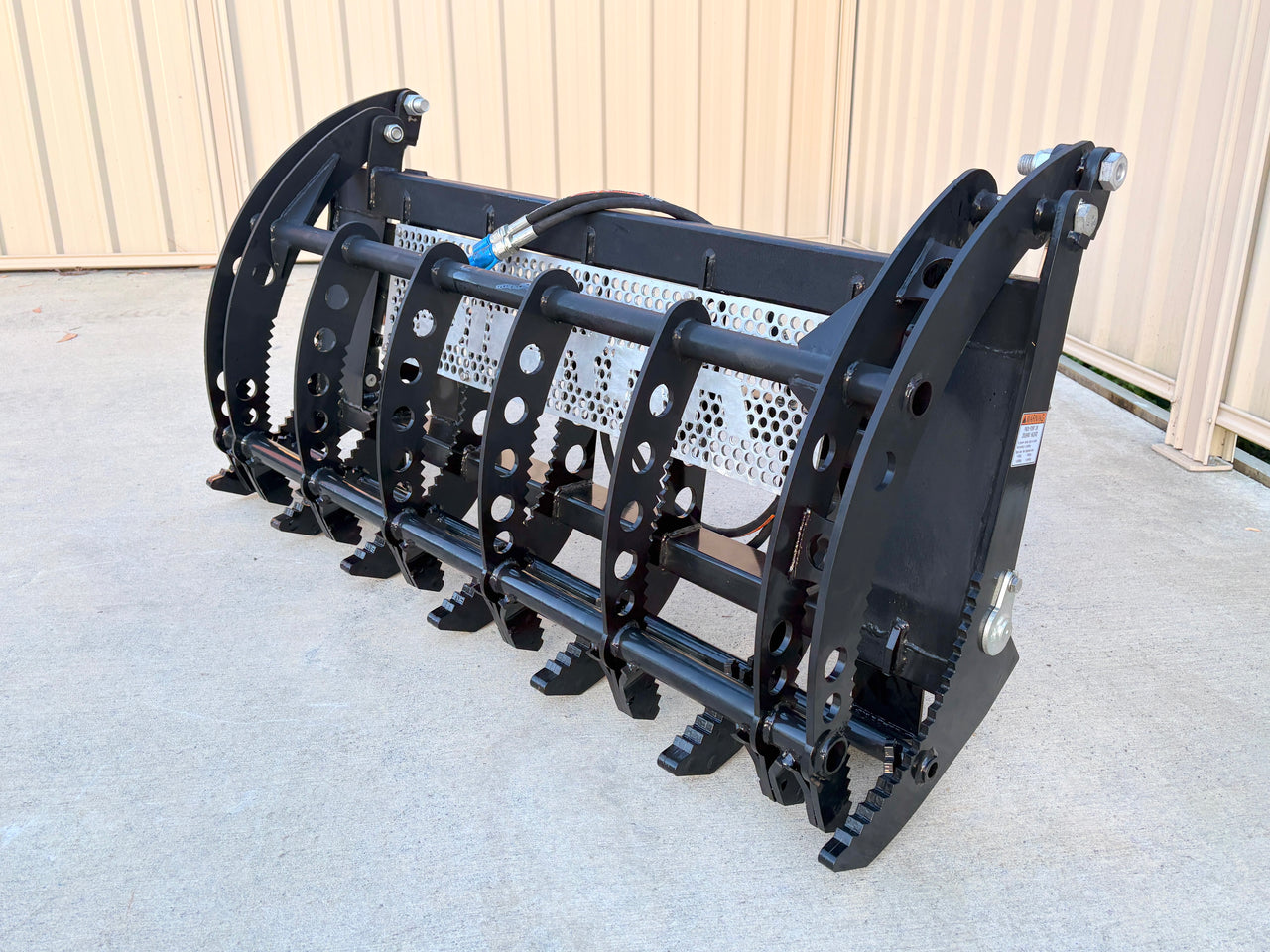

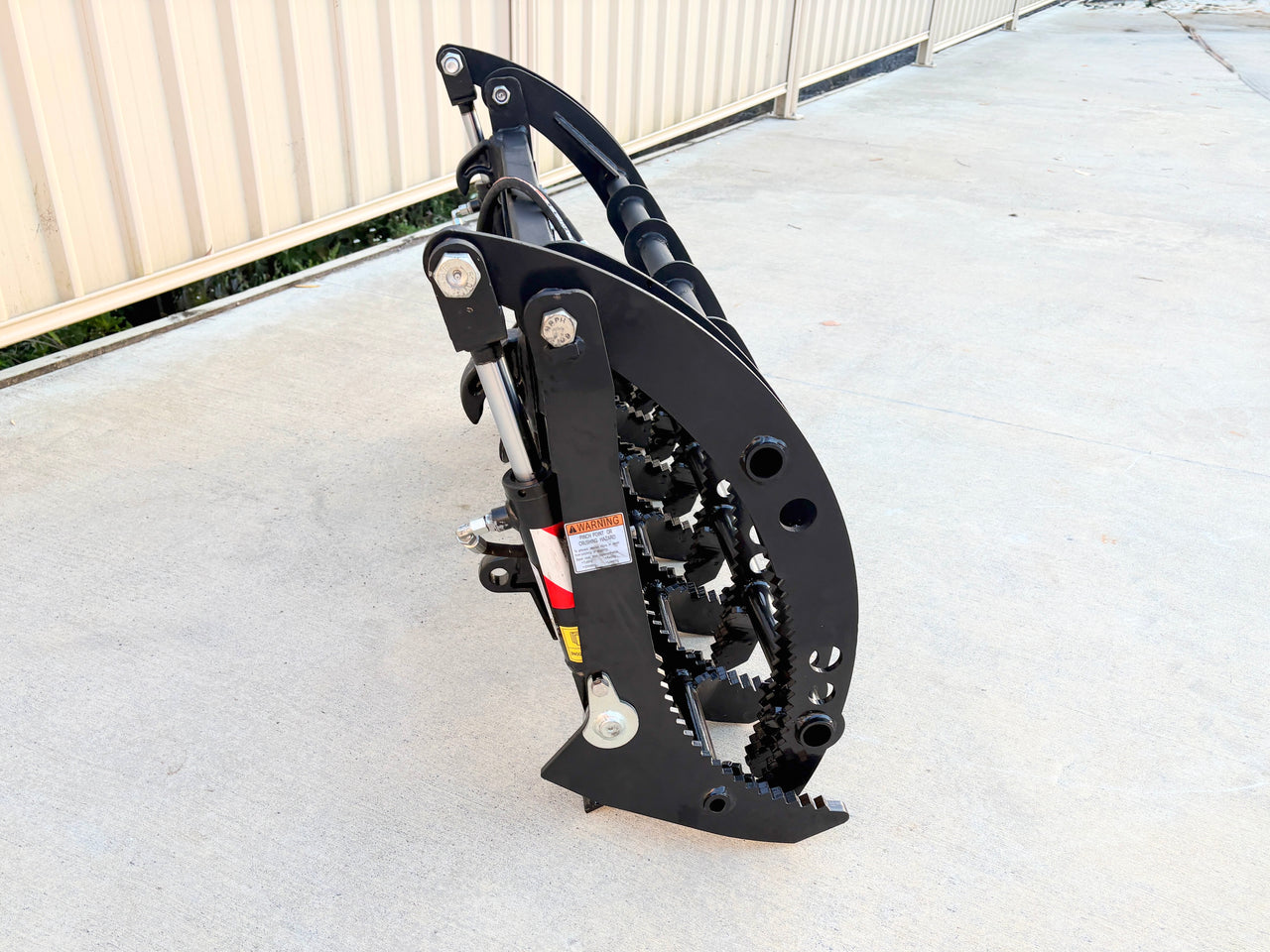

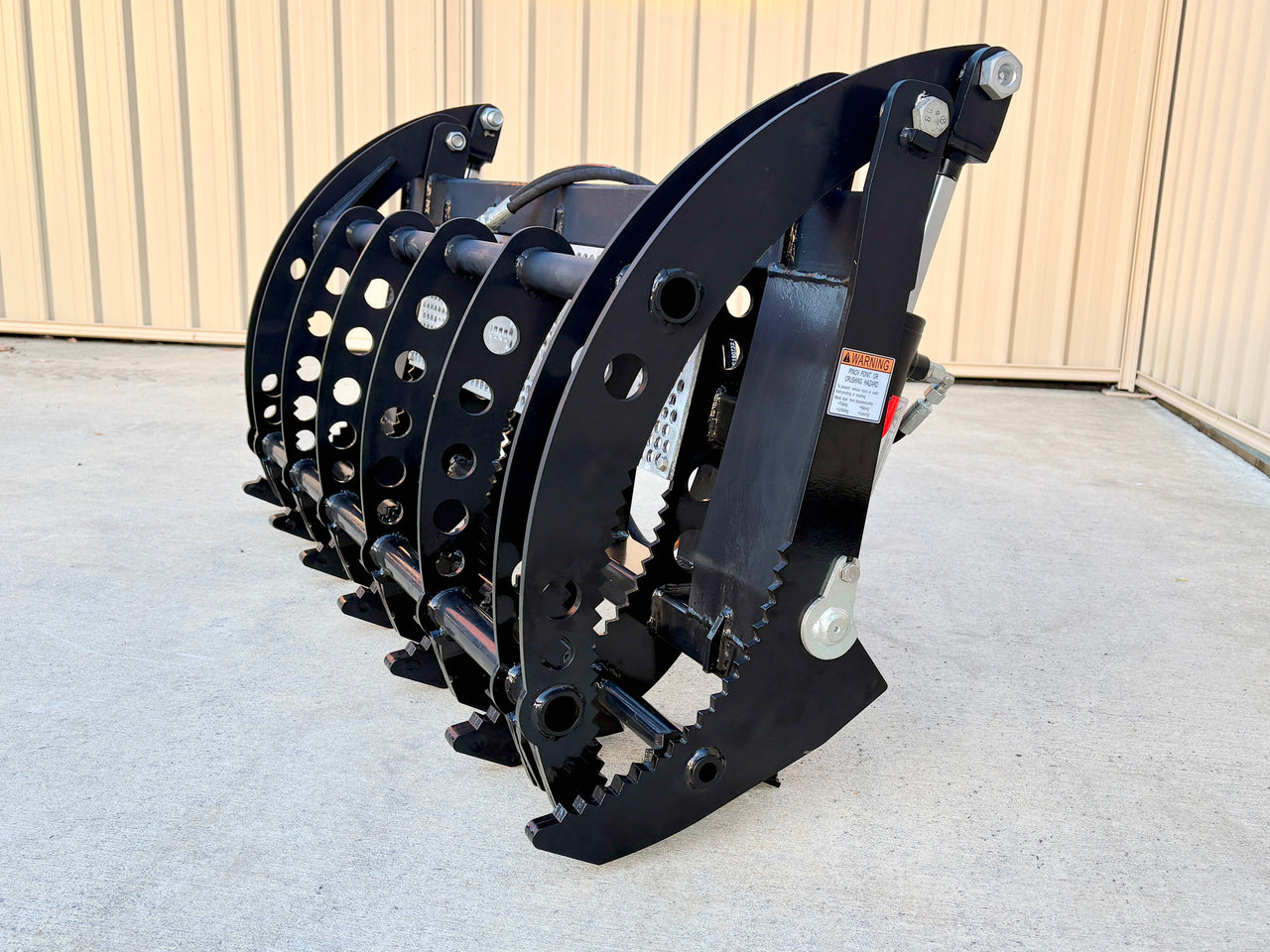

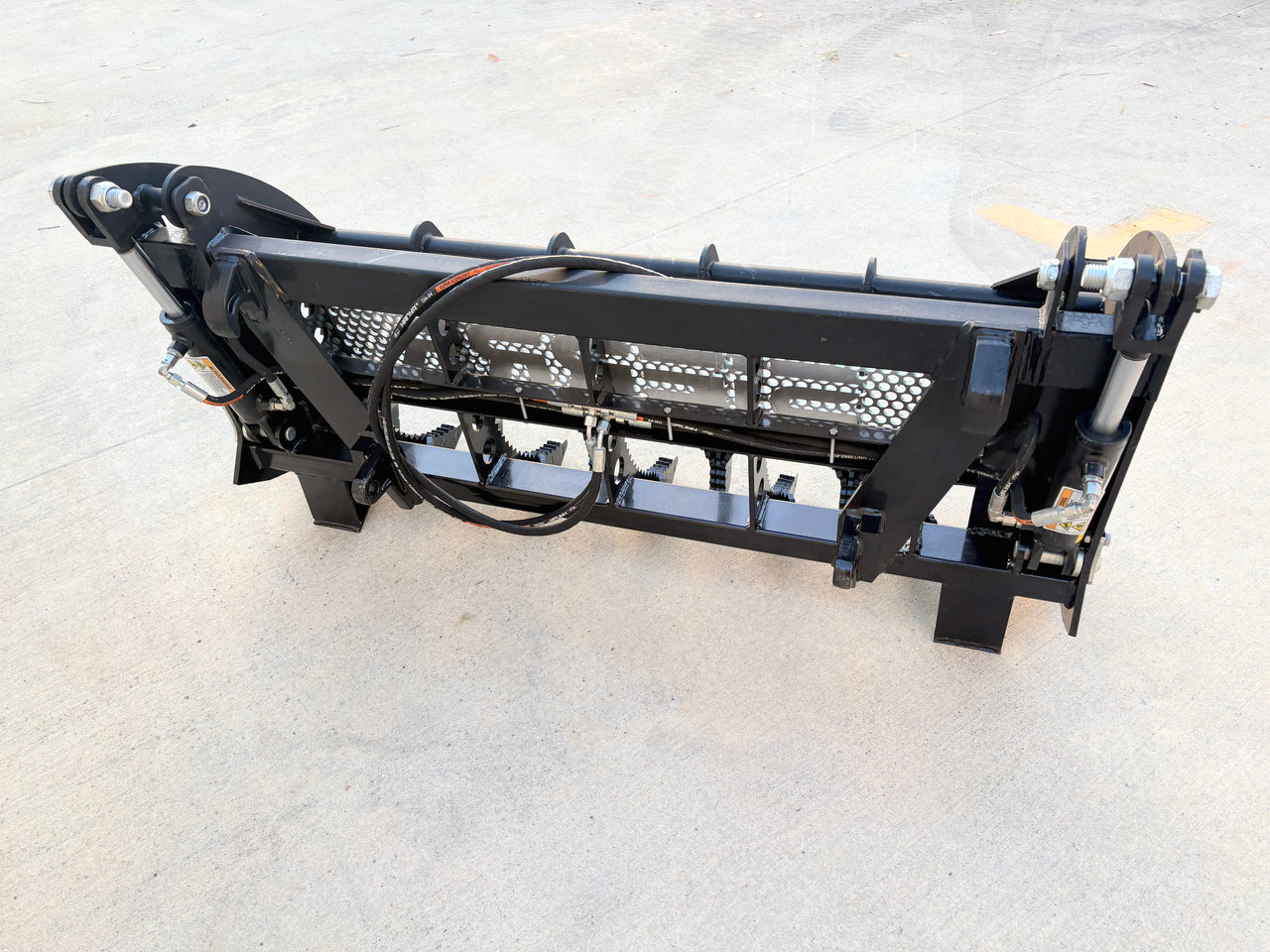

The Sierra SEG1500 is a heavy-duty compact grapple built for subcompact tractors fitted with a Euro hitch loader. Suited to tractors in the 25–45HP range, it handles timber, brush, debris, and general material handling with confidence. At 151kg, it's a serious working attachment that keeps within the lift capacity of most subcompact loaders.

Features & Benefits

• Designed specifically for Euro hitch loaders

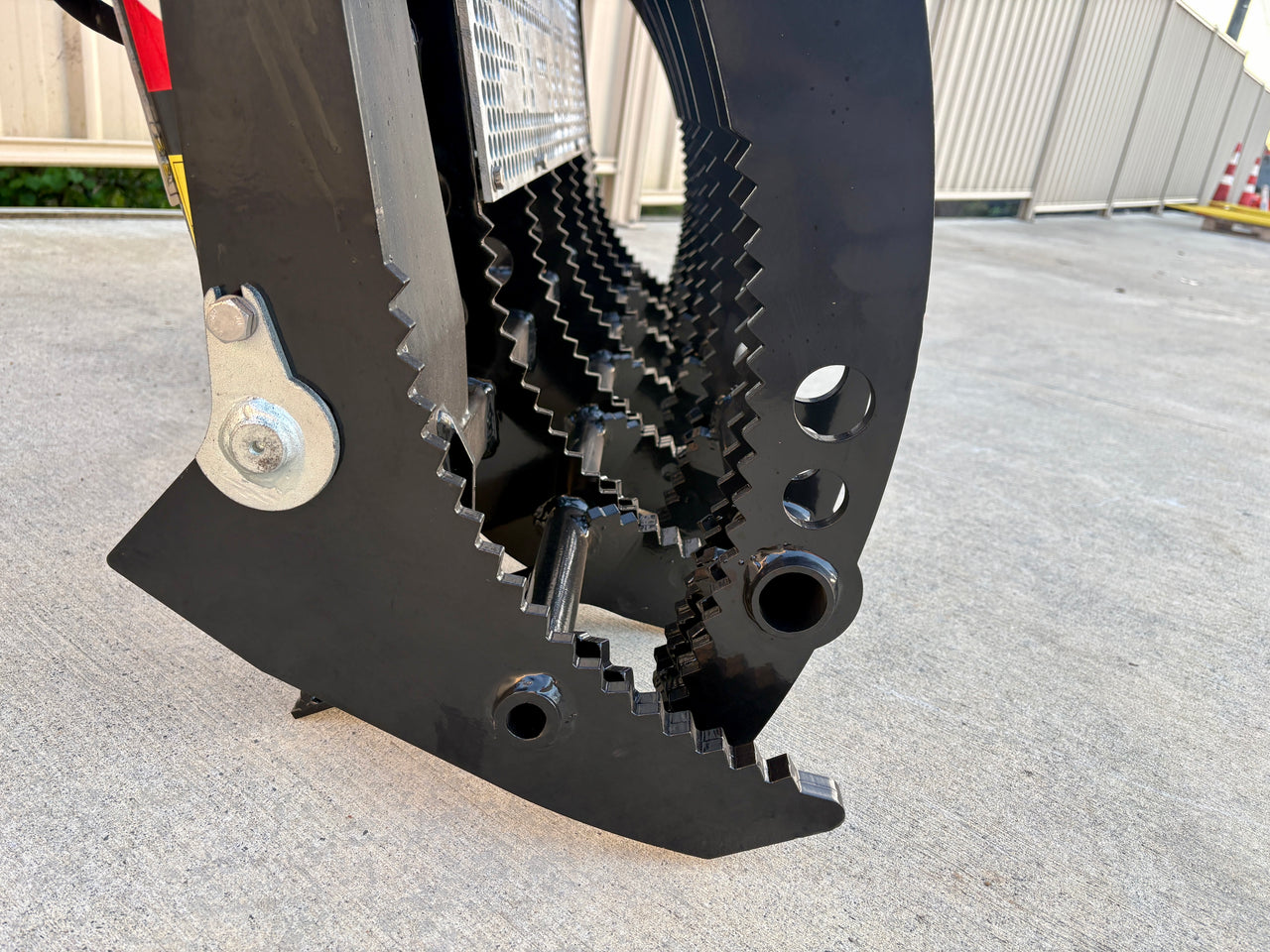

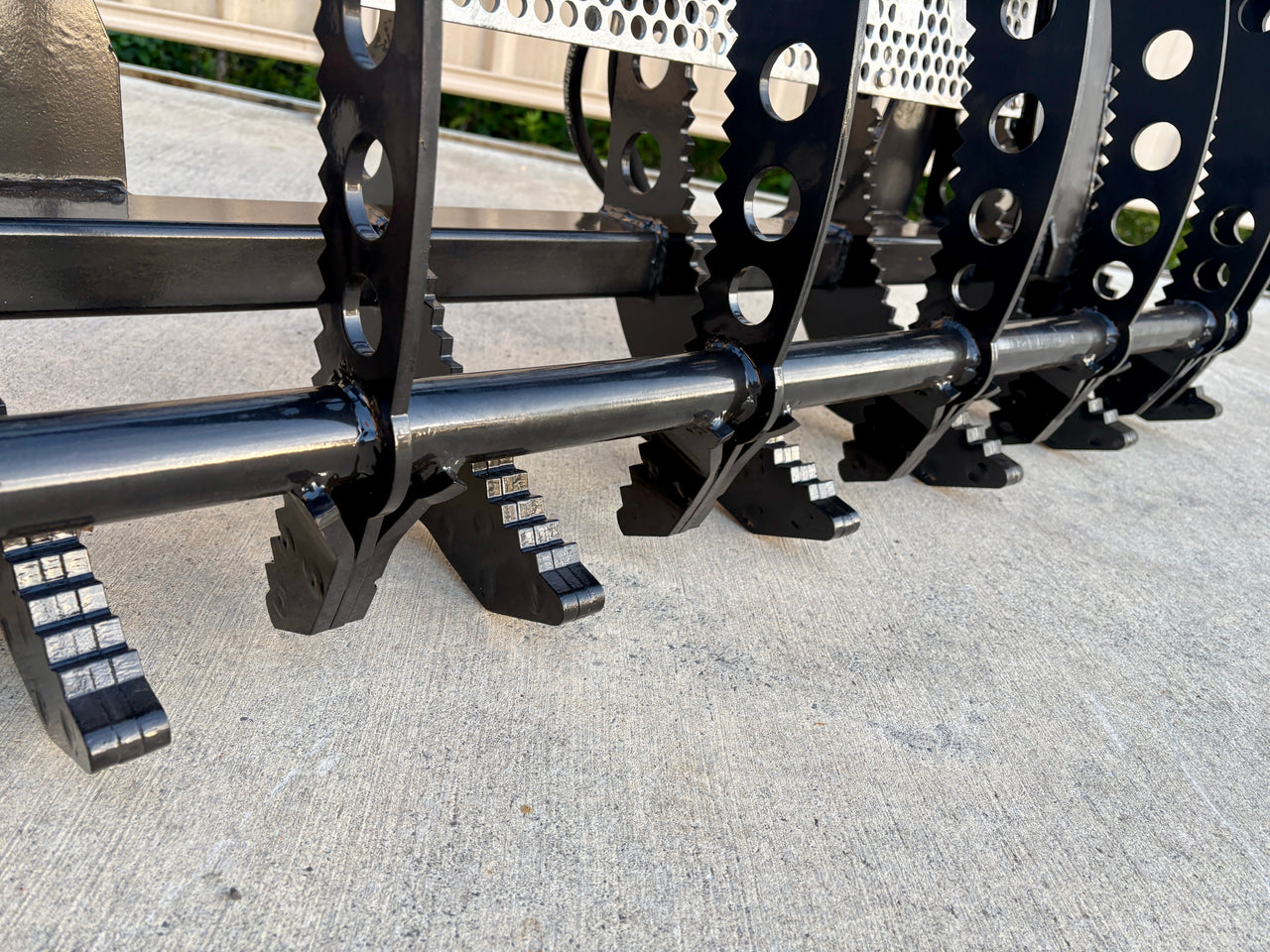

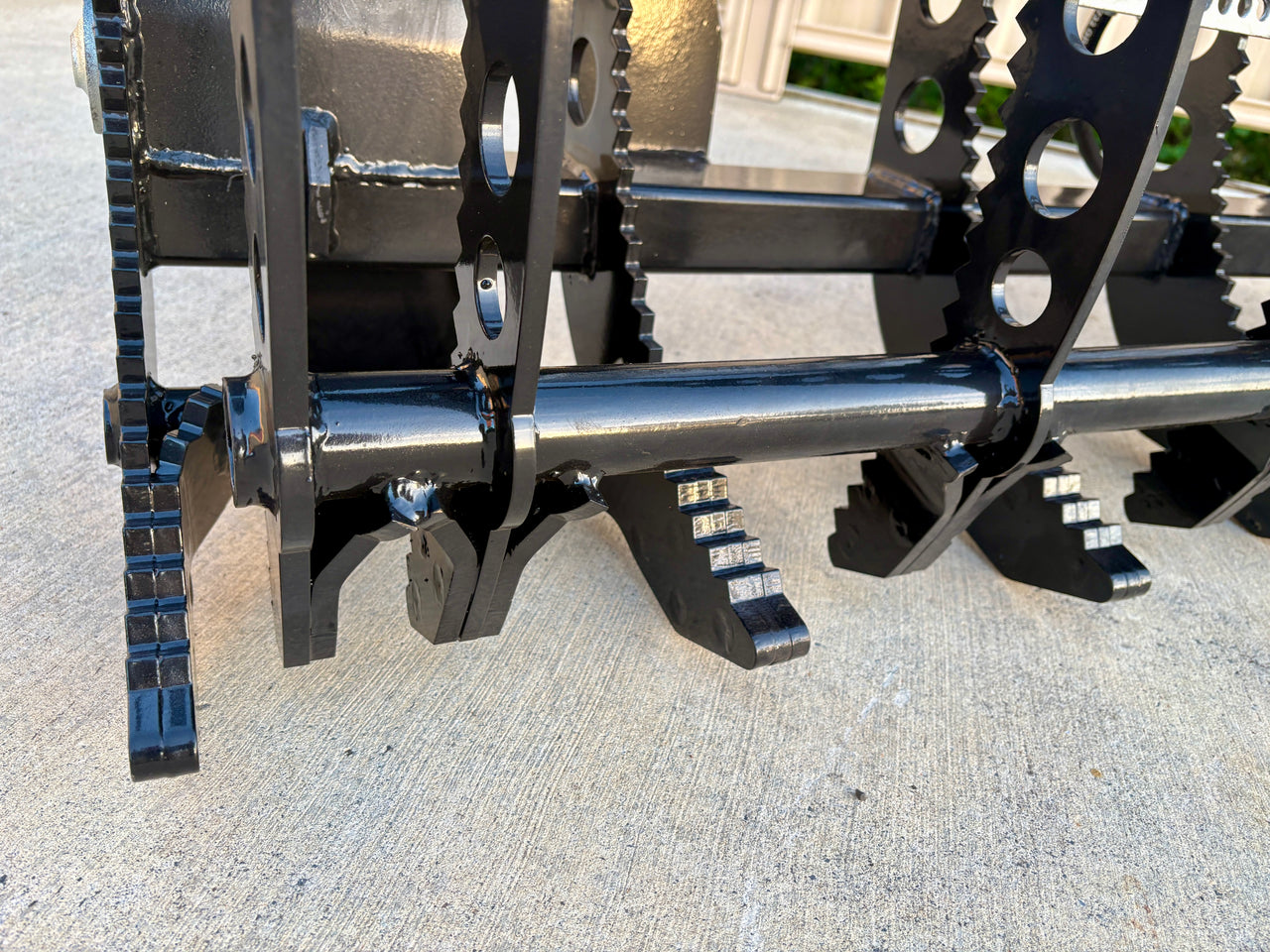

• Serrated jaws for better grip on logs, brush, and irregular loads
• 865mm jaw opening for grabbing large logs, brush bundles, and bulky debris
• 1320mm wide upper jaw; 1420mm overall width
• 50mm hydraulic cylinders provide strong, positive jaw closure
• Grease nipples on all pivot points for easy maintenance and extended component life
• 1.2m hoses with male quick couplers included
• Compact profile maintains good forward visibility from the cab

Specifications

Specification	Value
Model	SEG1500
Weight	151kg
Hitch Type	Euro Hitch
Tractor HP Range	25–45 HP
Overall Width	1420mm
Upper Jaw Width	1320mm
Jaw Opening (max)	865mm
Lower Tine Spacing	215mm
Upper Tine Spacing	230mm
Hydraulic Cylinders	50mm
SKU	SEG1500

Best For

• Timber and log handling on lifestyle blocks
• Clearing scrub, brush, and storm debris
• General material handling and farm cleanup
• Small-scale forestry and land clearing

Compatibility

Tractor HP Range: 25–45 HP
Hitch Type: Euro Hitch (brackets fitted as standard)
Hydraulic Requirement: Double-acting hydraulic service

Learn more about Euro hitches →

What's Included

• Sierra SEG1500 Compact Grapple
• 1.2m hydraulic hoses with male and female quick couplers
• Euro hitch mounting brackets

Warranty & Support

12-month manufacturer warranty. Contact Implements Direct for support.

Shipping & Freight

Heavy freight item — ships via pallet. Freight calculated at checkout.
